9D-14 Wipers / Washers:

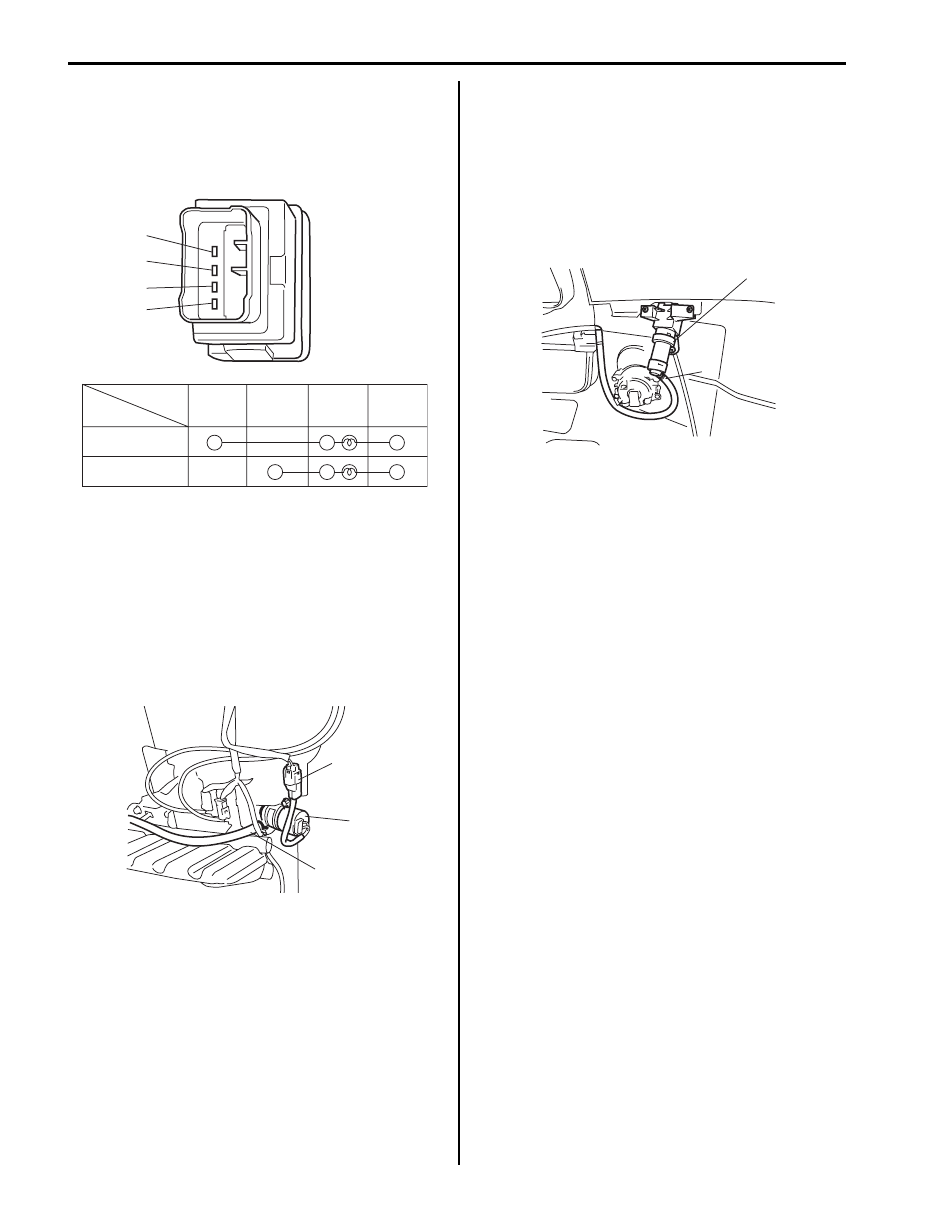

Headlight Washer Switch Inspection (If
Equipped)

S6JB0A9406014

Check for continuity between terminals at each switch
position.
If check result is not as specified, replace switch.

Headlight Washer Pump Removal and
Installation (If Equipped)

S6JB0A9406015

Removal

1) Remove front bumper referring to “Front Bumper

Components in Section 9K”.

2) Disconnect headlight washer hose (1) and washer

pump connector (2) from headlight washer pump (3).

3) Remove headlight washer pump from washer tank.

Installation
Reverse removal procedure for installation.

Headlight Washer Nozzle Removal and
Installation (If Equipped)

S6JB0A9406016

Removal

1) Remove front bumper referring to “Front Bumper

Components in Section 9K”.

2) Disconnect headlight washer hose (1) from headlight

washer nozzle (2).

3) Remove headlight washer nozzle from front bumper.

Installation
Reverse removal procedure for installation.

1

2

3

4

Switch Position

Terminal

ON (PUSH IN)

1

2

3

4

OFF

I5JB0A940023-01

1

2

3

I5JB0A940024-01

2

1

I5JB0A940025-01

Wipers / Washers:  9D-15

Specifications

Tightening Torque Specifications

S6JB0A9407001

NOTE
The specified tightening torque is also described in the following.
“Wipers and Washers Components”



Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

Fastening part

Tightening torque

Note

N

⋅m

kgf-m

lb-ft

Windshield wiper bolt

8.5

0.85

6.5

)

Windshield wiper arm nut

14

1.4

10.5

)

Rear wiper motor mounting bolt

7

0.7

5.0

)

Rear wiper arm nut

8

0.8

6.0

)

9E-1 Glass / Windows / Mirrors:

Body, Cab and Accessories

Glass / Windows / Mirrors

General Description

Rear End Door Window Defogger System Description

S6JB0A9501001

The rear end door window defogger is controlled by BCM. For the BCM description refer to “BCM General Description
in Section 10B”.

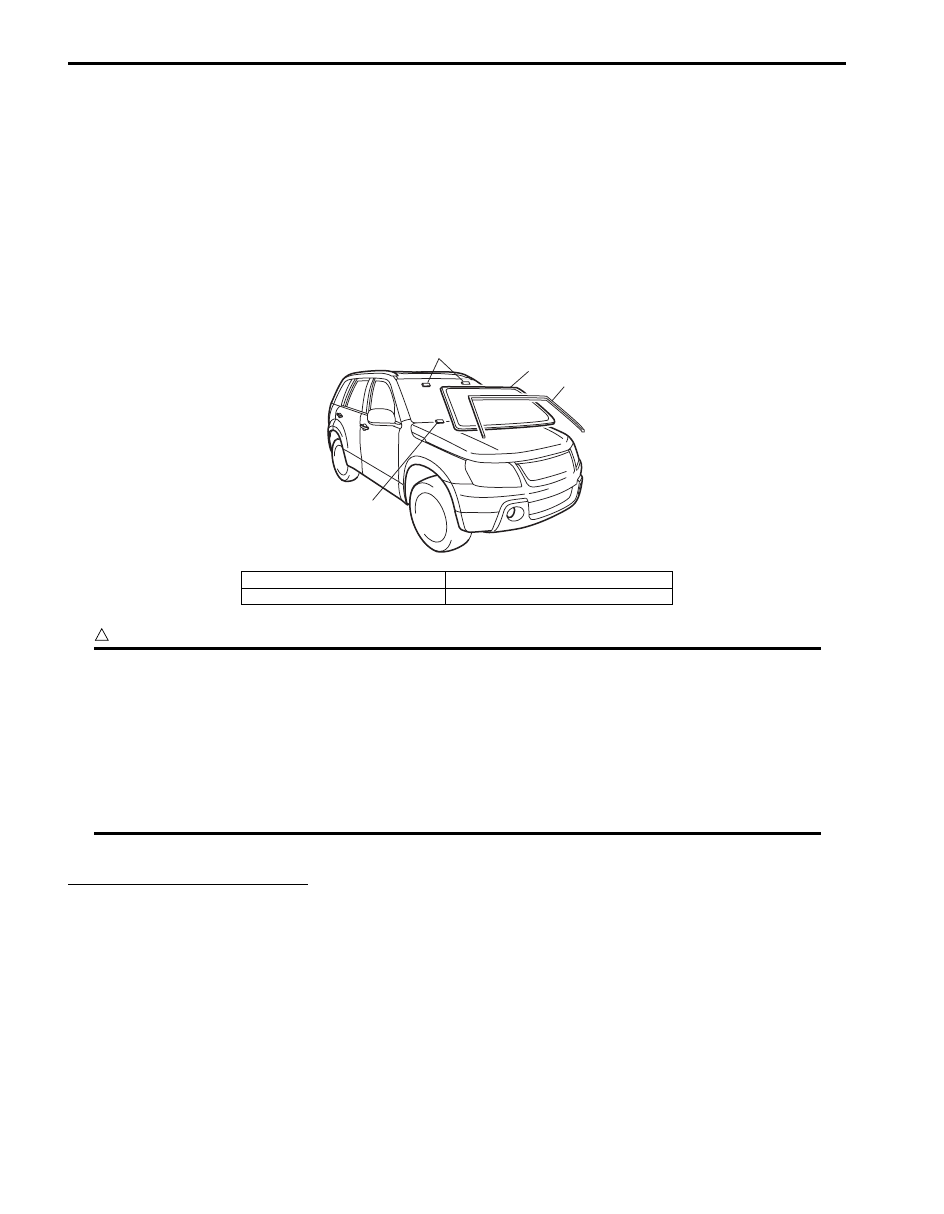

Windshield Construction

S6JB0A9501002

The windshield is installed by using a special type of adhesive (that is, one component urethane adhesive used with
primer). For the windshield replacement, it is important to use an adhesive which provides sufficient adhesion strength
and follow the proper procedure.

CAUTION

!



• Described is the glass replacement by using 3 types of primers and 1 type of adhesive made by

YOKOHAMA (one component urethane adhesive to be used with primer in combination). When
using primer and adhesive made by other manufacturers, be sure to refer to handling instructions
supplied with them. Negligence in following such procedure or misuse of the adhesive in any way
hinders its inherent adhesive property. Therefore, before the work, make sure to read carefully the
instruction and description given by the maker of the adhesive to be used and be sure to follow the
procedure and observe each precaution throughout the work.

• Should coated surface be scratched or otherwise damaged, be sure to repair damaged part, or

corrosion may start from there.



Use the specific adhesive which has the following property.

Glass adhesive shearing strength
40 kg/cm

2

 (569 lb/in

2

) or more

1. Windshield glass

3. Fastener

2. Windshield molding

3

3

1

2

I5JB0A950001-01

Glass / Windows / Mirrors:  9E-2

Adhesive materials and tools required for removal and installation.
• One component urethane adhesive and primers used in combination (For one sheet of windshield).

– Adhesive (470 g (15.7 oz.))
– Primer for glass (30 g (1.0 oz.))
– Primer for body (30 g (1.0 oz.))
– Primer for molding (30 g (1.0 oz.))

• Eyeleteer
• Piano string
• Windshield knife
• Brush for primer application (2 pcs)
• Knife
• Rubber sucker grip
• Sealant gun (for filling adhesive)
• Putty spatula (for correcting adhered parts)

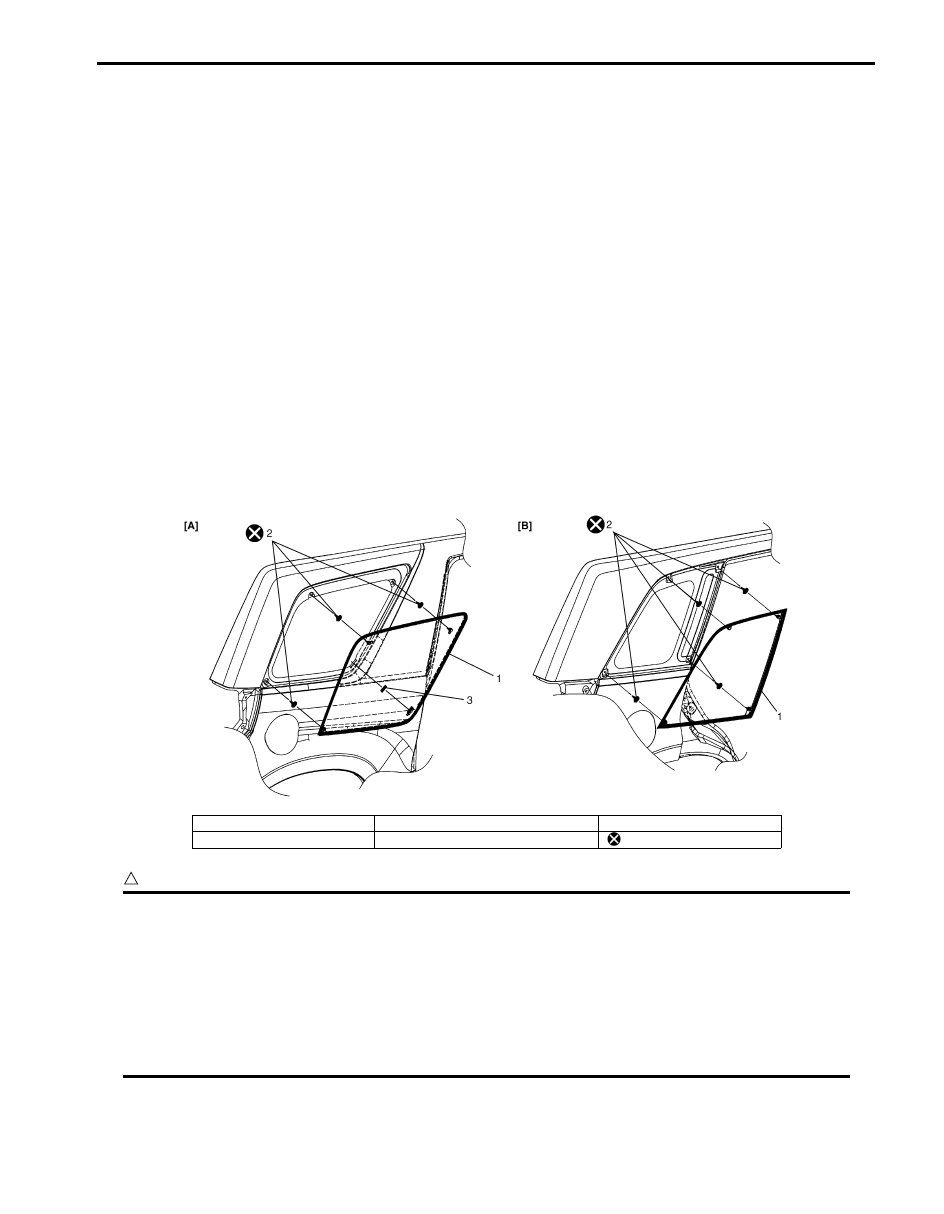

Rear Quarter Window Construction

S6JB0A9501003

The rear quarter window is installed by using a special type of adhesive (that is, one component urethane adhesive
used with primer). For the rear quarter window replacement, it is important to use an adhesive which provides
sufficient adhesion strength and follow the proper procedure.

CAUTION

!



• Described is the glass replacement by using 3 types of primers and 1 type of adhesive made by

YOKOHAMA (one component urethane adhesive to be used with primer in combination). When
using primer and adhesive made by other manufacturers, be sure to refer to handling instructions
supplied with them. Negligence in following such procedure or misuse of the adhesive in any way
hinders its inherent adhesive property. Therefore, before the work, make sure to read carefully the
instruction and description given by the maker of the adhesive to be used and be sure to follow the
procedure and observe each precaution throughout the work.

• Should coated surface be scratched or otherwise damaged, be sure to repair damaged part, or

corrosion may start from there.



I5JB0A950002-01

[A]: 3 door model

1. Rear quarter window glass

3. Fastener

[B]: 5 door model

2. Rear quarter window glass clip

: Do not reuse.
