9D-10 Wipers / Washers:

• For automatic stop operation

a. Connect battery positive (+) terminal to

terminal “1” and its negative (–) terminal to
body ground and let the motor turn.

b. Connect terminal “2” and “3” by a jumper wire.
c. Observe the motor (4) turns once again then

stops at a specified position as shown.

d. Repeat Step a. to c. several times and check

that the motor stops at the specified position
every time.
If check result is not satisfied, replace motor.

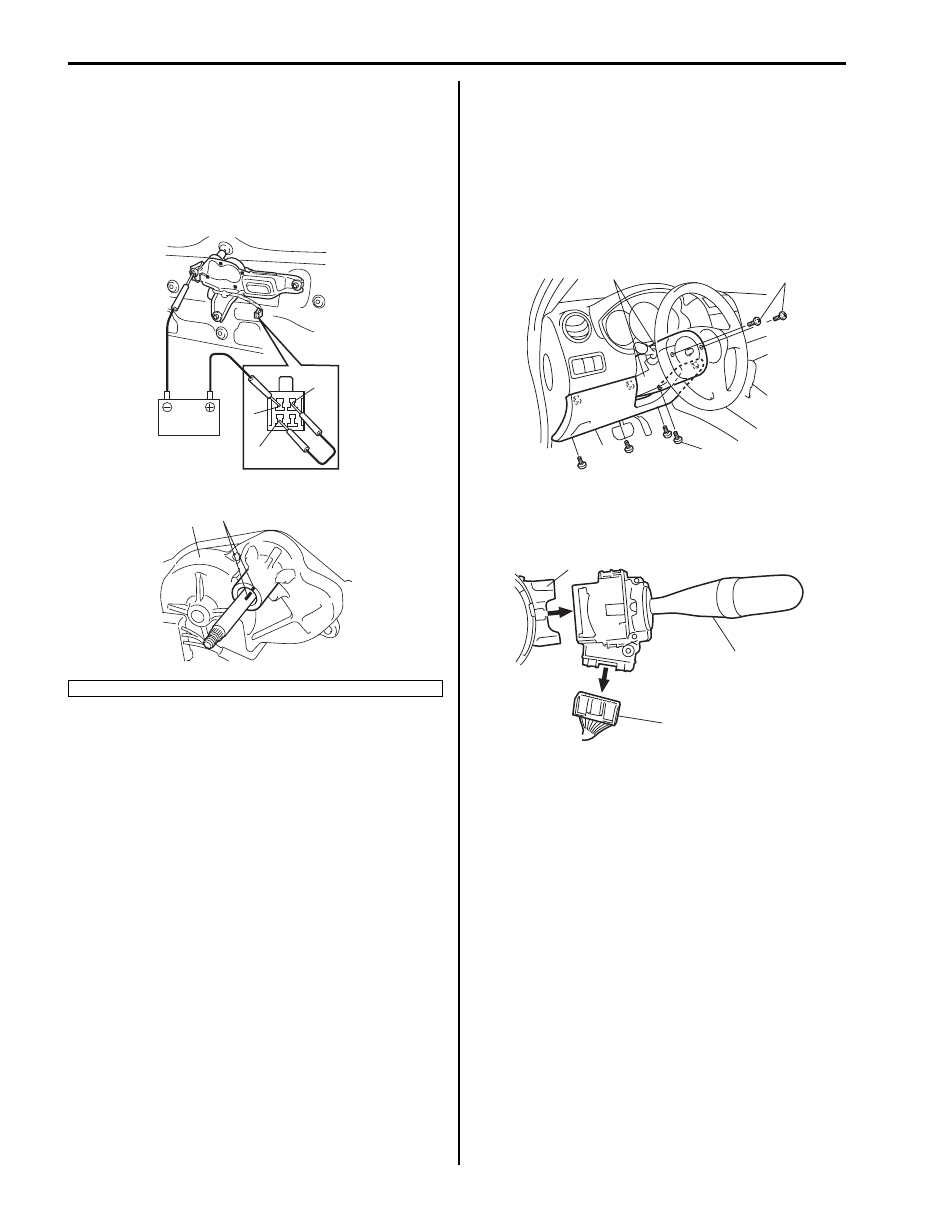

Windshield Wiper and Washer Switch Removal
and Installation

S6JB0A9406008

Removal

1) Disconnect negative (–) cable at battery.
2) Remove steering column hole cover (1).
3) Remove steering column covers (2).

Turn steering wheel to access steering column cover
rear end screws (3).

4) Remove windshield wiper and washer switch (1)

from combination switch assembly (2) and
disconnect its coupler (3).

Installation
Reverse removal procedure.

5. Mark

5

4

1

3

2

I5JB0A940019-01

1

2

3

3

I5JB0A940020-02

1

2

3

I4RS0B940008-01

Wipers / Washers:  9D-11

Windshield Wiper and Washer Switch
Inspection

S6JB0A9406009

Windshield Wiper and Washer Switch
Check for continuity between terminals at each switch
position. If check result is not as specified, replace
switch.

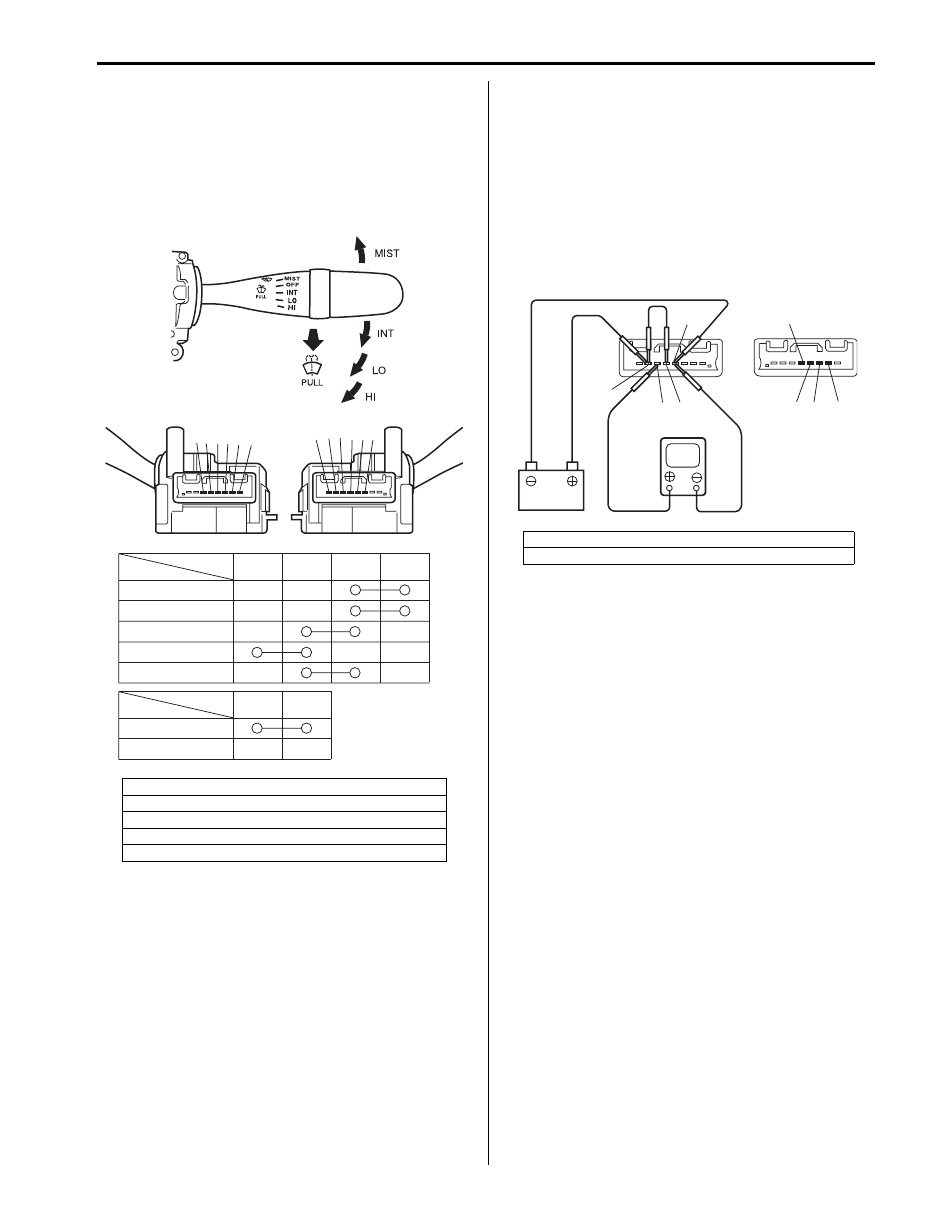

Intermittent Wiper Relay Circuit

1) Turn the windshield wiper switch to “INT” position.
2) Connect battery positive (+) terminal to terminal “5”

and its negative (–) terminal to terminal “2”.

3) Connect voltmeter positive lead to terminal “4” and

its negative lead to terminal “2”.

4) Check that the voltmeter indicates the battery

voltage (10 – 14 V).

5) Connect terminal “3” and terminal “5” by a jumper

wire.

[A]: RH steering vehicle without rear fog light
[B]: Other than RH steering vehicle without rear fog light

[C]: Terminal
[D]: Wiper switch

[E]: Washer switch

OFF

INT

6

5

4

3

MIST

OFF

1

2

ON

LO

HI

6 5 4 3 2 1

1 2 3 4 5 6

[A]

[B]

[C]

[D]

[E]

[C]

I5JB0D940001-01

[A]: RH steering vehicle without rear fog light
[B]: Other than RH steering vehicle without rear fog light

V

2

3

4

5

2

3

4

5

[B]

[A]

I5JB0D940002-02

9D-12 Wipers / Washers:

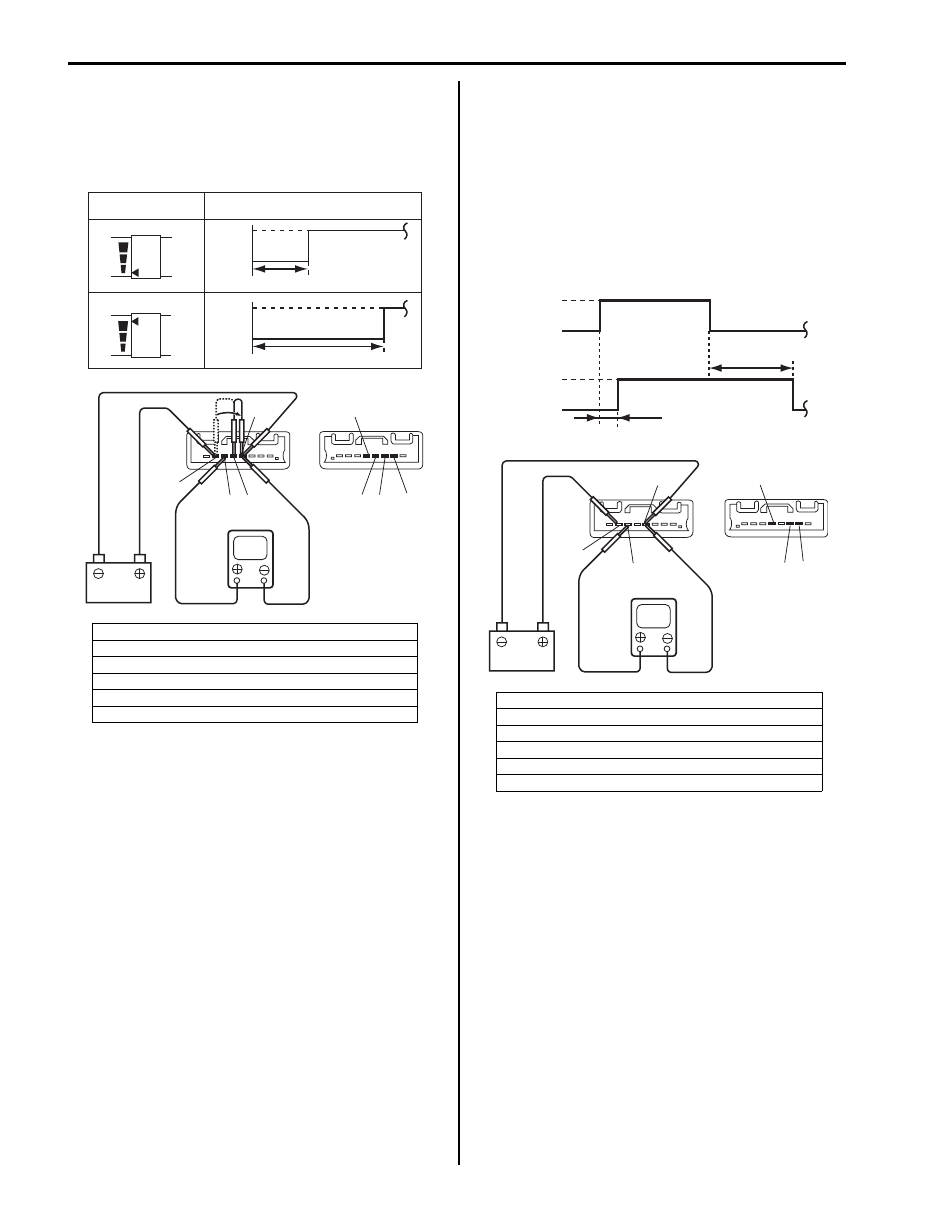

6) Disconnect end of the jumper wire from terminal “5”.
7) Connect disconnected jumper wire end to terminal

“2”, then check that voltage between terminal “4” and
terminal “2” changes as shown.
If check result is not satisfied, replace switch.

Washer Linked Circuit

1) Make sure that front wiper switch is at “OFF”

position.

2) Connect battery positive (+) terminal to terminal “5”

and its negative (–) terminal to terminal “2”.

3) Connect voltmeter positive lead to terminal “4” and

its negative lead to terminal “2”.

4) When front washer switch is ON, check that voltage

changes as shown in figure.
If check result is not satisfied, replace switch.

[A]: RH steering vehicle without rear fog light
[B]: Other than RH steering vehicle without rear fog light

[C]: Voltage
[D]: INT time control switch position

[E]: 1.6

± 1 sec.

[F]: 10.7

± 5 sec.

V

 INT
TIME

 INT
TIME

10-14V

0V

10-14V

0V

2

3

4

5

2

3

4

5

[B]

[A]

[C]

[D]

[E]

[F]

I5JB0D940003-02

[A]: RH steering vehicle without rear fog light
[B]: Other than RH steering vehicle without rear fog light

[C]: Wiper switch
[D]: Voltage

[E]: Approx. 2.2 sec.

[F]: Approx. 0.3 sec.

V

2

4

5

2

4

5

[B]

[A]

ON

OFF

High

Low

[E]

[F]

[C]

[D]

I5JB0D940004-02

Wipers / Washers:  9D-13

Rear Wiper and Washer Switch Removal and
Installation

S6JB0A9406010

For removal and installation, refer to “Windshield Wiper
and Washer Switch Removal and Installation”.

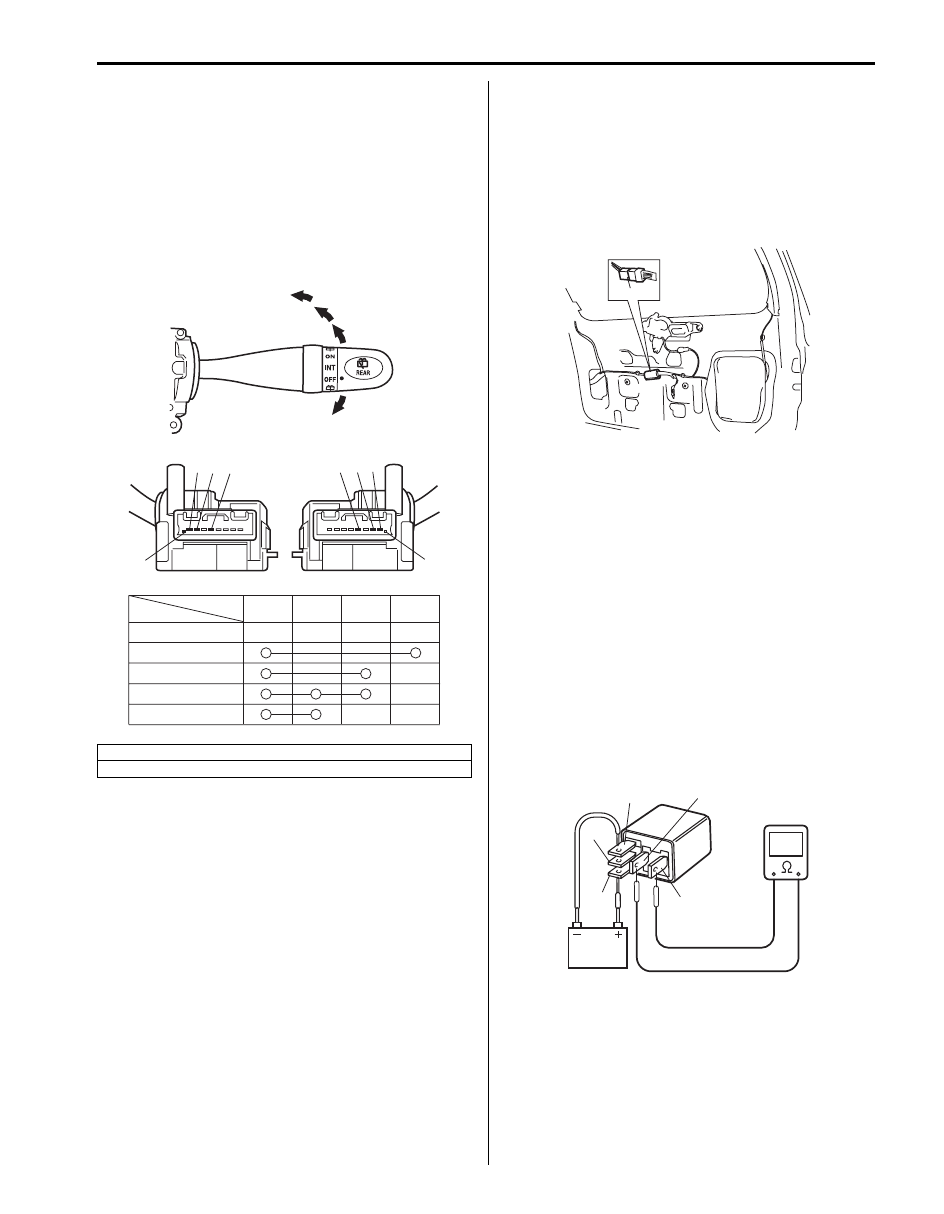

Rear Wiper and Washer Switch Inspection
