Suzuki Grand Vitara JB416 / JB420 / JB419. Manual - part 421





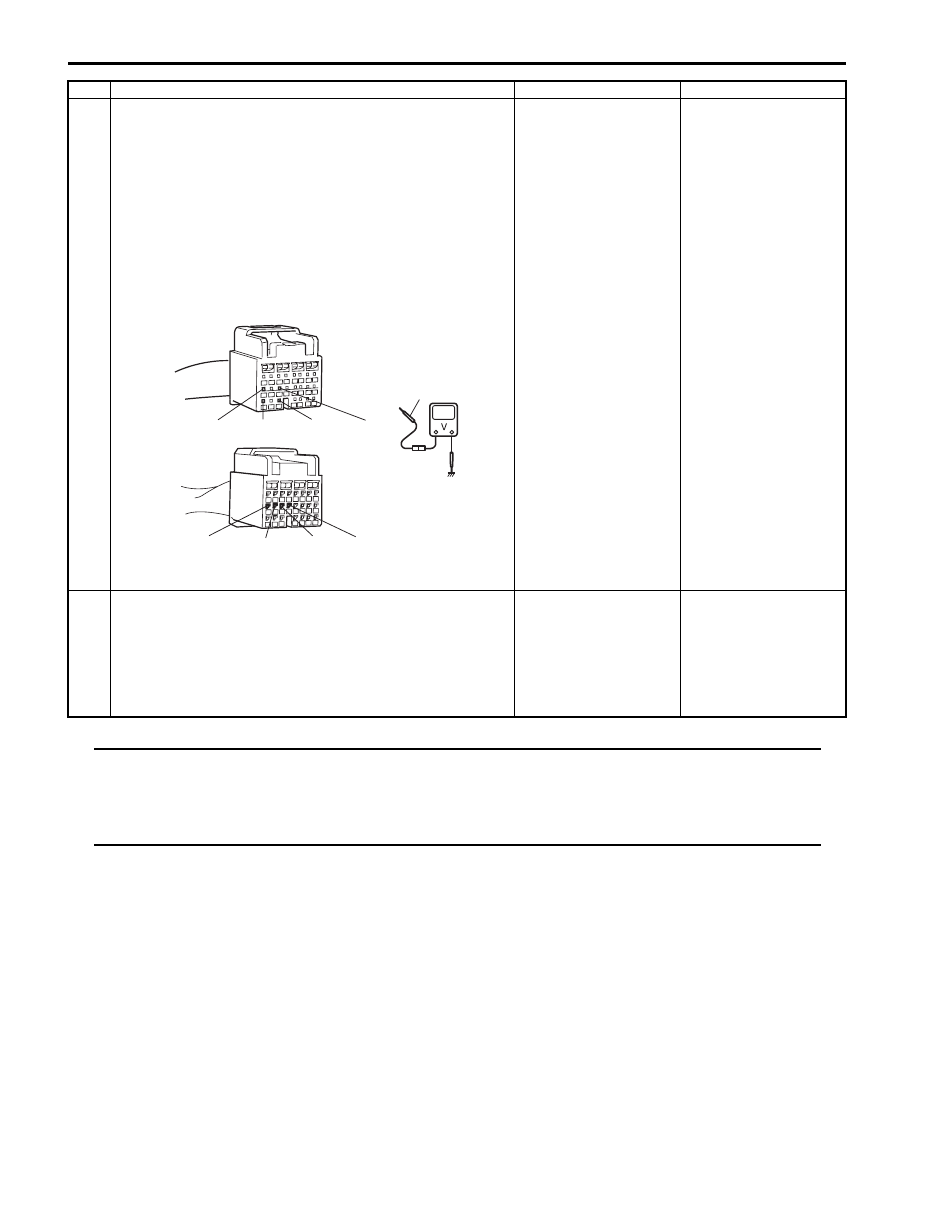

8B-69 Air Bag System:

NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components and ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”,
 if any.
• Repeat “Air Bag Diagnostic System Check”
to confirm that the trouble has been corrected.



2

1) Disconnect service wire from “E13” or “E24” connector.
2) Measure voltage between “G47-9” and body ground,

“G47-17” and body ground (for DTC B1074) or “G47-11”
and body ground, “G47-19” and body ground (for DTC
B1078) [A], or between “L33-9” and body ground, “L33-
10” and body ground (for DTC B1074) or “L33-11” and
body ground, “L33-12” and body ground (for DTC
B1078) [B].

Special tool
(A):  09932–76010

With ignition switch ON, is each measured value 1 V or less?

Go to Step 3.

For DTC B1074: “ORN”
circuit or “PNK/BLK”
circuit shorted to power
circuit.
For DTC B1078: “PNK”
circuit or “PNK/BLU”
circuit shorted to power
circuit.

3

1) Check forward-sensor referring to “Forward-Sensor

Inspection”.

Is it in good condition?

Substitute a known-
good SDM and recheck.

Replace forward-sensor
referring to “Forward-
Sensor Removal and
Installation”. If DTC
still
exists, substitute a
known-good SDM and
recheck.

Step

Action

Yes

No

(A)

[A]

[B]

“G47-11”

“G47-9” “G47-17”  “G47-19 ”

“L33-9”

“L33-10”

“L33-11” “L33-12”

I5JB0A820052-01

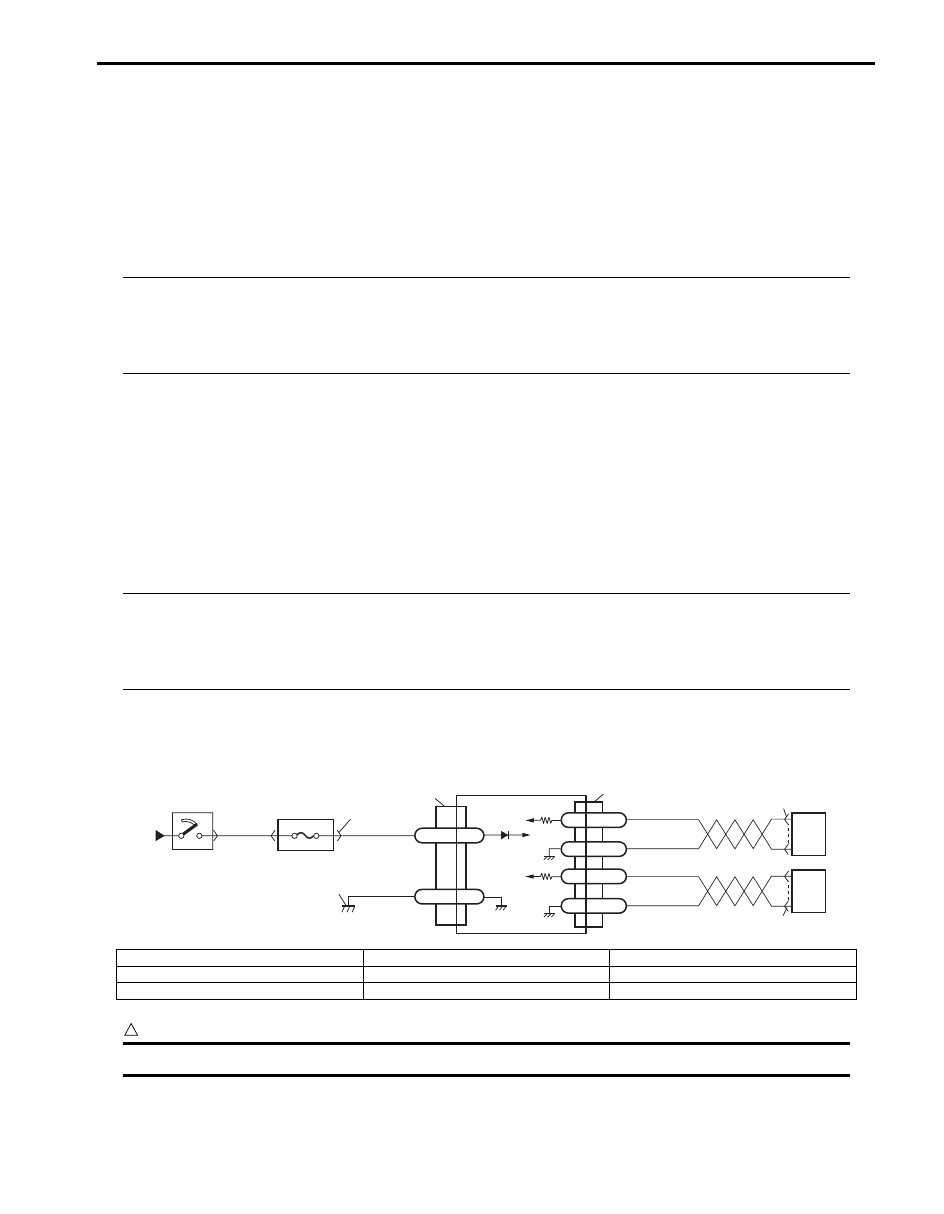

Air Bag System:  8B-70

DTC B1085: Wrong Side-Sensor ID

S6JB0A8204029

DTC Will Set when
SDM receives wrong ID (Part No.) signal from side-sensor.

DTC Troubleshooting

1) Turn ignition switch OFF.
2) Replace driver or passenger side-sensor referring to “Side-Sensor Removal and Installation”.
3) Repeat “Air Bag Diagnostic System Check”.

NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components and ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any
.
• Repeat “Air Bag Diagnostic System Check”
to confirm that the trouble has been corrected.



DTC B1086 / B1096: Left / Right Side-Sensor Performance Problem

S6JB0A8204030

DTC Will Set when
SDM receives internal fault signal from side-sensor.

DTC Troubleshooting

1) Turn ignition switch OFF.
2) Replace left or right side-sensor referring to “Side-Sensor Removal and Installation”.
3) Repeat “Air Bag Diagnostic System Check”.

NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components and ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any
.
• Repeat “Air Bag Diagnostic System Check”
to confirm that the trouble has been corrected.



DTC B1087 / B1097: Left / Right Side-Sensor Communication Error

S6JB0A8204031

Wiring Diagram

CAUTION

!



Be sure to observe instructions under CAUTION in “Air Bag Diagnostic System Check Flow”.



BLK

G46-16 GND

“G46”

1

2

4

3

RED

BLK/YEL

“G01”

G46-11

IG

L33-15

L33-16

SR+

SR-

L33-14

L33-13

SL+

SL-

“L33”

WHT/RED

LT GRN/BLK

WHT/GRN

LT GRN

“L11”

“L35”

8

5

6

7

I5JB0A820053-02

1. From main fuse

4. Junction block assembly

7. Right side-sensor

2. Ignition switch

5. SDM

8. Ground for air bag system

3. “A/B” fuse

6. Left side-sensor

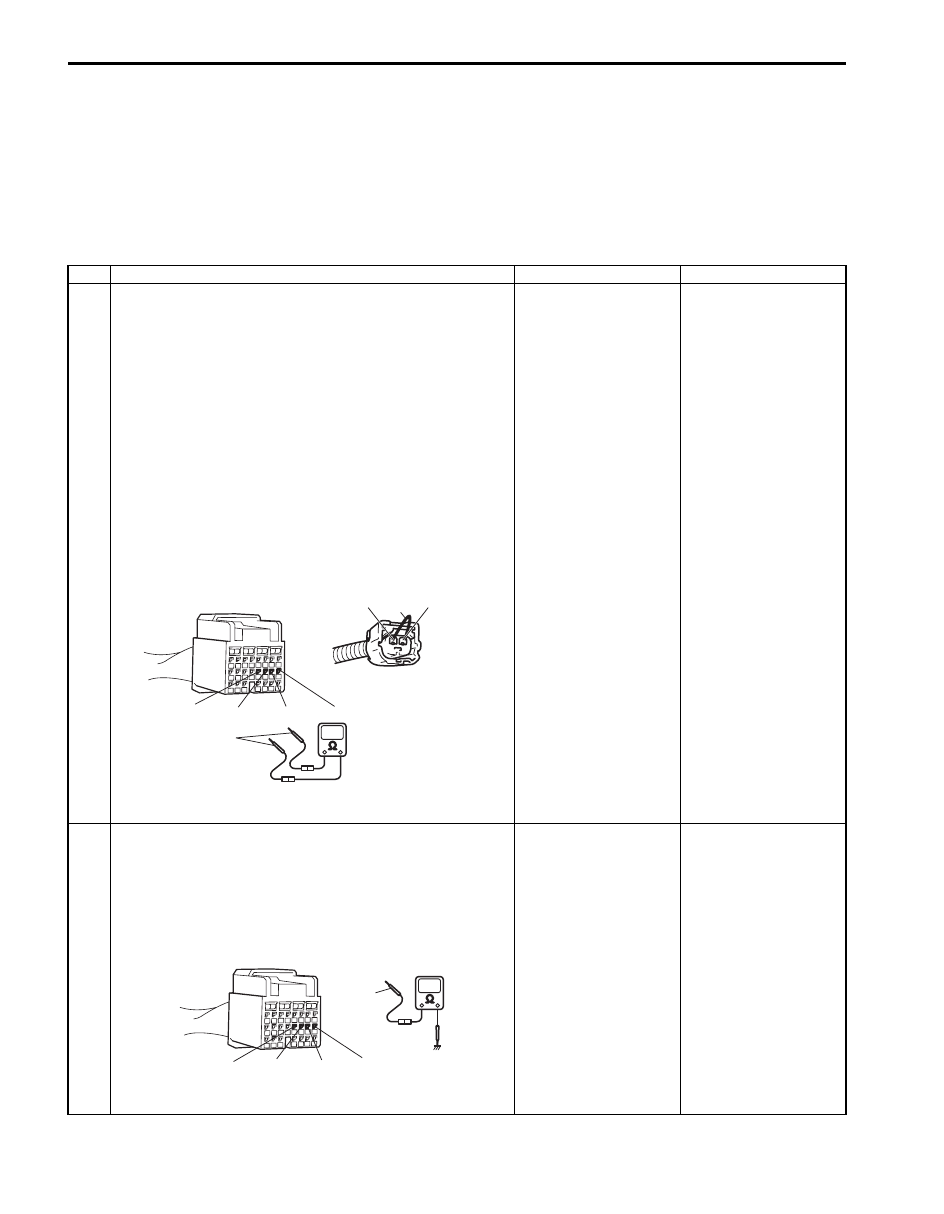

8B-71 Air Bag System:

DTC Will Set when
Side-sensor abnormal signal is detected by SDM.

Flow Test Description
Step 1: Check for open circuit in forward sensor circuit.
Step 2: Check for short circuit between forward sensor circuit and ground.
Step 3: Check for short circuit between forward sensor circuit and power supply circuit.
Step 4: Check if malfunction is in forward sensor.

DTC Troubleshooting

Step

Action

Yes

No

1

1) Disconnect side-sensor connector “L35” or “L11”.
2)  Disconnect SDM connector “L33”.
3) Check proper connection to SDM connector at terminals

“L33-13” and “L33-14” or “L33-15” and “L33-16”.

4) Check proper connection to side-sensor connector at

terminals “L35-1” and “L35-2” or “L11-1” and “L11-2”.

5) Using service wire (1), connect “L35-1” and “L35-2”

terminal (for DTC B1087) or “L11-1” and “L11-2” terminal
(for DTC B1097) of side-sensor connector.

6) Measure resistance between terminals “L33-13” and

“L33-14” (for DTC B1087) or terminals “L33-15” and
“L33-16” (for DTC B1097) of SDM connector.

Special tool
(A):  09932–76010

Is each measured resistance 1

 or less?

Go to Step 2

For DTC B1087: High
resistance or open wire
in “WHT/RED” circuit or
“LT GRN/BLK” circuit.
For DTC B1097: High
resistance or open wire
in “WHT/GRN” circuit or
“LT GRN” circuit.

2

Measure resistance between “L33-13” terminal and body
ground, and “L33-14” terminal and body ground (for DTC
B1087) or between “L33-15” terminal and body ground, and
“L33-16” terminal and body ground (for DTC B1097).

Special tool
(A):  09932–76010

Is each measured resistance infinity?

Go to Step 3.

For DTC B1087: “WHT/
RED” circuit or “LT
GRN/BLK” circuit
shorted to ground.
For DTC B1087: “WHT/
GRN” circuit or “LT
GRN” circuit shorted to
ground.

“L35-1”, “E11-1”

“L35-2”, “L11-2”

1

(A)

“L33-13” “L33-14” “L33-15” “L33-16”

I5JB0A820054-01

“L33-13” “L33-14” “L33-15” “L33-16”

(A)

I5JB0A820055-01

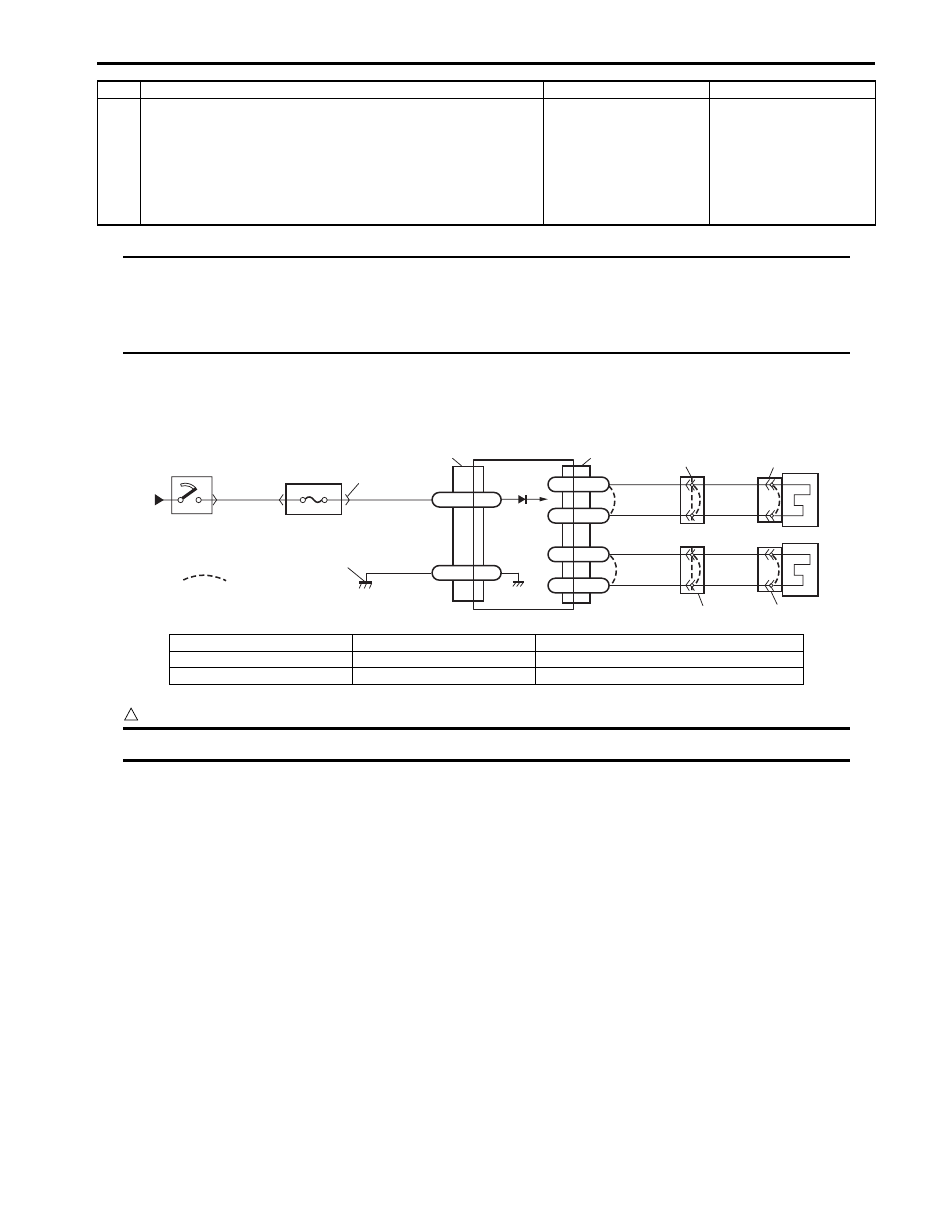

Air Bag System:  8B-72

NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components and ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any
.
• Repeat “Air Bag Diagnostic System Check”
to confirm that the trouble has been corrected.



DTC B1321 / B1325: Left / Right Side-Air Bag Initiator Circuit Resistance High

S6JB0A8204032

Wiring Diagram

CAUTION

!



Be sure to observe instructions under CAUTION in “Air Bag Diagnostic System Check Flow”.



DTC Will Set when
The combined resistance of the side-air bag (inflator) module (left or right), harness wiring and connector terminal
contact is above a specified value for specified time.

Flow Test Description
Step 1: Check whether malfunction is in side-air bag (inflator) module.
Step 2: Check side-air bag initiator circuit in floor harness.
Step 3: Check side-air bag initiator circuit in seat harness.

3

Check side-sensor referring to “Side-Sensor Inspection”.

Is it in good condition?

Substitute a known-
good SDM and recheck.

Replace side-sensor
referring to “Side-
Sensor Removal and
Installation”. If DTC
still
exists, substitute a
known-good SDM and
recheck.

Step

Action

Yes

No

BLK

G46-16 GND

“G46”

1

2

4

3

RED

BLK/YEL

“G01”

G46-11

IG

“L33”

GRY/RED

GRY

BRN/WHT

BRN

“L25”

“L30”

L33-1

L33-2

L33-4

L33-3

RS-

RS+

LS-

LS+

BLU

BLU

BLK

BLK

[A]

8

5

6

7

“Q02”

“Q03”

I5JB0A820044-01

[A]: Shorting bar

3. “A/B” fuse

6. Left side-air bag (inflator) module

1. From main fuse

4. Junction block assembly

7. Right side-air bag (inflator) module

2. Ignition switch

5. SDM

8. Ground for air bag system
