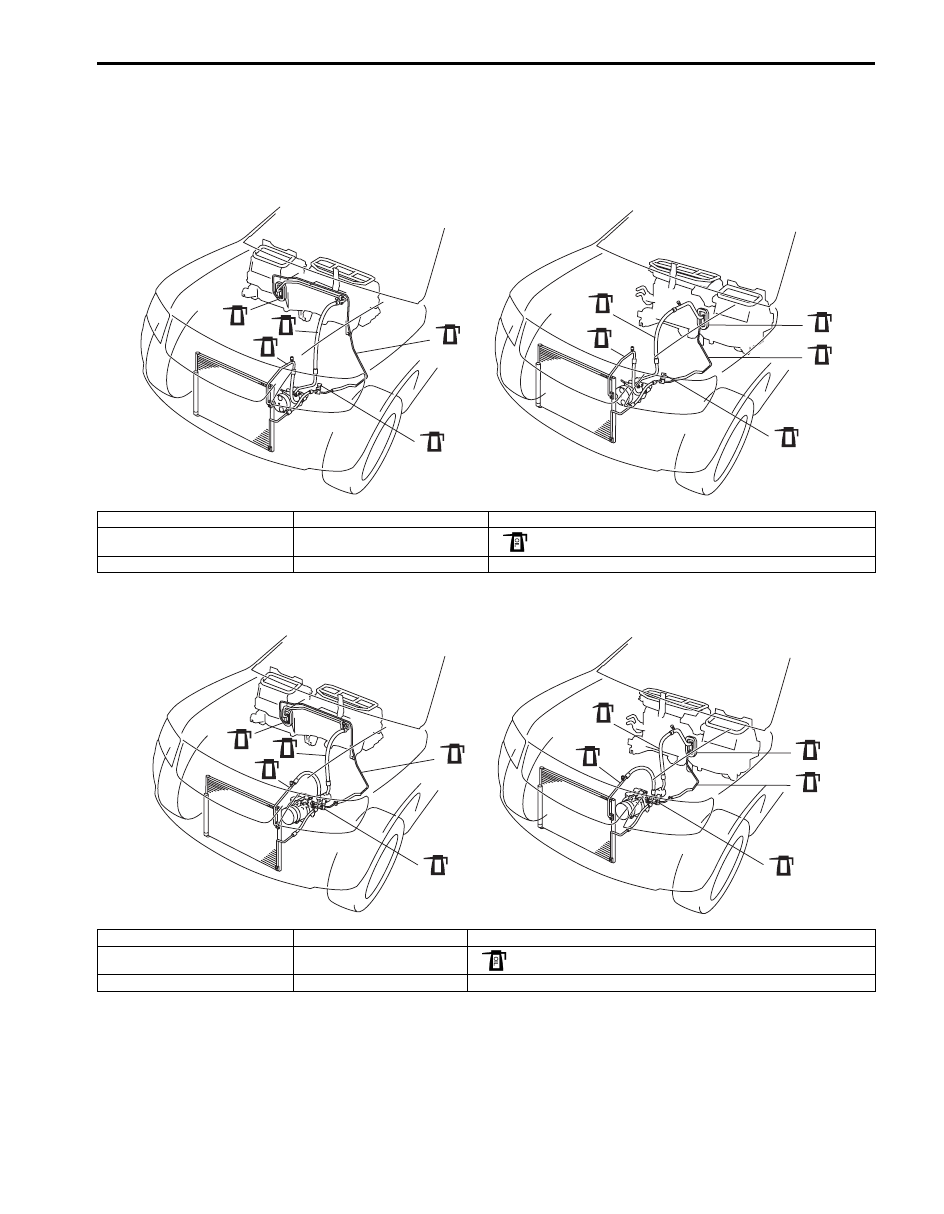

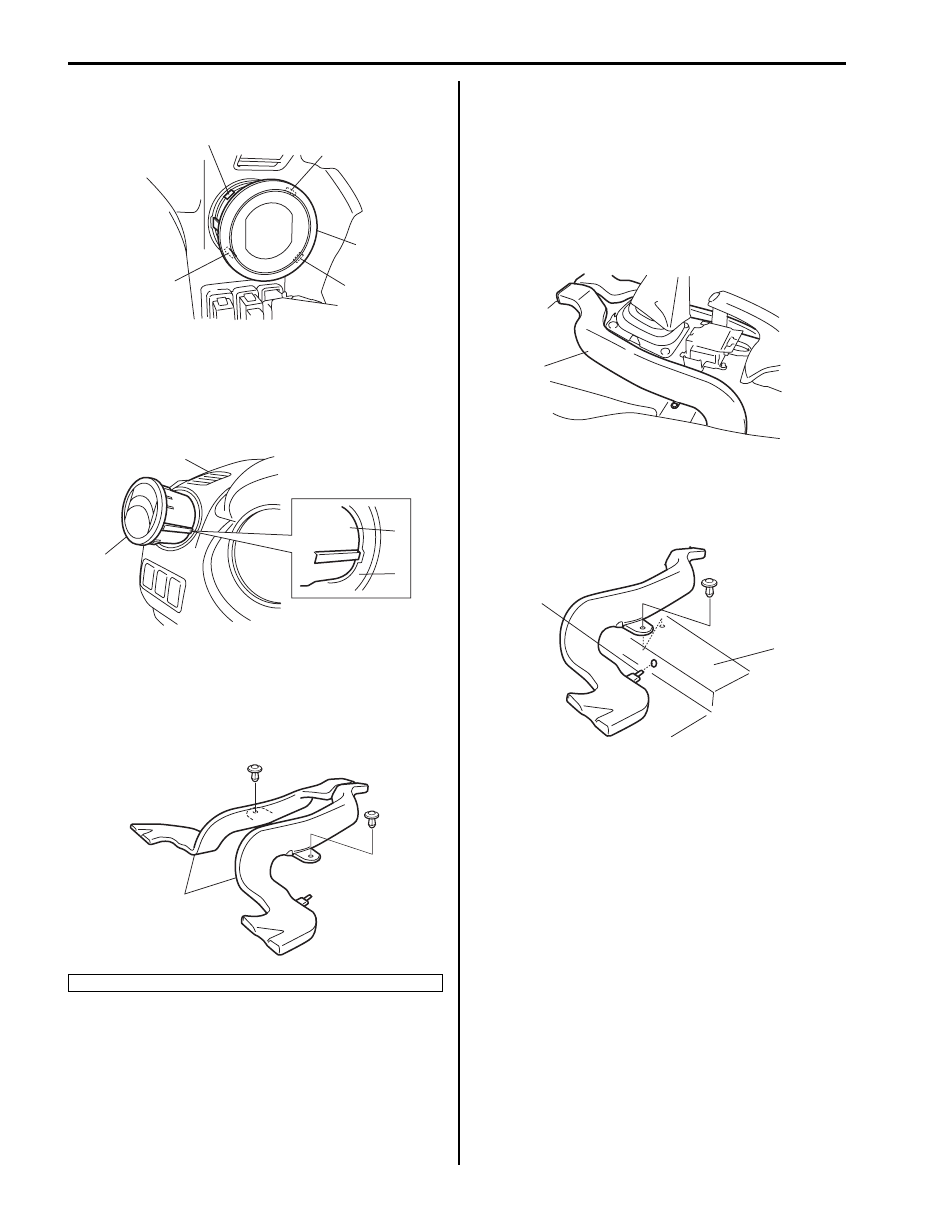

7A-18 Heater and Ventilation: 5) Remove side ventilation louver (1) from instrument panel while pressing claws (2). Installation 1) Reverse removal procedure, noting the following. • Install side ventilation louver (1) to instrument panel (2) as shown in figure. • When installing defroster duct to instrument panel, put claws of defroster duct into hole of ventilator Rear Duct Components S6JB0A7106022 Rear Duct Removal and Installation S6JB0A7106023 Removal 1) Disconnect negative (–) cable at battery. Installation 1. Rear duct 2 1 2 2 2 I5JB0A710023-01 1 2 1 2 I5JB0A710024-02 1 I5JB0A710025-02 1 I5JB0A710026-01 2 1 I5JB0A710027-01 |
