5B-27 Manual Transmission/Transaxle: For Petrol Engine Model

11) Tighten input shaft 5th hub nut to specified torque in

the same manner as step 4) of “Input Shaft
Disassembly: For Petrol Engine Model”.

CAUTION

!



Do not hold spline, gear teeth or abrasived
surface of shaft with vise through “V” blocks
or the like, otherwise shaft components may
be damaged.



Tightening torque
Input shaft 5th hub nut:  210 N·m (21.0 kgf-m,
152.0 lb-ft)

12) Caulk input shaft 5th hub nut (2) using caulking tool.
13) Drive in new input shaft union (1) using puller and

hydraulic press.

Countershaft Disassembly and Assembly

S6JB0A5216025

Disassembly

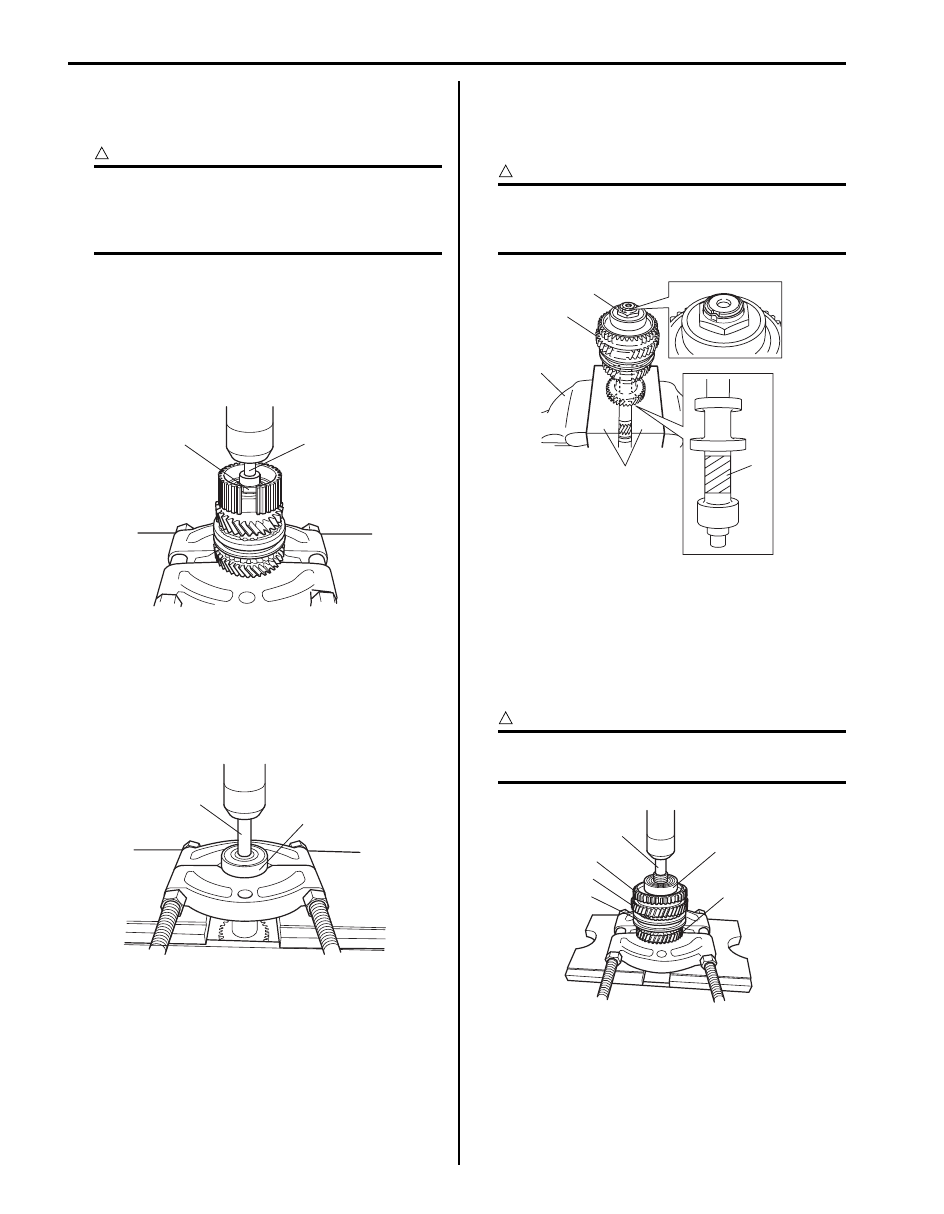

1) Remove countershaft rear bearing (1) using bearing

puller, metal stick (2) and hydraulic press.

2) Hold hatched area (5) of countershaft assembly (1)

with “V” blocks (4) on vise (2) or the like to stop
rotation of shaft, undo caulking and countershaft
front bearing nut (3).

CAUTION

!



Do not hold spline, gear teeth or abrasived
surface of shaft with “V” blocks on vise or
the like, otherwise shaft may be damaged.



3) Apply bearing puller to 2nd gear (1), and drive out

countershaft front bearing (2), countershaft reverse
gear (3), 1st gear (4), countershaft gear needle
bearings, countershaft low needle bearing bush, low
speed synchronizer assembly (5) and 2nd gear all at
once from countershaft using metal stick (6) and
hydraulic press.

CAUTION

!



To avoid gear teeth from being damaged,
support 2nd gear at flat side of bearing puller.



1

2

I5JB0A520066-01

1

2

I5JB0A520067-01

5

1

2

3

4

I5JB0A520068-01

2

1

6

3

4

5

I5JB0A520069-01

Manual Transmission/Transaxle: For Petrol Engine Model 5B-28

Assembly

1) Clean all components thoroughly, inspect them for

any abnormality and replace with new ones as
necessary.

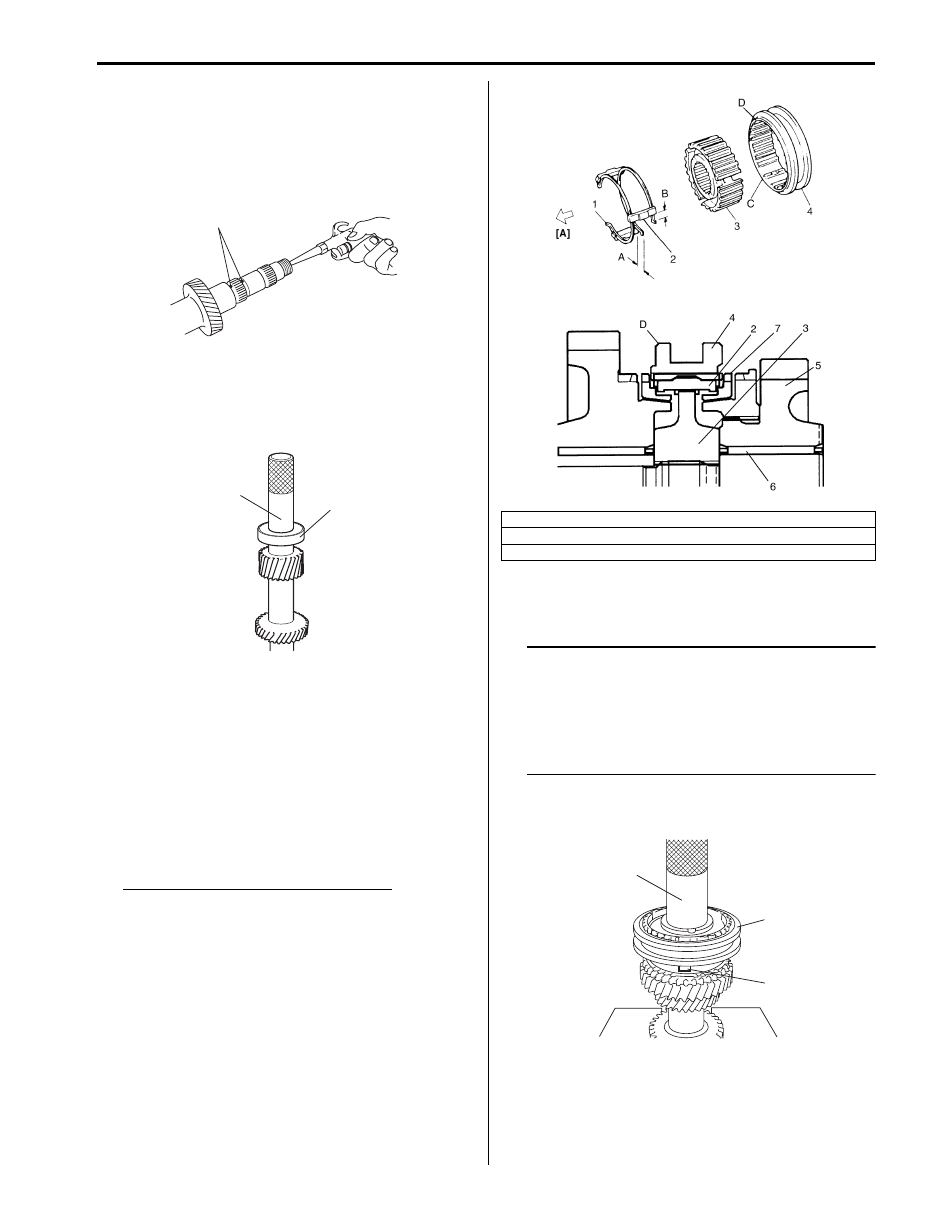

2) To ensure lubrication, air blow oil holes (1) and make

sure that they are free from any obstruction.

3) Drive in countershaft rear bearing (1) using special

tool and hammer.

Special tool
(A):  09913–84510

4) Apply oil to countershaft gear needle bearing (6),

and then install needle bearing, 2nd gear (5) and low
speed synchronizer ring (7).

5) Assemble synchronizer sleeve (4) and hub (3) as

follows.
a) Fit low speed synchronizer sleeve to hub in

specified direction as shown in figure.

b) Insert 3 keys (2) to hub.
c) Set springs (1) at specified position as shown in

figure.

Synchronizer key installation position
: A = B

6) Drive in low speed synchronizer assembly (1) using

special tool and hammer.

NOTE

• While press-fitting sleeve & hub, make

sure that synchronizer ring key slots (2)
are aligned with keys in sleeve & hub
assembly.

• Check free rotation of 2nd gear after press-

fitting sleeve & hub assembly.



Special tool
(A):  09913–84510

1

I5JB0A520070-01

1

(A)

I5JB0A520071-01

[A]: 1st gear side

C: Key way
D: Chamfered side

I5JB0A520072-01

1

2

(A)

I5JB0A520073-01

5B-29 Manual Transmission/Transaxle: For Petrol Engine Model

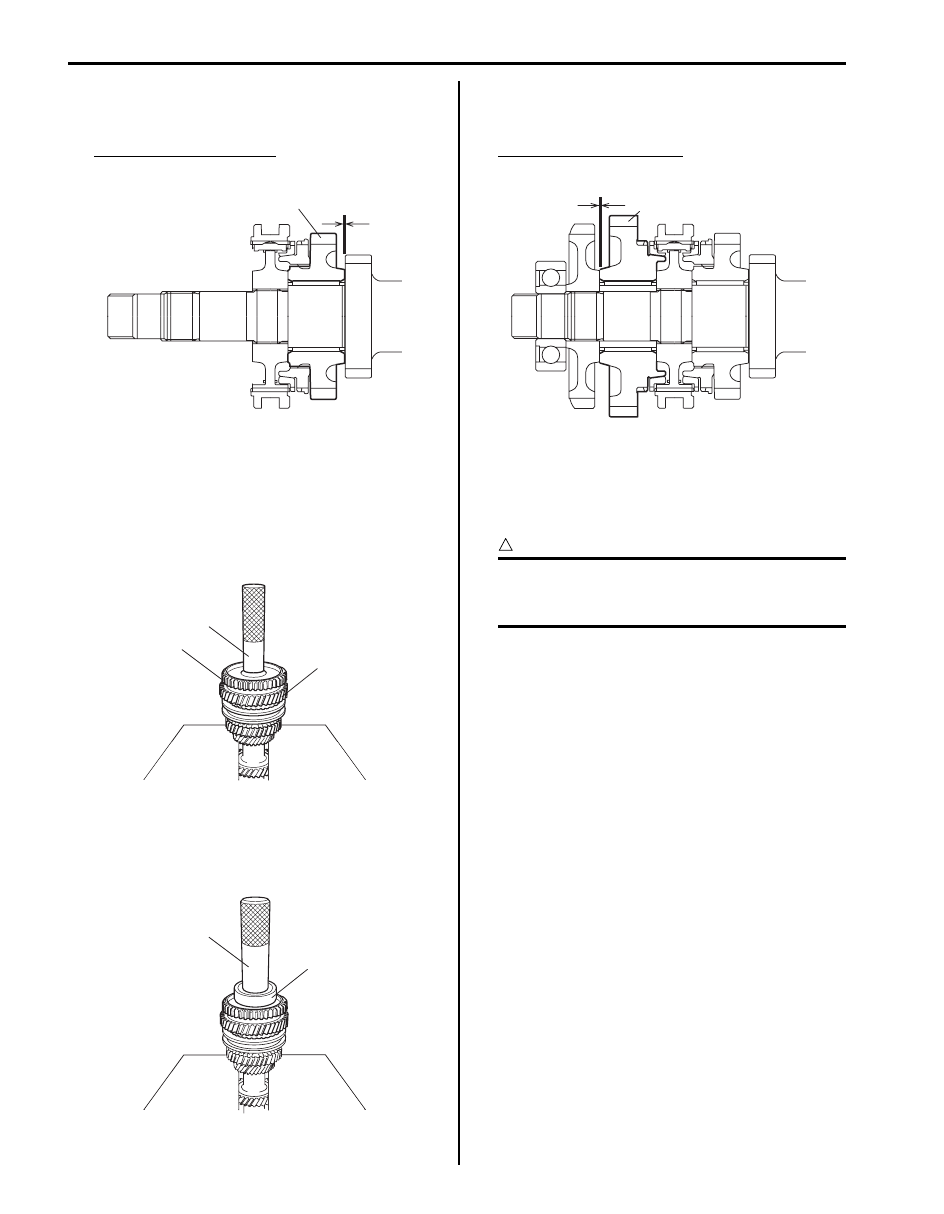

7) Check 2nd gear (1) thrust clearance by using

thickness gauge. If clearance is out of specification,
repress-fit or replace defective part.

2nd gear thrust clearance
“a”: 0.10 – 0.30 mm (0.004 – 0.012 in.)

8) Apply oil to countershaft gear needle bearing, and

then countershaft low needle bush, needle bearing
and 1st gear (1) to countershaft.

9) Press-fit countershaft reverse gear (2) using special

tool and hammer.

Special tool
(A):  09913–80113

10) Press-fit countershaft front bearing (1) using special

tool and hammer.

Special tool
(A):  09913–84510

11) Check low gear (1) thrust clearance by using

thickness gauge. If clearance is out of specification,
repress-fit or replace defective part.

Low gear thrust clearance
“a”: 0.10 – 0.30 mm (0.004 – 0.012 in.)

12) Tighten countershaft front bearing nut to specified

torque while locking counter shaft in the same
manner as step 2) of “Disassembly” under
“Countershaft Disassembly and Assembly: For
Petrol Engine Model”.

CAUTION

!



Do not hold spline, gear teeth or abrasived
surface of shaft with vise through “V” blocks
or the like, otherwise shaft may be damaged.



Tightening torque
Countershaft front bearing nut:  210 N·m (21.0
kgf-m, 152.0 lb-ft)

13) Caulk countershaft front bearing nut using caulking

tool and hammer.

1

“a”

I5JB0A520074-01

1

(A)

2

I5JB0A520075-01

1

(A)

I5JB0A520076-01

“a”

1

I5JB0A520077-01

Manual Transmission/Transaxle: For Petrol Engine Model 5B-30

Countershaft and Reverse Idle Gear Inspection

S6JB0A5216026

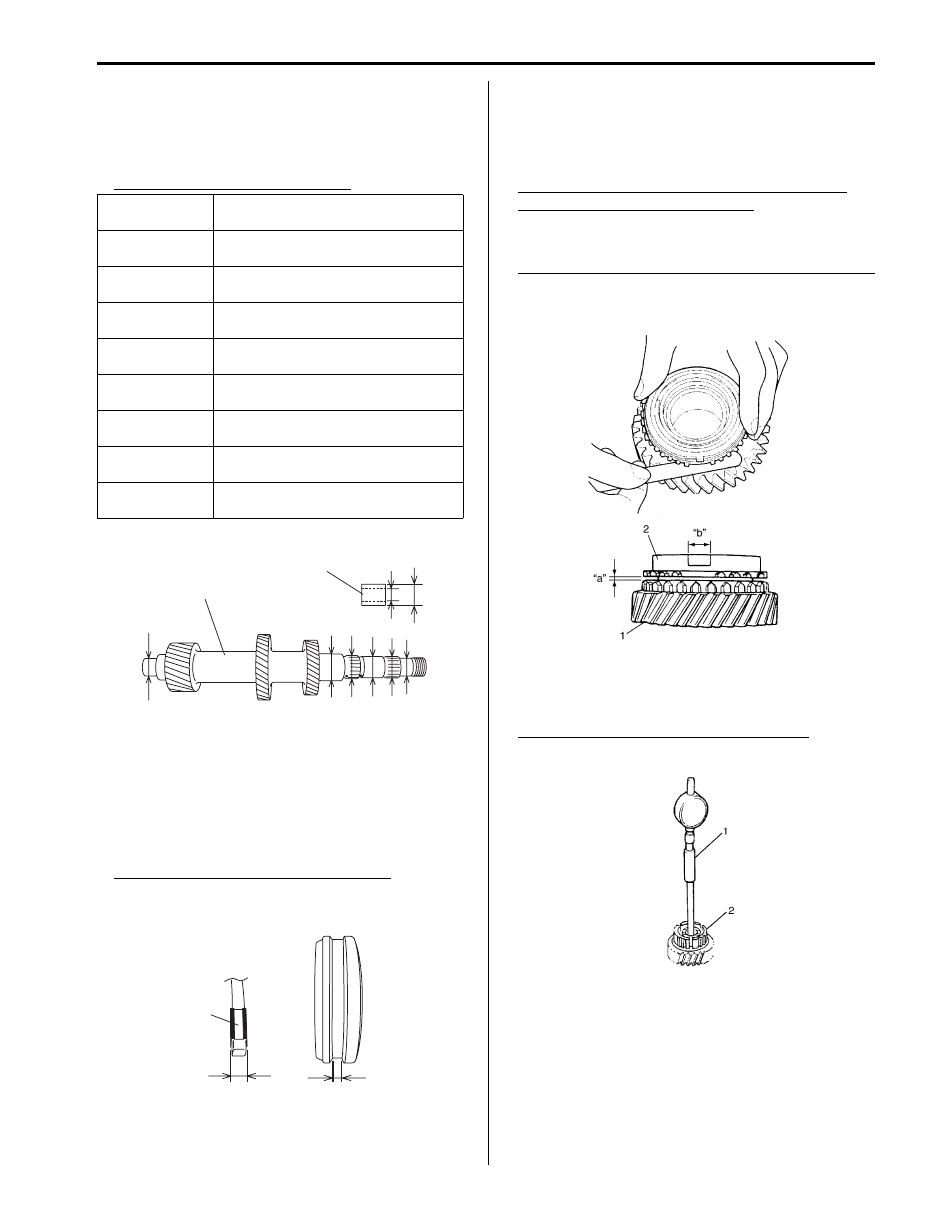

• Using micrometer, check diameter of countershaft (1)

and needle bush (2) as shown. If measured value is
out of specification, replace counter and/or bush.

Countershaft diameter (standard)

• Measure width “a” of low speed gear shift fork and

groove width “b” of low speed gear synchronizer
sleeve and then calculate clearance “c” as follows:

If clearance exceeds limit, replace fork bush (1) and
sleeve.

Clearance “c” between fork and sleeve
Standard: 0.2 – 0.5 mm (0.008 – 0.020 in.)
Limit: 1.0 mm (0.039 in.)

• Check clearance “a” between synchronizer ring (2)

and gear (1), key slot width “b” in synchronizer ring
and each chamfered tooth of gear and synchronizer
ring and replace with new one, if necessary. Also,
check gear tooth.

Clearance “a” between synchronizer ring and
gear (Countershaft) (1st and 2nd)
Standard: 1.0 – 1.4 mm (0.040 – 0.055 in.)
Service limit: 0.5 mm (0.020 in.)

Key slot width “b” (1st and 2nd synchronizer ring)
Standard: 10.0 – 10.2 mm (0.394 – 0.401 in.)
Limit: 10.45 mm (0.411 in.)

• Using cylinder gauge (1), check inside diameter of

countershaft 1st and 2nd gears (2). If measured value
exceeds specification, replace countershaft 5th gear.

Countershaft 1st and 2nd gears diameter
Standard: 40.000 – 40.025 mm (1.5748 – 1.5757 in.)

Measuring

portion

Standard

“a”

25.002 – 25.015 mm

(0.9843 – 0.9848 in.)

“b”

27.987 – 28.000 mm

(1.1019 – 1.1023 in.)

“c”

27.987 – 28.000 mm

(1.1019 – 1.1023 in.)

“d”

30.959 – 30.975 mm

(1.2189 – 1.2194 in.)

“e”

34.975 – 34.991 mm

(1.3770 – 1.3775 in.)

“f”

25.002 – 25.015 mm

(0.9843 – 0.9848 in.)

“g”

28.000 – 28.013 mm

(1.1023 – 1.1028 in.)

“h”

34.975 – 34.991 mm

(1.3770 – 1.3776 in.)

Clearance “c”

=

“b”

–

“a”

“c”

“d”

“e”

“f”

“g”

“h”

“b”

“a”

1

2

I6JB01520015-01

1

“a”

“b”

I5JB0A520055-01

I5JB0A520079-01
