5B-23 Manual Transmission/Transaxle: For Petrol Engine Model

Locating Spring Inspection

S6JB0A5216021

Check locating springs for deterioration and replace with
new ones if necessary.

Locating spring free length
Standard: 44.6 mm (1.756 in.)
Service limit: 40.1 mm (1.579 in.)

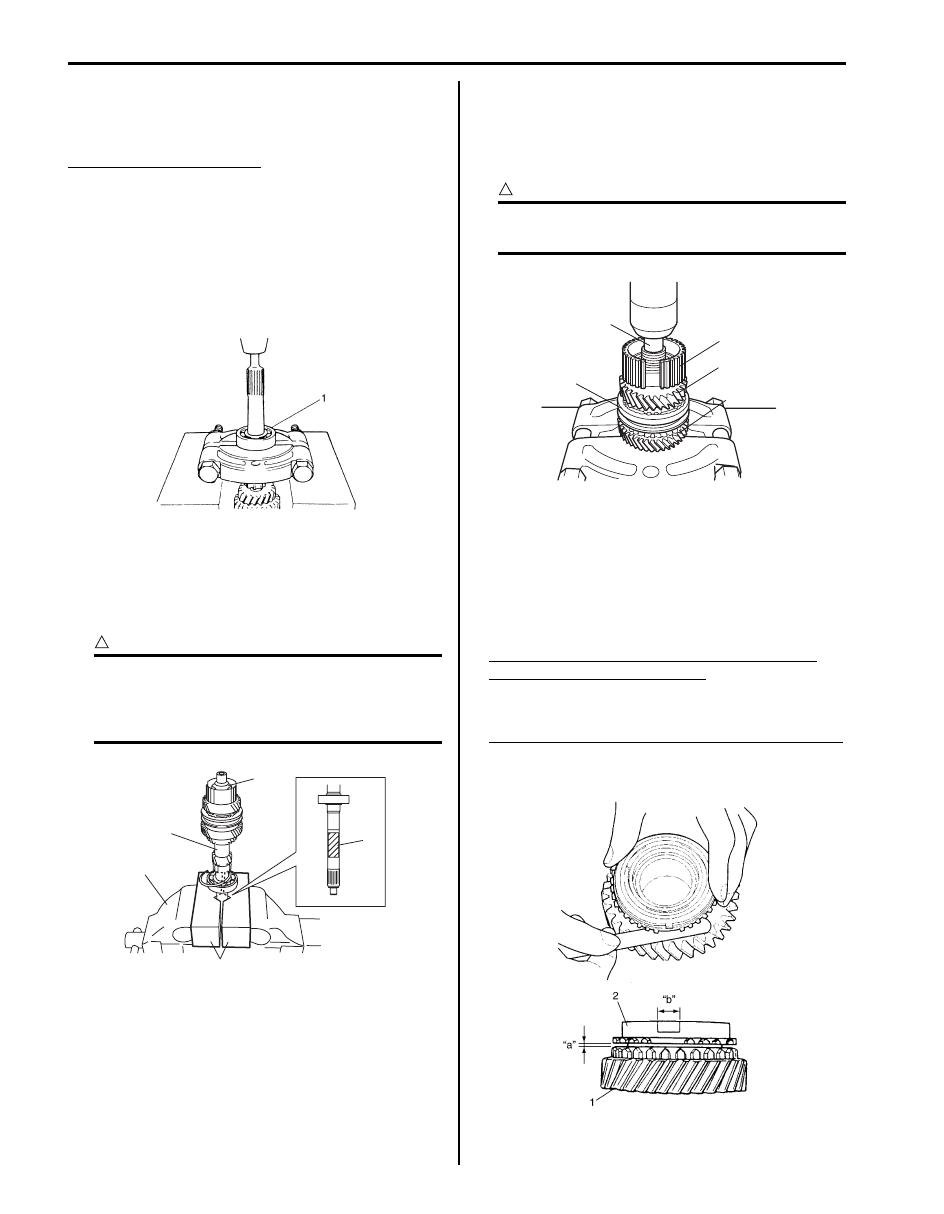

Input Shaft Disassembly

S6JB0A5216022

1) Remove snap ring.
2) Remove input shaft front bearing (1) using bearing

puller and hydraulic press.

3) Remove input shaft union.
4) Hold hatched area (5) of input shaft assembly (1)

with “V” blocks (4) on vise (2) or the like to stop
rotation of shaft, undo caulking and input shaft 5th
hub nut (3).

CAUTION

!



Do not hold spline, gear teeth or abrasived
surface of shaft with vise through “V” blocks
or the like, otherwise shaft components may
be damaged.



5) Apply bearing puller to 4th gear (1), and drive out 5th

speed synchronizer hub (2), 3rd gear (3), high speed
gear needle bearings, 3rd gear bush, high speed
synchronizer assembly (4) and 4th gear all at once
from input shaft using metal stick (5) and press.

CAUTION

!



To avoid gear teeth from being damaged,
support 4th gear at flat side of bearing puller.



Input Shaft Inspection

S6JB0A5216023

• Check clearance “a” between synchronizer ring (2)

and gear (1), key slot width “b” in synchronizer ring
and each chamfered tooth of gear and synchronizer
ring and replace with new one, if necessary. Also,
check gear tooth.

Clearance “a” between synchronizer ring and
gear (Input shaft) (3rd and 4th)
Standard: 1.0 – 1.4 mm (0.040 – 0.055 in.)
Service limit: 0.5 mm (0.020 in.)

Key slot width “b” (3rd and 4th synchronizer ring)
Standard: 10.0 – 10.2 mm (0.394 – 0.401 in.)
Limit: 10.45 mm (0.411 in.)

I5JB0A520051-01

1

2

3

5

4

I5JB0A520052-01

2

3

1

5

4

I5JB0A520053-01

I5JB0A520054-01

Manual Transmission/Transaxle: For Petrol Engine Model 5B-24

• Measure width of high speed gear shift fork end “a”

and groove width of high speed synchronizer sleeve
“b”, 5th & reverse gear shift fork end “a” and groove
width of 5th speed synchronizer sleeve “b” and then
calculate clearance “c” as follows:

If clearance exceeds limit, replace fork bush (1) and
sleeve.

Clearance “c” between fork and sleeve for high
speed and 5th speed
Standard: 0.2 – 0.5 mm (0.008 – 0.020 in.)
Limit: 1.0 mm (0.039 in.)

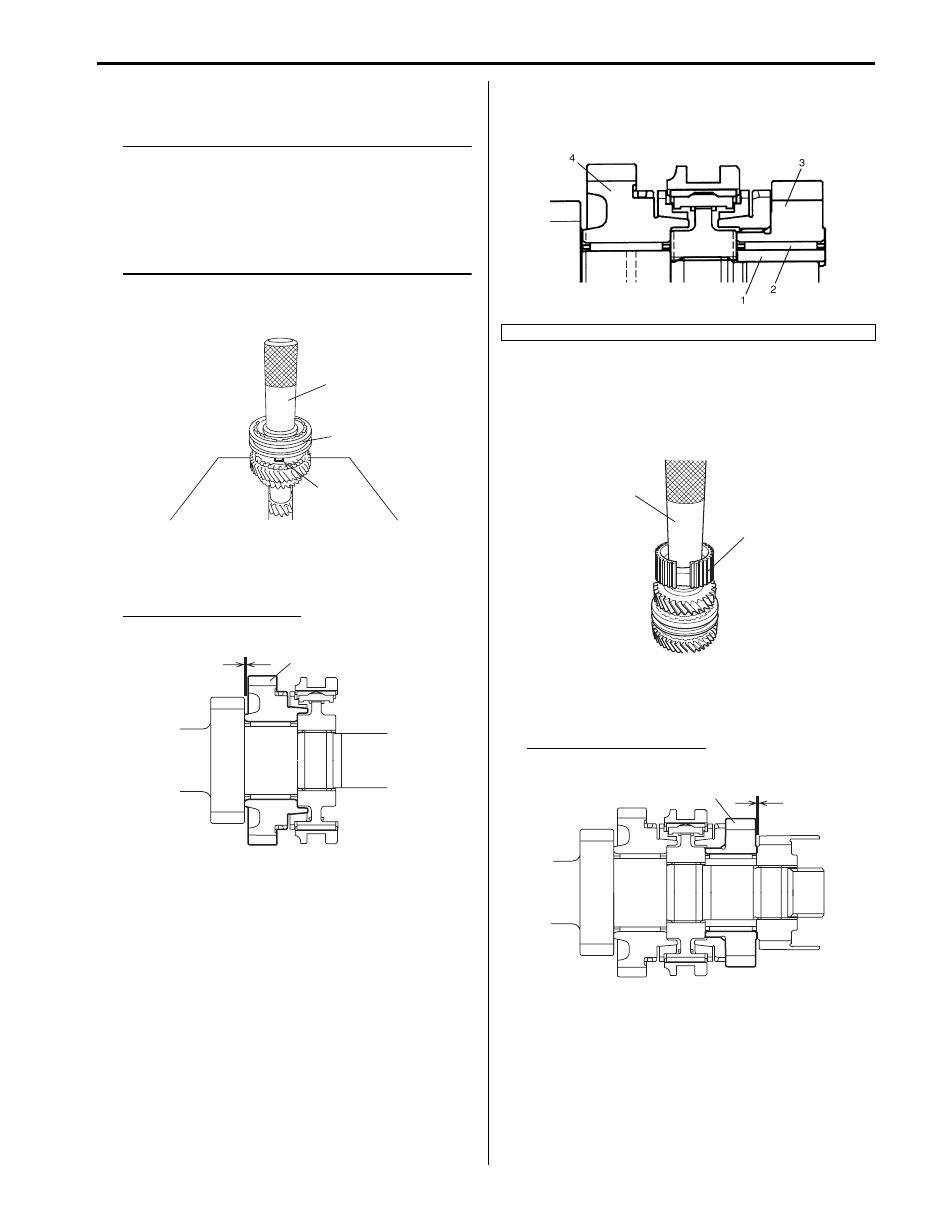

• Check diameter of input shaft (1) and needle bush (2)

as shown in the figure. If measured value is out of
specification, replace input shaft and/or bush.

Input shaft and needle bush specifications
(diameter)

• Using “V” blocks (1) and dial gauge (2), check runout.

If runout exceeds limit below, replace input shaft (3).

Input shaft runout
Limit: 0.02 mm (0.0008 in.)

• Using cylinder gauge (1), check inside diameter of

each gear. If its inside diameter exceeds specification,
replace it.

Inside diameter (standard) of gear
3rd and 4th gear: 40.000 – 40.025 mm (1.5748 –
1.5757 in.)

• Check chamfered part of each sleeve for damage and

excessive wear, and replace as necessary.

• Check each synchronizer key and synchronizer spring

and replace as necessary.

• Check spline portions and replace parts if excessive

wear is found.

Clearance “c”

=

“b”

–

“a”

Measuring

portion

Standard

“a”

30.002 – 30.015 mm

(1.1812 – 1.1816 in.)

“b”

34.975 – 34.991 mm

(1.3770 – 1.3775 in.)

“c”

30.959 – 30.975 mm

(1.2189 – 1.2194 in.)

“d”

27.987 – 28.000 mm

(1.1018 – 1.1023 in.)

“e”

27.967 – 27.980 mm
(1.1011 – 1.1015 in.)

“f”

19.975 – 19.991 mm

(0.7865 – 0.7870 in.)

“g”

28.000 – 28.013 mm

(1.1024 – 1.1028 in.)

“h”

34.975 – 34.991 mm

(1.3770 – 1.3775 in.)

1

“a”

“b”

I5JB0A520055-01

“c”

“d”

“e”

“f”

“g” “h”

“b”

“a”

1

2

I5JB0A520056-01

2

3

1

I5JB0A520057-01

IYSQ01522099-01

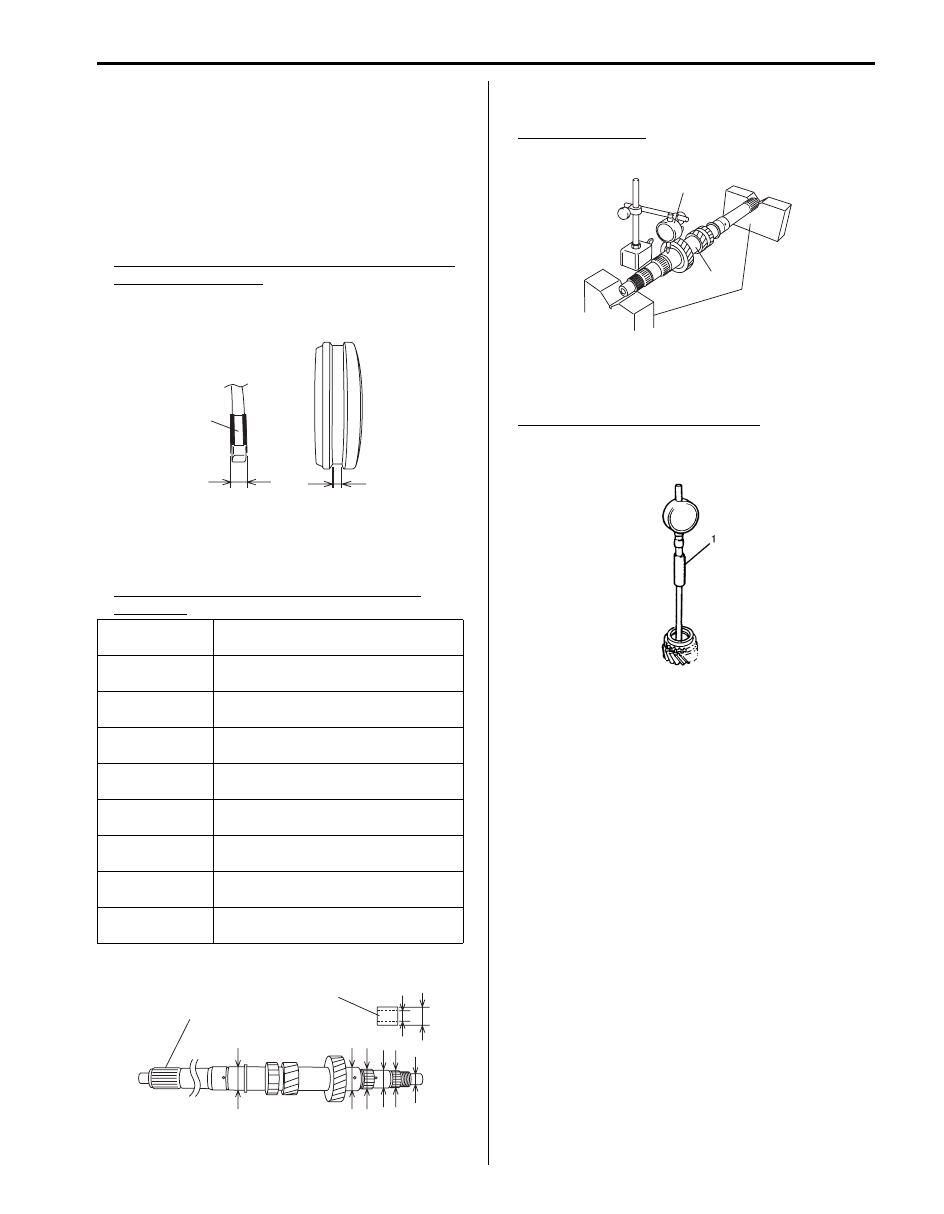

5B-25 Manual Transmission/Transaxle: For Petrol Engine Model

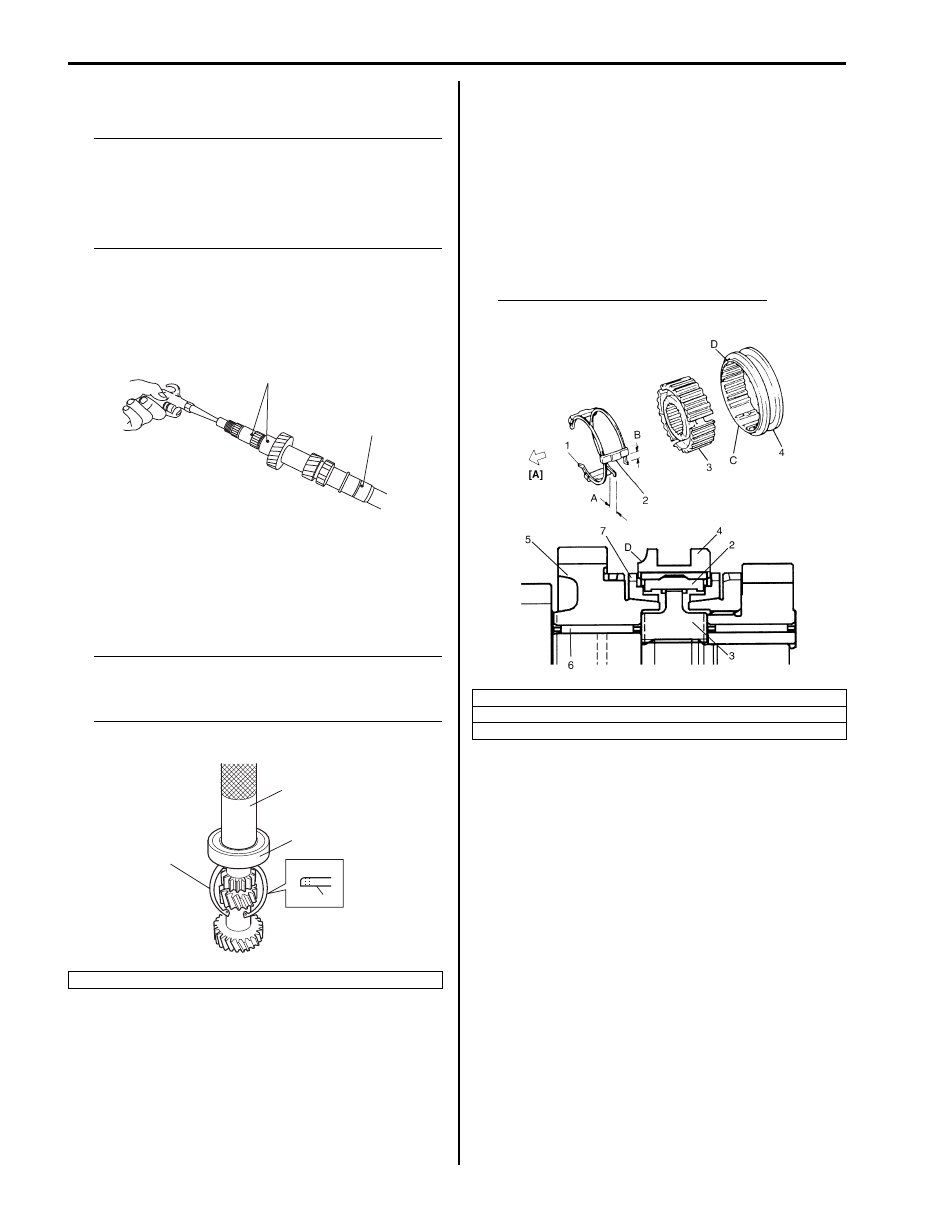

Input Shaft Reassembly

S6JB0A5216024

NOTE

• Before installation, wash each part and

apply specified gear oil to sliding faces of
bearing and gear.

• Use new snap rings on shaft for

installation. Don’t reuse snap rings.



1) Clean all components thoroughly, inspect them for

any abnormality and replace with new ones as
necessary.

2) To ensure lubrication, air blow oil holes (1) and make

sure that they are free from any obstruction.

3) Drive in input shaft front bearing (1) to input shaft

using special tool and hammer and then install snap
ring in specified direction as shown in figure.

Special tool
(A):  09940–51710

NOTE
Input shaft front bearing circlip (2) must be
installed before input shaft front bearing is
installed.



4) Apply oil to high speed gear needle bearing (5), and

then install needle bearing, 4th gear (5) and high
speed synchronizer ring (7) to input shaft.

5) Assemble synchronizer sleeve (4) and hub (3) as

follows.
a) Fit high speed synchronizer sleeve to hub in

specified direction as shown in figure.

b) Insert 3 keys (2) to hub.
c) Set springs (1) at specified position as shown in

figure.

Synchronizer key installation position
: A = B

A: Bearing side

1

1

I5JB0A520058-01

(A)

1

2

A

2

I5JB0A520059-01

[A]: 4th gear side

C: Key way
D: Projecting end

I5JB0A520060-01

Manual Transmission/Transaxle: For Petrol Engine Model 5B-26

6) Drive in high speed synchronizer assembly (1) using

special tool and hammer.

NOTE

• While press-fitting sleeve & hub, make

sure that synchronizer ring key slots (2)
are aligned with keys in sleeve & hub
assembly.

• Check free rotation of 4th gear after press

fitting sleeve & hub assembly.



Special tool
(A):  09913–84510

7) Check 4th gear (1) thrust clearance by using

thickness gauge. If clearance is out of specification,
repress-fit or replace defective part.

4th gear thrust clearance
“a”: 0.10 – 0.30 mm (0.004 – 0.012 in.)

8) Apply oil to high speed gear needle bearing, and

then install 3rd gear bush (1), high speed gear
needle bearing (2) and 3rd gear (3).

9) Press-fit 5th speed synchronizer hub (1) using

special tool and hammer.

Special tool
(A):  09913–84510

10) Check 3rd gear (1) thrust clearance by using

thickness gauge. If clearance is out of specification,
repress-fit or replace defective part.

3rd gear thrust clearance
“a”: 0.10 – 0.30 mm (0.004 – 0.012 in.)

(A)

1

2

I5JB0A520061-01

“a”

1

I5JB0A520062-01

4. 4th gear

I5JB0A520063-01

(A)

1

I5JB0A520064-01

“a”

1

I5JB0A520065-01
