5A-19 Automatic Transmission/Transaxle:

Step 1. Customer Complaint Analysis
Record details of the problem (failure, complaint) and how it occurred as described by the customer.
For this purpose, use of such a inspection form will facilitate collecting information to the point required for proper
analysis and diagnosis.

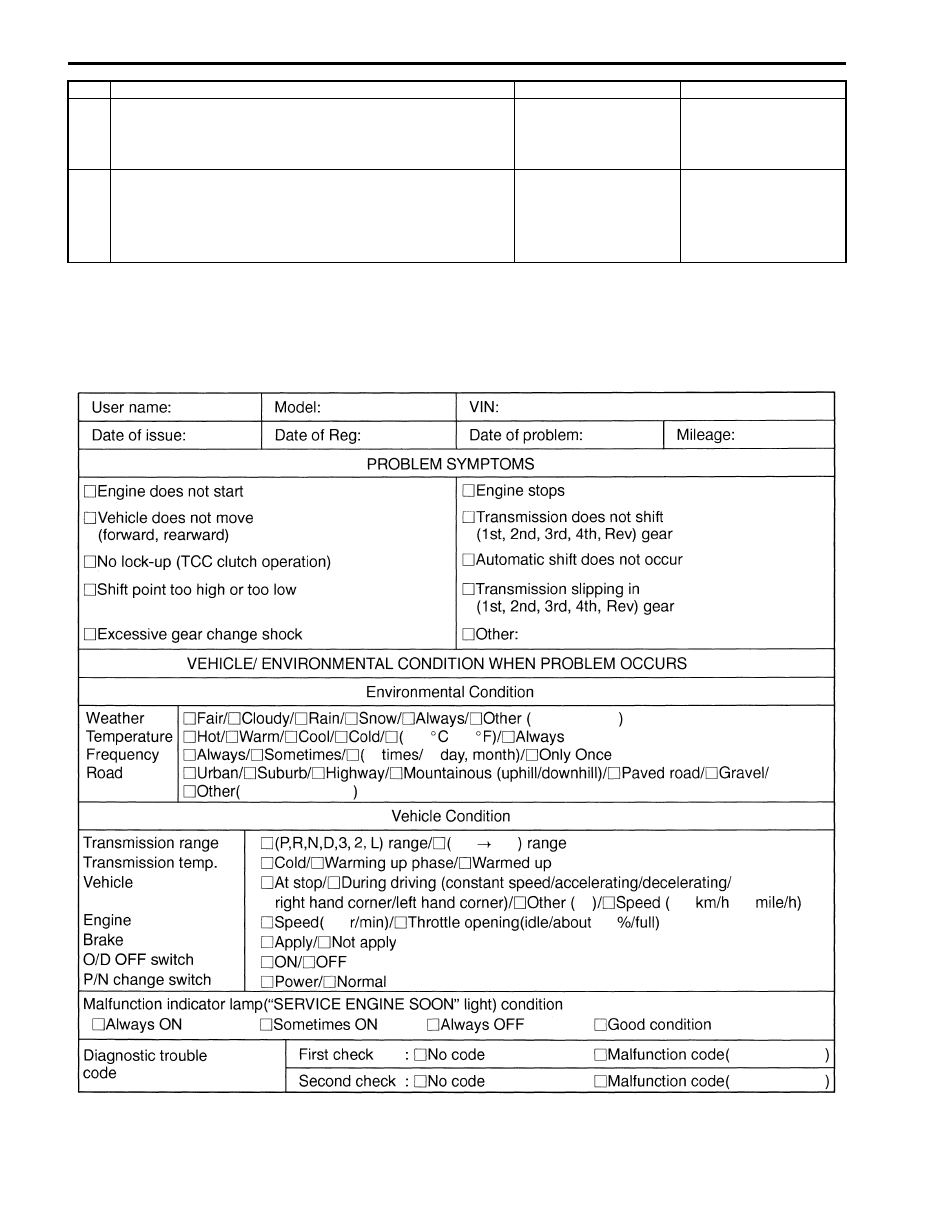

Customer problem inspection form (example)

10 ) Check for intermittent problem

1) Check for intermittent problem.

Is there any faulty condition?

Repair or replace
malfunction part(s).
Go to Step 11.

Go to Step 11.

11 ) Final confirmation test

1) Clear DTC if any.
2) Perform final confirmation test.

Is there any problem symptom, DTC or abnormal condition?

Go to Step 6.

End.

Step

Action

Yes

No

I5JB0A510015-01

Automatic Transmission/Transaxle:  5A-20

NOTE
The form is a standard sample. It should be modified according to conditions characteristic of each
market.



Step 2. DTC / Freeze Frame Data Check, Record and
Clearance
First, referring to “DTC Check”, check DTC (including
pending DTC). If DTC exists, print or write down DTC
and freeze frame data and then clear them by referring
to “DTC Clearance”. DTC indicates malfunction in the
system but it is not possible to know from it whether the
malfunction is occurring now or it occurred in the past
and normal condition has been restored. In order to
know that, check symptom in question according to Step
5 and then recheck DTC according to Step 6.
Diagnosing a trouble based on the DTC in this step only
or failure to clear the DTC in this step may result in an
faulty diagnosis, trouble diagnosis of a normal circuit or
difficulty in troubleshooting which is otherwise
unnecessary.

Step 3 and Step 4. Visual Inspection
As a preliminary step, be sure to perform visual check of
the items that support proper function of the A/T and
engine referring to “Visual Inspection”.

Step 5. Trouble Symptom Confirmation
Check trouble symptoms based on information obtained
in Step 1 ) “Customer Complaint Analysis” and Step 2
)

 “DTC/Freeze Frame Data Check, Record and

Clearance”.
Also, recheck DTC according to “DTC Confirmation
Procedure” described in each DTC flow.

Step 6 and Step 7. Recheck and Record of DTC /
Freeze Frame Data
Refer to “DTC Check” for checking procedure.

Step 8. A/T Basic Check and A/T Trouble Diagnosis
Perform A/T basic check according to “A/T Basic Check”
first. When the end of the flow has been reached, check
the parts of the system suspected as a possible cause
referring to “A/T Symptom Diagnosis” and based on
symptoms appearing on the vehicle (symptoms obtained
through steps of customer complaint analysis, trouble
symptom confirmation and/or A/T basic check) and
repair or replace faulty parts, if any.

Step 9. Troubleshooting for DTC
Based on the DTC indicated in Step 6 and 7 and
referring to applicable DTC flow, locate the cause of the
trouble, namely in a sensor, switch, wire harness,
connector, actuator, TCM or other part and repair or
replace faulty parts.

Step 10. Check for Intermittent Problem
Check parts where an intermittent trouble is easy to
occur (e.g., wire harness, connector, etc.), referring to
“Intermittent and Poor Connection Inspection in Section
00” and related circuit of DTC recorded in Step 2.

Step 11. Final Confirmation Test
Confirm that the problem symptom has gone and the A/T
is free from any abnormal conditions.
If what has been repaired is related to the malfunction
DTC, clear the DTC once, set conditions under which
DTC was detected and A/T and/or vehicle was repaired
and confirm that no DTC is indicated.

Malfunction Indicator Lamp (MIL) Check

S6JB0A5104002

Refer to “Malfunction Indicator Lamp (MIL) Check: For
Petrol Engine Model in Section 1A”.

Transmission Warning Light Operation Check
(Non-E-OBD Model)

S6JB0A5104003

1) Turn ignition switch ON.
2) Check that transmission warning light lights for about

2 – 4 sec. and then goes OFF. If anything faulty is
found, advance “Transmission Warning Light Circuit
Check – Light Does Not Come “ON” at Ignition
Switch ON (Non-E-OBD Model)” or “Transmission
Warning Light Circuit Check – Light Remains “ON” at
Ignition Switch ON (Non-E-OBD Model)”.

“POWER” Lamp Operation Check

S6JB0A5104004

1) Turn ignition switch ON.
2) Check that “POWER” lamp lights for about 2 – 4 sec.

and then goes OFF.
If anything faulty is found, advance to ““POWER”
Light Circuit Check – Light Does Not Come “ON” at
Ignition Switch ON”.

5A-21 Automatic Transmission/Transaxle:

DTC Table

S6JB0A5104005

NOTE
Confirmation available table of automatic transmission related DTC is shown below.



{

: Available-DTC can be confirmed

X: Not available-DTC can not be confirmed

NOTE
A: Driving cycles when MIL lighting and storing DTC in TCM memory for E-OBD model.
B: Driving cycles when transmission warning light lighting and storing DTC in TCM memory for non-E-
OBD model.



E-OBD model

Non-E-OBD model

SUZUKI scan tool

{

{

Generic scan tool

{

X

Not using scan tool (if equipped with
A/T monitor connector)

X

{

DTC No.

Detecting item

Detecting condition (DTC will set when

detecting)

A

B

0000

No malfunction is detected

—

—

—

)

P0705

Transmission Range Sensor
Circuit Malfunction (PRNDL
Input)

Multiple signals are inputted simultaneously.

1driving

cycle

1driving

cycle

)

P0707

Transmission Range Sensor
Circuit Low

No sensor signal is inputted.

2 driving

cycles

2 driving

cycles

)

P0712

Transmission Fluid Temperature
Sensor “A” Circuit Low

Sensor output voltage is too low.

1driving

cycle

1driving

cycle

)

P0713

Transmission Fluid Temperature
Sensor “A” Circuit High

Sensor output voltage is too high.

1driving

cycle

1driving

cycle

)

P0717

Input / Turbine Speed Sensor
Circuit No Signal

No sensor signal is detected although output
speed sensor signal is inputted.

1driving

cycle

1driving

cycle

)

P0722

Output Speed Sensor Circuit No
Signal

No sensor signal is inputted although input
speed sensor signal is inputted.

1driving

cycle

1driving

cycle

)

P0741

Torque Converter Clutch Circuit
Performance or Stuck Off

Difference in revolution between engine and
input shaft is too large although TCM is
commanding TCC pressure control solenoid
to turn ON.

2 driving

cycles

2 driving

cycles *2

)

P0742

Torque Converter Clutch Circuit
Stuck On

Difference in revolution between engine and
input shaft is too small although TCM is
commanding TCC pressure control solenoid
to turn OFF.

2 driving

cycles

2 driving

cycles *2

)

P0751

Shift Solenoid “A” Performance
or Stuck Off

The gear commanded by TCM does not
match the actual gear when driving.

2 driving

cycles

2 driving

cycles *2

)

P0752

Shift Solenoid “A” Stuck On

The gear commanded by TCM does not
match the actual gear when driving.

2 driving

cycles

2 driving

cycles *2

)

P0756

Shift Solenoid “B” Performance
or Stuck Off

The gear commanded by TCM does not
match the actual gear when driving.

2 driving

cycles

2 driving

cycles *2

)

P0757

Shift Solenoid “B” Stuck On

The gear commanded by TCM does not
match the actual gear when driving.

2 driving

cycles

2 driving

cycles *2

)

P0962

Pressure Control Solenoid “A”
Control Circuit Low

No electric flow is detected on pressure
control solenoid circuit.

1driving

cycle

1driving

cycle

)

P0963

Pressure Control Solenoid “A”
Control Circuit High

Too much electric flow is detected on
pressure control solenoid circuit.

1driving

cycle

1driving

cycle

)

P0973

Shift Solenoid “A” Control Circuit
Low

Voltage of shift solenoid terminal is low
although TCM is commanding shift solenoid
to turn ON.

1driving

cycle

1driving

cycle

Automatic Transmission/Transaxle:  5A-22

NOTE
*1: MIL does not light although DTC is detected and stored.
*2: Transmission warning light does not light although DTC is detected and stored.



)

P0974

Shift Solenoid “A” Control Circuit
High

Voltage of shift solenoid terminal is high
although TCM is commanding shift solenoid
to turn OFF.

1driving

cycle

1driving

cycle

)

P0976

Shift Solenoid “B” Control Circuit
Low

Voltage of shift solenoid terminal is low
although TCM is commanding shift solenoid
to turn ON.

1driving

cycle

1driving

cycle

)

P0977

Shift Solenoid “B” Control Circuit
High

Voltage of shift solenoid terminal is high
although TCM is commanding shift solenoid
to turn OFF.

1driving

cycle

1driving

cycle

)

P1702

Internal Control Module Memory
Check Sum Error

Calculation of current data stored in TCM is
not correct comparing with pre-stored
checking data in TCM.

1driving

cycle

1driving

cycle

)

P1703

CAN Invalid Data- TCM

TCM receives malfunction signal of throttle
position, engine coolant temperature, engine
revolution and engine torque from ECM.

1driving
cycle *1

1driving
cycle *2

)

P1723

Range Select Switch Malfunction 3 position switch signal is inputted out of

specified value.

1driving
cycle *1

1driving
cycle *2

)

P1774

Control Module Communication
Bus OFF

Transmitting error detected to TCM for
specified time continuously.

1driving

cycle

1driving

cycle

)

P1777

TCM Lost Communication with
ECM (Reception Error)

Receiving error from ECM detected to TCM
for specified time continuously.

1driving

cycle

1driving

cycle

)

P1778

TCM Lost Communication with
BCM (Reception Error)

Receiving error from BCM detected to TCM
for specified time continuously.

1driving
cycle *1

1driving
cycle *2

)

P1874

4L switch circuit malfunction
(Short)

Actual transfer position is 4H although
transfer low signal is inputted. (if equipped
with 4L/N switch)

1driving

cycle

1driving
cycle *2

)

P1875

4L switch circuit malfunction
(Open)

Actual transfer position is 4L or N although
transfer low signal is not inputted. (if equipped
with 4L/N switch)

1driving

cycle

1driving
cycle *2

)

P1878

Torque Converter Clutch
Shudder

Variation in the output revolution speed of the
specified amplitude and specified cycle is
detected under slip lock-up condition.

20driving

cycle *1

—

)

P2763

Torque Converter Clutch Circuit
High

Too much electric flow is detected on TCC
pressure control solenoid circuit.

1driving

cycle

1driving

cycle

)

P2764

Torque Converter Clutch Circuit
Low

No electric flow is detected on TCC pressure
control solenoid circuit.

1driving

cycle

1driving

cycle

DTC No.

Detecting item

Detecting condition (DTC will set when

detecting)

A

B
