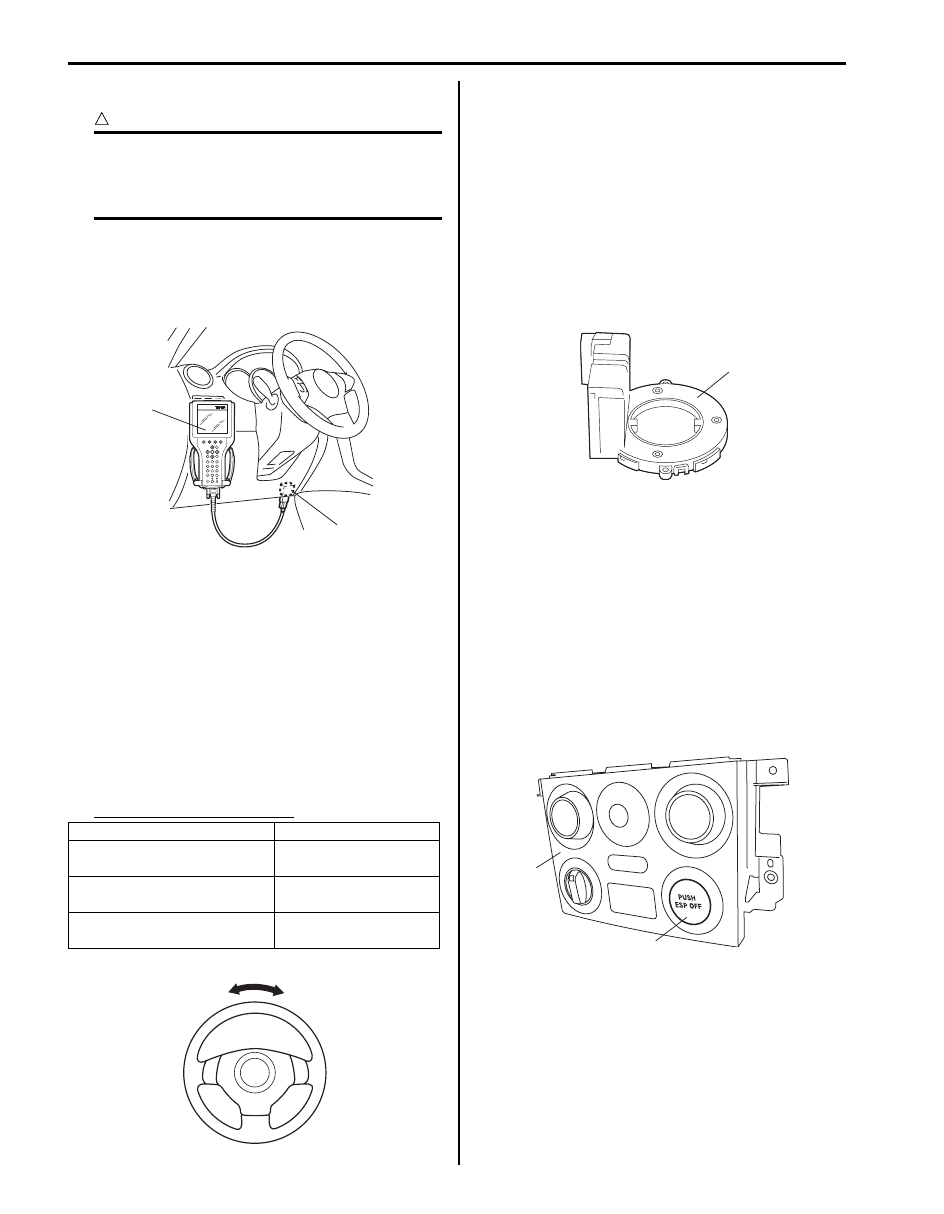

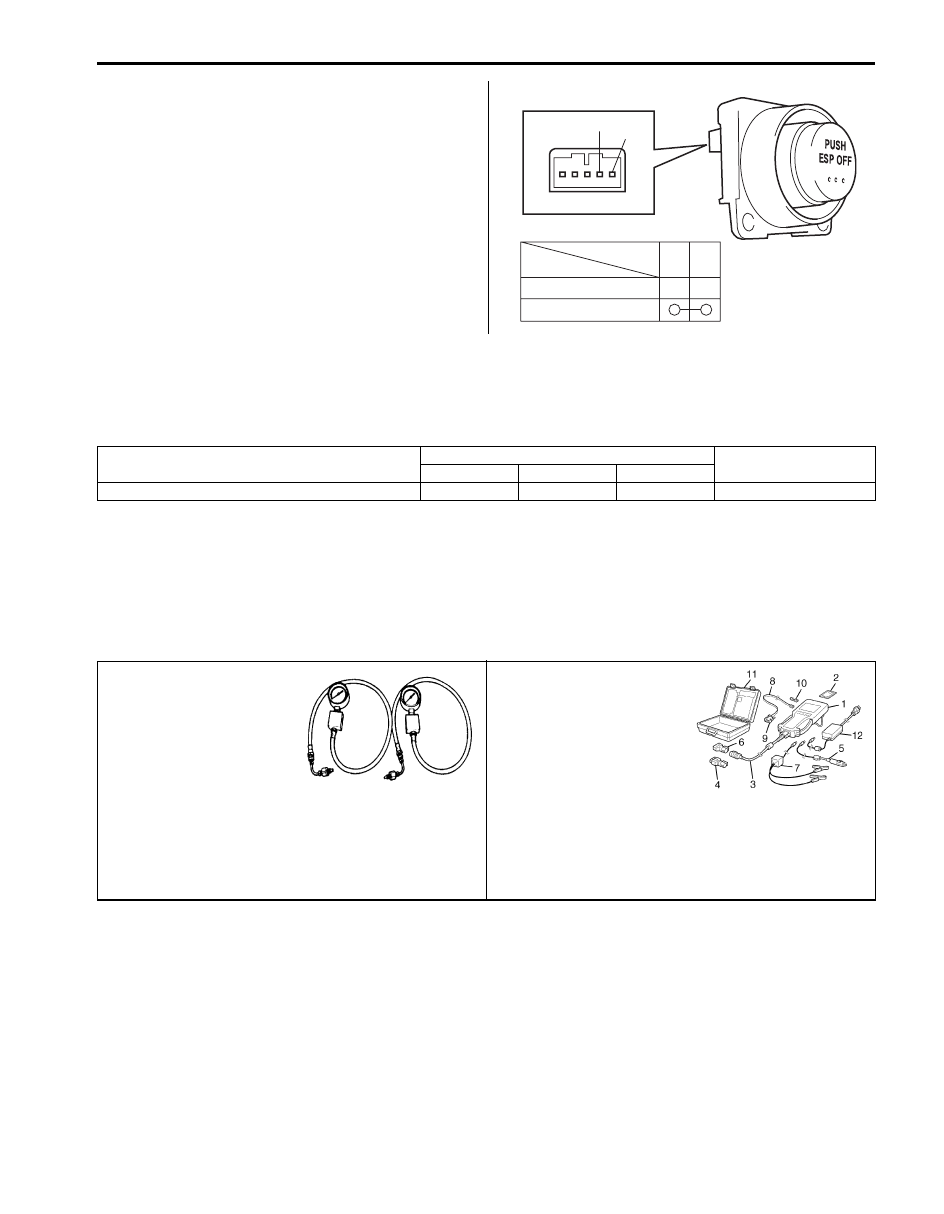

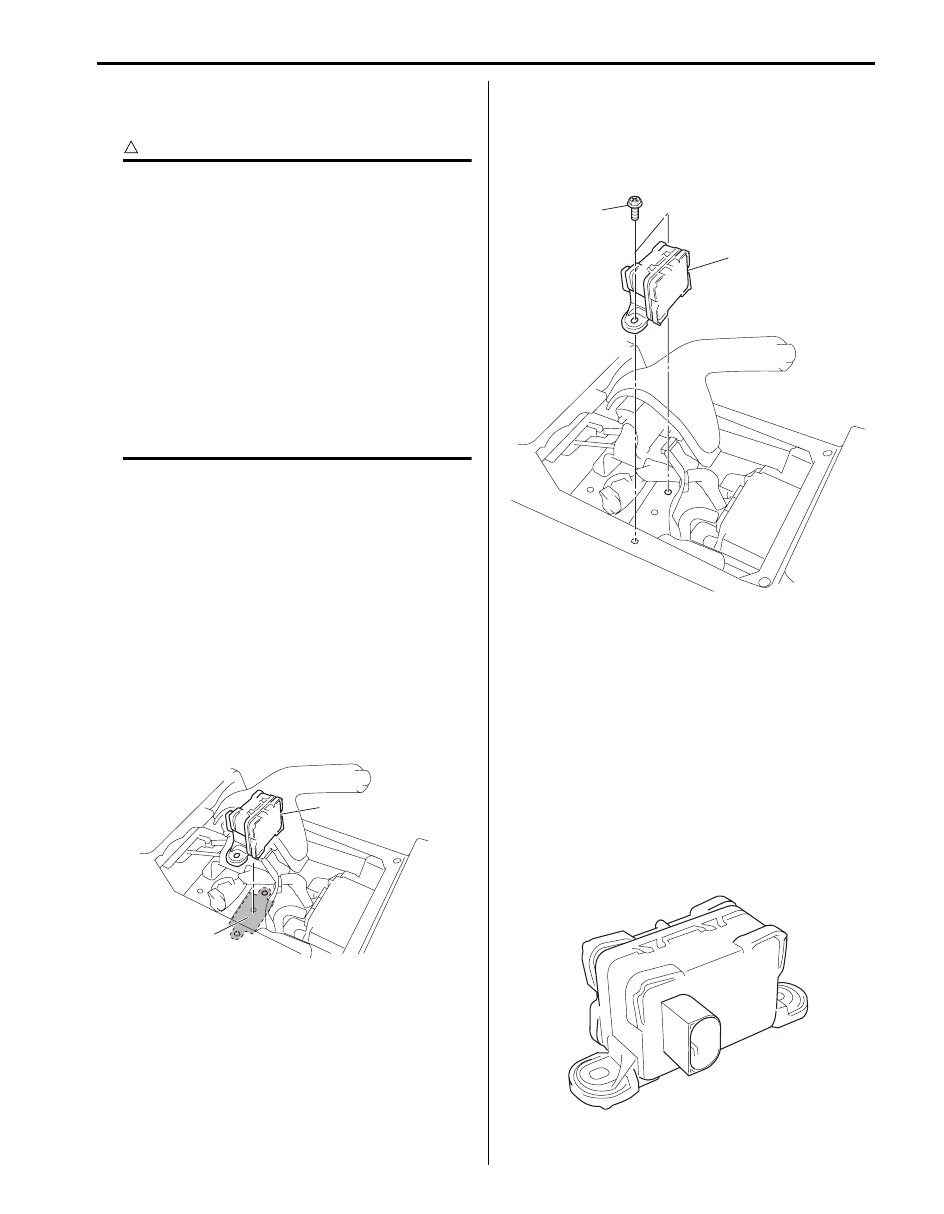

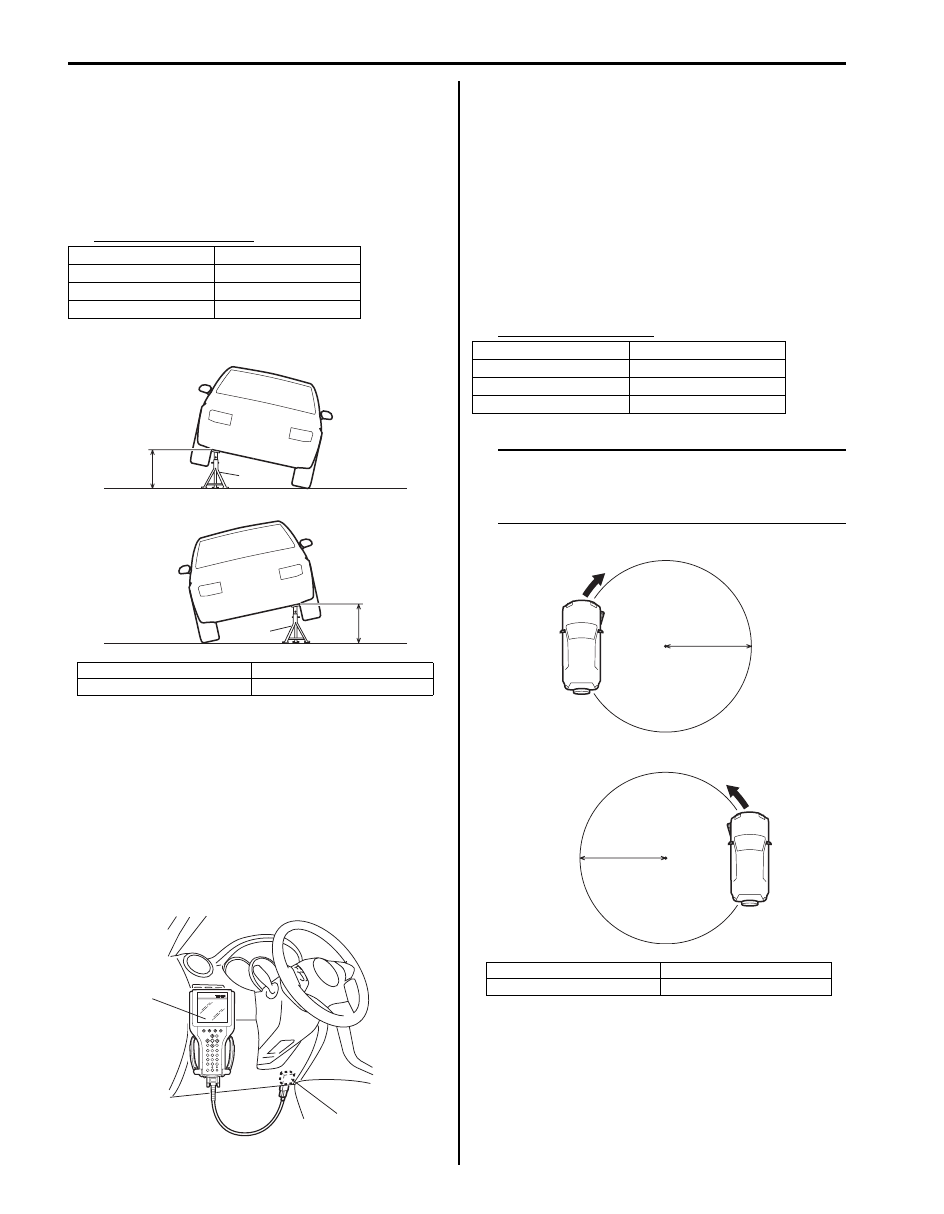

4F-48 Electronic Stability Program: 6) Check “G Sensor (lateral)” under “DATA LIST” of SUZUKI scan tool in the following vehicle conditions. Lateral G specification Yaw Rate Inspection 1) Calibrate yaw rate / G sensor assembly referring to 2) Check yaw rate / G sensor assembly installation condition. 3) Connect SUZUKI scan tool to data link connector (DLC) (1) with ignition switch OFF. Special tool 4) Turn ignition switch to ON position and select menu “DATA LIST” mode of SUZUKI scan tool. Refer to 5) Check “Yaw rate sensor” under “DATA LIST” of SUZUKI scan tool in the following vehicle conditions. steering wheel fully turned • Drive vehicle in left turning condition with steering wheel fully turned If yaw rate condition is out of specification, replace Yaw rate specification NOTE • Drive the vehicle on level ground and at 10 km/h (6.2 mph). • Minimum turning radius is 5.3 m (17.4 ft).
Vehicle condition G Sensor (lateral) Level condition 0 ± 0.1 G Right -up condition 0.1 ± 0.1 G Left-up condition –0.1 ± 0.1 G [A]: Right-up condition “a”: Approx. 350 mm (13.78 in.) [B]: Left-up condition 1. Safety stand [A] [B] “a” “a” 1 1 I6JB01460027-01 (A) 1 I5JB0A450008-01 Vehicle condition Yaw rate Parking 0 ± 4 deg/s Right turning 30 ± 4 deg/s Left turning –30 ± 4 deg/s [A]: Right turning “a”: Approx. 5.3 m (17.4 ft) [B]: Left turning [A] [B] “a” “a” I6JB01460028-01 |
