3B-19 Differential: Front

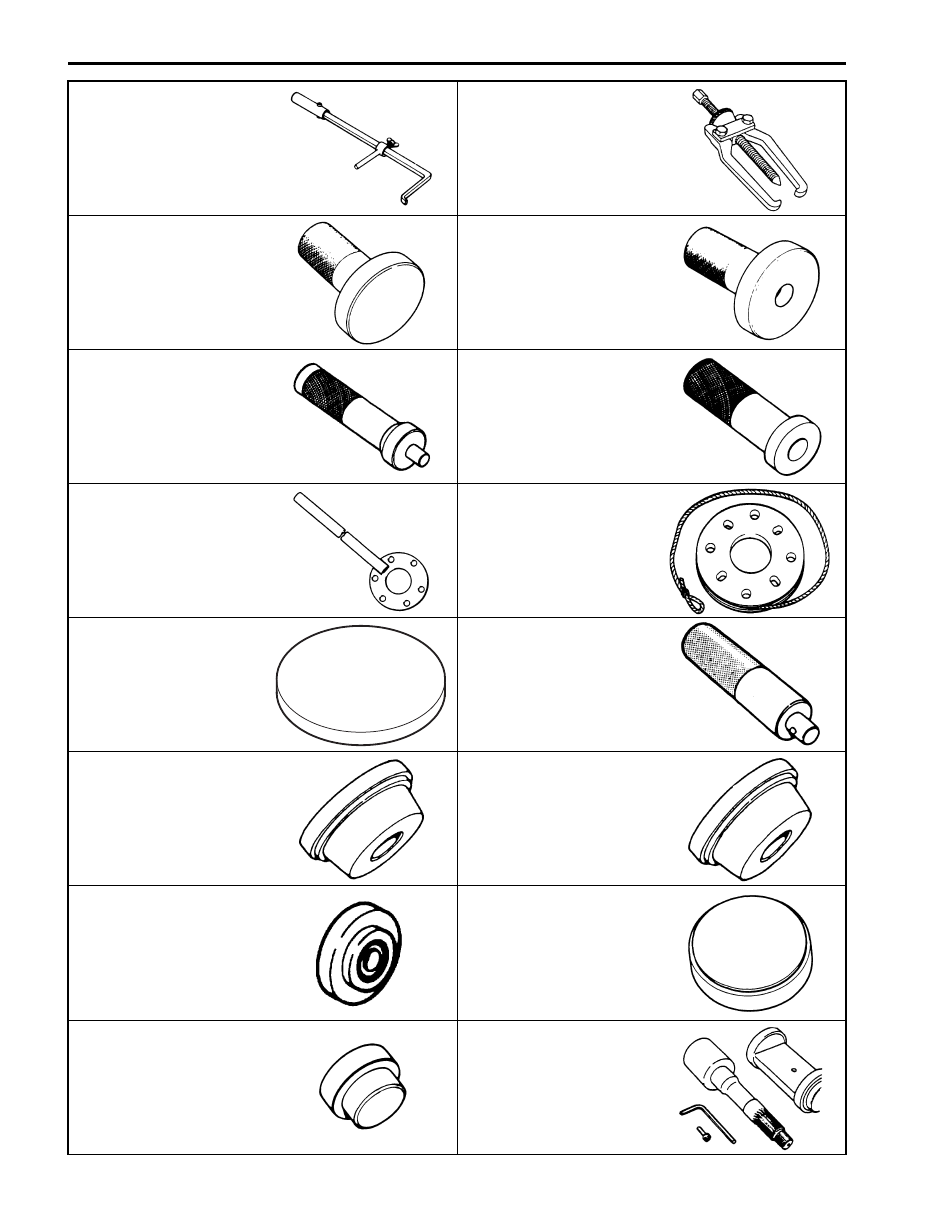

09913–50121

09913–65135

Oil seal remover

Bearing puller

)

 / ) / )

)

 / )

09913–75510

09913–75520

Bearing installer

Bearing installer

)

)

 / )

09913–75821

09913–85210

Bearing installer attachment

Bearing installer

)

 / )

)

09922–66021

09922–75222

Flange holder

Differential gear preload
adjuster

)

 / )

)

 / ) / )

09922–76520

09924–74510

Bevel pinion gauge block

Bearing and oil seal handle

)

 / )

)

 / )

09924–84510–004

09924–84510–005

Bearing installer attachment

Bearing installer attachment
(D)

)

 / )

)

09925–14520

09925–86010

Bearing and oil seal installer
(80 x 50 mm)

Bearing puller attachment

)

)

09925–88210

09926–78311

Bearing puller attachment

Differential bevel pinion
dummy

)

)

Differential: Front 3B-20

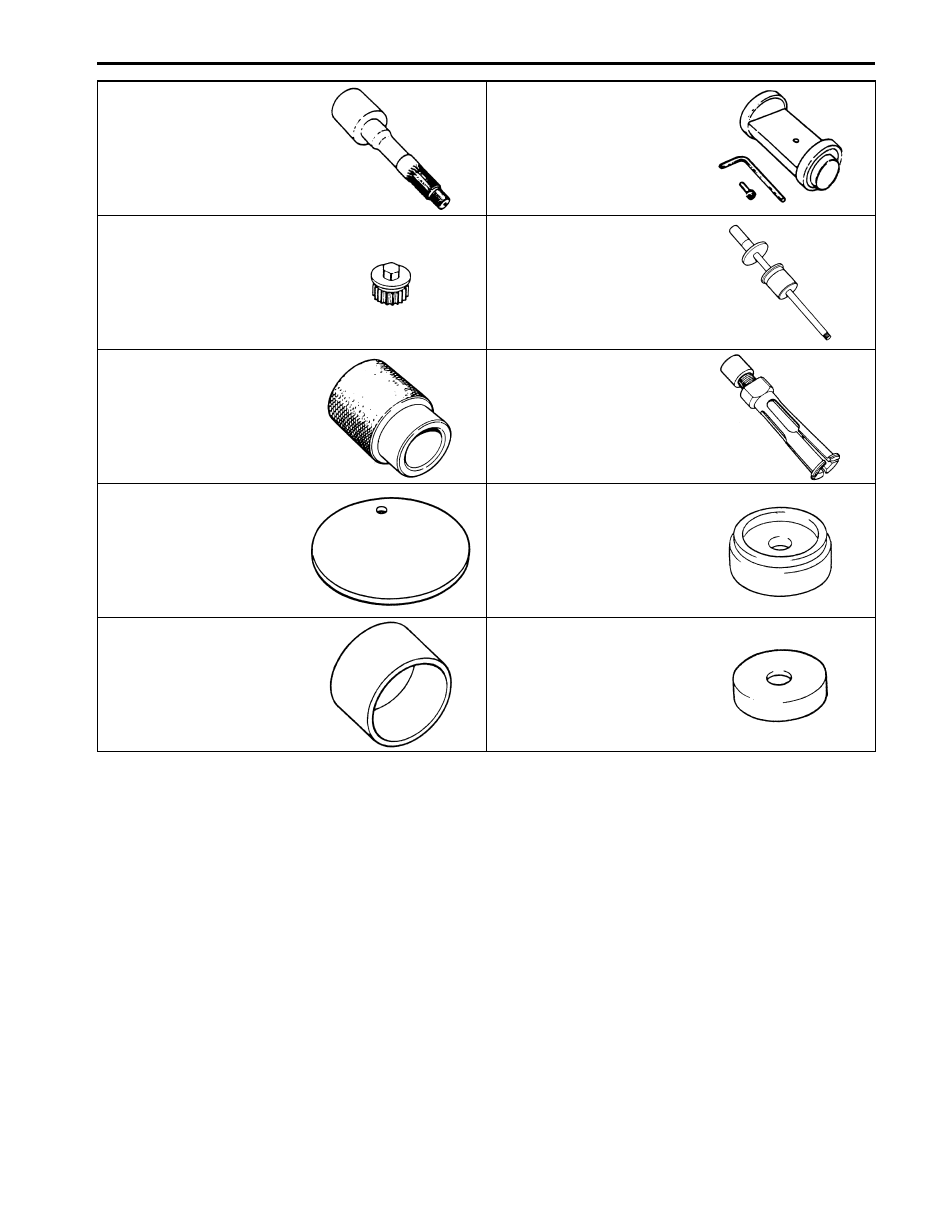

09926–78311–002

09926–78320

Pinion mounting dummy

Mounting dummy

)

 / ) / ) / )

)

 / )

09928–06510

09930–30104

Differential torque checking
tool

Sliding shaft

)

)

09940–53111

09941–64511

Differential side bearing
installer

Bearing and oil seal remover
(30 mm Min.)

)

)

09951–16070

09951–16090

Shim adjuster attachment

Oil seal installer

)

 / )

)

09951–18210

09951–46010

Oil seal remover & installer
No. 2

Drive shaft oil seal installer

)

)

 / )

3B-21 Differential: Rear

Rear

General Description

Rear Differential Construction

S6JB0A3221001

Refer to “Front Differential Construction: Front”.

Diagnostic Information and Procedures

Rear Differential Symptom Diagnosis

S6JB0A3224001

Refer to “Front Differential Symptom Diagnosis: Front”.

Repair Instructions

Rear Differential Oil Change

S6JB0A3226001

Refer to “Front Differential Oil Change: Front”.
The point which is different from the front differential is described.

Rear differential oil capacity
Reference:

• For 4WD model: 0.8 – 0.9 liters (1.7/1.4 – 1.9/1.6 US/Imp. pt.)
• For 2WD model: 0.8 – 1.0 liters (1.7/1.4 – 2.1/1.8 US/Imp. pt.)

Differential: Rear 3B-22

Rear Differential Unit Components

S6JB0A3226002

Rear Differential Dismounting and Remounting

S6JB0A3226003

Dismounting

1) Lift up vehicle and drain oil from rear differential.
2) Remove rear propeller shaft referring to “Propeller

Shaft Removal and Installation in Section 3D”.

3) Remove exhaust center pipe referring to “Exhaust

System Components: For Petrol Engine Model in
Section 1K” or “Exhaust System Components: For
Diesel Engine Model in Section 1K”.

4) Remove rear drive shafts referring to “Rear Drive

Shaft Assembly Removal and Installation: Rear in
Section 3A”.

5) Dismount rear differential as follows.

• 3 door model

a. Remove fuel tank cover (1).

(a)

5

(a)

3

(b)

4

2

1

[A]

[B]

I6JB01322001-02

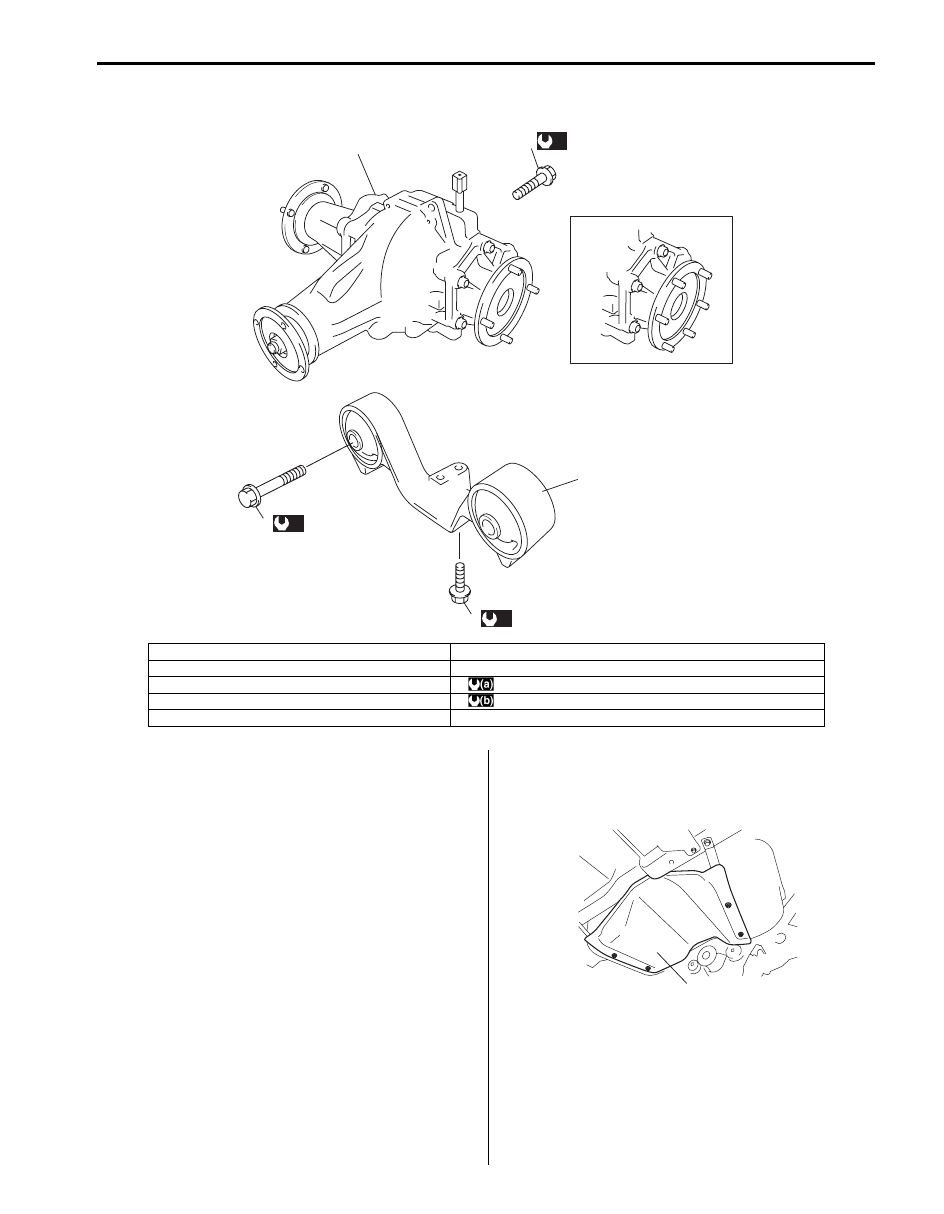

[A]: 4WD model

4. Front mounting bracket bolt

[B]: 2WD model

5. Front mounting bolt

1. Rear differential

: 120 N

⋅m (12.0 kgf-m, 87.0 lb-ft)

2. Front mounting bracket

: 50 N

⋅m (5.0 kgf-m, 36.5 lb-ft)

3. Rear mounting bolt
