1D-94 Engine Mechanical: For J20 Engine

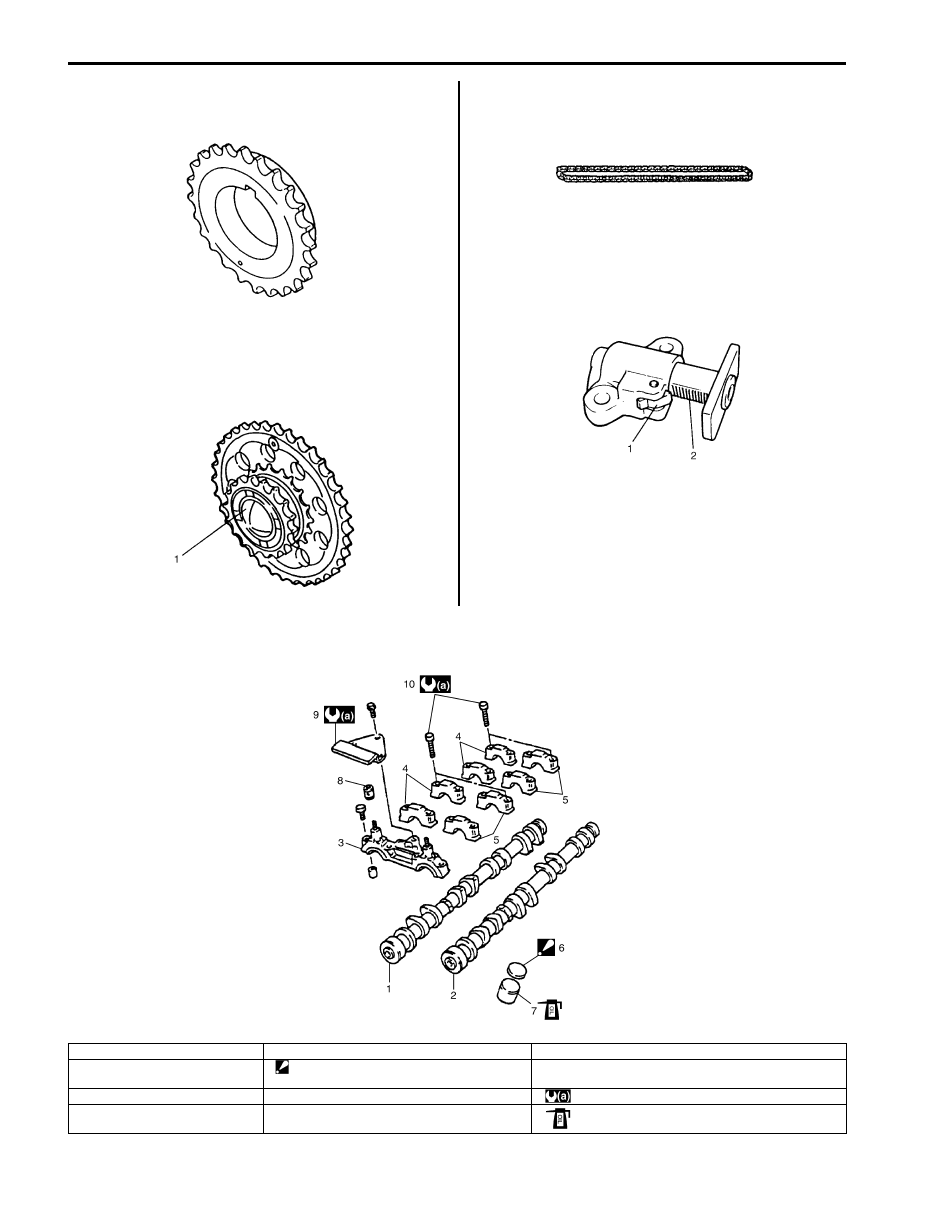

Crankshaft Timing Sprocket
Check teeth of sprocket for wear or damage.

Idler Sprocket
Check teeth and bush (1) of sprocket for wear or
damage.

1st Timing Chain
Check timing chain for wear or damage.

Timing Chain Tensioner Adjuster No.1
Check that latch (1) and tooth surface (2) are free from
damage and latch functions properly.

Camshafts, Tappet and Shim Components

S6JB0A1426021

I2RH01140093-01

I2RH01140094-01

I2RH01140077-01

I2RH01140095-01

I5JB0A142028-01

1. Intake camshaft

5. Exhaust camshaft housing

9. Timing chain guide No.2

2. Exhaust camshaft

6. Shim

: Direct shim No. side toward tappet.

10. Camshaft housing bolt

3. Camshaft housing

7. Tappet

: 11 N

⋅m (1.1 kgf-m, 8.0 lb-ft)

4. Intake camshaft housing

8. Oil relief valve

: Apply engine oil to sliding surface of each part.

Engine Mechanical: For J20 Engine 1D-95

Camshafts, Tappet and Shim Removal and
Installation

S6JB0A1426022

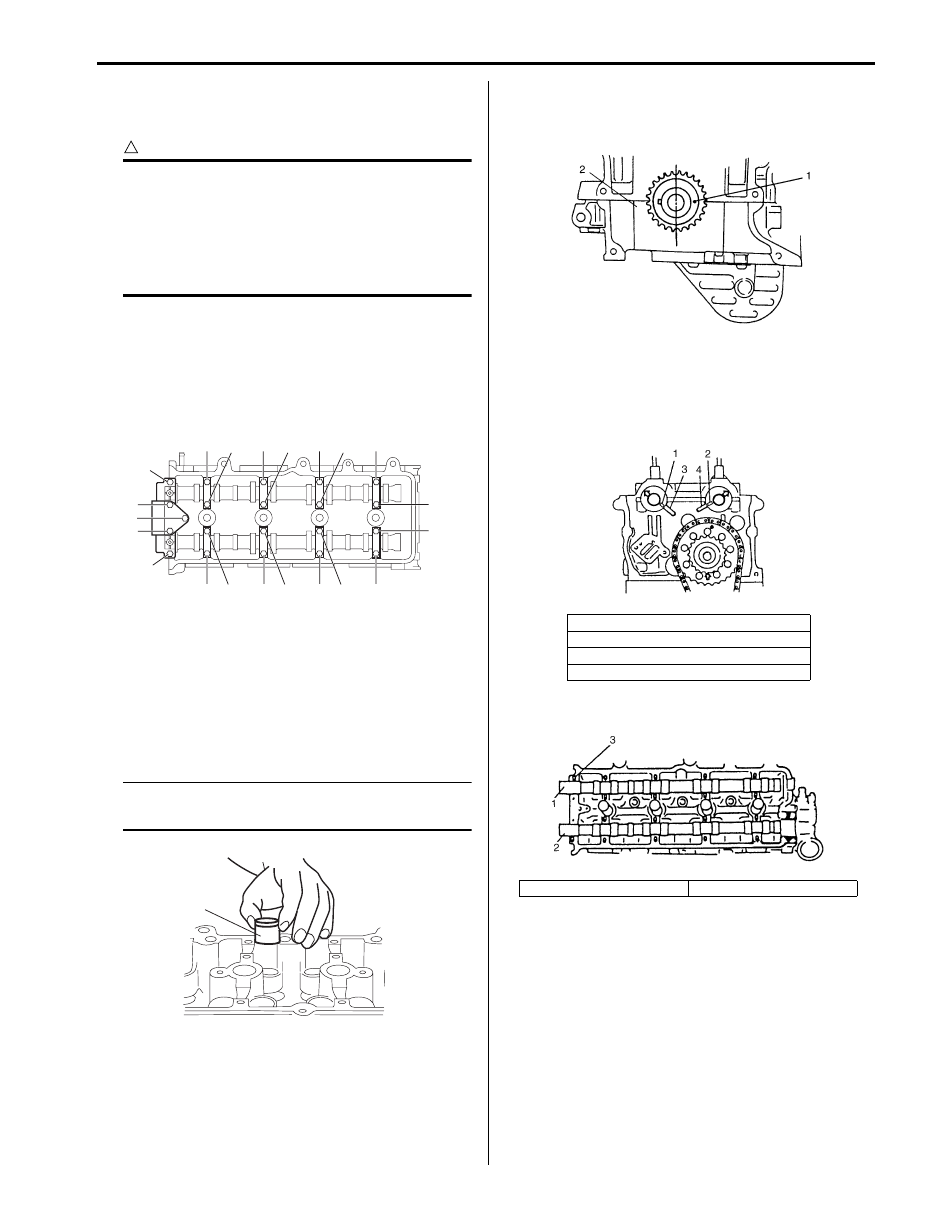

CAUTION

• Keep working table, tools and hands clean

while overhauling.

• Use special care to handle aluminum parts

so as not to damage them.

• Do not expose removed parts to dust.

Keep them always clean.

Removal

1) Remove 2nd timing chain. Refer to “2nd Timing

Chain and Chain Tensioner Removal and
Installation: For J20 Engine” for removal.

2) Loosen camshaft housing bolts in such order as

indicated in figure and remove them.

3) Remove camshaft housings.
4) Remove camshafts.
5) Remove tappets with shims.

Installation

1) Apply engine oil around tappet (1), and then install

tappets with shims to cylinder head.

NOTE
When installing shim, make sure to direct
shim No. side toward tappet.

2) Match match mark (1) on crank timing sprocket and

mating surface of cylinder block and lower
crankcase (2).

3) Install camshafts.

Apply oil to sliding surface of each camshaft and
camshaft journal then install them by aligning match
marks on cylinder head and camshafts as shown in
figure.

4) Install camshaft housing pins (3) as shown in figure.

“2”

“12” “13”

“20” “21”

“16” “17”

“6”

“10” “11”

“18” “19”

“14” “15”

“8”

“7”

“9”

“5”
“3”
“4”

“1”

I5JB0A142029-01

I5JB0A142030-01

1. Knock pin of intake camshaft
2. Knock pin of exhaust camshaft
3. Match mark of intake camshaft
4. Match mark of exhaust camshaft

1. Intake camshaft

2. Exhaust camshaft

I2RH01140103-01

I5JB0A142031-01

I4RH01140032-01

1D-96 Engine Mechanical: For J20 Engine

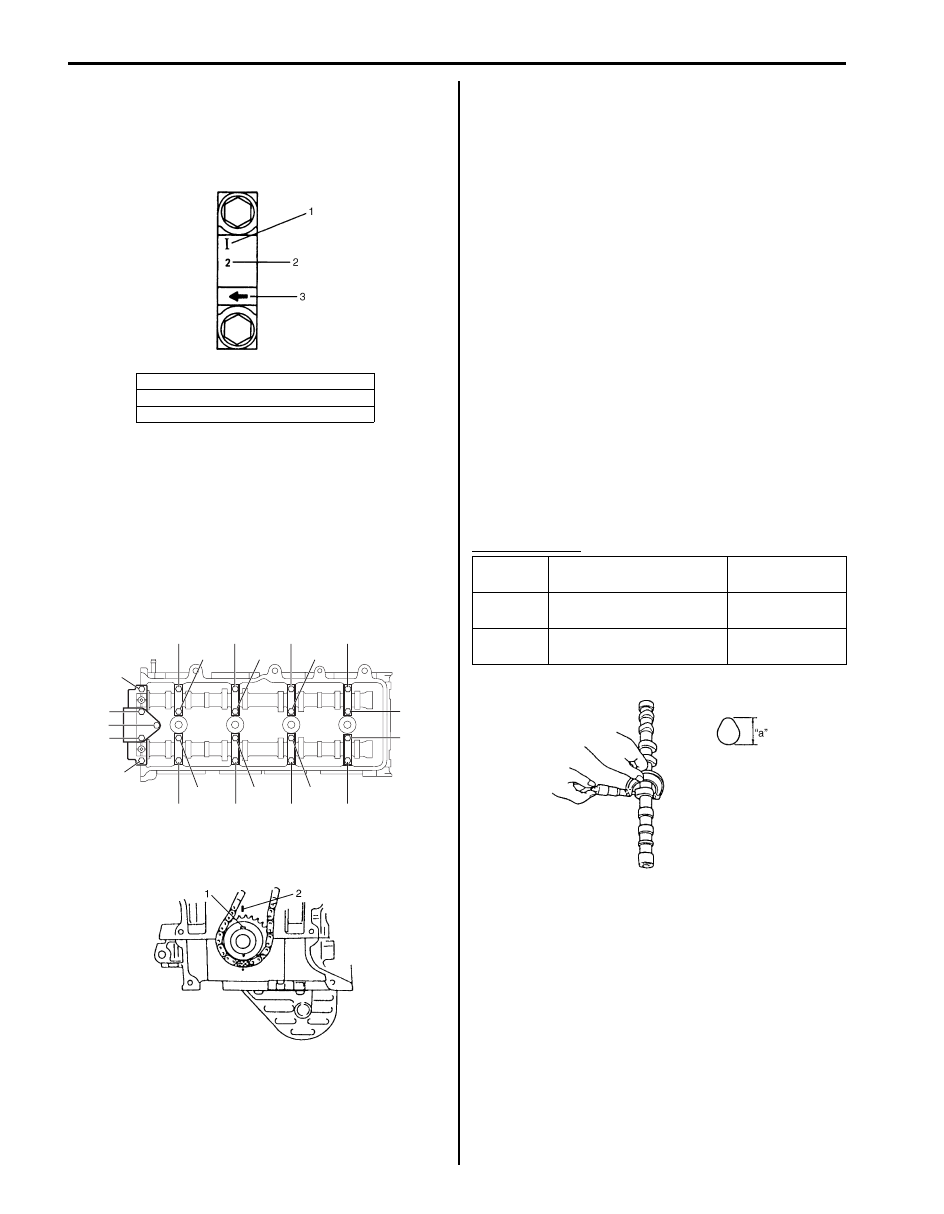

5) Check position of camshaft housings.

Embossed marks are provided on each camshaft
housing, indicating position and direction for
installation. Install housings as indicated by these
marks.

6) After applying oil to housing bolts, tighten them

temporarily first. Then tighten them by following
numerical order in figure.
Tighten a little at a time and evenly among bolts and
repeat tightening sequence two or three times before
they are tightened to specified torque.

Tightening torque
Camshaft housing bolt (a): 11 N·m (1.1 kgf-m,
8.0 lb-ft)

7) Turn crankshaft clockwise then align crankshaft

timing sprocket key (1) with timing mark (2).

8) Install 2nd timing chain. Refer to “2nd Timing Chain

and Chain Tensioner Removal and Installation: For
J20 Engine” for installation.

9) Install timing chain cover. Refer to “Timing Chain

Cover Removal and Installation: For J20 Engine” for
installation.

10) Install cylinder head cover. Refer to “Cylinder Head

Cover Removal and Installation: For J20 Engine” for
installation.

11) Install oil pan. Refer to “Oil Pan and Oil Pump

Strainer Removal and Installation: For J20 Engine in
Section 1E” for installation.

12) Install engine assembly to vehicle referring to

“Engine Assembly Removal and Installation: For J20
Engine”.

13) Check valve lashes referring to “Valve Lash

(Clearance) Inspection: For J20 Engine”.

Camshaft, Tappet and Shim Inspection

S6JB0A1426023

Cam Wear
Using a micrometer, measure cam height. If measured
height is below its limit, replace camshaft.

Cam height “a”

1. I: Intake side or E: Exhaust side
2. Position from timing chain side
3. Pointing to timing chain side

I2RH01140106-01

“20”, (a)

“10”, (a)

“9”, (a)

“2”, (a)

“1”, (a)

“6”, (a)

“16”, (a)

“15”, (a)

“13”, (a)

“17”, (a)
“19”, (a)
“18”, (a)

“5”, (a)

“12”, (a)

“21”, (a)

“11”, (a)

“4”, (a)

3”, (a)

“8”, (a)

“14”, (a)

“7”, (a)

I5JB0A142032-01

I5JB0A142033-01

Cam

height

Standard

Limit

Intake
cam

45.669 – 45.829 mm

(1.798 – 1.8043 in.)

45.550 mm

(1.793 in.)

Exhaust
cam

45.550 – 45.710 mm
(1.7933 – 1.7996 in.)

45.430 mm

(1.789 in.)

I5JB0A142034-01

Engine Mechanical: For J20 Engine 1D-97

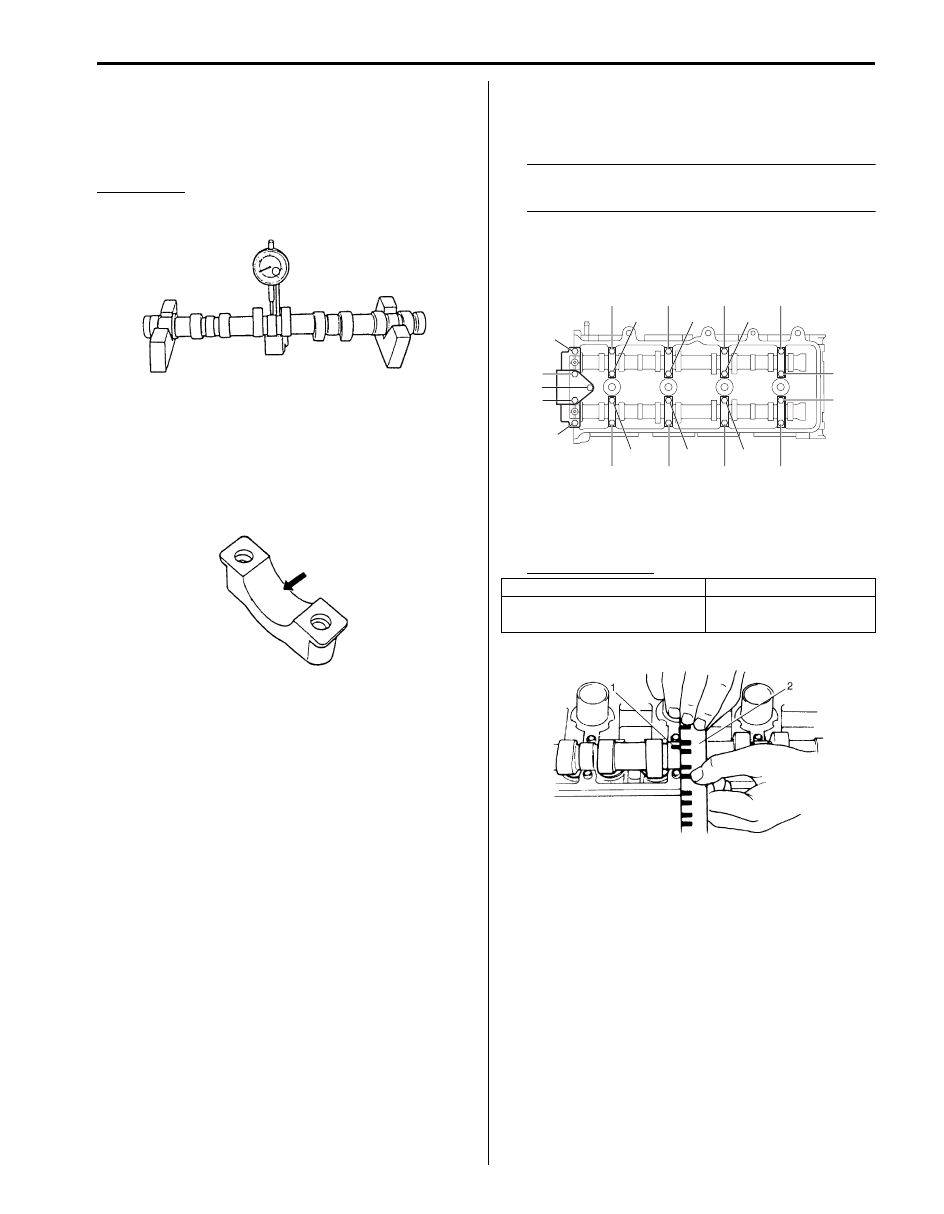

Camshaft Runout
Set camshaft between two “V” blocks, and measure its
runout by using a dial gauge.
If measured runout exceeds the specified limit, replace
camshaft.

Runout limit
0.03 mm (0.0012 in.)

Camshaft Journal Wear
Check camshaft journals and camshaft housings for
pitting, scratches, wear or damage.
If any malcondition is found, replace camshaft or cylinder
head with housing. Never replace cylinder head without
replacing housings.

Check clearance by using gauging plastic. Checking
procedure is as follows.

1) Clean housings and camshaft journals.
2) Make sure that all tappets with shims are removed

and install camshafts to cylinder head.

3) Place a piece of gauging plastic to full width of

journal of camshaft (parallel to camshaft).

4) Install camshaft housing.

5) Tighten camshaft housing bolts in such order as

indicated in figure a little at a time till they are
tightened to specified torque.

NOTE
Do not rotate camshaft while gauging plastic
is installed.

Tightening torque
Camshaft housing bolt (a): 11 N·m (1.1 kgf-m,
8.0 lb-ft)

6) Remove housing, and using scale (2) on gauging

plastic envelop (1), measure gauging plastic width at
its widest point.

Journal clearance

If measured camshaft journal clearance exceeds
limit, measure journal (housing) bore and outside
diameter of camshaft journal. Replace camshaft or
cylinder head assembly whichever the difference
from specification is greater.

I2RH01140109-01

IYSQ01143105-01
