1D-90 Engine Mechanical: For J20 Engine

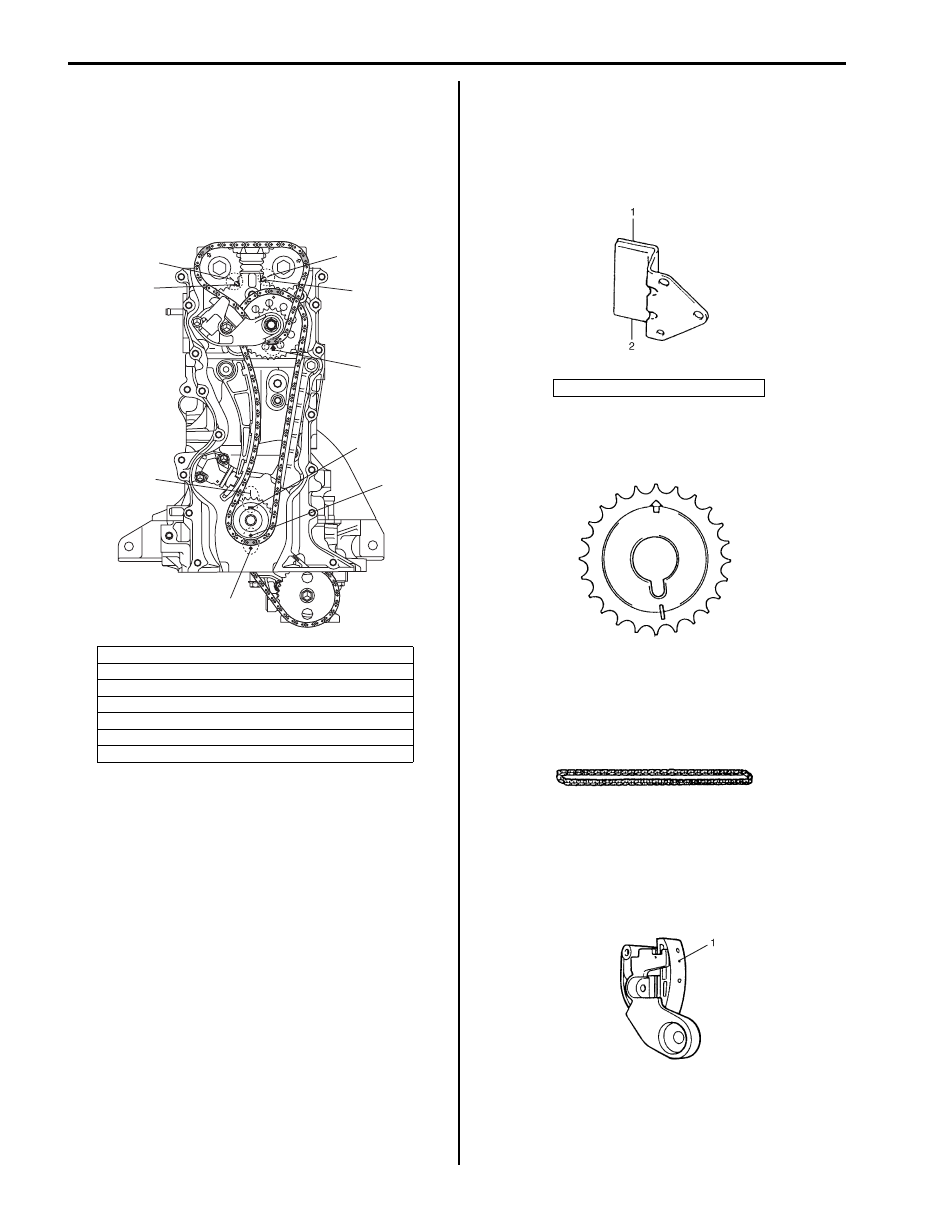

10) Turn crankshaft two rotations clockwise, and then

align timing mark (1) on crankshaft and timing mark
(2) on cylinder block as shown in figure.
At this time, check timing marks (3, 5 and 7) of
sprockets are in match with timing marks (4, 6 and 8)
of cylinder head, cylinder block and lower crank
case. Also, check arrow mark (9) on idler sprocket
faces upward as shown in figure.

11) Apply oil to timing chains, tensioner, tensioner

adjusters, sprockets and guides.

12) Install timing chain cover. Refer to “Timing Chain

Cover Removal and Installation: For J20 Engine” for
installation.

13) Install cylinder head cover. Refer to “Cylinder Head

Cover Removal and Installation: For J20 Engine” for
installation.

14) Install oil pan. Refer to “Oil Pan and Oil Pump

Strainer Removal and Installation: For J20 Engine in
Section 1E” for installation.

15) Install engine assembly to vehicle referring to

“Engine Assembly Removal and Installation: For J20
Engine”.

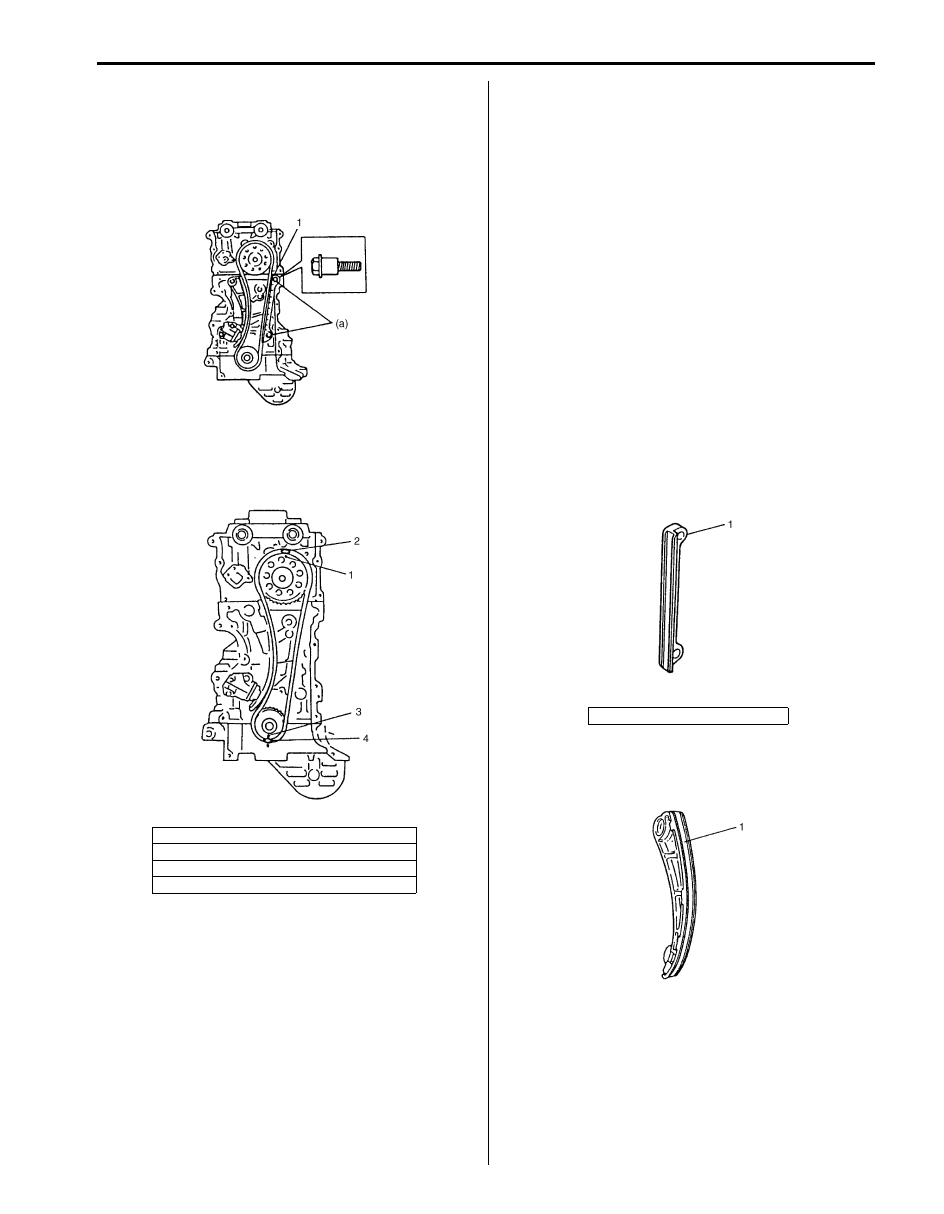

2nd Timing Chain and Chain Tensioner
Inspection

S6JB0A1426017

Timing Chain Guide No.2
Check shoe (2) for wear or damage.

Camshaft Sprocket
Check teeth of sprocket for wear or damage.

Timing Chain
Check timing chain for wear or damage.

Tensioner Adjuster No.2
Check shoe (1) for wear or damage and latch functions
properly.

3. Timing mark on crank timing sprocket
4. Timing mark on lower crankcase
5. Timing mark on intake camshaft timing sprocket
6. Timing mark of intake camshaft timing sprocket
7. Timing mark on exhaust camshaft timing sprocket
8. Timing mark of exhaust camshaft timing sprocket
9. Arrow mark on idler sprocket point upward

I5JB0A142026-01

1. Timing chain guide No.2

I2RH01140075-01

I2RH01140076-01

I2RH01140077-01

I2RH01140078-01

Engine Mechanical: For J20 Engine 1D-91

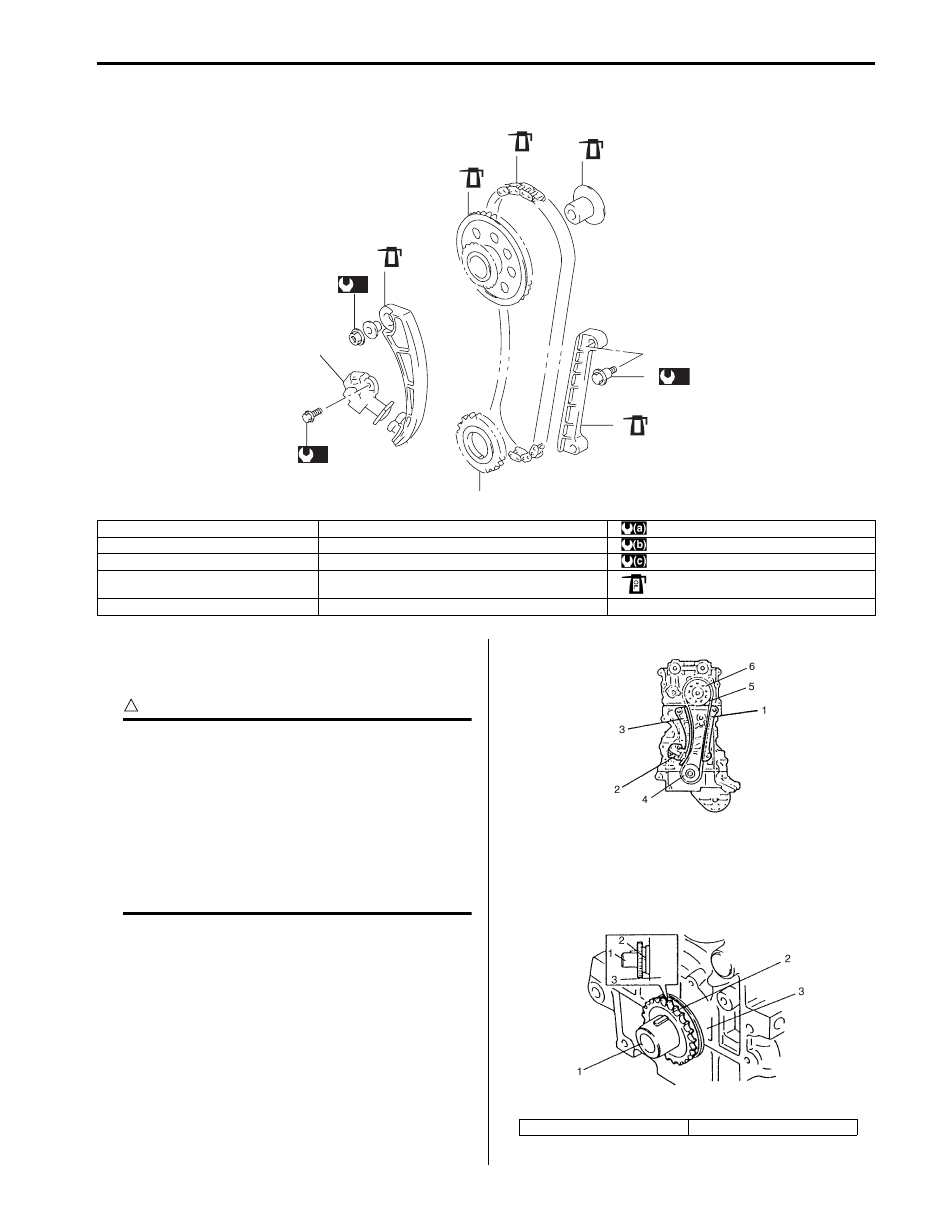

1st Timing Chain and Chain Tensioner Components

S6JB0A1426018

1st Timing Chain and Chain Tensioner Removal
and Installation

S6JB0A1426019

CAUTION

After timing chain is removed, never turn
crankshaft and camshafts independently
more than its allowable turning range
described referring to “2nd Timing Chain and
Chain Tensioner Removal and Installation:
For J20 Engine”.
If turned, interference may occur between
piston and valves and valves themselves,
and parts related to piston and valves may be
damaged.

Removal

1) Remove 2nd timing chain. Refer to “2nd Timing

Chain and Chain Tensioner Removal and
Installation: For J20 Engine” for removal.

2) Remove timing chain guide No.1 (1).
3) Remove timing chain tensioner adjuster No.1 (2).
4) Remove timing chain tensioner (3).
5) Remove idler sprocket (4) and 1st timing chain (5).
6) Remove crankshaft timing sprocket (6).

Installation

1) Install crankshaft timing sprocket (2) as shown in

figure.

OIL

(c)

(b)

(a)

OIL

I5JB0A142027-01

1. 1st timing chain

6. Timing chain tensioner adjuster No.1

: 25 N

⋅m (2.5 kgf-m, 18.0 lb-ft)

2. Idler sprocket

7. Timing chain guide No.1

: 9 N

⋅m (0.9 kgf-m, 6.5 lb-ft)

3. Idler sprocket shaft

8. Timing chain tensioner nut

: 11 N

⋅m (1.1 kgf-m, 8.0 lb-ft)

4. Crankshaft timing sprocket

9. Timing chain guide No.1 bolt

: Apply engine oil to sliding surface.

5. Timing chain tensioner

10. Timing chain tensioner adjuster No.1 bolt

1. Crankshaft

3. Cylinder block

I4RH01140029-01

I2RH01140083-01

1D-92 Engine Mechanical: For J20 Engine

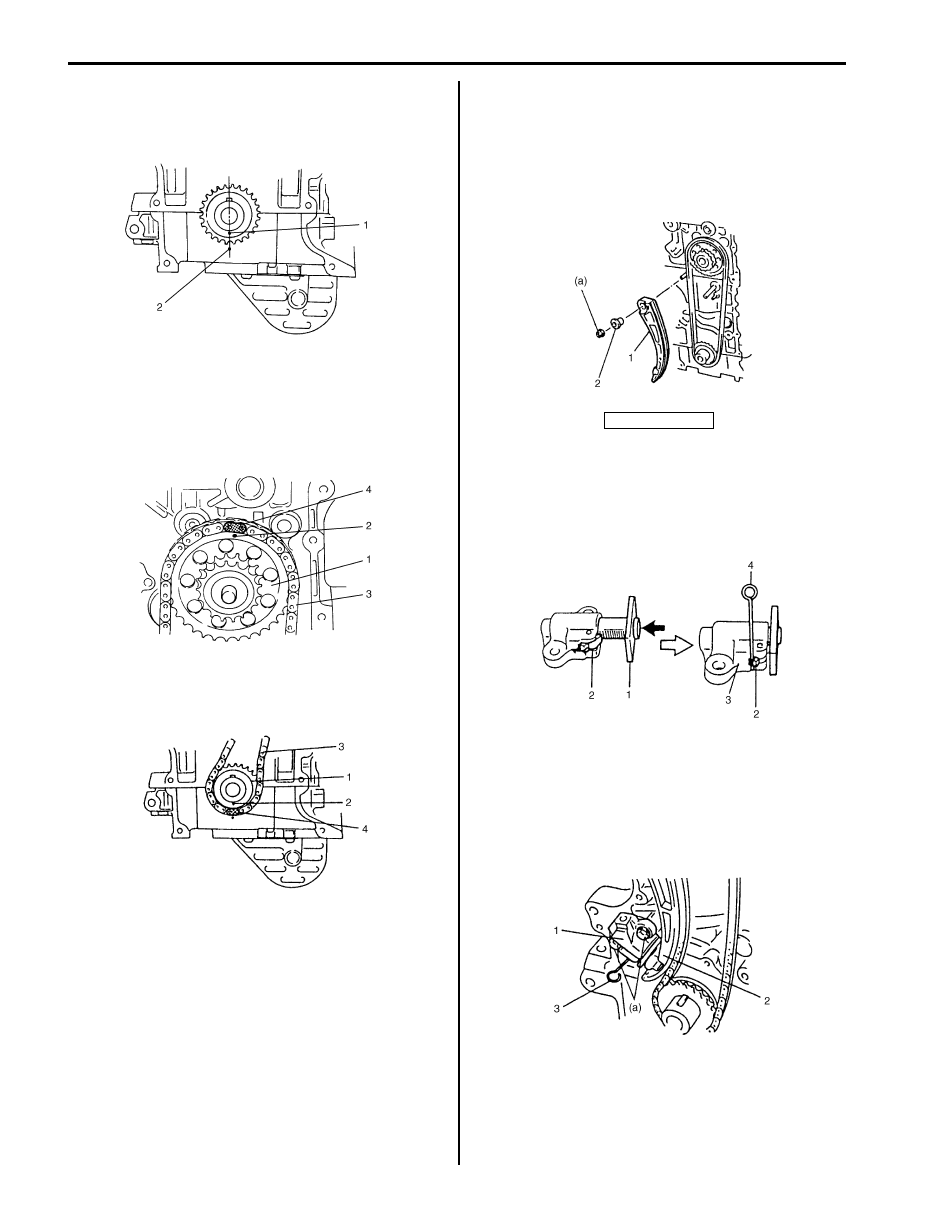

2) Check that match mark (1) on crankshaft timing

sprocket is in match with timing mark (2) on lower
crankcase.

3) Apply oil to bush of idler sprocket (1).
4) Install idler sprocket and sprocket shaft.
5) Install 1st timing chain by aligning dark blue plate (4)

of 1st timing chain (3) and match mark (2) on idler
sprocket (1).

6) Bring gold plate (4) of 1st timing chain (3) into match

with match mark (2) on crankshaft timing sprocket
(1).

7) Apply engine oil to sliding surface of timing chain

tensioner (1) and then install it as shown in figure.
Tighten tensioner nut to specified torque.

Tightening torque
Timing chain tensioner nut (a): 25 N·m (2.5 kgf-
m, 18.0 lb-ft)

8) With latch of tensioner adjuster No.1 returned and

plunger (1) pushed back into body, insert stopper (4)
into latch (2) and body (3).
After inserting it, check to make sure that plunger will
not come out.

9) Install timing chain tensioner (2) adjuster No.1 (1).

Tightening torque
Timing chain tensioner adjuster No.1 bolt (a): 11
N·m (1.1 kgf-m, 8.0 lb-ft)

10) Pull out stopper (3) from adjuster No.1.

I2RH01140082-01

I2RH01140084-01

I2RH01140085-01

2. Spacer

I2RH01140086-01

I2RH01140087-01

I2RH01140088-01
