1A-231 Engine General Information and Diagnosis: For Petrol Engine Model

E23-49

PNK

A/C compressor
relay output (if
equipped with A/C)

10 – 14 V

Engine running, A/C
switch OFF and blower
selector at OFF position.

—

0 – 1 V

Engine running, A/C
switch ON and blower
selector at 1st position or
more.

E23-50

BLU/
ORN

Throttle actuator
control relay output

0 – 1 V

Ignition switch turned ON.

—

E23-51

BLU/

YEL

Ground for
accelerator pedal
position (APP)
sensor (sub)

Below 0.3 V

Ignition switch turned ON.

—

E23-52

BLU/
GRN

Accelerator pedal
position (APP)
sensor (sub) signal

0.30 – 0.44 V

Ignition switch turned ON
and accelerator pedal at
idle position after warmed
up engine.

—

1.74 – 2.17 V

Ignition switch turned ON
and accelerator pedal at
full depressed position
after warmed up engine.

E23-53

ORN/

BLU

Output for 5 V
power source of
accelerator pedal
position (APP)
sensor (sub)

4.5 – 5.5 V

Ignition switch turned ON.

—

E23-54

ORN

Ground for
accelerator pedal
position (APP)
sensor (main)

Below 0.3 V

Ignition switch turned ON.

—

E23-55

WHT/

BLU

Accelerator pedal
position (APP)
sensor (main)
signal

0.65 – 0.82 V

Ignition switch turned ON
and accelerator pedal at
idle position after warmed
up engine.

—

3.50 – 4.27 V

Ignition switch turned ON
and accelerator pedal at
full depressed position
after warmed up engine.

E23-56

WHT

Output for 5 V
power source of
accelerator pedal
position (APP)
sensor (main)

4.5 – 5.5 V

Ignition switch turned ON.

—

E23-57

—

—

—

—

—

E23-58

—

—

—

—

—

E23-59

—

—

—

—

—

E23-60

BLU

Main power supply
relay output

10 – 14 V

Ignition switch turned OFF.

—

0 – 2 V

Ignition switch turned ON.

Terminal

No.

Wire

color

Circuit

Normal voltage

Condition

Remarks

Engine General Information and Diagnosis: For Petrol Engine Model 1A-232

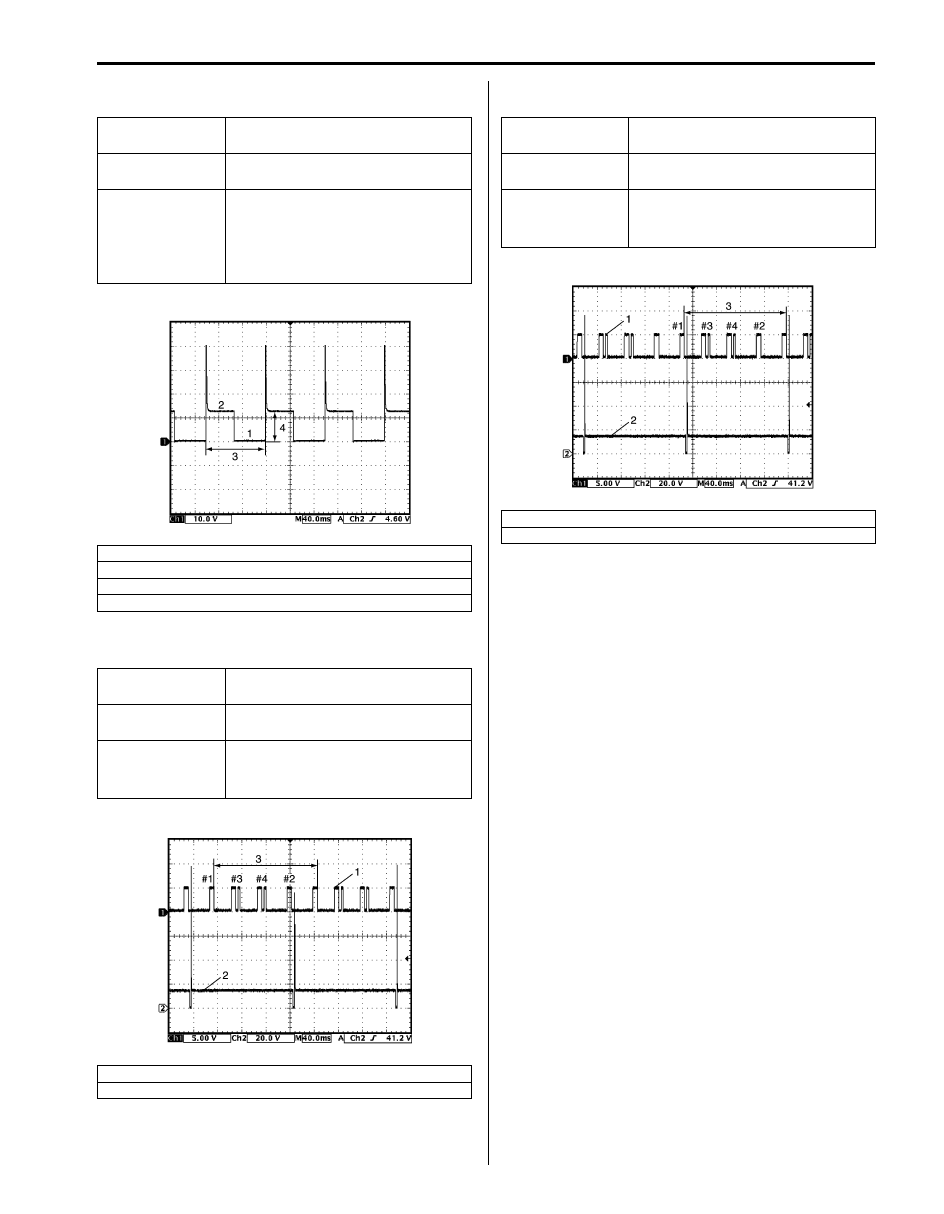

Reference waveform No.1
Fuel injector signal (1) with engine idling

Reference waveform No.2
No.1 fuel injector signal (2) with engine idling

Reference waveform No.3
No.2 fuel injector signal (2) with engine idling

Reference waveform No.4
EGR valve signal

Measurement
terminal

CH1: “C37-2” to “C37-58”

Oscilloscope
setting

CH1: 20 V/DIV
TIME: 1 ms/DIV

Measurement
condition

• After warmed up to normal

operating temperature

• Engine at specified idle speed

2. Fuel injection pulse width: 2-4 msec.
3. 10 – 14 V

Measurement
terminal

CH1: “C37-52” to “C37-58”
CH2: “C37-1” to “C37-58”

Oscilloscope
setting

CH1: 5 V/DIV, CH2: 20 V/DIV
TIME: 40 ms/DIV

Measurement
condition

• After warmed up to normal

operating temperature

• Engine at specified idle speed

1. Cylinder reference signal (CMP reference signal)
3. 720

° crank angle

I5JB0A110074-01

I5JB0A110075-01

Measurement
terminal

CH1: “C37-52” to “C37-58”
CH2: “C37-2” to “C37-58”

Oscilloscope
setting

CH1: 5 V/DIV, CH2: 20 V/DIV
TIME: 40 ms/DIV

Measurement
condition

• After warmed up to normal

operating temperature

• Engine at specified idle speed

1. Cylinder reference signal (CMP reference signal)
3. 720

° crank angle

Measurement
terminal

CH1: “C37-5” to “C37-58”
CH2: “C37-6” to “C37-58”
CH3: “C37-3” to “C37-58”
CH4: “C37-4” to “C37-58”

Oscilloscope
setting

CH1: 20 V/DIV, CH2: 20 V/DIV
CH3: 20 V/DIV, CH4: 20 V/DIV
TIME: 40 ms/DIV

Measurement
condition

Engine at cranking

1. EGR valve stepper motor coil 1 signal
2. EGR valve stepper motor coil 2 signal
3. EGR valve stepper motor coil 3 signal
4. EGR valve stepper motor coil 4 signal
5. ON signal
6. OFF signal

I5JB0A110076-01

I4RS0B110053-01

1A-233 Engine General Information and Diagnosis: For Petrol Engine Model

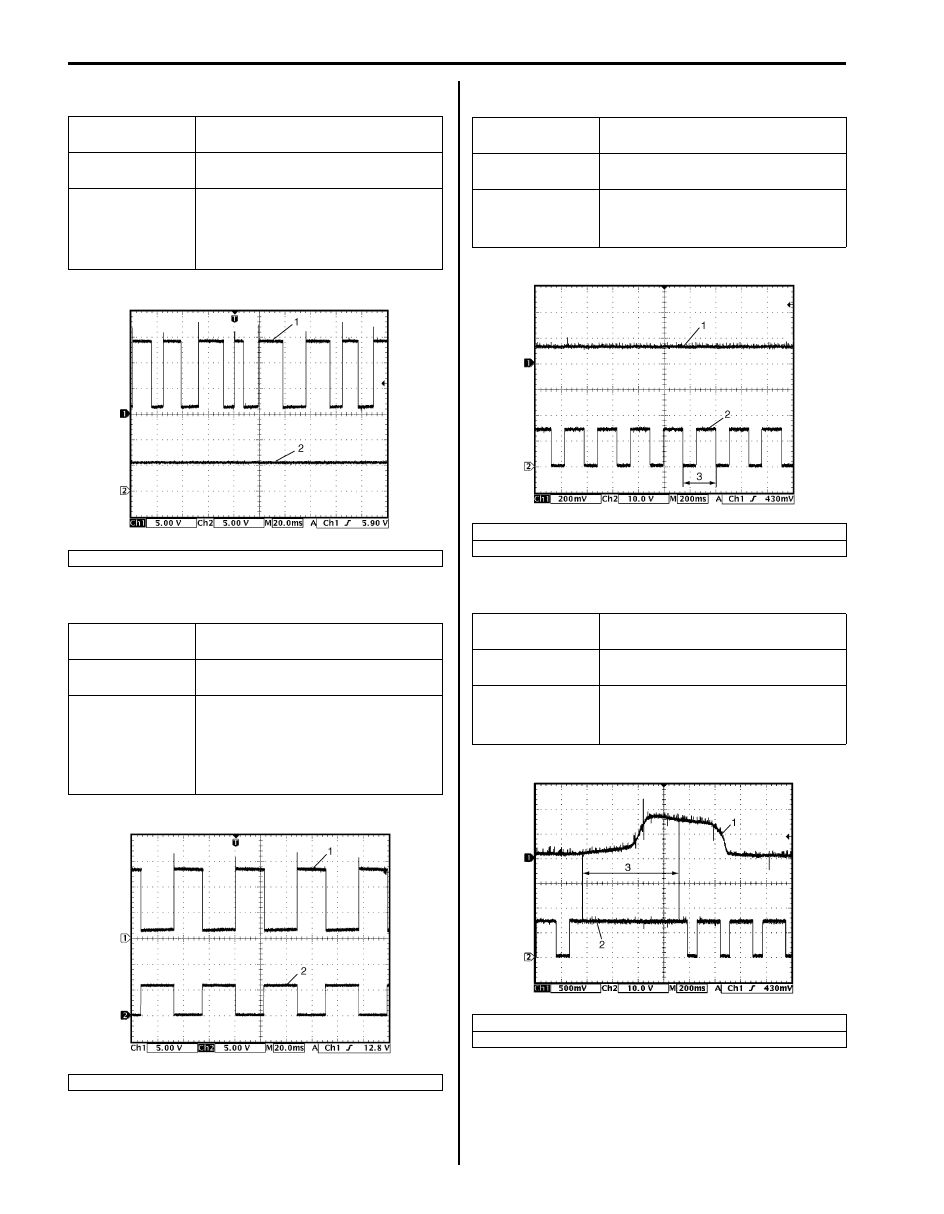

Reference waveform No.5
Generator field coil monitor signal (1) at engine idling

Reference waveform No.6
Generator field coil monitor signal (1) at engine idling

Reference waveform No.7
Heated oxygen sensor-2 signal (1) with engine idling

Reference waveform No.8
Heated oxygen sensor-2 signal (1) with engine racing

Measurement
terminal

CH1: “C37-8” to “C37-58”
CH2: “C37-28” to “C37-58”

Oscilloscope
setting

CH1: 5 V/DIV, CH2: 5 V/DIV
TIME: 20 ms/DIV

Measurement
condition

• After warmed up to normal

operating temperature

• Engine at specified idle speed
• All accessory switch turned off

2. Generator output control signal

Measurement
terminal

CH1: “C37-8” to “C37-58”
CH2: “C37-28” to “C37-58”

Oscilloscope
setting

CH1: 5 V/DIV, CH2: 5 V/DIV
TIME: 20 ms/DIV

Measurement
condition

• After warmed up to normal

operating temperature

• Engine at specified idle speed
• For a few sec. from headlight

switch turned ON

2. Generator output control signal

I5JB0A110077-01

I5JB0A110078-01

Measurement
terminal

CH1: “C37-11” to “C37-57”
CH2: “C37-47” to “C37-58”

Oscilloscope
setting

CH1: 200 mV/DIV, CH2: 10 V/DIV
TIME: 200 ms/DIV

Measurement
condition

• After warmed up to normal

operating temperature

• Engine at specified idle speed

2. Heated oxygen sensor-2 heater signal
3. One duty cycle

Measurement
terminal

CH1: “C37-11” to “C37-57”
CH2: “C37-47” to “C37-58”

Oscilloscope
setting

CH1: 500 mV/DIV, CH2: 10 V/DIV
TIME: 200 ms/DIV

Measurement
condition

• After warmed up to normal

operating temperature

• Engine racing

2. Heated oxygen sensor-2 heater signal
3. Engine racing

I5JB0A110079-01

I5JB0A110080-03

Engine General Information and Diagnosis: For Petrol Engine Model 1A-234

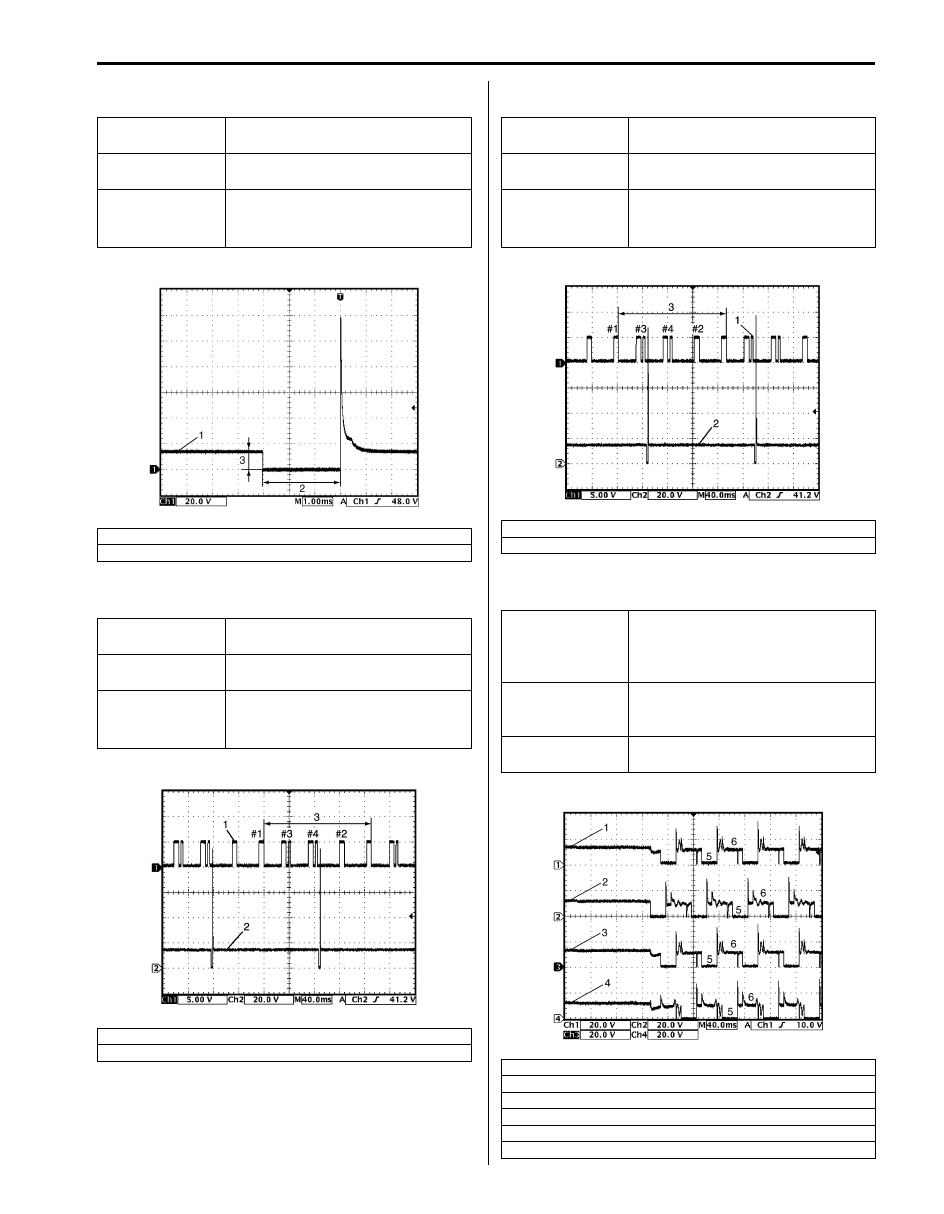

Reference waveform No.9
EVAP canister purge valve signal

Reference waveform No.10
No.3 fuel injector signal (2) with engine idling

Reference waveform No.11
No.4 fuel injector signal (2) with engine idling

Measurement
terminal

CH1: “C37-13” to “C37-58”

Oscilloscope
setting

CH1: 10 V/DIV
TIME: 40 ms/DIV

Measurement
condition

• After warmed up to normal

operating temperature

• Set EVAP canister purge valve at

52% by using “Misc Test” of scan
tool

1. ON signal
2. OFF signal
3. One duty cycle
4. 10 – 14 V

Measurement
terminal

CH1: “C37-52” to “C37-58”
CH2: “C37-16” to “C37-58”

Oscilloscope
setting

CH1: 5 V/DIV, CH2: 20 V/DIV
TIME: 40 ms/DIV

Measurement
condition

• After warmed up to normal

operating temperature

• Engine at specified idle speed

1. Cylinder reference signal (CMP reference signal)
3. 720

° crank angle

I4RS0B110067-01

I5JB0A110081-01

Measurement
terminal

CH1: “C37-52” to “C37-58”
CH2: “C37-17” to “C37-58”

Oscilloscope
setting

CH1: 5 V/DIV, CH2: 20 V/DIV
TIME: 40 ms/DIV

Measurement
condition

• After warmed up to normal

operating temperature

• Engine at specified idle speed

1. Cylinder reference signal (CMP reference signal)
3. 720

° crank angle

I5JB0A110082-01
