DTC P0335: Crankshaft Position (CKP) Sensor Circuit (For J20 Engine)

S6JB0A1114041

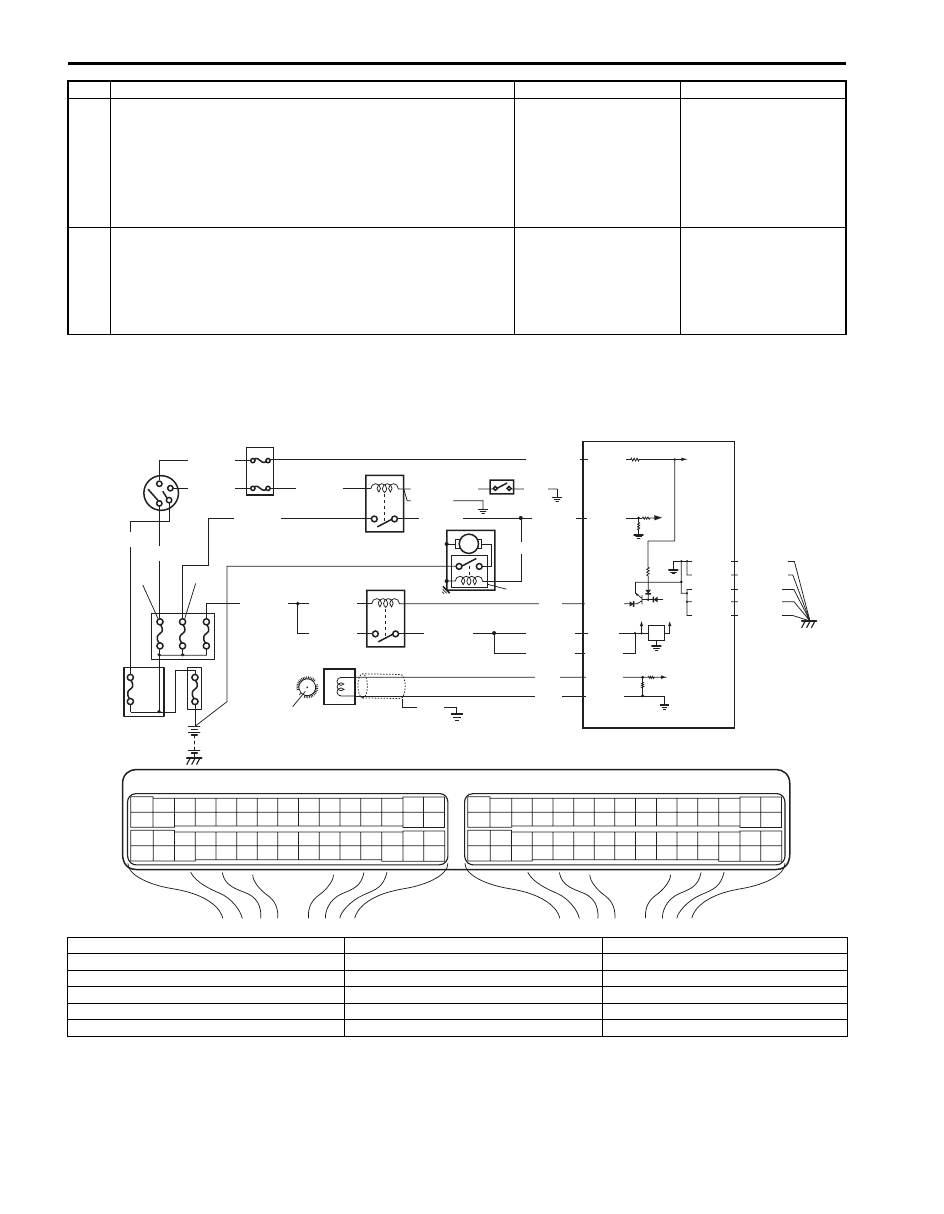

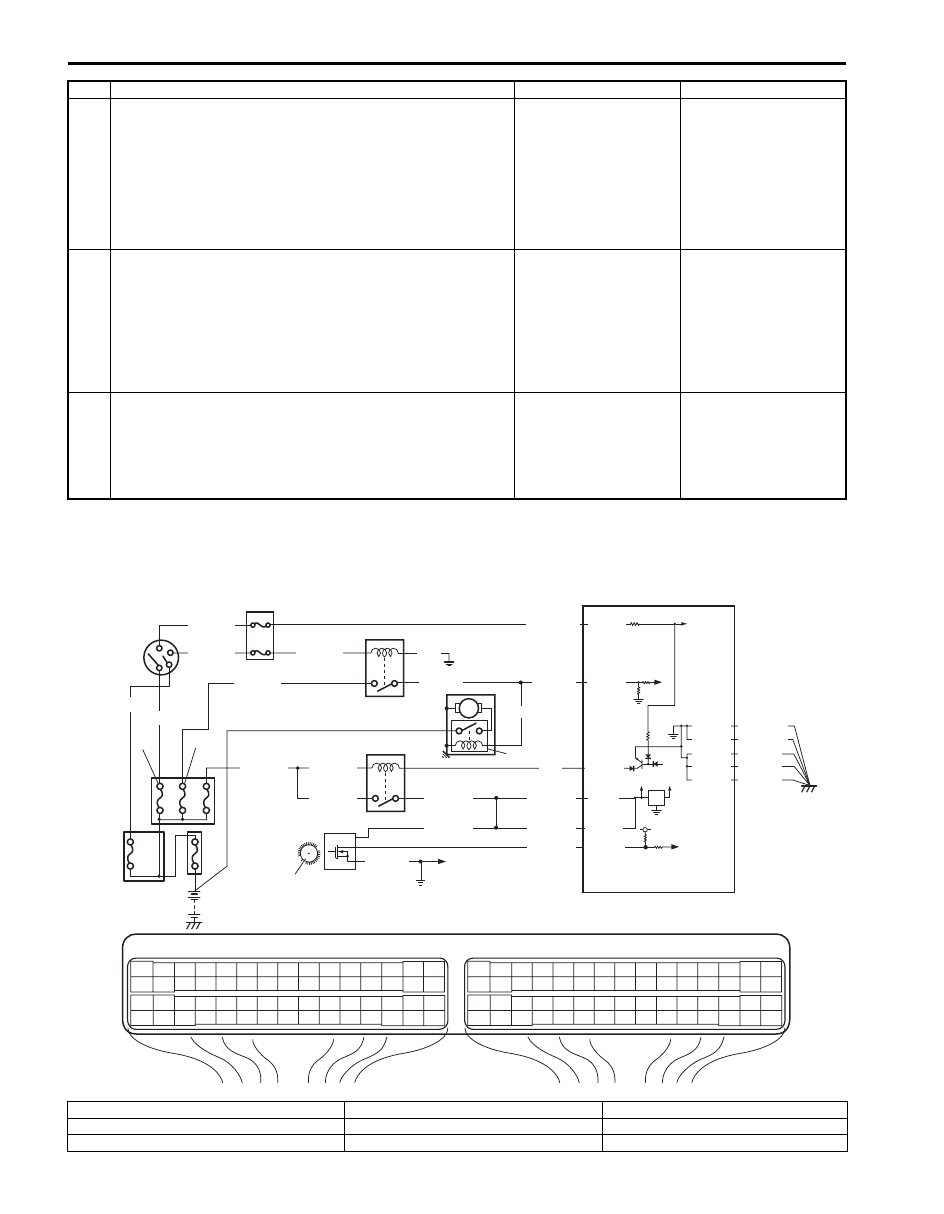

Wiring Diagram

6

Knock sensor circuit for short check
1) Disconnect connectors from ECM with ignition switch

turned OFF.

2) Turn ON ignition switch, measure voltage between “C37-

56” terminal of ECM connector and vehicle body ground.

Is voltage 0 V?

Go to Step 7.

“WHT” wire is shorted to
other circuit.

7

Knock sensor circuit for high resistance check
1) Turn OFF ignition switch, measure resistance between

“C37-56” terminal of ECM connector and “RED” wire
terminal of knock sensor harness connector.

Is resistance below 5

Ω

?

Faulty knock sensor.

“WHT” wire is high
resistance circuit.

Step

Action

Yes

No

E23

C37

3

4

18

19

5

6

7

10

11

17

20

47

46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32

31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

3

4

18

19

5

6

7

10

11

17

20

47

46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32

31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

12V

5V

BLU/BLK

BLU/BLK

BLK/RED

BLK/RED

BLK/RED

BLU

5

4

13

3

E23-29

E23-1

E23-60

E23-16

7

BLK/YEL

BLK/YEL

BLK/YEL

C37-22

BLK/WHT

BLK/YEL

BLK/YEL

BLK/YEL

[A]: BLK/RED
[B]: BLK

6

12

11

14

WHT/GRN

WHT/RED

8

BLK/RED

10

BLK

BLU/BLK

9

C37-15

C37-29
C37-48

BLK/ORN

C37-58

C37-30  BLK/ORN

BLK/YEL
BLK/YEL
BLK/YEL

BLU

PNK

C37-36

C37-51

BLK

1

2

15

I5JB0A110047-02

[A]: For A/T model

5. Ignition switch

11. “ST” fuse

[B]: For M/T model

6. Starting motor

12. “ST SIG” fuse

1. CKP sensor

7. Starting motor control relay

13. “IG COIL” fuse

2. Sensor plate on crankshaft

8. Transmission range switch (for A/T model)

14. “IGN” fuse

3. ECM

9. Fuse box No.2

15. Starting motor magnet clutch

4. Main relay

10. “FI” fuse

Engine General Information and Diagnosis: For Petrol Engine Model 1A-132

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure

1) With ignition switch turned OFF, connect scan tool.
2) Turn ON ignition switch and clear DTC using scan tool.
3) Crank engine for 3 – 5 sec.
4) Check DTC and pending DTC.

DTC Troubleshooting

NOTE
Before this trouble shooting is performed, read the precautions for DTC troubleshooting referring to
“Precautions for DTC Troubleshooting: For Petrol Engine Model”.



DTC detecting condition

Trouble area

No CKP sensor signal for 2 sec. even if starting motor
signal is inputted at engine cranking.
(1 driving cycle detection logic)

• CKP sensor circuit open or short
• Sensor plate teeth damaged
• CKP sensor malfunction, foreign material being attached

or improper installation

• ECM
• Engine start signal circuit malfunction

Step

Action

Yes

No

1

Was “Engine and Emission Control System Check”
performed?

Go to Step 2.

Go to “Engine and
Emission Control
System Check: For
Petrol Engine Model”.

2

CKP sensor and connector for proper installation check

Is CKP sensor installed properly and connector connected
securely?

Go to Step 3.

Correct.

3

Wire circuit check
1) Disconnect connector from CKP sensor with ignition

switch turned OFF.

2) Check for proper connection to CKP sensor at “PNK”

and “BLU” wire terminals.

3) If OK, measure voltage between engine ground and

each “PNK” and “BLU” wire terminals of CKP sensor
connector with ignition switch turned ON.

Is each voltage 0 V?

Go to Step 4.

“PNK” wire and/or “BLU”
wire is shorted to other
circuit.

4

Wire circuit check
1) Disconnect connectors from ECM with ignition switch

turned OFF.

2) Check for proper connection to ECM at “C37-36” and

“C37-51” terminals.

3) If OK, measure resistance between engine ground and

each “C37-36” and “C37-51” terminals of ECM
connector.

Is each resistance infinity?

Go to Step 5.

“PNK” wire and/or “BLU”
wire is shorted to
ground circuit.

1A-133 Engine General Information and Diagnosis: For Petrol Engine Model

DTC P0335: Crankshaft Position (CKP) Sensor Circuit (For M16 Engine)

S6JB0A1114042

Wiring Diagram
