1A-123 Engine General Information and Diagnosis: For Petrol Engine Model

3

ECM voltage check
1) Disconnect connector from electric throttle body

assembly with ignition switch turned OFF.

2) Check for proper connection to electric throttle body

assembly at “RED”, “WHT” and “GRN” wire terminals.

For J20 engine

For M16 engine

3) If OK, measure voltage between “WHT” wire terminal of

electric throttle body assembly connector and engine
ground with ignition switch turned ON.

Is voltage 4 – 6 V?

Go to Step 5.

Go to Step 4.

4

ECM voltage check
1) Turn OFF ignition switch.
2) Remove ECM from its bracket with ECM connectors

connected.

3) Check for proper connection of ECM connector at “C37-

53” terminal.

4) If OK, measure voltage between “C37-53” terminal of

ECM connector and engine ground with ignition switch
turned ON.

Is voltage 4 – 6 V?

“WHT” wire is open or
high resistance circuit.

Go to Step 5.

5

Wire harness check
1) Measure voltage between “RED” wire terminal of electric

throttle body assembly connector and engine ground
with ignition switch turned ON.

Is voltage 4 – 6 V?

Go to Step 8.

Go to Step 6.

6

Wire harness check
1) Disconnect connectors from ECM with ignition switch

turned OFF.

2) Check for proper connection of ECM connector at “C37-

40” and “C37-41” terminals.

3) If OK, measure resistance between “RED” and “GRN”

wire terminals of electric throttle body assembly
connector.

Is resistance infinity?

Go to Step 7.

“RED” wire is shorted to
“GRN” wire.

Step

Action

Yes

No

"BLK"

"WHT"

"RED"

"GRN"

"BLU/YEL"

"BLU/RED"

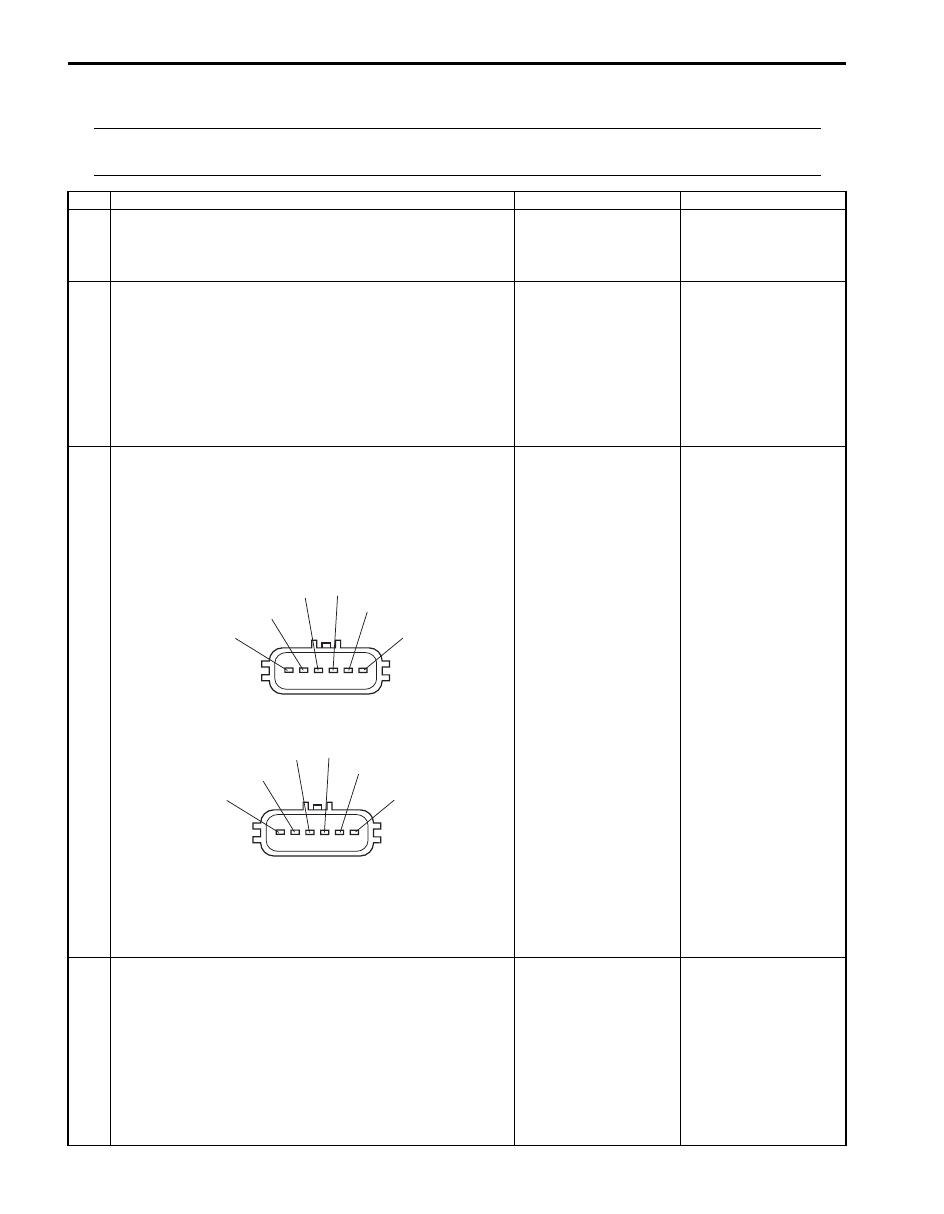

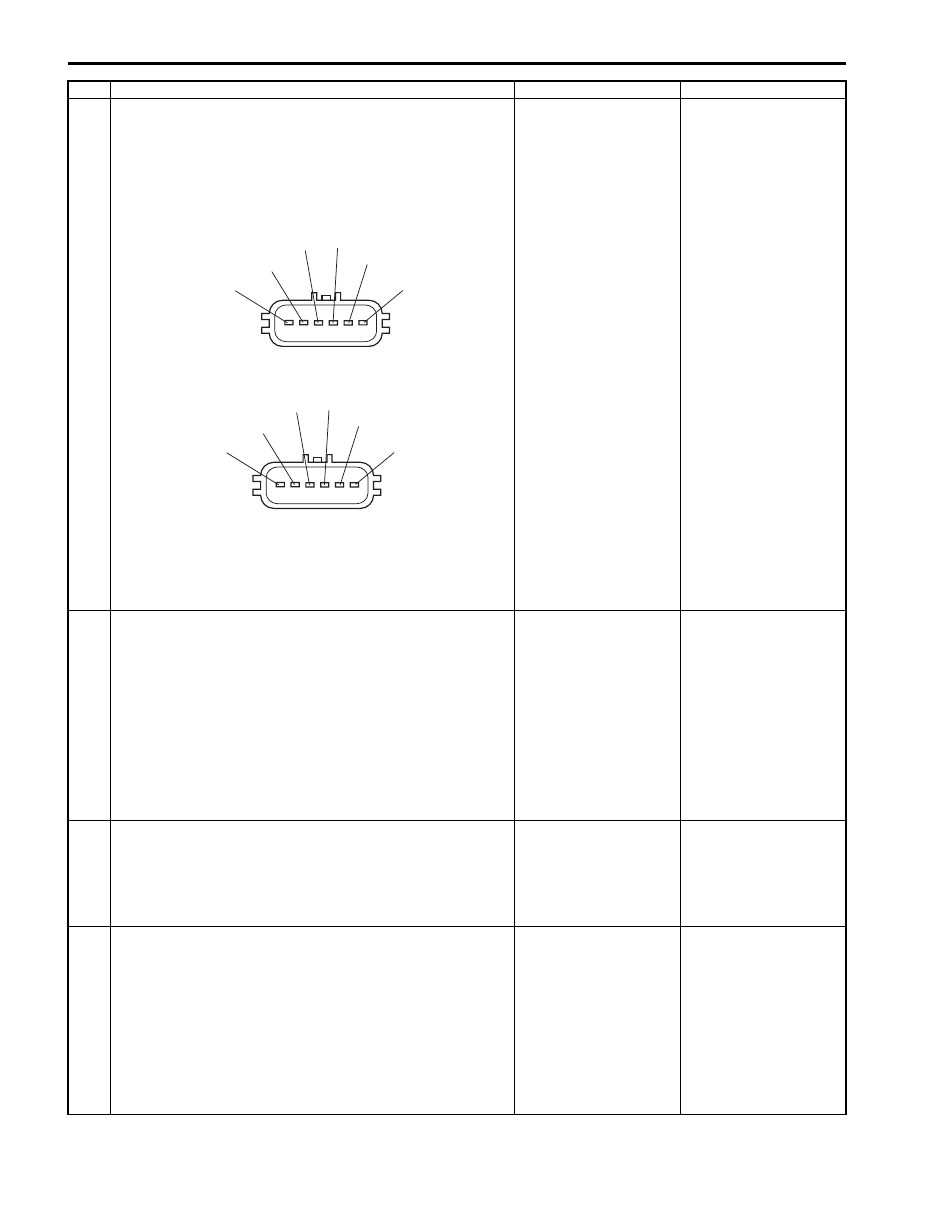

I5JB0A110042-01

"BLU/RED"

"BLU/YEL"

"GRN"

"RED"

"WHT"

"BLK"

I5JB0A110043-01

Engine General Information and Diagnosis: For Petrol Engine Model 1A-124

DTC P0223: Throttle Position Sensor (Sub) Circuit High

S6JB0A1114038

Wiring Diagram
Refer to “DTC P0222: Throttle Position Sensor (Sub) Circuit Low: For Petrol Engine Model”.

DTC Detecting Condition and Trouble Area

NOTE
When DTC P0123 and P0223 are indicated together, it is possible that “WHT” wire shorted to power
circuit and/or “GRN” wire open.



DTC Confirmation Procedure

1) With ignition switch turned OFF, connect scan tool.
2) Turn ON ignition switch and clear DTC using scan tool.
3) Keep the accelerator pedal at idle position for 2 seconds.
4) Keep the accelerator pedal at fully depressed position for 2 seconds.
5) Repeat Step 3) and 4) for 3 times.
6) Check DTC.

7

Wire harness check
1) Measure resistance between “RED” wire terminal of

electric throttle body assembly connector and engine
ground with ignition switch turned OFF.

Is resistance infinity?

Substitute a known-
good ECM and recheck.

“RED” wire is shorted to
ground circuit.

8

Electric throttle body assembly check
1) Check throttle position sensor referring to “Throttle

Position Sensor Performance Check” under “Electric
Throttle Body Assembly On-Vehicle Inspection: For
Petrol Engine Model in Section 1C”.

Is output voltage within specified value?

Substitute a known-
good ECM and recheck.

Replace electric throttle
body assembly.

Step

Action

Yes

No

DTC detecting condition

Trouble area

Output voltage of throttle position sensor (sub) is more than 4.7 V for
specified time continuously.
(1 driving detection logic)

• Throttle position sensor (sub) circuit
• Electric throttle body assembly
• ECM

1A-125 Engine General Information and Diagnosis: For Petrol Engine Model

DTC Troubleshooting

NOTE
Before this trouble shooting is performed, read the precautions for DTC troubleshooting referring to
“Precautions for DTC Troubleshooting: For Petrol Engine Model”.



Step

Action

Yes

No

1

Was “Engine and Emission Control System Check”
performed?

Go to Step 2.

Go to “Engine and
Emission Control
System Check: For
Petrol Engine Model”.

2

Throttle position sensor and its circuit check
1) Connect scan tool to DLC with ignition switch turned

OFF.

2) Turn ON ignition switch, check “TP Sensor 2 Volt”

displayed on scan tool when accelerator pedal is idle
position and fully depressed.

Is displayed TP sensor value as described voltage in “Scan
Tool Data: For Petrol Engine Model”?

Intermittent trouble.
Check for intermittent
referring to “Intermittent
and Poor Connection
Inspection in Section
00”.

Go to Step 3.

3

ECM voltage check
1) Disconnect connector from electric throttle body

assembly with ignition switch turned OFF.

2) Check for proper connection to electric throttle body

assembly at “RED”, “WHT” and “GRN” wire terminals.

For J20 engine

For M16 engine

3) If OK, measure voltage between “WHT” wire terminal of

electric throttle body assembly connector and engine
ground with ignition switch turned ON.

Is voltage 4 – 6 V?

Go to Step 5.

Go to Step 4.

4

Wire harness check
1) Disconnect connectors from ECM with ignition switch

turned OFF.

2) Check for proper connection of ECM connector at “C37-

53” terminal.

3) Measure voltage between “C37-53” terminal of ECM

connector and engine ground with ignition switch turned
ON.

Is voltage 0 V?

Substitute a known-
good ECM and recheck.

“WHT” wire is shorted to
power circuit.

"BLK"

"WHT"

"RED"

"GRN"

"BLU/YEL"

"BLU/RED"

I5JB0A110042-01

"BLU/RED"

"BLU/YEL"

"GRN"

"RED"

"WHT"

"BLK"

I5JB0A110043-01

Engine General Information and Diagnosis: For Petrol Engine Model 1A-126

5

Wire harness check
1) Measure voltage between “RED” wire terminal of electric

throttle body assembly connector and engine ground
with ignition switch turned ON.

Is voltage 4 – 6 V?

Go to Step 9.

Go to Step 6.

6

Wire harness check
1) Turn OFF ignition switch.
2) Remove ECM from its bracket with ECM connectors

connected.

3) Check for proper connection of ECM connector at “C37-

53” and “C37-40” terminals.

4) If OK, measure voltage between “C37-40” terminal of

ECM connector and engine ground with ignition switch
turned ON.

Is voltage 4 – 6 V?

“RED” wire is open or
high resistance circuit.

Go to Step 7.

7

Wire harness check
1) Disconnect connectors from ECM with ignition switch

turned OFF.

2) Measure resistance between “WHT” and “RED” wire

terminals of electric throttle body assembly connector.

Is resistance infinity?

Go to Step 8.

“RED” wire is shorted to
“WHT” wire.

8

Wire harness check
1) Turn ON ignition switch.
2) Measure voltage between “C37-40” terminal of ECM

connector and engine ground.

Is voltage 0 V?

Substitute a known-
good ECM and recheck.

“RED” wire is shorted to
power circuit.

9

Ground circuit check
1) Turn OFF ignition switch.
2) Measure resistance between “GRN” wire terminal of

electric throttle body assembly connector and engine
ground.

Is resistance below 3

Ω

?

Go to Step 11.

Go to Step 10.

10 Ground circuit check

1) Remove ECM from its bracket with ECM connectors

connected.

2) Check for proper connection of ECM connector at “C37-

41” terminal.

3) Measure resistance between “C37-41” terminal of ECM

connector and engine ground with ignition switch turned
OFF.

Is resistance below 3

Ω

?

“GRN” wire is open or
high resistance circuit.

Faulty ECM ground
circuit. If circuit is OK,
substitute a known-
good ECM and recheck.

11 Electric throttle body assembly check

1) Check throttle position sensor referring to “Throttle

Position Sensor Performance Check” under “Electric
Throttle Body Assembly On-Vehicle Inspection: For
Petrol Engine Model in Section 1C”.

Is output voltage within specified value?

Substitute a known-
good ECM and recheck.

Replace electric throttle
body assembly.

Step

Action

Yes

No
