Suzuki Grand Vitara JB419. Manual - part 82

Propeller Shaft:  3D-2

Repair Instructions

Propeller Shaft Removal and Installation

S5JB0B3406002

Removal

1) Hoist vehicle.

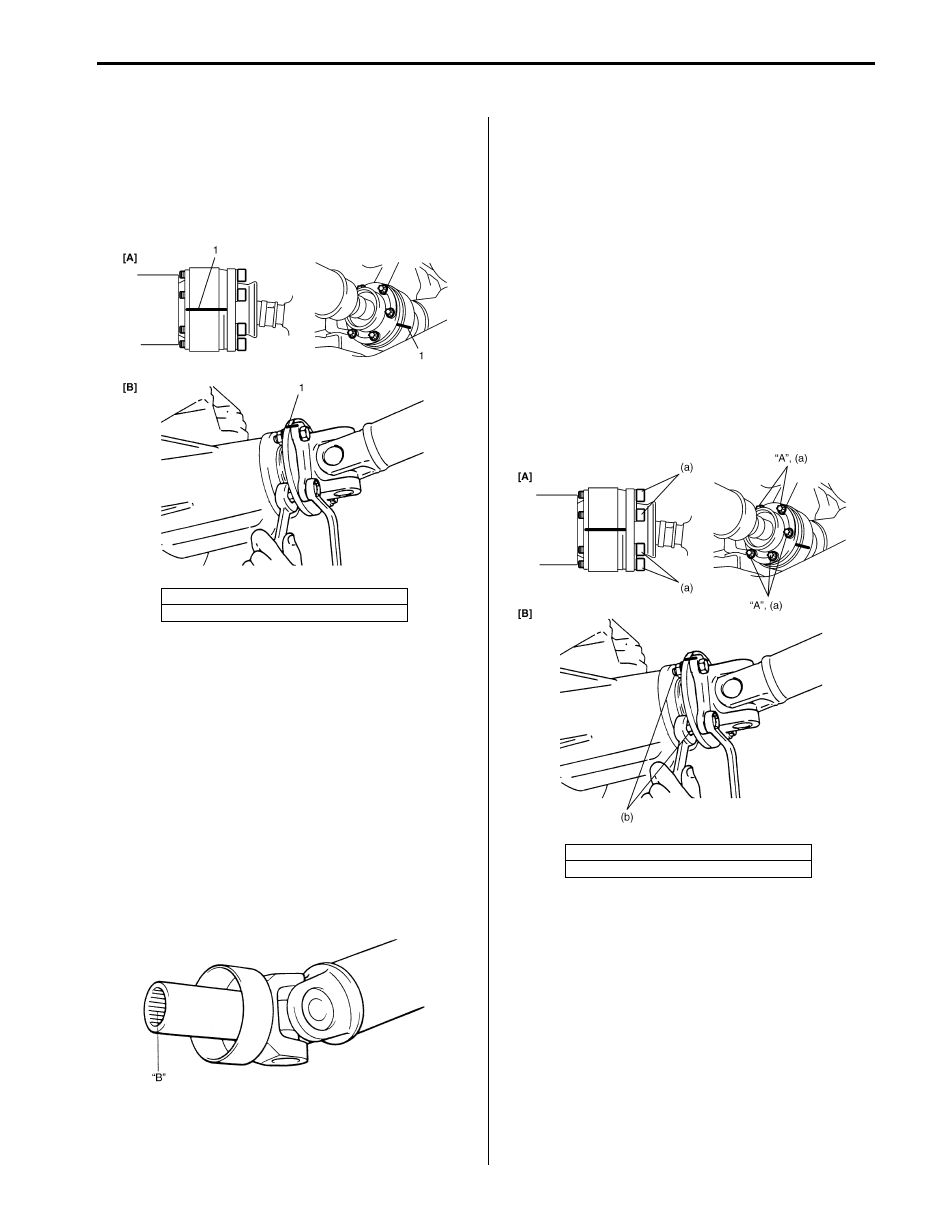

2) Give match marks (1) on joint flange and propeller

shaft as shown in the figure.

3) Remove rear propeller shaft.
4) Drain transfer oil when removed front propeller shaft

from transfer, if necessary.

Installation
Reverse removal procedure to install propeller shaft
noting the following points.
• Clean and inspect sliding portion of propeller shaft

end (where oil seal contacts) before installation and if
even small dent or scratch exists, correct end clean it
again.
Then apply grease inside splines of propeller shaft.

“B”:  Grease 99000–25010 (SUZUKI Super Grease
A)

• Install propeller shaft aligning match marks.

Otherwise, vibration may occur during driving.

• Use the following specification to torque universal joint

flange nuts and bolts. For front propeller shaft flange
bolt (front differential side), apply thread lock cement
to thread part of bolts if reused.

• Fill transfer oil, if removed front propeller shaft

referring to “Transfer Oil Change in Section 3C in
related manual”, if necessary.

“A”:  Thread lock cement 99000–32110 (Thread
Lock Cement Super 1322)

Tightening torque
Front propeller shaft flange bolt (a):  30 N·m (3.0
kgf-m, 22.0 lb-ft)
Rear propeller shaft flange nut (b):  85 N·m (8.5
kgf-m, 61.5 lb-ft)

[A]: Front propeller shaft
[B]: Rear propeller shaft

I5JB0A340002-02

IYSQ01521009-01

[A]: Front propeller shaft
[B]: Rear propeller shaft

I5JB0A340004-01

3D-3 Propeller Shaft:

Specifications

Tightening Torque Specifications

S5JB0B3407001

NOTE
The specified tightening torque is also described in the following.
“Propeller Shaft Construction”



Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

Special Tools and Equipment

Recommended Service Material

S5JB0B3408001

NOTE
Required service material is also described in the following.
“Propeller Shaft Construction”



Fastening part

Tightening torque

Note

N

⋅m

kgf-m

lb-ft

Front propeller shaft flange bolt

30

3.0

22.0

)

Rear propeller shaft flange nut

85

8.5

61.5

)

Material

SUZUKI recommended product or Specification

Note

Grease

SUZUKI Super Grease A

P/No.: 99000–25010

)

Thread lock cement

Thread Lock Cement Super 1322

P/No.: 99000–32110

)
