Transfer: 3C-18

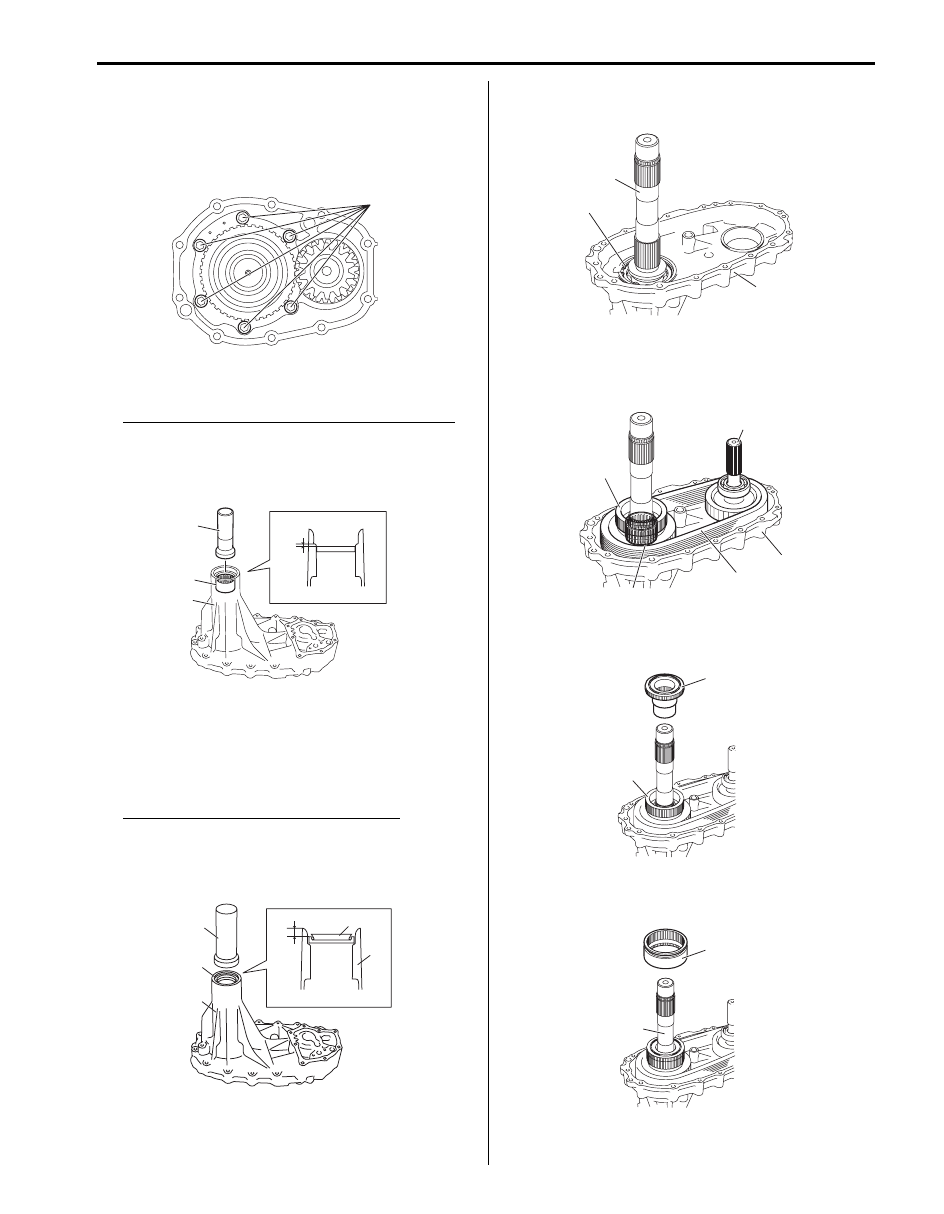

3) Tighten new input gear plate bolts (1) to specified

torque.

Tightening torque
Input gear plate bolt (a):  23 N·m (2.3 kgf-m, 17.0
lb-ft)

4) Install needle bearing (1) to rear case (2) using

special tool as shown in figure.

Distance between case and needle bearing “a”
: 0 – 0.5 mm (0 – 0.008 in.)

Special tool
(A):  09913–76010

5) Install new rear oil seal (1) to rear case (2) using

special tool as shown in figure, and then apply
grease to oil seal lip.

“A”:  Grease 99000–25010 (SUZUKI Super
Grease A)

Distance between case and oil seal “a”
: 3.5 – 4.5 mm (0.138 – 0.177 in.)

Special tool
(A):  09913–70123

6) Install rear output shaft assembly (1) to rear case (2),

and then install snap ring (3).

7) Install front drive sprocket (1), front output shaft

assembly (2), drive chain (3) and needle bearing (4)
into rear case (5).

8) Install front drive sprocket bush (1) into front drive

sprocket (2).

9) Install differential lock clutch sleeve (1) to rear output

shaft (2) as shown in figure.

1, (a)

I5JB0A331035-03

(A)

1

2

“a”

I5JB0A331036-02

“a”

(A)

1, “A”

2

1

2

I5JB0A331037-04

1

2

3

I5JB0A331038-01

1

2

3

5

4

I5JB0A331024-01

1

2

I5JB0A331039-01

1

2

I5JB0A331040-01

3C-19 Transfer:

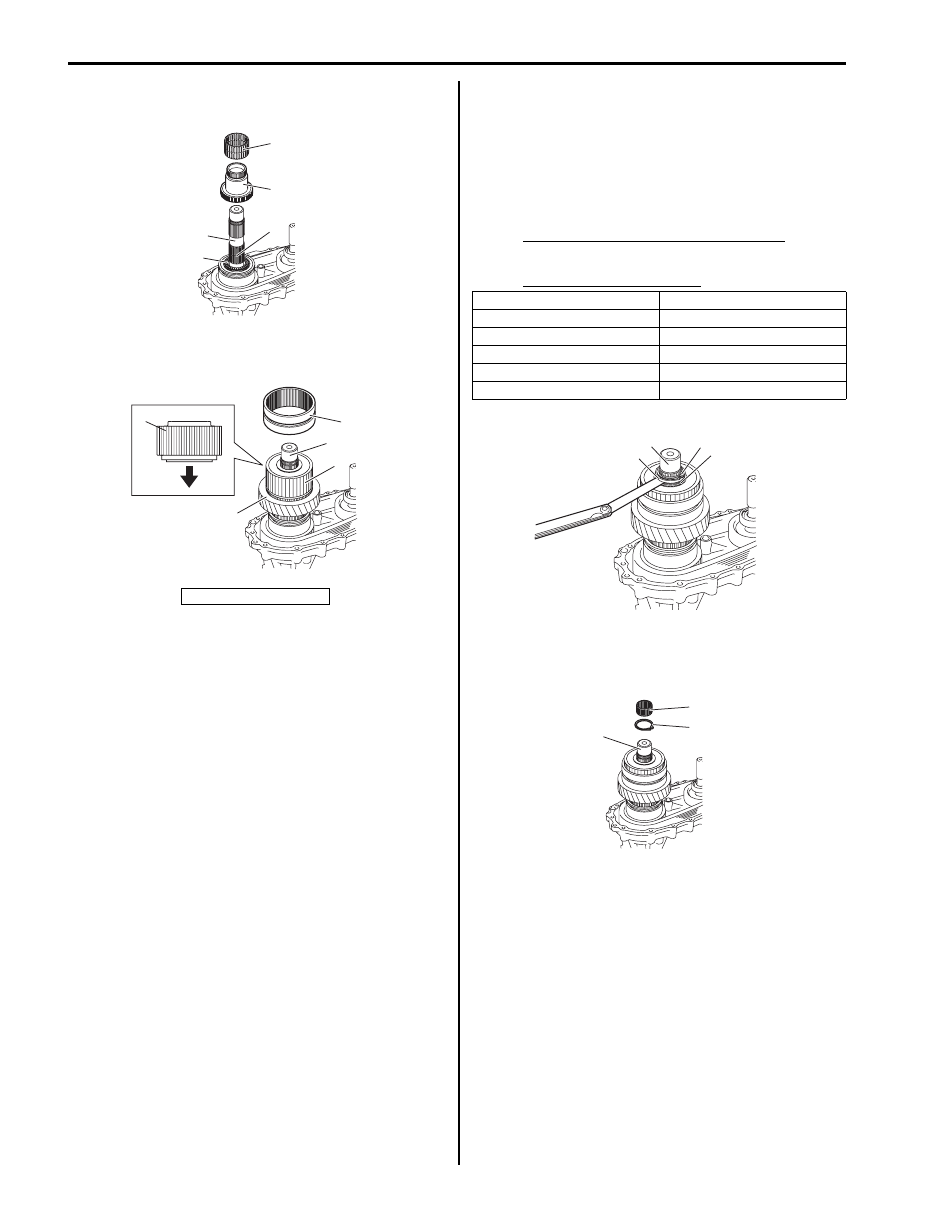

10) Install thrust needle bearing (4), front drive shaft (1)

and needle bearings (2) to rear output shaft (3).

11) Install low gear (3), center differential (4) and

reduction shift sleeve (1) to rear output shaft (2).

12) Select shim (1) as follows.

a) Install shim, washer (2) and used snap ring (3)

into rear output shaft (4).

b) Check clearance between shim and washer.
c) If clearance is out of specified value, select shim

from the following table so that clearance
become specified value.

Clearance between shim and washer
: 0.1 – 0.3 mm (0.004 – 0.012 in.)

Available shim thickness

13) Remove used snap ring, and then install new snap

ring (2) and needle bearing (1) to rear output shaft
(3).

[A]: Rear case side

1

1

2

3

4

I5JB0A331041-02

1

2

4

[A]

4

3

I5JB0A331042-02

0.4 mm (0.016 in.)

1.6 mm (0.063 in.)

0.6 mm (0.024 in.)

1.8 mm (0.071 in.)

0.8 mm (0.031 in.)

2.0 mm (0.079 in.)

1.0 mm (0.039 in.)

2.2 mm (0.087 in.)

1.2 mm (0.047 in.)

2.4 mm (0.098 in.)

1.4 mm (0.055 in.)

1

3

2

4

I5JB0A331043-01

1

2

3

I5JB0A331044-02

Transfer: 3C-20

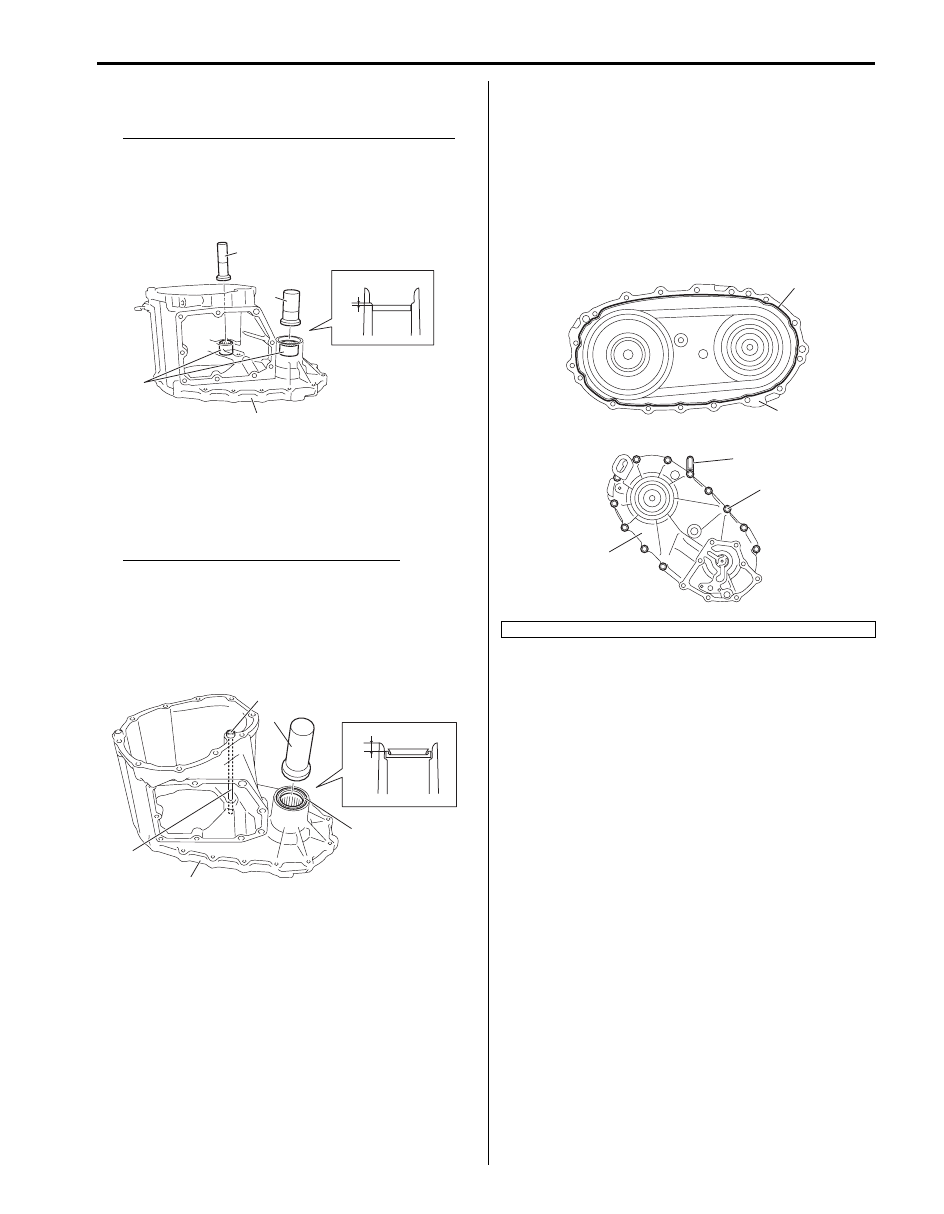

14) Install needle bearings (1) to center case (2) using

special tools as shown in figure.

Distance between case and needle bearing “a”
: 0 – 0.5 mm (0 – 0.008 in.)

Special tool
(A):  09913–76010
(B):  09925–98210

15) Install oil pipe (1) and knock pin (2) into center case

(3).

16) Install new front oil seal No.1 (4) into center case

using special tool as shown in figure, and then apply
grease to oil seal lip.

Distance between case and oil seal “a”
: 3.5 – 4.5 mm (0.138 – 0.177 in.)

“A”:  Grease 99000–25010 (SUZUKI Super
Grease A)

Special tool
(A):  09913–70123

17) Clean mating surface of both center case and rear

case (1), apply sealant to rear case as shown in
figure by such amount that its section is 1.2 mm
(0.047 in.) in diameter, mate center case with rear
case and then tighten bolts (2) to specified torque.

“A”:  Sealant 99000–31260 (SUZUKI Bond
No.1217G)

Tightening torque
Rear case bolt (a):  23 N·m (2.3 kgf-m, 17.0 lb-ft)

1

2

(B)

(A)

“a”

I5JB0A331045-02

2

1

3

(A)

4, “A”

“a”

I5JB0A331046-03

3. Clamp

“A”

1

3

1

2, (a)

I5JB0A331047-02

3C-21 Transfer:

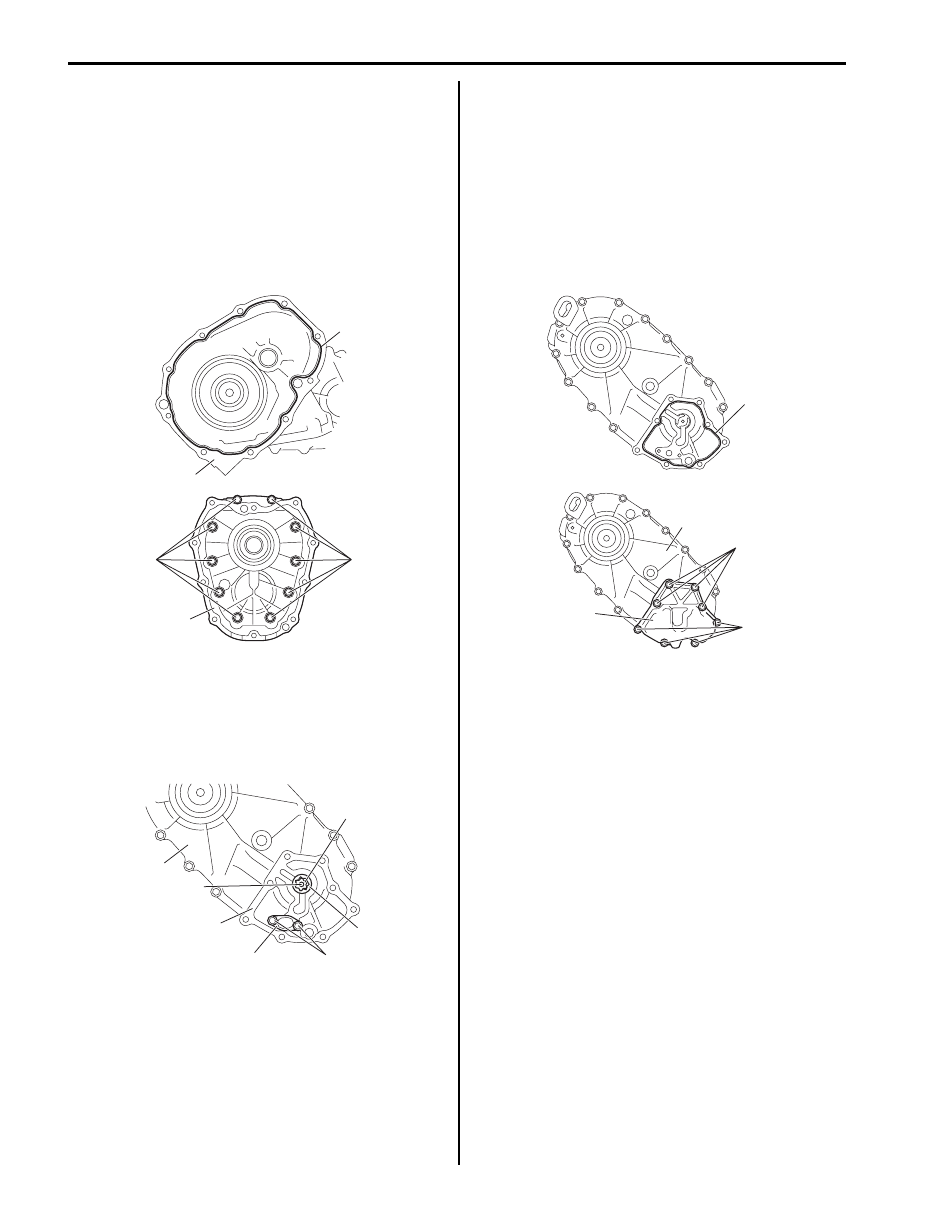

18) Clean mating surface of both center case (1) and

front case, apply sealant to center case as shown in
figure by such amount that its section is 1.2 mm
(0.047 in.) in diameter, mate front case (3) with
center case and then tighten bolts (2) to specified
torque.

“A”:  Sealant 99000–31260 (SUZUKI Bond
No.1217G)

Tightening torque
Rear case bolt (a):  23 N·m (2.3 kgf-m, 17.0 lb-ft)

19) Install oil strainer (1) to rear case (2).

Tightening torque
Strainer bolt (a):  10 N·m (1.0 kgf-m, 7.5 lb-ft)

20) Install oil pump inner rotor (3), outer rotor (4) and

drive pin (5) to rear case (6).

21) Clean mating surface of oil pump cover (1) and rear

case (2), apply sealant to rear case as shown in
figure by such amount that its section is 1.2 mm
(0.047 in.) in diameter, mate oil pump cover with rear
case and then tighten bolts (3) to specified torque.

“A”:  Sealant 99000–31260 (SUZUKI Bond
No.1217G)

Tightening torque
Oil pump cover bolt (a):  23 N·m (2.3 kgf-m, 17.0
lb-ft)

“A”

1

2, (a)

2, (a)

3

I5JB0A331048-03

2

5

6

1

(a)

4

3

I5JB0A331050-01

“A”

3, (a)

3, (a)

1

2

I5JB0A331049-02
