Suzuki Grand Vitara JB627. Manual - part 423





10C-4 Immobilizer Control System:

Component Location

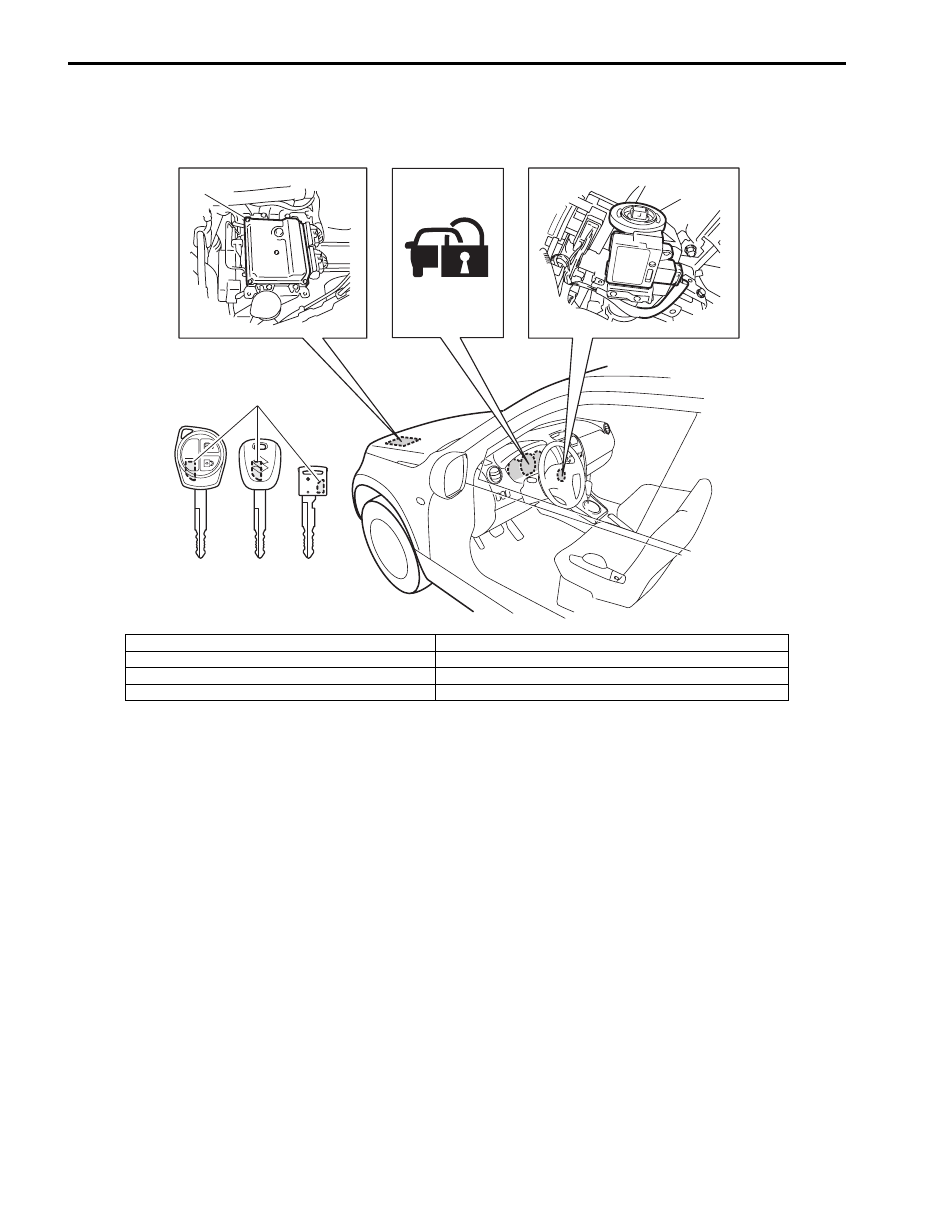

Immobilizer Control System Components Location

S6JB0BA303001

1

2

3

4

5

6

7

I5JB0AA30001-01

1. ECM

5. Ignition key without keyless entry system

2. Immobilizer indicator light

6. Ignition key with keyless start system

3. Immobilizer control module (ICM)

7. Transponder

4. Ignition key with keyless entry system

Immobilizer Control System:  10C-5

Diagnostic Information and Procedures

Immobilizer Control System Check

S6JB0BA304001

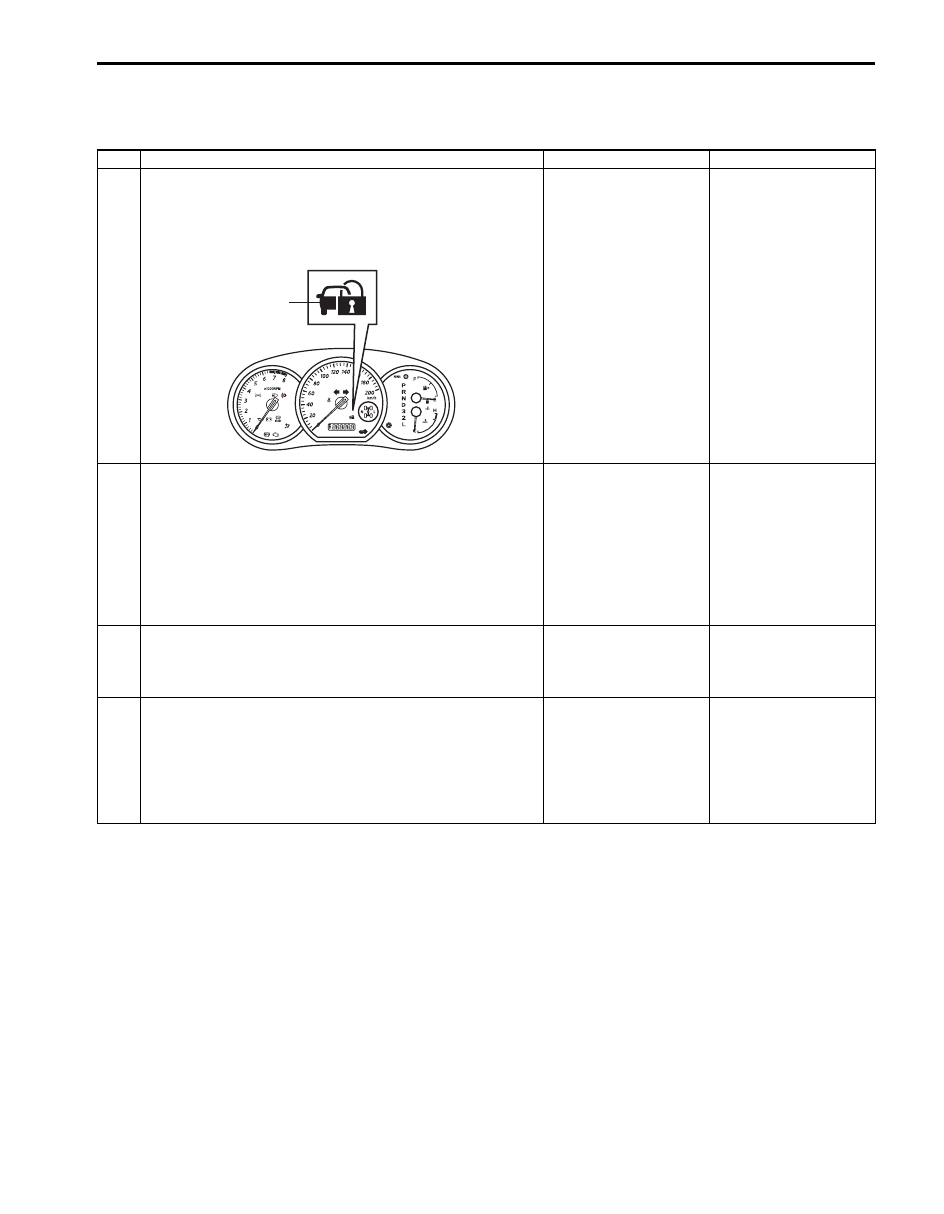

Step

Action

Yes

No

1

Immobilizer indicator light ON check
1) Turn ignition switch to ON position using ignition key.

Does immobilizer indicator light (1) come on?

Go to Step 2.

Check if DTC P1636
and/or P1638 are
detected by ECM
referring to “Diagnostic
Trouble Code (DTC)
Check”
. If detected,
perform the
troubleshooting
referring to the
corresponding flowchart
in this section. If not
detected, go to
“Immobilizer Indicator
Light Does Not Come
ON with Ignition Switch
ON and Engine Stop”
.

2

Immobilizer indicator light flash check

Does immobilizer indicator light flash on and off continuously
in Step 1?

Check what DTC is
detected by ECM
referring to “Diagnostic
Trouble Code (DTC)
Check”
. Then, perform
the troubleshooting
referring to the
corresponding flowchart
in this section.

Go to Step 3.

3

Engine start check
1) Start engine using ignition key.

Does engine start?

Go to Step 4.

Perform “Engine and
Emission Control
System Check in
Section 1A”
.

4

Immobilizer indicator light remain ON check
1) Check if immobilizer indicator light remains ON after

engine start.

Does immobilizer indicator light remain ON after engine
start?

Go to “Immobilizer
Indicator Light Remains
ON after Engine Start”.

Immobilizer control
system is in good
condition. Then, go to
“Keyless Start System
Check in Section 10E”
for the vehicle with
keyless start system.

1

I5JB0AA30004-01

10C-6 Immobilizer Control System:

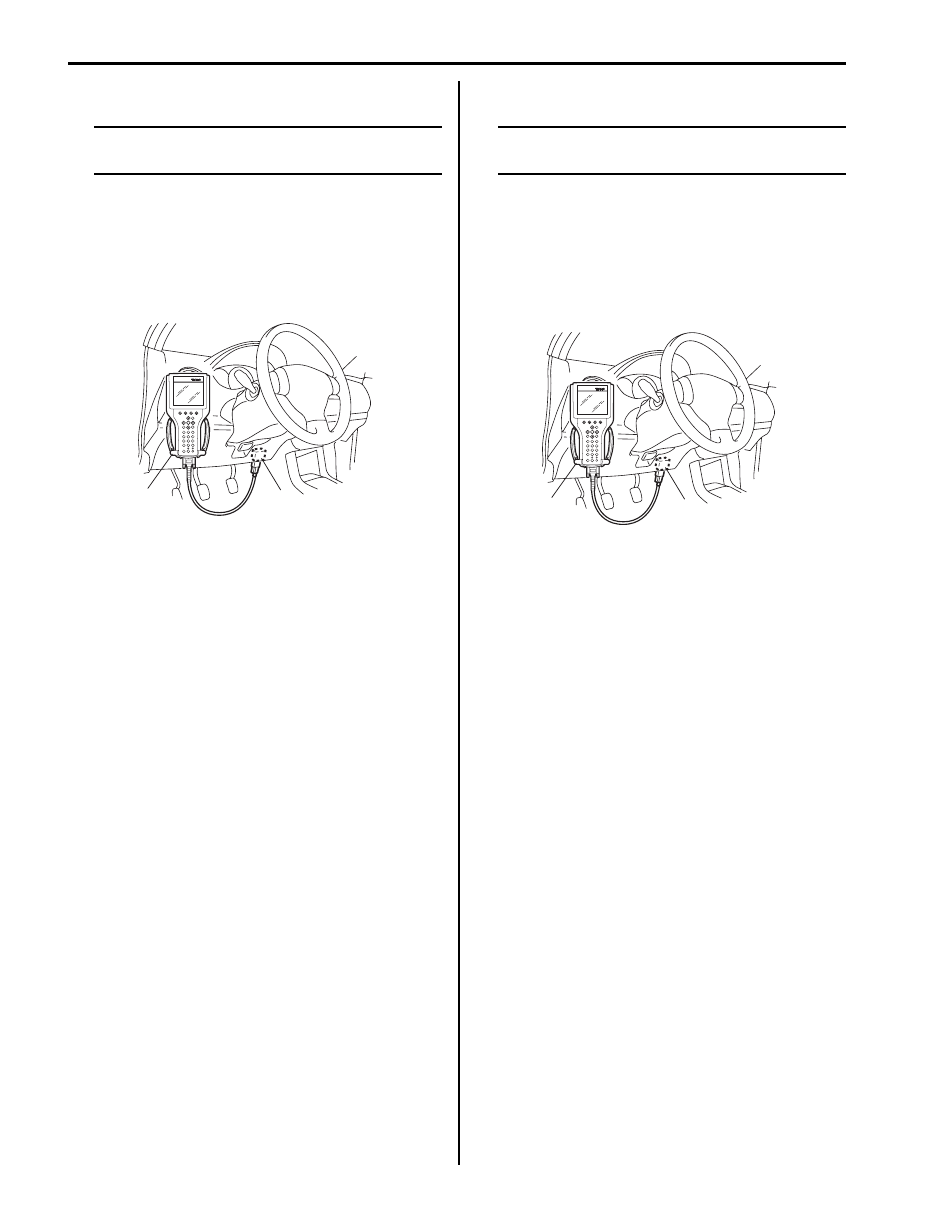

Diagnostic Trouble Code (DTC) Check

S6JB0BA304002

NOTE
To know how to use SUZUKI scan tool in
detail, refer to its operator’s manual.



1) Turn the ignition switch to OFF position.
2) Connect SUZUKI scan tool to data link connector

(DLC) (1) located under instrument panel at driver’s
seat side.

Special tool
(A):  SUZUKI scan tool

3) Turn the ignition switch to ON position.
4) Check if any DTC is stored in ECM according to the

instructions displayed on SUZUKI scan tool.

5) After completing the check, turn ignition switch to

OFF position, and then disconnect SUZUKI scan
tool from DLC.

Diagnostic Trouble Code (DTC) Clearance

S6JB0BA304003

NOTE
To know how to use SUZUKI scan tool in
detail, refer to its operator’s manual.



1) Turn the ignition switch to OFF position,
2) Connect SUZUKI scan tool to data link connector

(DLC) (1) located under instrument panel at driver’s
seat side.

Special tool
(A):  SUZUKI scan tool

1) Turn the ignition switch to ON position.
2) Clear DTC(s) according to the instructions displayed

on SUZUKI scan tool.

3) After completing the clearance, turn the ignition

switch to OFF position, and then disconnect SUZUKI
scan tool from DLC.

(A)

1

I4RS0BA30003-03

(A)

1

I4RS0BA30003-03

Immobilizer Control System:  10C-7

Diagnostic Trouble Code (DTC) Table

S6JB0BA304004

ECM

NOTE
ECM detects diagnostic trouble code (DTC). Immobilizer control module (ICM) does not.



NOTE
If any DTC other than the above DTCs is detected, refer to “DTC Table in Section 1A”.



Scan Tool Data

S6JB0BA304005

The data listed below is the standard data obtained from the normal vehicle by using SUZUKI scan tool. Those are
output from ECM. Use them as reference.

Scan Tool Data Definitions
NUMBER OF LEARNT KEY
0 – 4 PCS:
The number of the transponder code in the transponder built in the ignition key that is registered with ECM

NOTE
A maximum of four transponder codes can be registered with ECM. Therefore, the maximal value
should be 4.



DTC No.

Detecting Item

Detecting Condition

Immobilizer

Indicator

Light

P1614 Transponder response error

Transponder code in the transponder built in
the ignition key cannot be read through
immobilizer control module (ICM).

Flash

P1615

Steering lock unit communication error (for
vehicle with keyless start system)

• While registering the transponder code in

the transponder built in the ignition key in
ECM, the keyless start control module sent
a signal to ECM indicating that the ID code
could not be registered.

• The ID code could not be registered in the

keyless start control module or ECM.

Flash

P1616

Unregistered keyless start control module (for
vehicle with keyless start system)

ECM detects different ID codes registered in
ECM and keyless start system.

Flash

P1618

Keyless start control module CAN
communication error (for vehicle with keyless
start system)

Reception error of communication data for
keyless start control module is detected for
longer than specified time continuously.

Flash

P1621 Immobilizer communication line error

Communication error between immobilizer
control module (ICM) and ECM is detected by
ECM.

Flash

P1622 EEPROM read/write error

EEPROM in ECM is corrupted.

Flash

P1623 Unregistered transponder

Transponder code in the transponder built in
the ignition key is invalid.

Flash

P1625 Immobilizer antenna error

Immobilizer control module (ICM) is faulty.

Flash

P1636 Immobilizer information registration failure

Communication error between ECM and
BCM is detected by ECM.

No operation

P1638 Immobilizer information mismatched

• Communication error between ECM and

BCM is detected by ECM.

• Wrong ECM or BCM is used.

No operation

Scan Tool Data

Vehicle Condition

Normal Data

NUMBER OF LEARNT KEY

Ignition switch at ON position

0 – 4

INPUT YEAR

Ignition switch at ON position

2004 or later

INPUT MONTH

Ignition switch at ON position

1 – 12
