10B-37 Body Electrical Control System:

DRL Function Setting Procedure

S6JB0BA206004

DRL is controlled by BCM which has a function to set
operable / non-operable mode of DRL. With a new BCM,
its DRL is set to the non-operable mode.
Therefore, when BCM has been replaced in the country
where DRL operation is required by the statutory
regulation, set DRL to the operable mode according to
the procedure described below.
Also, performing the same procedure when DRL is in the
operable mode will change DRL setting to the non-
operable mode.

1) Turn ignition switch to ON position.
2) Perform Steps a) through f) described blow within 15

seconds after Step 1).
a) Turn lighting switch to CLEARANCE position.

b) Turn lighting switch to OFF position.
c) Repeat Steps a) and b) five times.
d) Turn lighting switch to HEAD position.
e) Turn lighting switch to OFF position.
f) Repeat Steps a) and e) five times.

3) After Step f), buzzer sounds twice which indicates

that DRL has been set to operable mode.

NOTE
When DRL setting has been changed from
operable mode to non-operable mode, buzzer
sounds once.



4) After confirming buzzer, turn ignition switch to OFF

position.

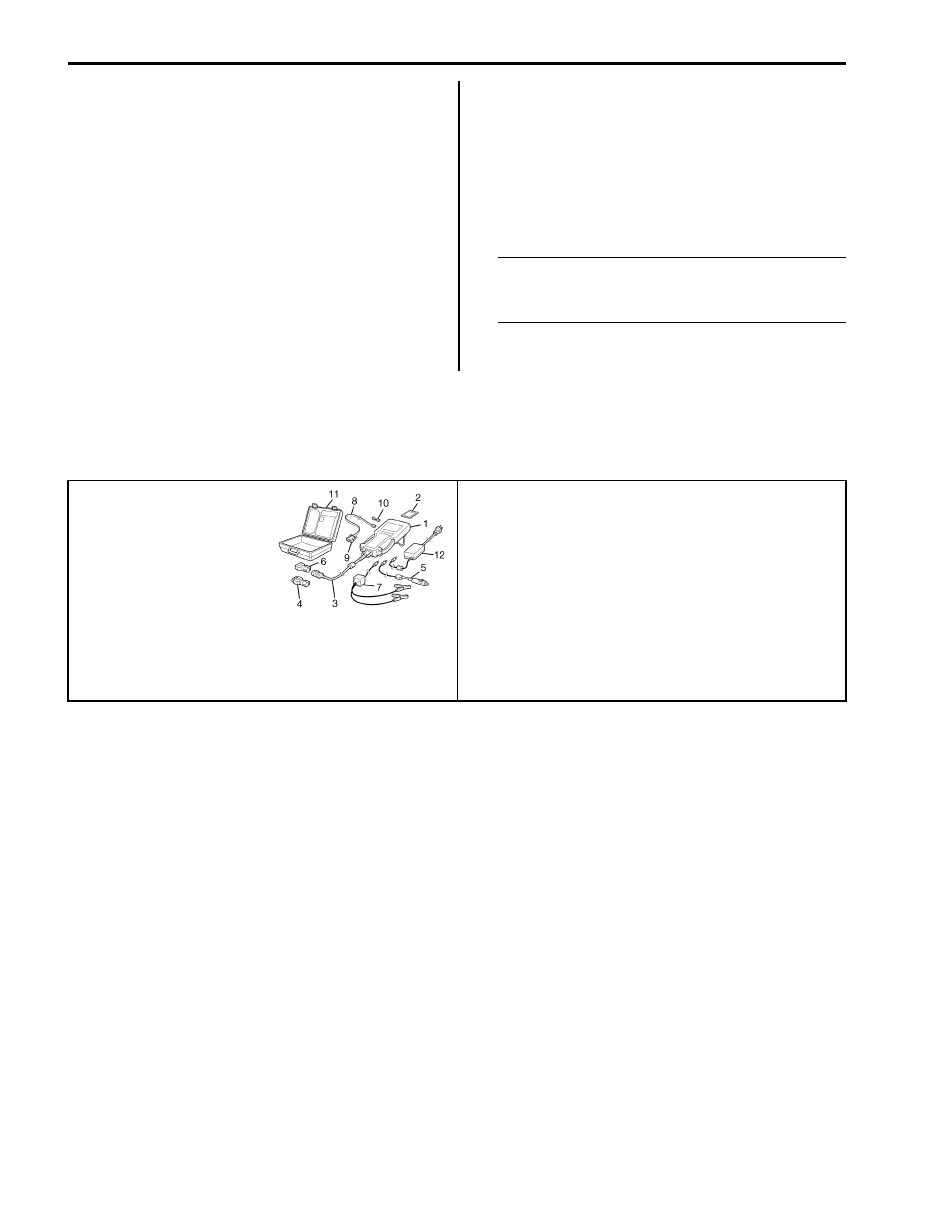

Special Tools and Equipment

Special Tool

S6JB0BA208001

SUZUKI scan tool
—
This kit includes following
items. 1. Tech 2, 2. PCMCIA
card, 3. DLC cable, 4. SAE
16/19 adapter, 5. Cigarette
cable, 6. DLC loop back
adapter, 7. Battery power
cable, 8. RS232 cable, 9.
RS232 adapter, 10. RS232
loop back connector, 11.
Storage case, 12. )

Immobilizer Control System:  10C-1

Control Systems

Immobilizer Control System

Precautions

Precautions in Diagnosing Troubles

S6JB0BA300001

• Before confirming the diagnostic trouble code (DTC),

do not disconnect connector from ECM, battery cable
from battery, ground wire harness, or main fuse. Such
disconnection will erase DTC stored in ECM.

• DTC stored in ECM memory can be checked as well

as cleared by using SUZUKI scan tool. Before using
SUZUKI scan tool, read its operator’s manual
carefully to know how to use it and what functions are
available.

• Be sure to read “Precautions for Electrical Circuit

Service in Section 00” before inspection.

• Communication of ECM, BCM, combination meter,

TCM, keyless start control module (if equipped), ABS/
ESP

® control module, 4WD control module (if

equipped), Steering angle sensor (if equipped) and
DLC is established by CAN (Computer Area Network).
(For more detail of CAN communication, refer to “CAN
Communication System Description in Section 1A”)
Therefore, handle CAN communication lines with care
referring to “Precaution for CAN Communication
System in Section 00”.

Precaution in Replacing ECM

S6JB0BA300002

• If ECM is replaced with new or used one without the

functionality for the immobilizer control system, the
engine will not be started. In case of the above, check
if the newly installed ECM has the functionality for the
immobilizer control system referring to its part
number.

• After ECM is replaced with new one or used one, the

transponder code in the transponder built in the
ignition key has to be registered with ECM. Or, the
engine cannot be started up. For the registration
procedure, refer to “Procedure after ECM
Replacement”.

Precautions in Handling Immobilizer Control
System

S6JB0BA300003

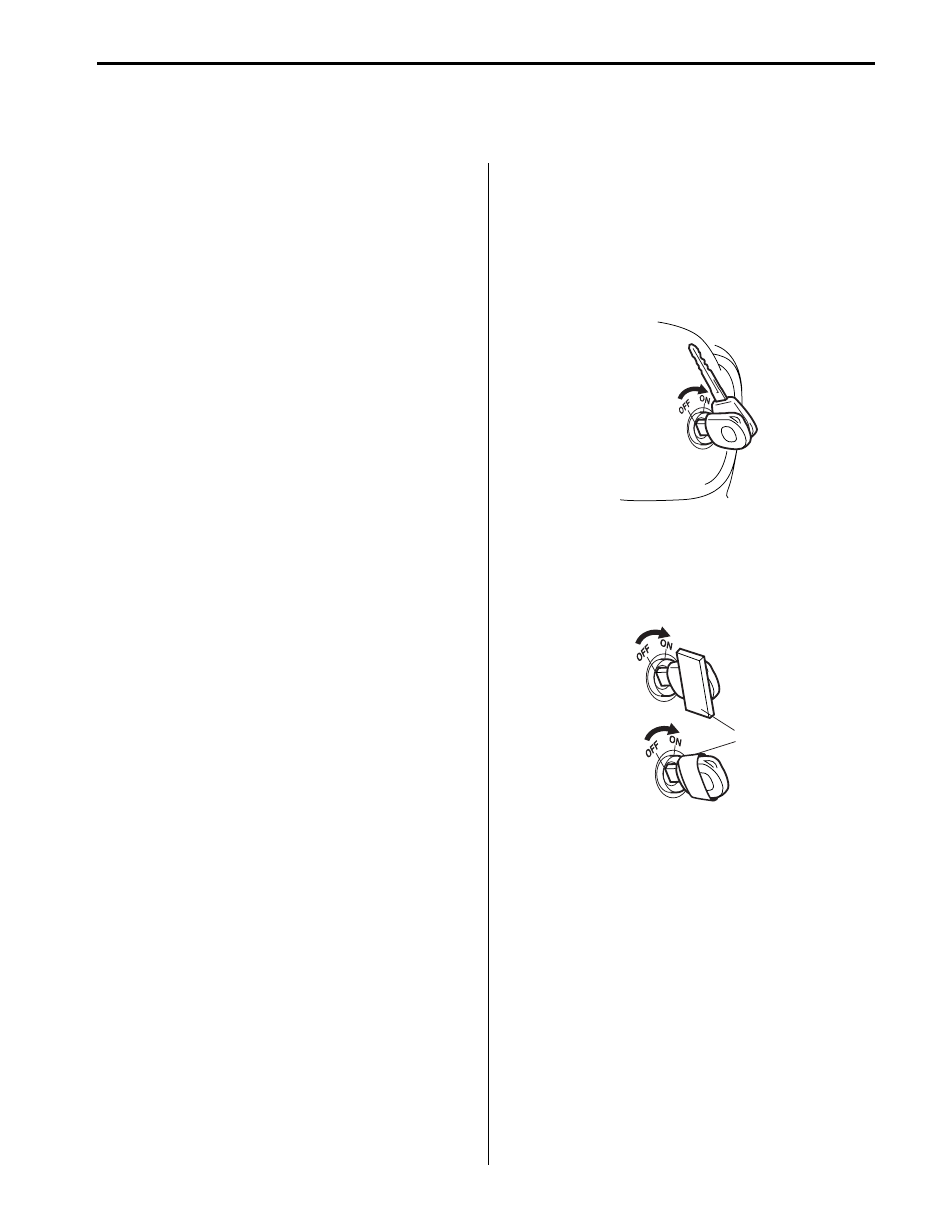

• Do not turn ON ignition switch with ignition key in

contact with another one or quite close to another
one. Or, the immobilizer control system may detect
some abnormal condition and prevent the engine from
starting.

• Do not turn ON ignition switch by using ignition key

with any type of metal (1) wrapped its grip or in
contact with it. Or, the immobilizer control system may
detect some abnormal condition and prevent the
engine from starting.

I3RH0AA30001-01

1

I3RH0AA30002-01

10C-2 Immobilizer Control System:

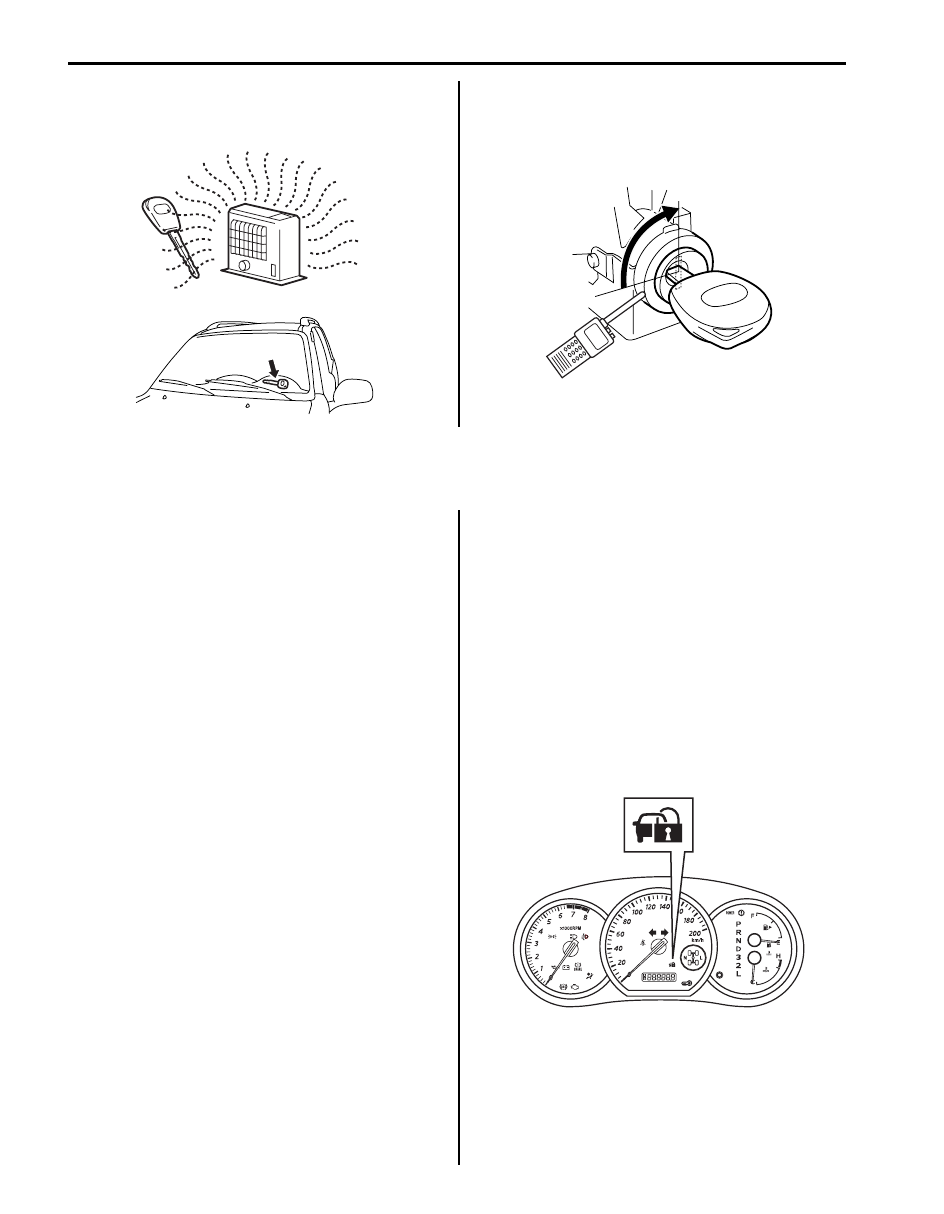

• Do not leave ignition key in a place where

temperature is high. High temperature may cause
damage to the transponder built in the ignition key.

• Do not turn ignition switch to ON position by bringing

radio antenna close to coil antenna. Or, the
immobilizer control system may detect some
abnormal condition and prevent the engine from
starting.

General Description

Immobilizer Control System Introduction

S6JB0BA301001

The immobilizer control system is an anti-theft device
that immobilizes the vehicle. It stops the engine from
working and prevents the vehicle from being stolen. It
mainly consists of the following components.
• Engine Control Module (ECM)
• Immobilizer control module (ICM) with the built-in coil

antenna

• Ignition key with the built-in transponder
A code called the transponder code is memorized in the
transponder. And, the code is registered with ECM.
Basically, when the ignition switch is turned ON, ECM
reads the code by the coil antenna. Then, if the code in
transponder in the ignition key does not match with the
one registered with ECM, ECM stops the operation of
the fuel injection so as not to start up the engine and
turns the immobilizer indicator light ON and OFF using
CAN communication lines. (In addition to the above
operation, ECM also turns the immobilizer indicator light
ON and OFF when some trouble is detected in the
keyless start system.)

On-Board Diagnostic System Description (Self-
diagnosis Function)

S6JB0BA301003

ECM diagnoses if there is any trouble with the
immobilizer control system. The diagnostic information is
stored as the diagnostic trouble code (DTC) in ECM. To
read the diagnostic information, use SUZUKI scan tool
referring to “Diagnostic Trouble Code (DTC) Check”.

With the ignition switch turned ON (but the engine at
stop) regardless of the condition of the engine and
emission control system, ECM indicates whether there is
any trouble with the immobilizer control system or not by
either lighting ON or flashing ON and OFF the
immobilizer indicator light.

Immobilizer indicator light lights ON:
No trouble exists in the immobilizer control system.
(After starting up the engine, the light turns OFF.)

Immobilizer indicator light flashes ON and OFF:
There is some trouble in the immobilizer control system
or in the keyless start system. Its diagnostic information
is stored in ECM.

I3RH0AA30003-01

I3RH0AA30004-01

I5JB0AA30002-01

Immobilizer Control System:  10C-3

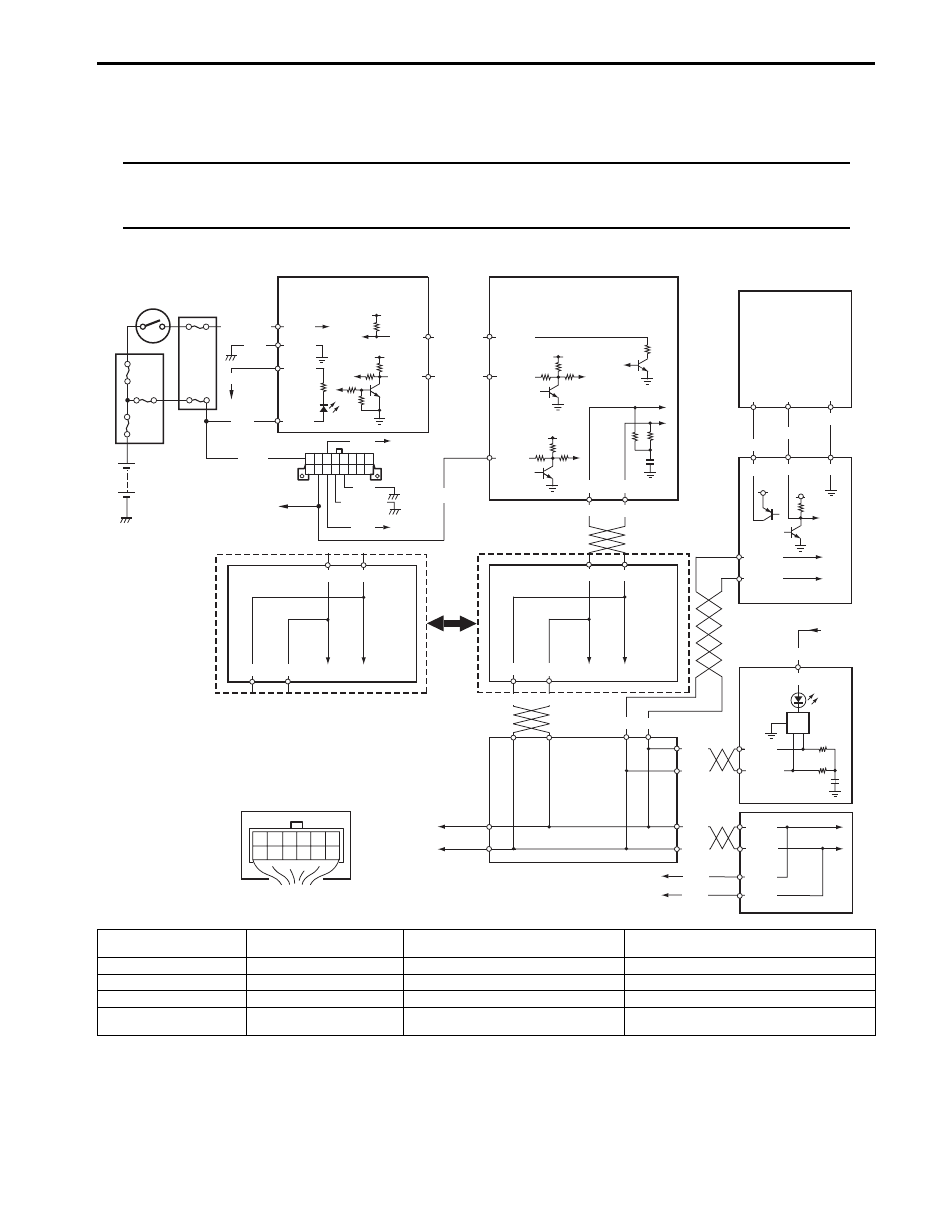

Schematic and Routing Diagram

Immobilizer Control System Wiring Circuit Diagram

S6JB0BA302001

NOTE
For more details about power supply and ground wire circuits for ECM, BCM, ABS/ESP

® control

module, keyless start control module and combination meter, refer to “System Circuit Diagram in
Section 9A”.



BLK/WHT

BLK

WHT/BLU

WHT/RED

12V

G24-1

G24-2

12V

5V

12V

12V

PNK/BLU

GRY/BLU

G24-4

G24-3

E23-11

E23-19

BLK

BLK/YEL

12V

E23-29

WHT

PPL/WHT

E53-46 E53-42

E23-9 E23-17

WHT

RED

E53-13 E53-44

RED

WHT

RED

WHT

RED

WHT

G31-1

G31-3

G28-8

G28-10

G42-19

G42-18

G42-20 G42-29 G42-30

5V

ORN

BRN/YEL

BLK/YEL

G22-3 G22-7 G22-8

G28-13

PPL/RED

1

2

2

2

2

2

3

4

2

5

6

7

15

9

10

11

12

13

14

BLK

BLK/RED

G24-5

G24-6

14

E03-8

E03-10

E03-12 E03-6

8

19

1

2

3

4

G24

16

5

6

G31-2

G31-4

RED

WHT

WHT

RED

17

18

18

20

I5JB0DA30001-02

1. Battery

6. Data link connector (DLC)

11. Keyless start control module

16. Immobilizer control module (ICM) connector

(harness side view)

2. Fuse

7. ECM

12. Combination meter

17. To DLC

3. Ignition switch

8. ABS control module

13. From fuse

18. To BCM

4. Junction block assembly

9. Junction connector

14. BCM

19. To BCM and ABS/ESP

® control module

5. Immobilizer control

module (ICM)

10. Steering lock unit

15. ESP

® control module (Vehicle equipped

with ESP

® system)

20. To TCM, 4WD control module and steering

angle sensor (if equipped)
