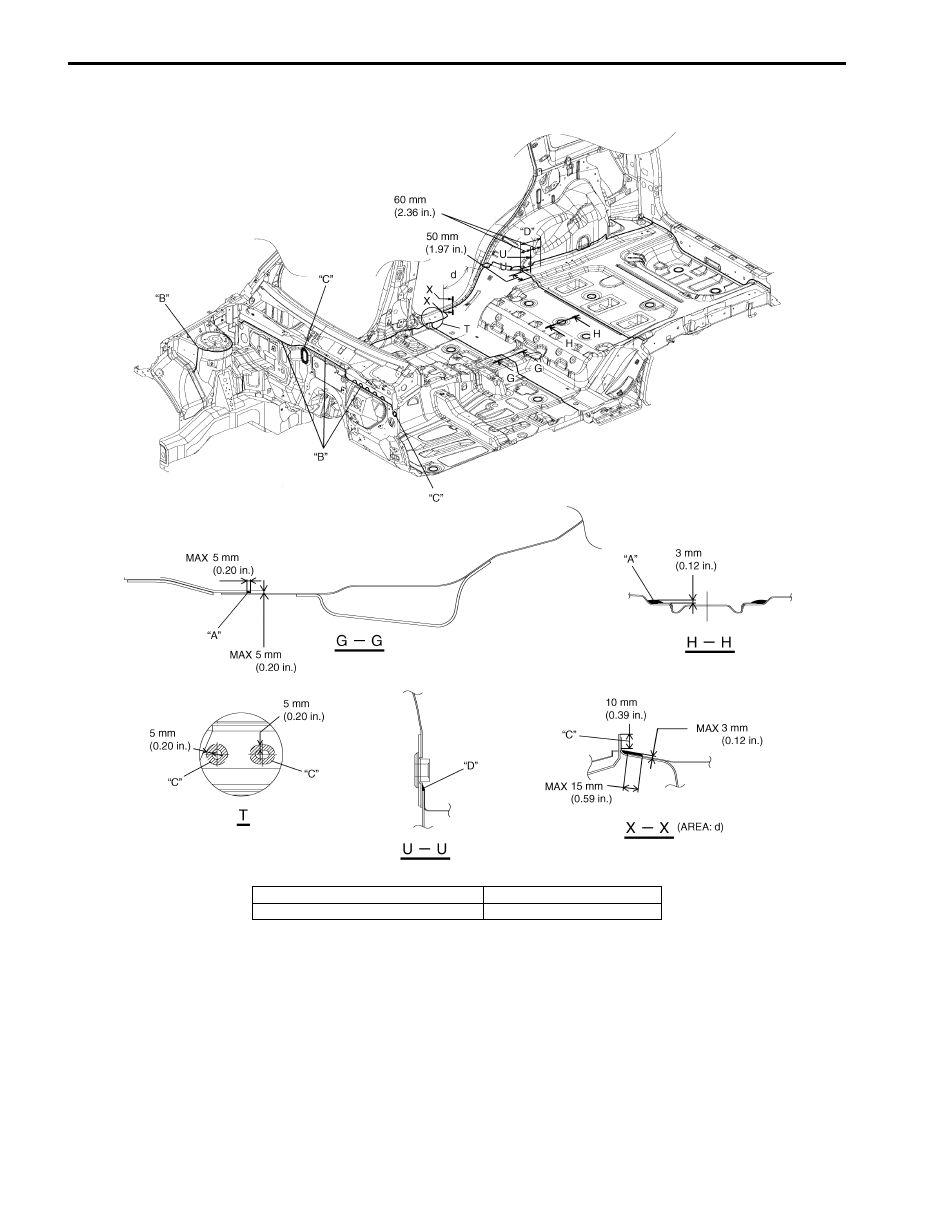

9L-7 Paint / Coatings:

Floor Panel

I6JB019C0007-01

“A”: Apply sealant.

“C”: Do not apply sealant.

“B”: Smooth off sealant with a brush.

“D”: Flatten sealant.

Paint / Coatings:  9L-8

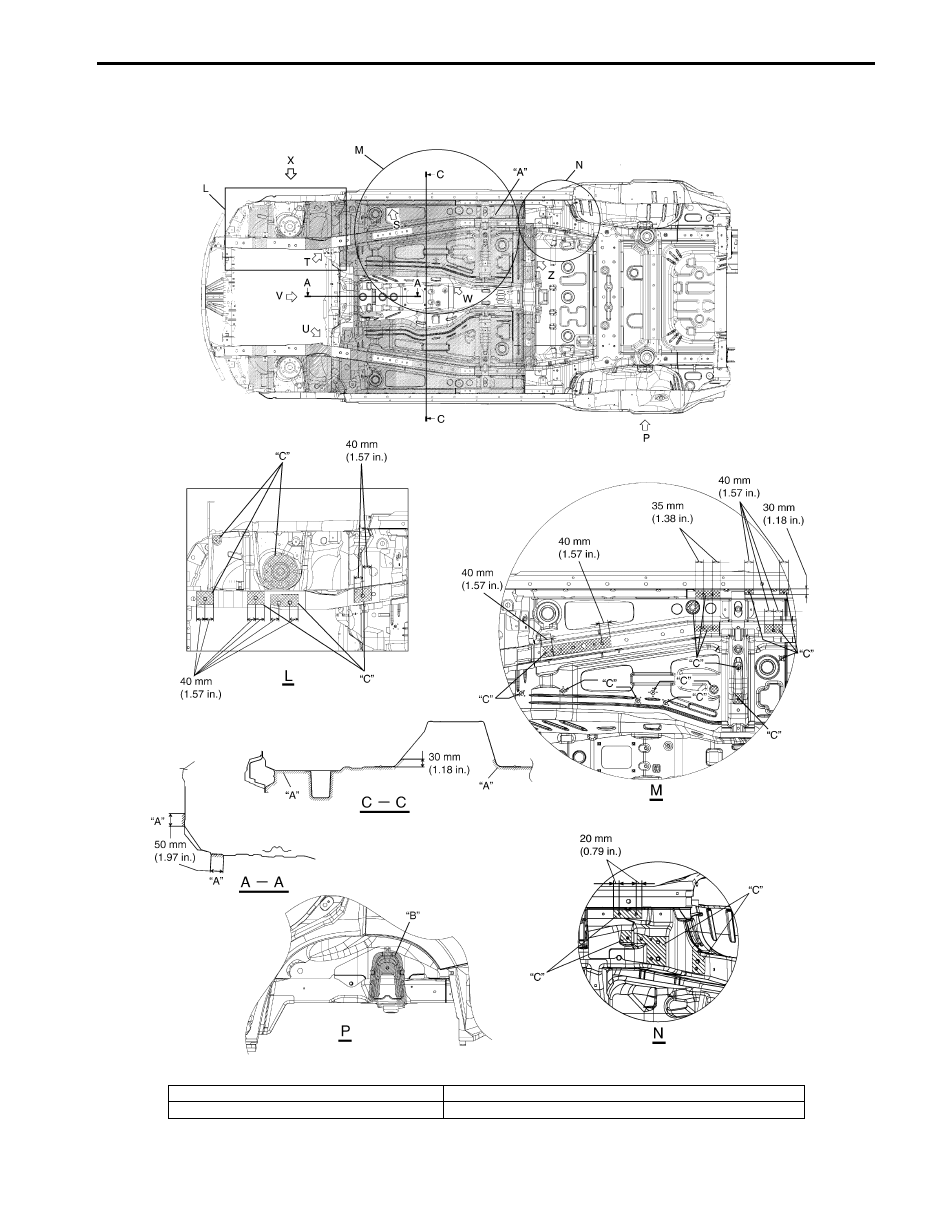

Under Coating Application Areas

S6JB0B9C03002

I6JB019C0008-01

“A”: Apply undercoating (PVC, 400

µm or more).

“C”: Do not apply undercoating.

“B”: Apply black painting.

“D”: Apply undercoating (PVC, 400

µm or more) covering flange end.

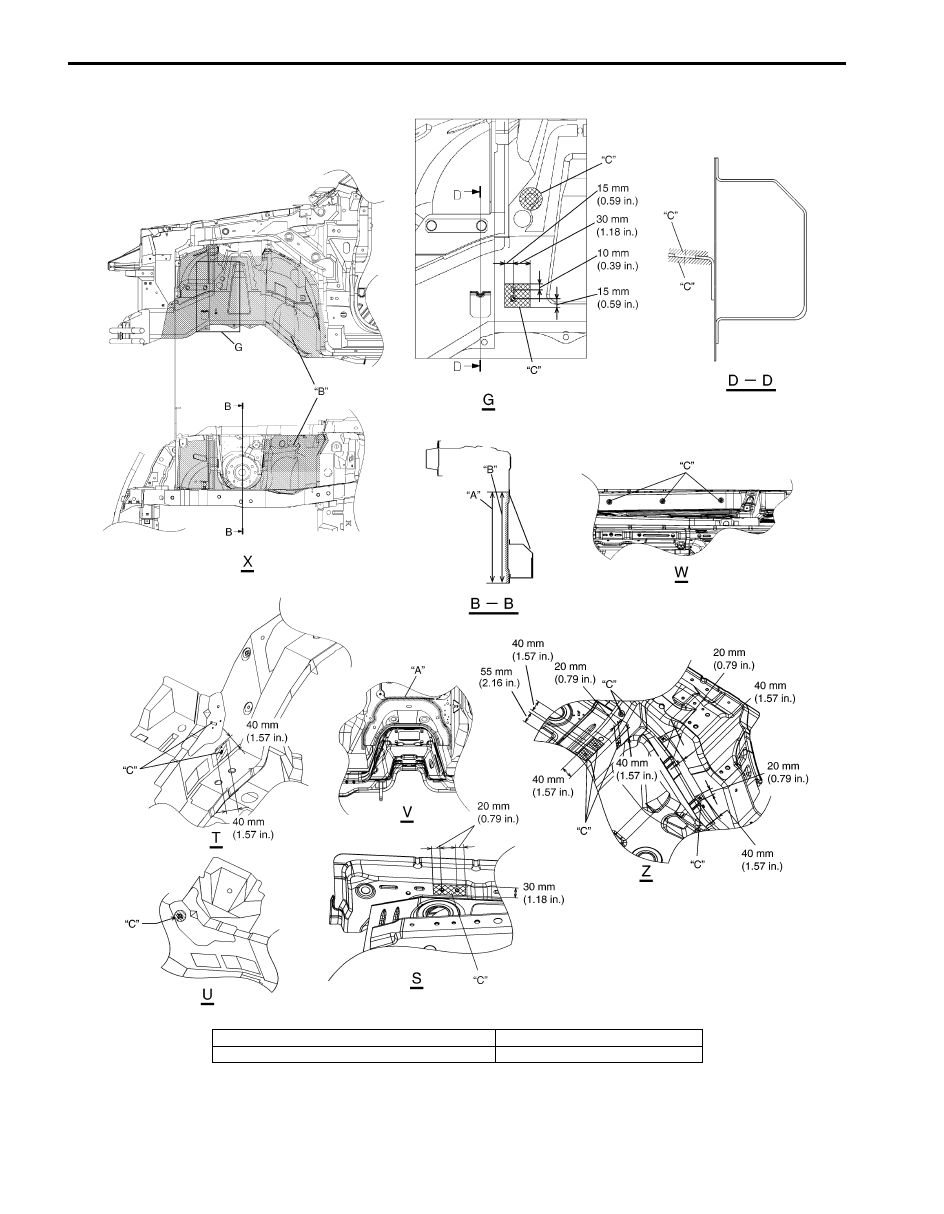

9L-9 Paint / Coatings:

I6JB019C0002-02

“A”: Apply undercoating (PVC, 400

µm or more).

“C”: Do not apply undercoating.

“B”: Apply black painting.

Paint / Coatings:  9L-10

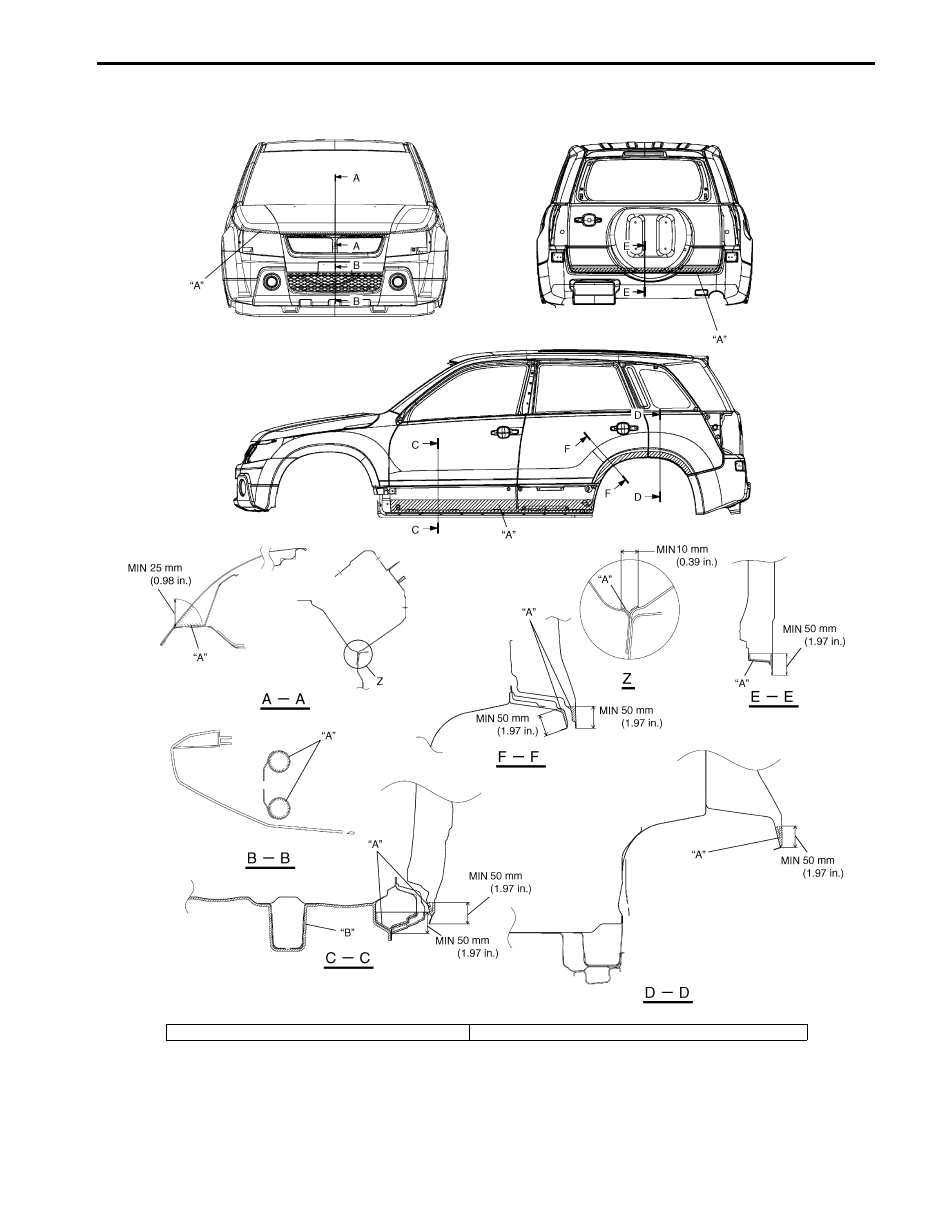

Anti-Corrosion Compound Application Area

S6JB0B9C03003

I6JB019C0009-01

“A”: Apply rust proof wax (hot wax 50

µm or more).

“B”: Apply rust proof wax (high viscosity wax 50

µm or more).
