9G-1 Seats:

Body, Cab and Accessories

Seats

Diagnostic Information and Procedures

Front Seat Heater Symptom Diagnosis (If Equipped)

S6JB0B9704001

Repair Instructions

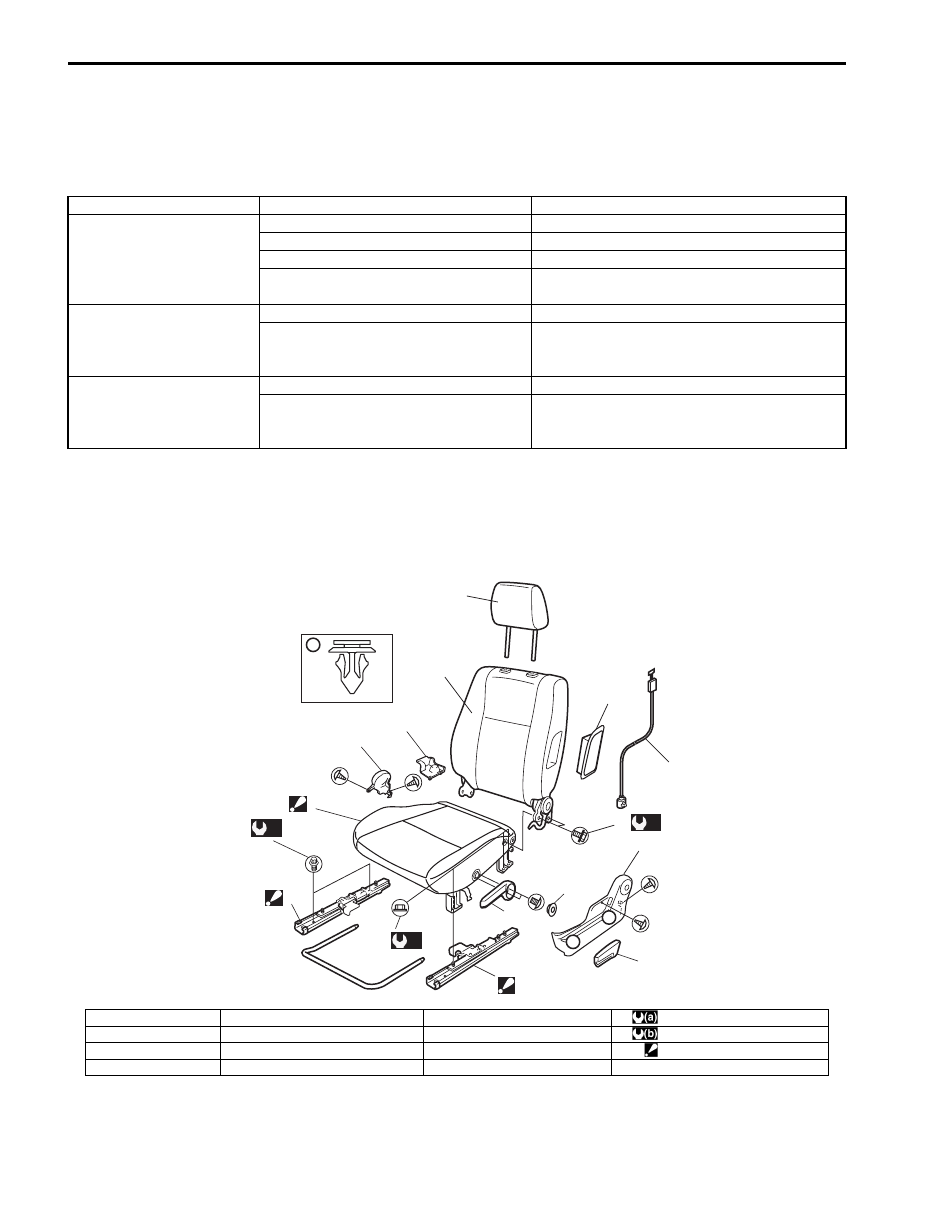

Front Seat Components

S6JB0B9706001

Condition

Possible cause

Correction / Reference Item

Both seat back and
cushion do not become
hot although seat heater
switch is ON position

Wiring or grounding faulty

Repair.

“IG2 SIG” fuse blown

Replace fuse to check for short.

Seat heater switch faulty

Replace switch.

Seat heater circuit in seat back and/or
seat cushion faulty

Replace heater front back and/or heater front
cushion.

Only seat back does not
become hot although seat
heater switch is ON
position

Wiring faulty

Repair.

Seat heater circuit in seat back and/or
seat cushion faulty

Replace heater front back and/or heater front
cushion.

Only seat cushion does
not become hot although
seat heater switch is ON
position

Wiring faulty

Repair.

Seat heater circuit in seat cushion

Replace heater front cushion.

A

A

A

3

2

4

4

1

9

5

11

5

12

4

4

10

8

7

6

(a)

(b)

(b)

I6JB01970002-01

1. Seat cushion

5. Seat adjuster

9. Seat mounting bolt

: 23 N

⋅m (2.3 kgf-m, 17.0 lb-ft)

2. Seat back

6. Knob

10. Seat back bolt

: 35 N

⋅m (3.5 kgf-m, 25.5 lb-ft)

3. Headrestraint

7. Side air bag module (if equipped)

11. Seat cushion nut

: Non-disassemble (RH seat)

4. Cover

8. Side air bag harness (if equipped)

12. Seat lifter lever (if equipped)

Seats: 9G-2

Front Seat Removal and Installation

S6JB0B9706002

WARNING

!



Do not disassemble seat cushion and
adjuster of RH passenger seat since sensors
for occupant classification system are
equipped. Disassembling the seat cushion
and adjuster may cause improper air bag
deployment.



Removal

1) Disable air bag system referring to “Disabling Air

Bag System in Section 8B”.

2) Disconnect seat harness coupler, seat heater

coupler and side air bag coupler, if equipped.

3) Remove 4 mounting bolts to remove seat assembly.
4) Disassemble and repair seat as necessary.

Installation
Reverse removal procedure to install front seat.
• Torque to specifications as shown in “Front Seat

Components”.

• Enable air bag system referring to “Enabling Air Bag

System in Section 8B”.

Front Seat Heater Switch (Driver and Passenger
Side) Inspection (If Equipped)

S6JB0B9706003

1) Confirm that ignition switch is OFF position.
2) Detach gear shift panel from front center console

box.

3) Disconnect seat heater switch coupler.

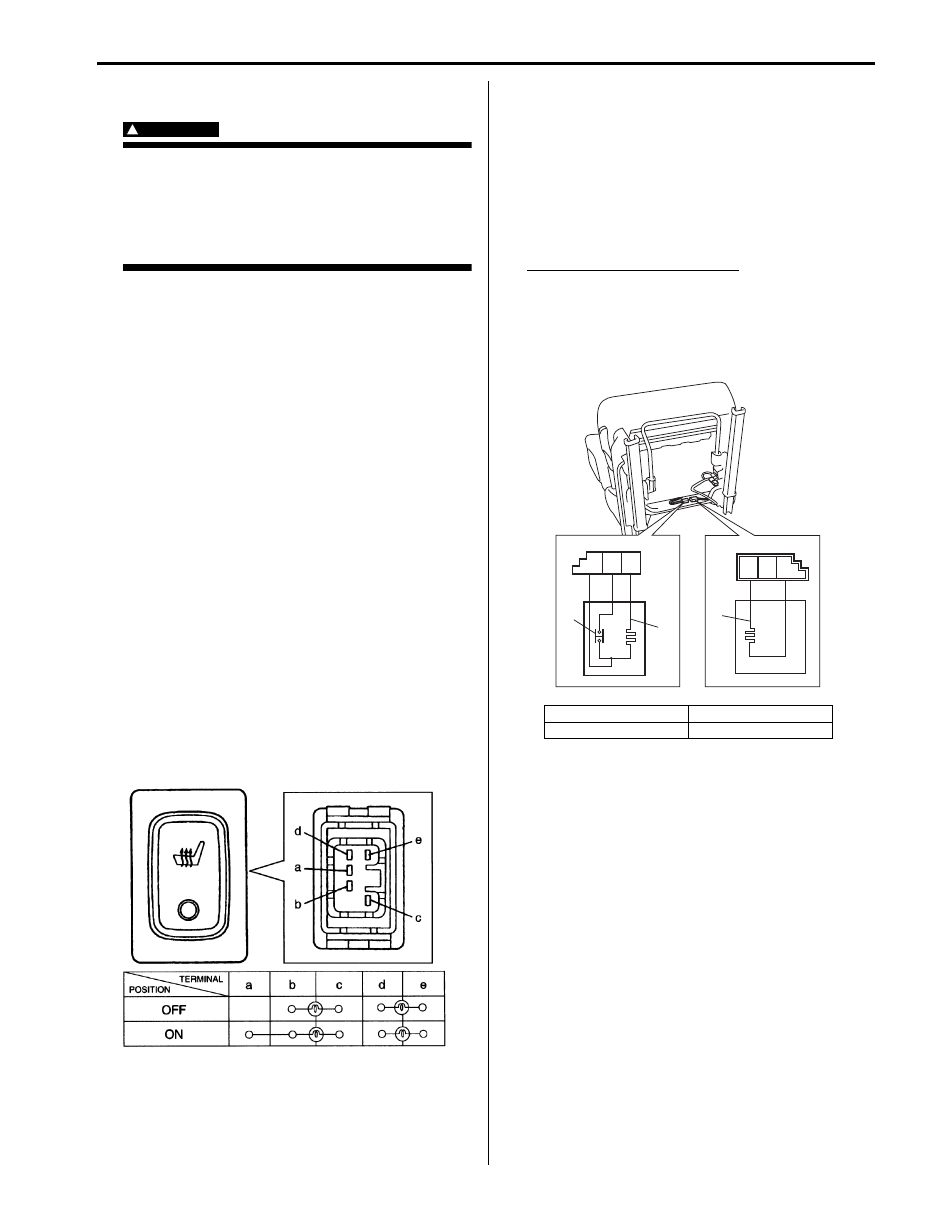

4) Check for continuity between terminals at each

switch position as shown below. If check result is not
as specified, replace.

Front Seat Heater Wire Inspection (If Equipped)

S6JB0B9706004

1) Confirm that seat heater switch is OFF position.
2) Disconnect coupler of seat heater under the seat

cushion.

3) Measure resistance between terminals as shown

below. If resistance is out of specification, replace
faulty seat cushion and/or seat back including seat
heater.

Seat heater circuit resistance
Seat cushion side [A] (between terminal “B” and
“C”, between terminal “A” and “C”): 4.7 – 5.7

Ω

(at 20

°C, 68 °F)

Seat back side [B] (between terminal “F” and
“D”: 10.7 – 13.1

Ω (at 20 °C, 68 °F)

I5JA01970001-01

1. Heater wire

[A]: Seat cushion side

2. Thermostat

[B]: Seat back side

A

B

C

D

E

F

[A]

[B]

1

1

2

I5JB0A970002-01

9G-3 Seats:

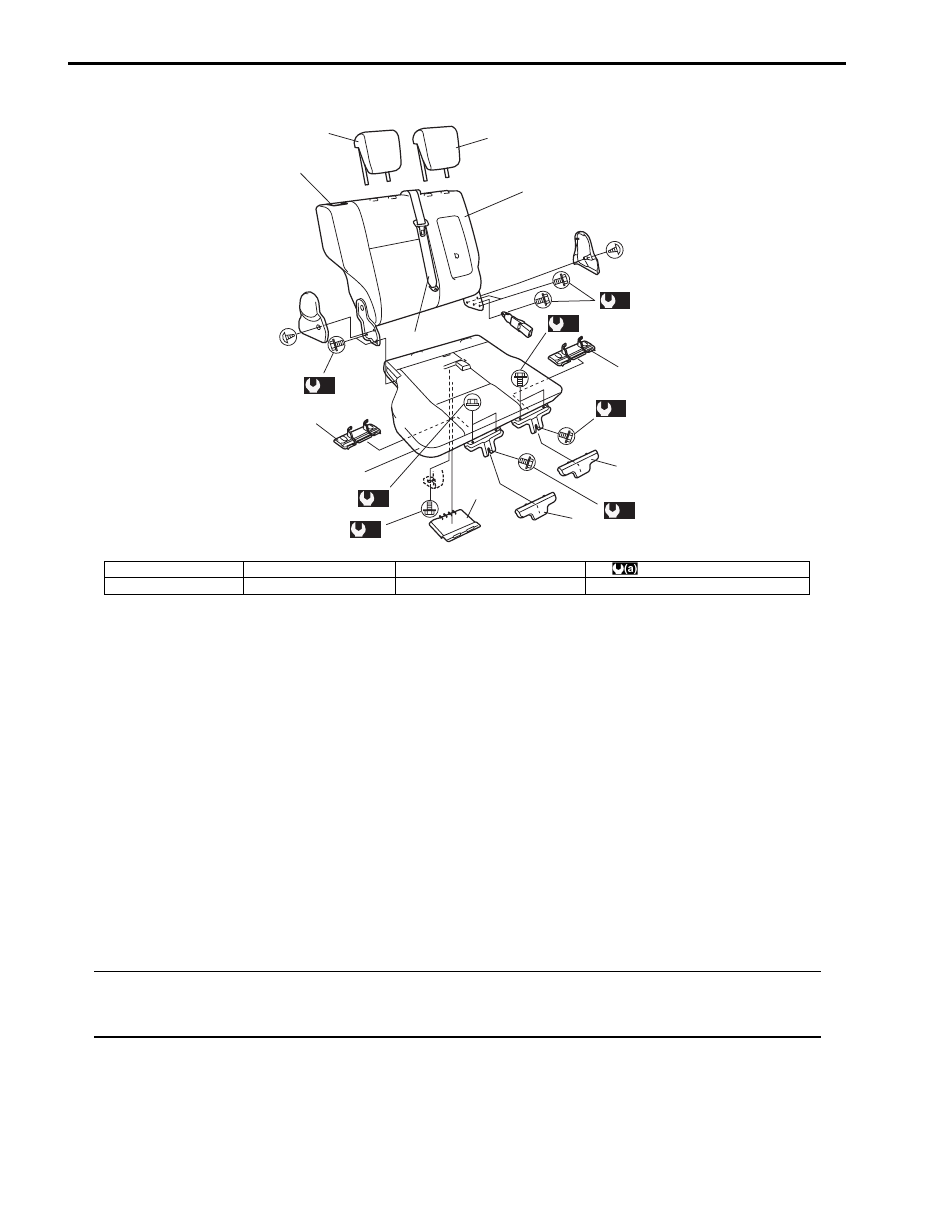

Rear Seat Components

S6JB0B9706005

Rear Seat Removal and Installation

S6JB0B9706006

Removal

1) Remove seat mounting bolt(s) in the bracket.
2) Fold rear seat back and unlock the seat cushion lock to pull forward the seat cushion.
3) Remove seat mounting nuts (bolts) to remove rear seat assembly.
4) Disassemble and repair seat as necessary.

Installation
Reverse removal procedure to install rear seat.
• Torque to specifications in “Rear Seat Components”.

Specifications

Tightening Torque Specifications

S6JB0B9707001

NOTE
The specified tightening torque is also described in the following.
“Front Seat Components”
“Rear Seat Components”



Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

1. Seat cushion

3. Headrestraint

5. Rear center seat belt

: 45 N

⋅m (4.5 kgf-m, 32.5 lb-ft)

2. Seat back

4. Cover

6. Reclining lever

3

6

4

4

5

1

2

3

4

4

4

(a)

(a)

(a)

(a)

(a)

(a)

(a)

I6JB01970001-01

Interior Trim:  9H-1

Body, Cab and Accessories

Interior Trim

Repair Instructions

Floor Carpet Removal and Installation

S6JB0B9806001

Removal

1) Remove front seats and rear seats.
2) Remove seat belt lower anchor bolt.
3) Remove front and rear side sill scuffs (1), front pillar

lower trims (2), center pillar inner lower trims (3),
back panel trim (4), rear quarter lower trims (5).

4) Remove front and rear console boxes.
5) Remove floor carpet.

Installation
Reverse removal sequence to install front floor carpet,
noting the following instruction.
• For tightening torque of rear seat mounting bolt and

nut, refer to “Rear Seat Components in Section 9G”.

• For tightening torque of front seat mounting bolt, refer

to “Front Seat Components in Section 9G”.

• For tightening torque of seat belt lower anchor bolt,

refer to “Front Seat Belt Components in Section 8A”
and “Rear Seat Belt Components in Section 8A”.

Head Lining Removal and Installation

S6JB0B9806002

WARNING

!



Refer to “Air Bag Warning: in Section 00”
before starting service work.



Removal

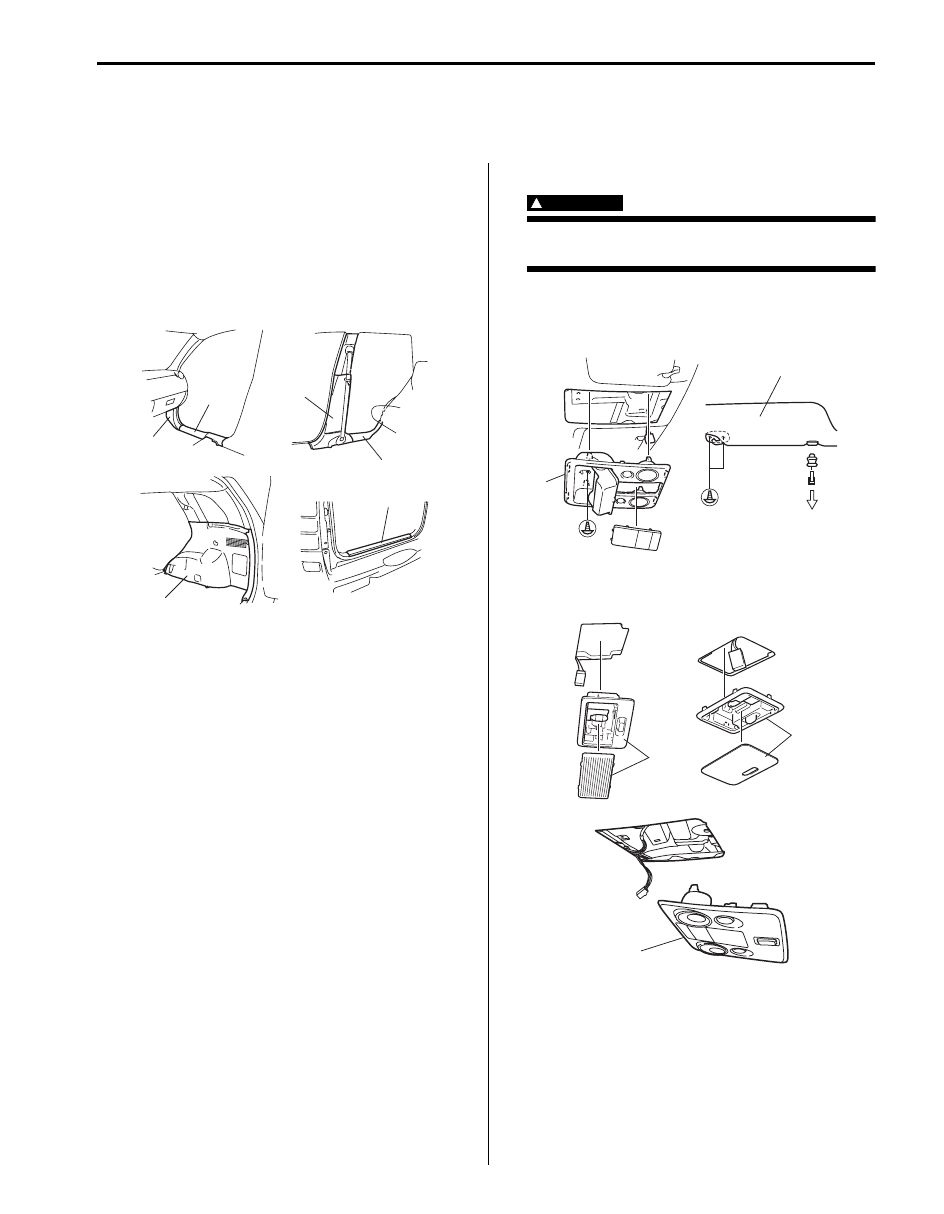

1) Remove overhead console (1) (if equipped) and
