9F-12 Security and Locks:

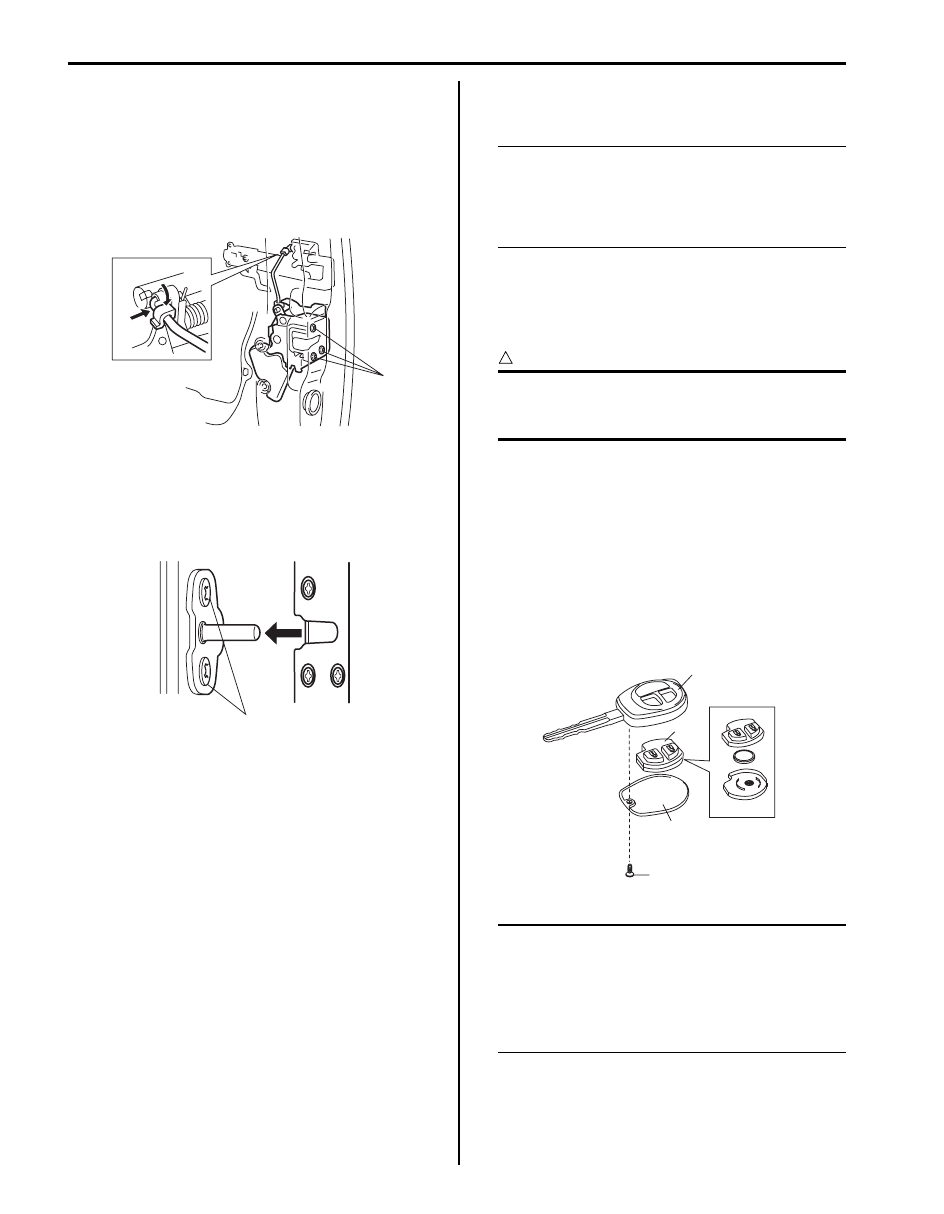

Installation
Reverse removal procedure to install rear end door lock
assembly noting the following instruction.
• Tighten rear end door latch bolt to specified torque.

Tightening torque
Rear end door latch bolt (a): 5 N·m (0.5 kgf-m, 4.0
lb-ft)

• Adjust door latch striker so that its center aligns with

the center of groove in door latch base.

Tightening torque
Rear end door striker screw (a): 24 N·m (2.4 kgf-
m, 17.5 lb-ft)

Rear End Door Lock Assembly Inspection

S6JB0B9606012

• Check that door opens and closes smoothly and

properly.

• Check that door stops in the secondary latched

position properly (preventing door from opening
freely) and that door closes completely in the fully
latched position.

• Adjust door latch striker position, if necessary.

Replacement of Transmitter Battery (Other than
Keyless Start Model)

S6JB0B9606013

NOTE
For keyless start model, perform
“Replacement of Remote Controller Battery
in Section 10E” instead of “Replacement of
Transmitter Battery (Other than Keyless Start
Model)”.

If transmitter becomes unreliable, replace transmitter
battery as follows.

1) Remove screw (1) and transmitter cover (2).
2) Remove transmitter (3) from transmitter holder (4).

CAUTION

Use care not to allow grease or dirt to be
attached on the printed circuit board and the
battery.

3) With tip of flat blade screwdriver put in slot of

transmitter, pry it open.

4) Replace the battery (lithium disc-type CR 1620 or

equivalent battery) so its (+) terminal faces “+” mark
on transmitter.

5) Fit together transmitter (3) and install it into

transmitter holder (4).

6) Install transmitter cover (2) and screw (1).
7) Make sure that door locks can be operated with

transmitter.

NOTE

• To prevent theft, be sure to break the

transmitter before discarding it.

• Dispose of the used battery properly

according to applicable rules or
regulations. Do not dispose of lithium
batteries with ordinary household trash.

(a)

I5JB0A960018-01

(a)

I5JB0A960019-01

I4RS0B960014-01

Security and Locks: 9F-13

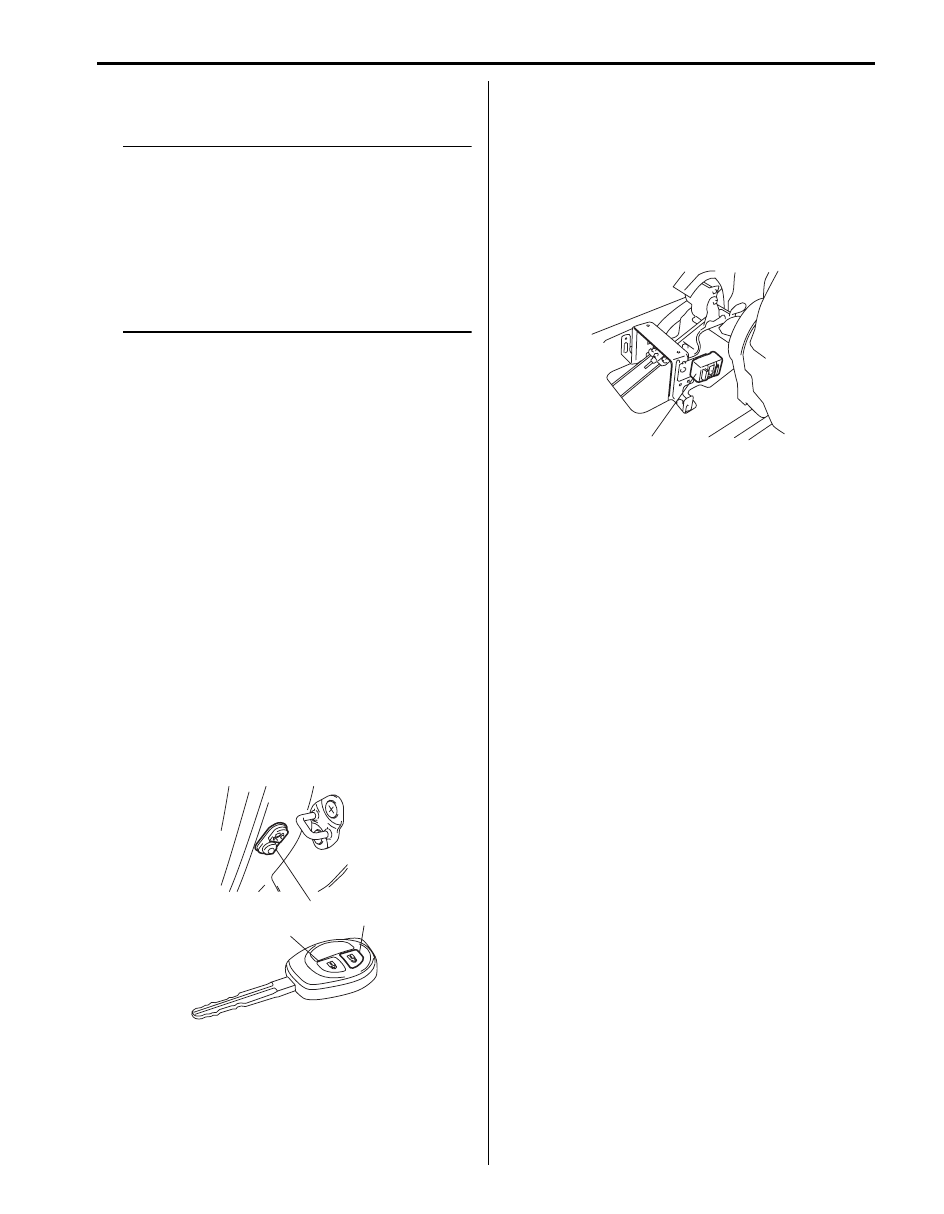

Programming Transmitter Code for Keyless
Entry System (Other than Keyless Start Model)

S6JB0B9606014

NOTE

• Three transmitter codes can be registered.
• When a new transmitter code is registered,

the oldest one will be cleared.

• For keyless start model, perform

“Registration Procedure for Remote
Controller ID Code in Section 10E” instead
of “Programming Transmitter Code for
Keyless Entry System (Other than Keyless
Start Model)”.

If transmitter or BCM is replaced or additional
transmitter(s) is necessary, program transmitter code(s).

1) Confirm that all doors are closed and ignition key is

out of ignition key cylinder

2) Open driver side door.
3) Turn ignition switch to ON position, and then drawn

ignition key from ignition key cylinder within 10
seconds after that.

4) Push and release driver side door switch (1) at 3

times by hand within 20 seconds after removing
ignition key from ignition key cylinder.

5) Turn ignition switch to ON position, and then drawn

ignition key from ignition key cylinder within 10
seconds after that. All doors automatically lock and
unlock once.
With this, registration mode.

6) Push “UNLOCK” button (2) on transmitter (3) within

20 seconds after Step 5). All doors automatically lock
and unlock once.
With this, code registration is completed.

7) If an additional transmitter, needs to be programed

repeat the procedure of Step 1).

Keyless Entry Receiver Removal and
Installation

S6JB0B9606015

Removal

1) Disconnect negative cable at battery.
2) Remove console box from vehicle body referring to

“Console Box Components in Section 9H”.

3) Disconnect keyless entry receiver coupler.
4) Remove keyless entry receiver (1).

Installation
Reverse removal procedure.

I4RS0B960010-01

I5JB0A960020-01

9F-14 Security and Locks:

Keyless Entry Receiver and Its Circuit Inspection

S6JB0B9606016

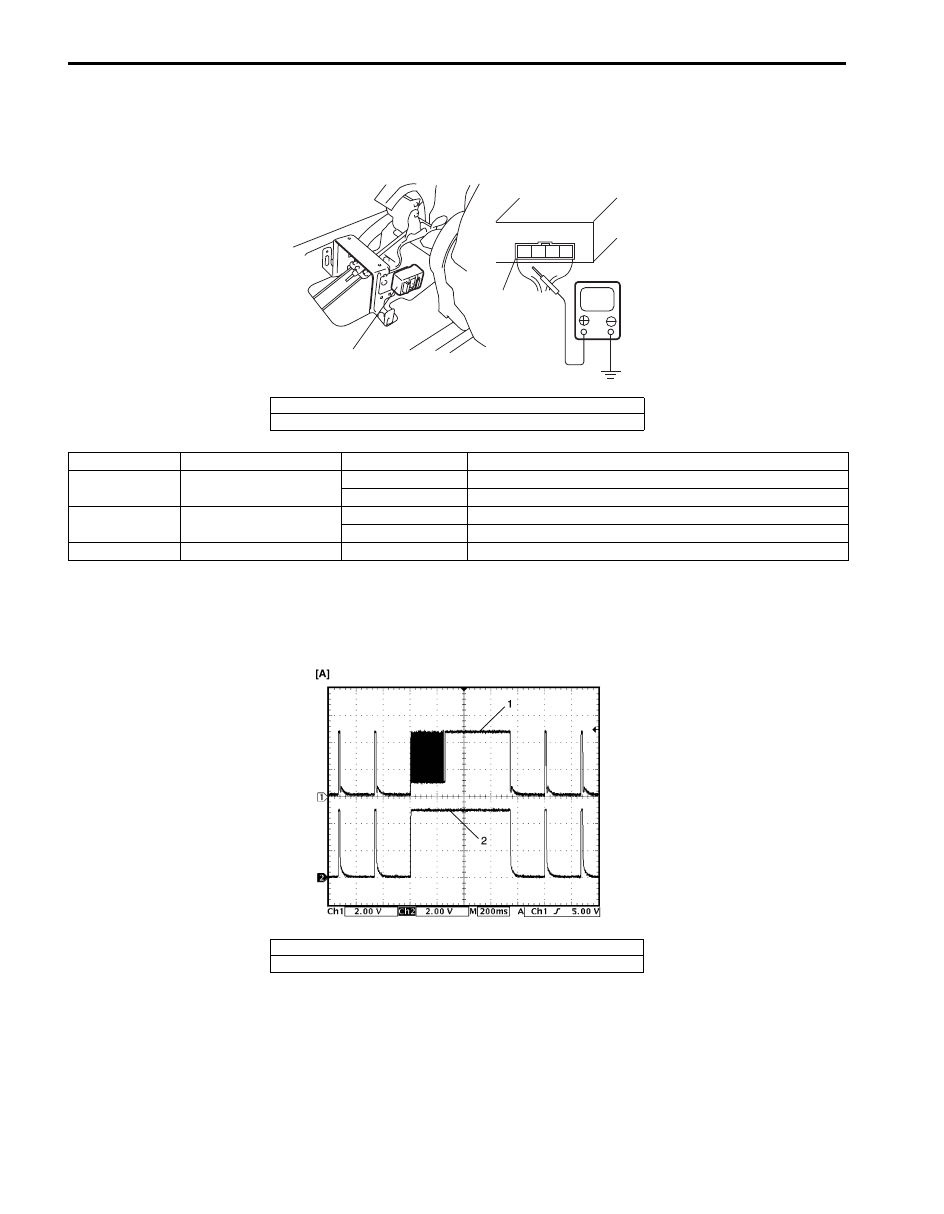

1) Check that the voltage between the following terminals and body ground are specifications under each conditions.

If check result is not as specified, check applicable circuit for open or short. If circuit is normal, proceed to next
step.

Oscilloscope setting
CH1: 2V/DIV
CH2: 2V/DIV
TIME: 200 ms/DIV

1) Recheck keyless entry receiver as follows.

a) Substitute a known-good keyless entry receiver.
b) Record key code referring to “Programming Transmitter Code for Keyless Entry System (Other than Keyless

Start Model)”.

c) Recheck keyless entry receiver system.

1. Keyless entry receiver
2. Keyless entry receiver connector (view from harness side)

I5JB0A960021-01

Terminal

Circuit

Specification

Condition

L44-1

Power source

Figure [A]

Push “Lock” or “Unlock” button on transmitter.

0-1 V

Except the above-mentioned condition.

L44-3

Lock/Unlock output

signal circuit

Figure [A]

Push “Lock” or “Unlock” button on transmitter.

0-1 V

Except the above-mentioned condition.

L44-4

Ground

0-1 V

—

1. Lock/Unlock out put signal
2. Power source

I4RS0A960024-01

Security and Locks: 9F-15

Specifications

Tightening Torque Specifications

S6JB0B9607001

NOTE
The specified tightening torque is also described in the following.
“Front Door Lock Assembly Components”
“Rear Door Lock Assembly Components”
“Rear End Door Lock Assembly Components”

Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

Special Tools and Equipment

Recommended Service Material

S6JB0B9608001

NOTE
Required service material is also described in the following.
“Front Door Lock Assembly Components”
“Rear Door Lock Assembly Components”

Fastening part

Tightening torque

Note

⋅m

kgf-m

lb-ft

Door latch screw

5.0

0.5

4.0

)

/ )

Door latch striker screw

1.0

7.5

)

Rear end door latch bolt

0.5

4.0

)

Rear end door striker screw

2.4

17.5

)

Material

SUZUKI recommended product or Specification

Note

Grease

SUZUKI Super Grease A

P/No.: 99000–25011

)
