5A-148 Automatic Transmission/Transaxle:

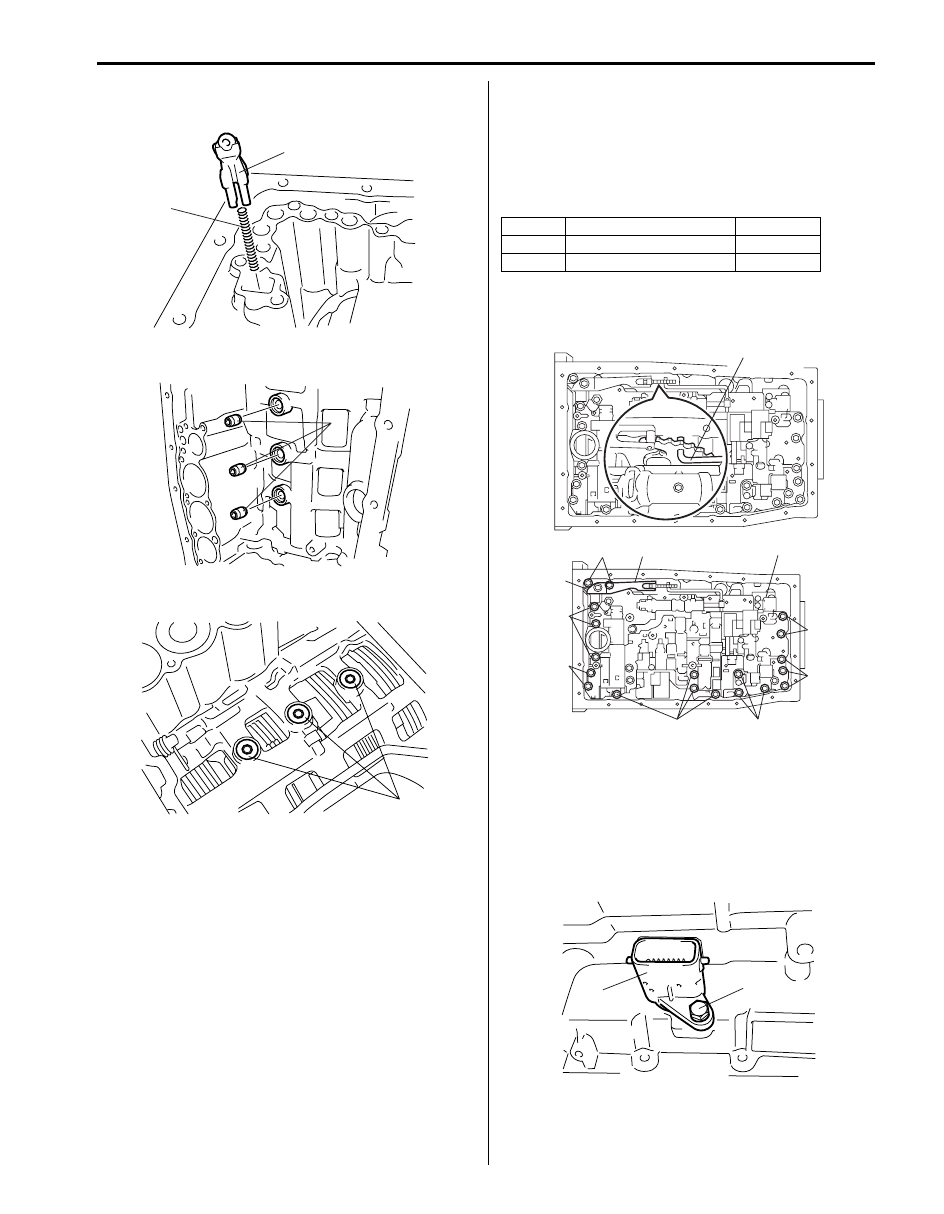

78) Connect parking lock rod (2) to manual shift lever (1)

as shown in the figure.

79) Install parking lock pawl bracket (1).

Tighten parking pawl bracket bolts (2) to specified
torque.

Tightening torque
Parking pawl bracket bolt (a):  7.4 N·m (0.74 kgf-
m, 5.5 lb-ft)

80) Turn manual shift lever (1) to “P” position, confirm

that rear planetary ring gear (2) is correctly locked up
by parking lock pawl (3).

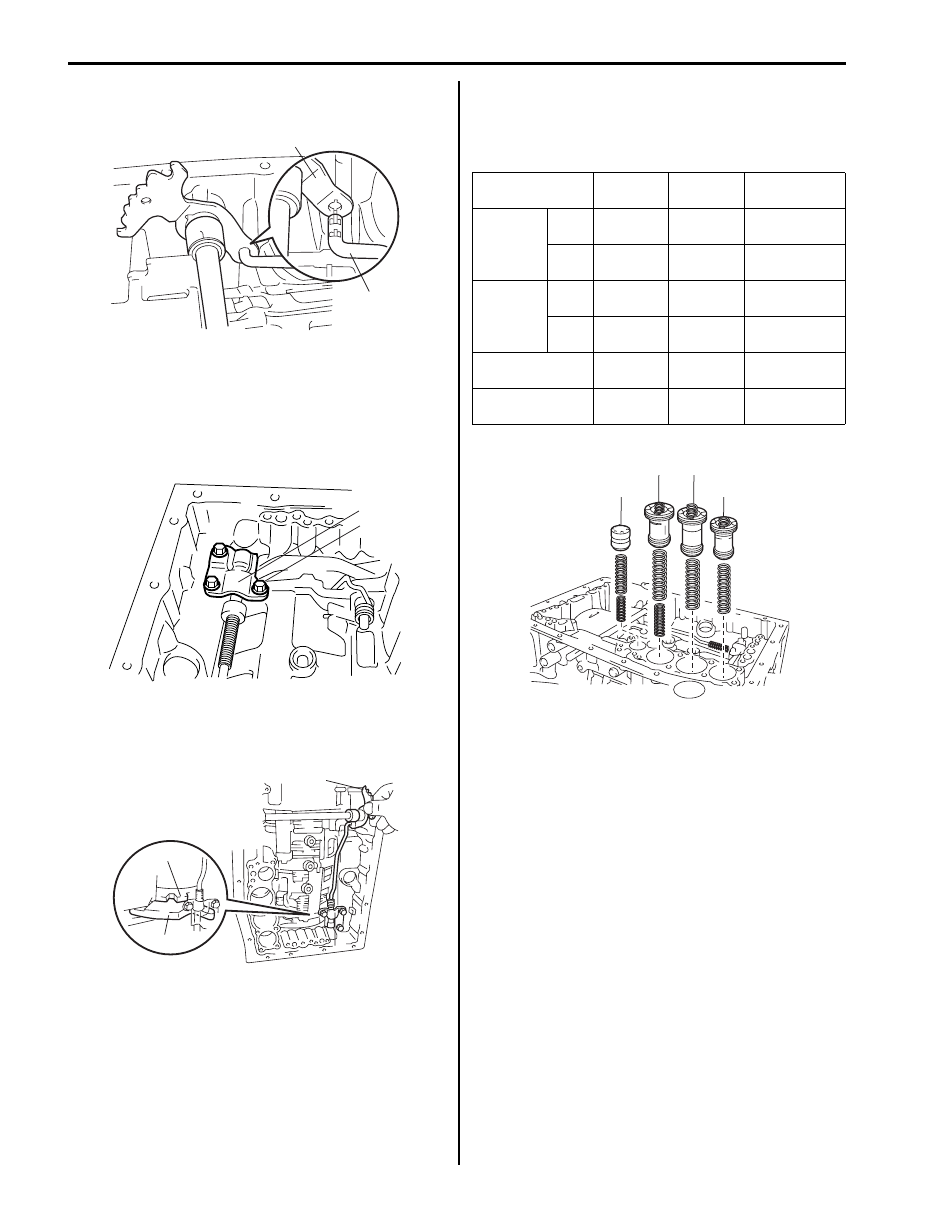

81) After applying A/T fluid to new O-rings and then

install O-rings to accumulator pistons.

82) Install springs to transmission case.

Accumulator piston spring specification

1

2

I4JA01512270-01

1

2, (a)

I4JA01512271-01

1

2

3

I4JA01512272-01

Accumulator

spring

Free

length

Outside

diameter

Identification

painting

Forward

clutch

accumulat

or (1)

Inner

30.40 mm
(1.197 in.)

11.40 mm

(0.449 in.)

Pink

Outer

48.76 mm
(1.920 in.)

16.60 mm
(0.654 in.)

Green

Reverse

clutch

accumulat

or (2)

Inner

44.0 mm

(1.732 in.)

14.0 mm

(0.551 in.)

Yellow

Outer

73.35 mm
(2.888 in.)

19.90 mm
(0.784 in.)

Red

2nd (No.3) brake

accumulator (3)

64.5 mm

(2.540 in.)

19.5 mm

(0.768 in.)

Orange

Direct clutch

accumulator (4)

62.0 mm

(2.441 in.)

15.9 mm

(0.626 in.)

White

1

4

2

3

I4JA01512273-01

Automatic Transmission/Transaxle:  5A-149

83) Install spring (2) and check ball body (1) to

transmission case.

84) Install new brake drum gaskets (1).

85) Install new transmission case gaskets (1).

86) Align the groove of manual valve with pin of lever (1).
87) Install valve body assembly (2) by using bolts noting

their length shown below.

Tightening torque
Valve body bolt (a):  11 N·m (1.1 kgf-m, 8.0 lb-ft)

Valve body bolt length

88) Install spring plate (3) and manual shift lever spring

(4).

89) After applying A/T fluid to new O-ring and then install

transmission wire connector (2).
Tighten transmission wire connector bolt (1) to
specified torque.

Tightening torque
Transmission wire connector bolt (a):  5.5 N·m (
0.55 kgf-m, 4.0 lb-ft)

1

2

I4JA01512274-01

1

I4JA01512275-01

1

I4JA01512276-01

Bolt

Length

Pieces

A

25.0 mm (0.984 in.)

16

B

36.0 mm (1.417 in.)

3

1

A, (a)

3

2

B, (a)

4

A, (a)

A, (a)

A, (a)

A, (a)

A, (a)

I4JA01512277-01

2

1, (a)

I4JA01512278-01

5A-150 Automatic Transmission/Transaxle:

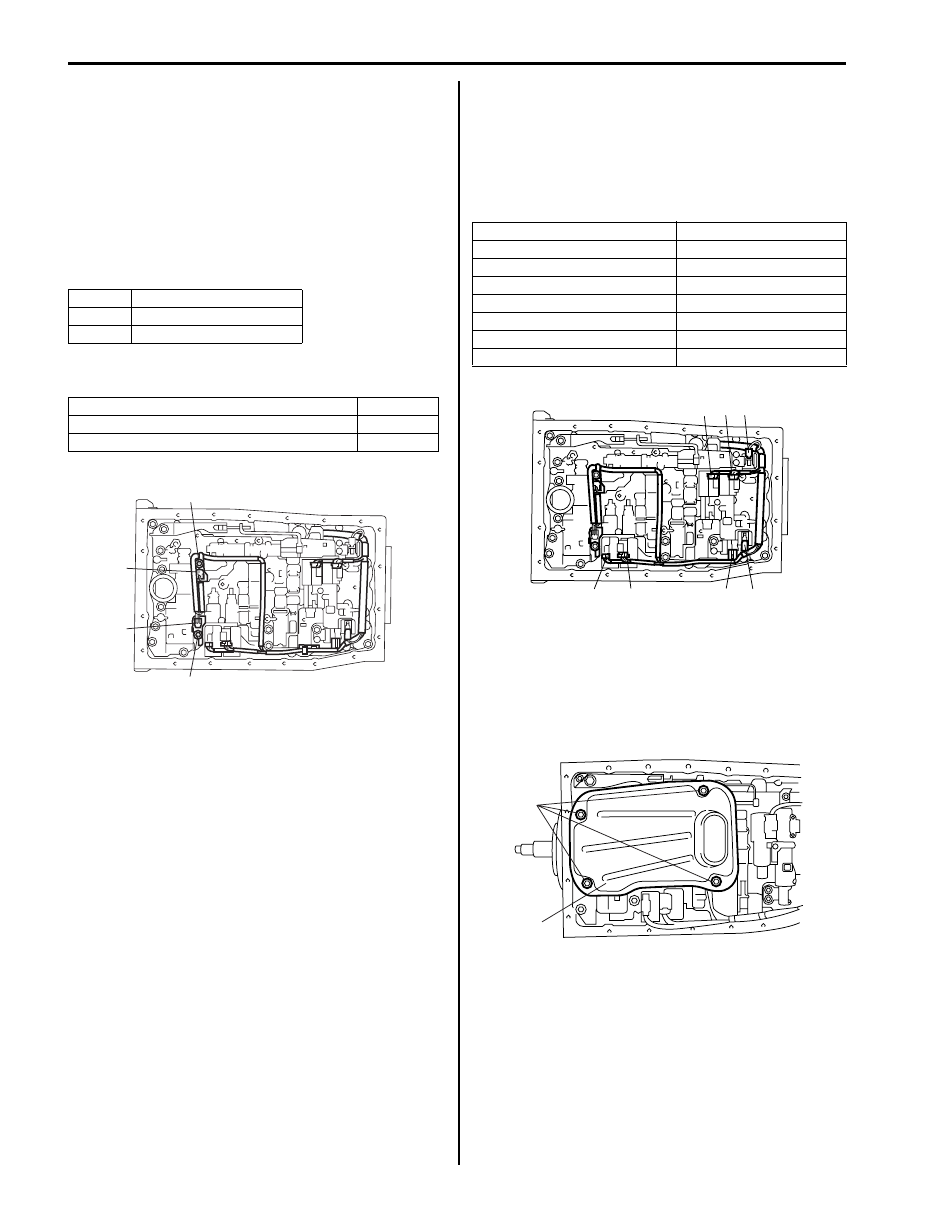

90) Install transmission fluid temperature sensor A (1)

and B (2) (if equipped).

91) Install clamp and bolts to specified torque.

Tightening torque
Transmission fluid temperature sensor clamp
bolt (a):  11 N·m (1.1 kgf-m, 8.0 lb-ft)
Transmission fluid temperature sensor clamp
bolt (b):  10 N·m (1.0 kgf-m, 7.0 lb-ft)

Transmission fluid temperature sensor clamp bolt
length

Transmission fluid temperature sensor harness
color

92) Connect pressure control solenoid-A connector (1),

pressure control solenoid-B connector (2), shift
solenoid-A connector (3), shift solenoid-B connector
(4), shift solenoid-E connector (5), TCC solenoid
connector (6) and pressure control solenoid-C
connector (7) to each solenoid valve.

Shift solenoid valve harness color

93) After applying A/T fluid to new O-ring and then install

O-ring to oil strainer.

94) Install oil strainer (1) to valve body assembly.

Tighten 4 oil strainer bolts to specified torque.

Tightening torque
Oil strainer bolt (a):  10 N·m (1.0 kgf-m, 7.0 lb-ft)

Bolt

Length

A

36.0 mm (1.417 in.)

B

12.0 mm (0.472 in.)

Fluid temperature sensor

Color

Transmission fluid temperature sensor A

Blue

Transmission fluid temperature sensor B

Orange

1

2

B, (b)

A, (a)

I6JB0B510011-01

Solenoid valve

Harness color

Pressure control solenoid-A

Green/Gray

Pressure control solenoid-B

Blue/Red

Pressure control solenoid-C

Purple/Yellow

Shift solenoid-A

White

Shift solenoid-B

Black

Shift solenoid-E

Light blue

TCC solenoid

Light green/Brown

1

2

3

4

5

6

7

I4JA01512280-01

1

(a)

I4JA01512281-01

Automatic Transmission/Transaxle:  5A-151

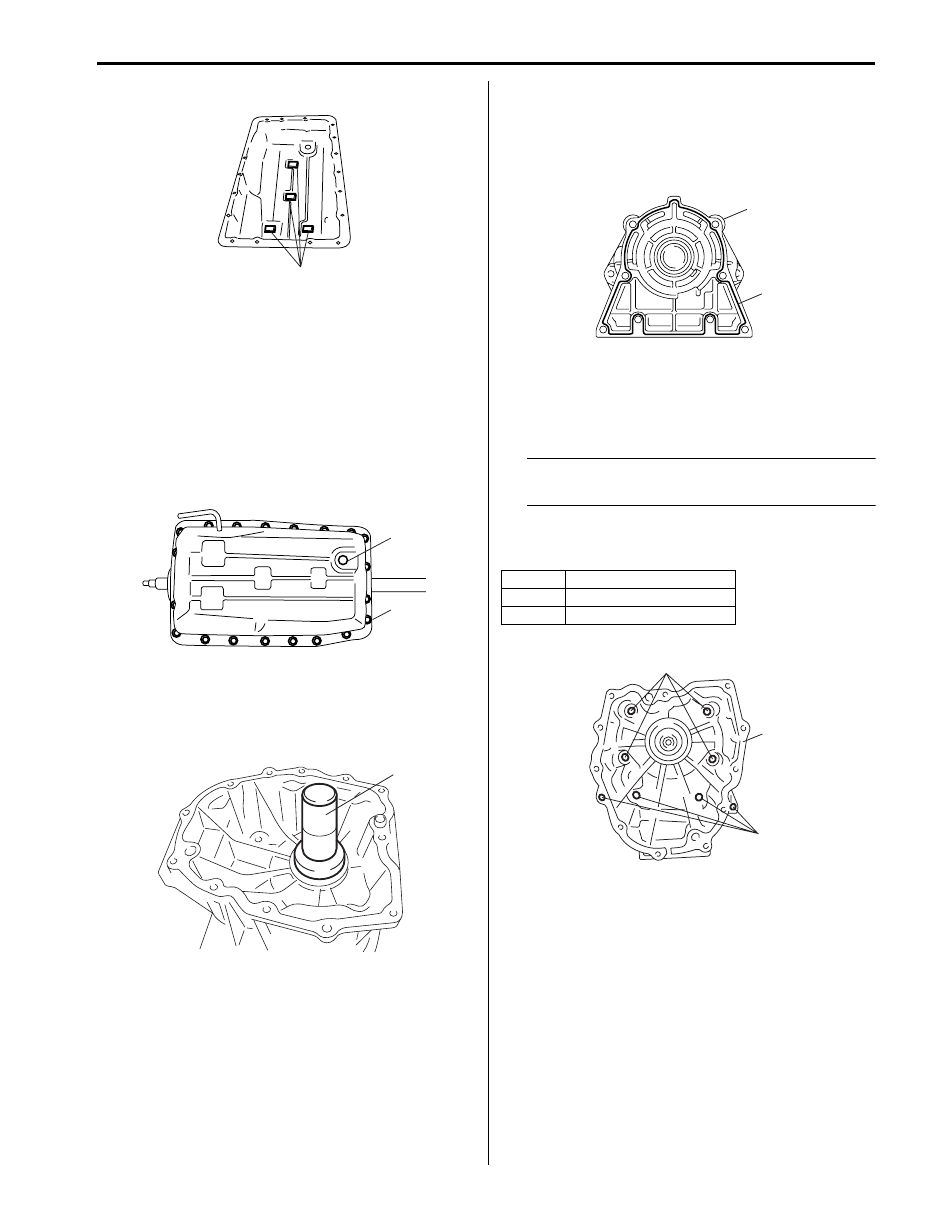

95) Install 4 transmission magnets (1).

96) Install a new gasket to oil pan.
97) Install oil pan to transmission case.

Tighten 20 oil pan bolts (1) to specified torque.

Tightening torque
Oil pan bolt (a):  4.5 N·m (0.45 kgf-m, 3.5 lb-ft)

98) Install drain plug (2).

Tighten drain plug to specified torque.

Tightening torque
Drain plug (b):  20 N·m (2.0 kgf-m, 14.5 lb-ft)

99) Install new oil seal (if removed) to transmission

adapter case by using special tool and hammer.

Special tool
(A):  09913–75520

100)Apply sealant continuously to transmission case

adapter sub assembly (1) mating surface as shown
in figure.

“A”:  Sealant 99000–31230 (SUZUKI Bond
No.1216B)

101)Install transmission case adapter sub assembly (1)

to transmission case.
Tighten 8 transmission case adapter sub assembly
bolts to specified torque.

NOTE
Make sure to use new transmission case
adapter sub assembly bolts.



Tightening torque
Transmission case adapter sub assembly bolt
(a):  34 N·m (3.4 kgf-m, 24.5 lb-ft)

1

I4JA01512282-01

2, (b)

1, (a)

I4JA01512283-01

(A)

I4JA01512289-01

Bolt

Length

A

50.0 mm (1.969 in.)

B

40.0 mm (1.575 in.)

“A”

1

I4JA01512290-01

A, (a)

1

B, (a)
