1G-15 Fuel System:

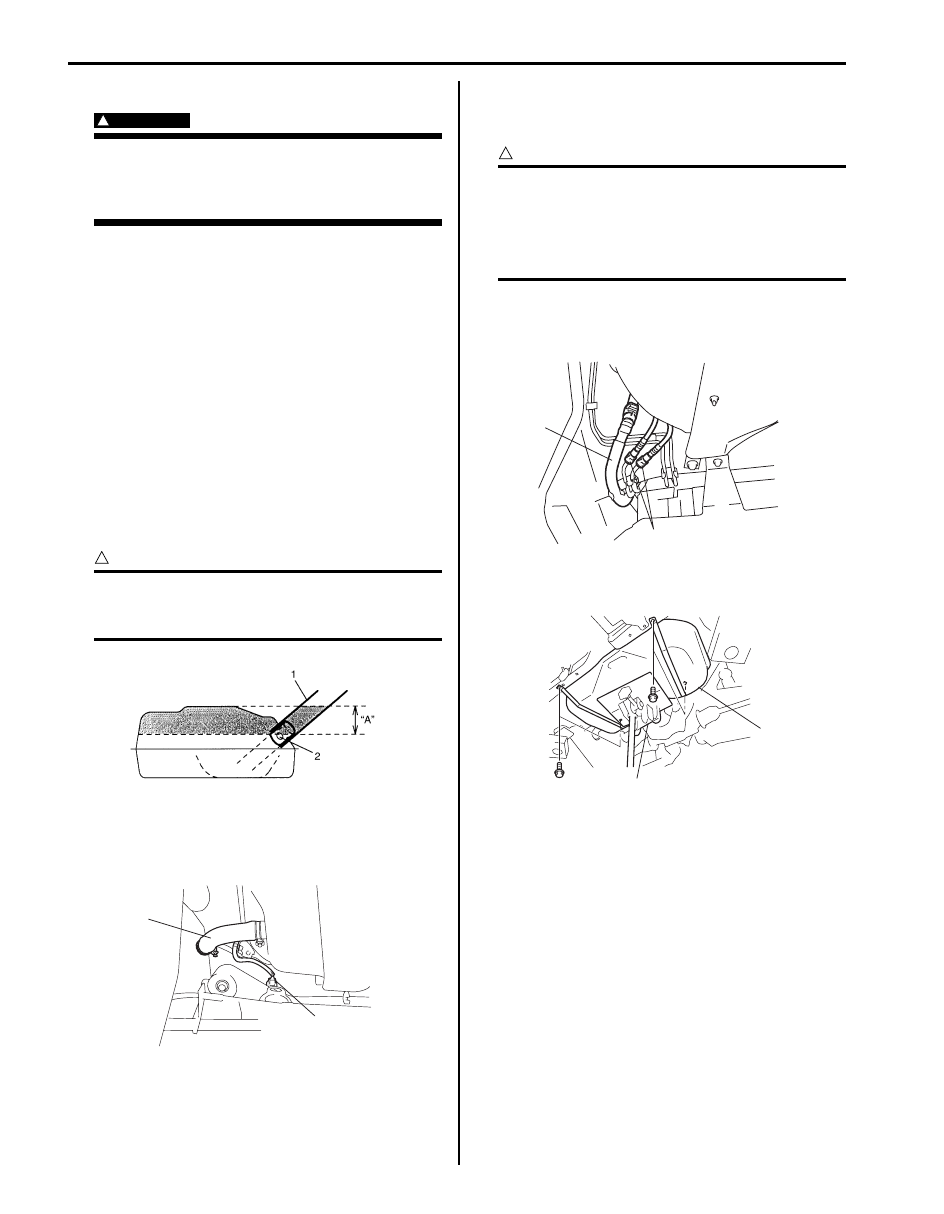

Fuel Tank Removal and Installation

S6JB0B1706015

WARNING

!



Before starting the following procedure, be
sure to observe “Precautions on Fuel System
Service” in order to reduce the risk or fire
and personal injury.



Removal

1) Relieve fuel pressure in fuel feed line according to

“Fuel Pressure Relief Procedure”.

2) Disconnect negative (–) cable at battery.
3) Hoist vehicle.
4) Remove exhaust center pipe.
5) Remove rear propeller shaft referring to “Propeller

Shaft Removal and Installation in Section 3D”.

6) With cable connected, detach parking brake cable

clamp from fuel tank cover referring to “Parking
Brake Cable Location in Section 4D”.

7) Remove fuel filler cap.
8) Insert hose of a hand operated pump into fuel filler

hose (1) and drain fuel in space “A” as shown in
figure.

CAUTION

!



Do not force pump hose into fuel tank, or
pump hose may damage to fuel tank inlet
valve (2).



9) Disconnect fuel filler hose (2) and breather hose

from filler neck.

10) Disconnect fuel pump connector (1).

11) Due to absence of fuel tank drain plug, drain fuel

tank by pumping fuel out through fuel tank filler.
Use hand operated pump device to drain fuel tank.

CAUTION

!



• Do not force pump hose into fuel tank, or

pump hose may damage fuel tank inlet
valve.

• Never store fuel in an open container due

to possibility of fire or explosion.



12) Disconnect fuel hoses (2) and EVAP canister hose

(1) from each pipe referring to “Fuel Hose
Disconnecting and Reconnecting”.

13) Support fuel tank (1) with jack (2) and remove fuel

tank.

14) Remove fuel tank inlet valve (if equipped) from fuel

tank if necessary.

IYSQ01170010-01

1

2

I6JB01170016-01

2

1

I6JB01170017-01

1

2

I5JB0A171018-01

Fuel System:  1G-16

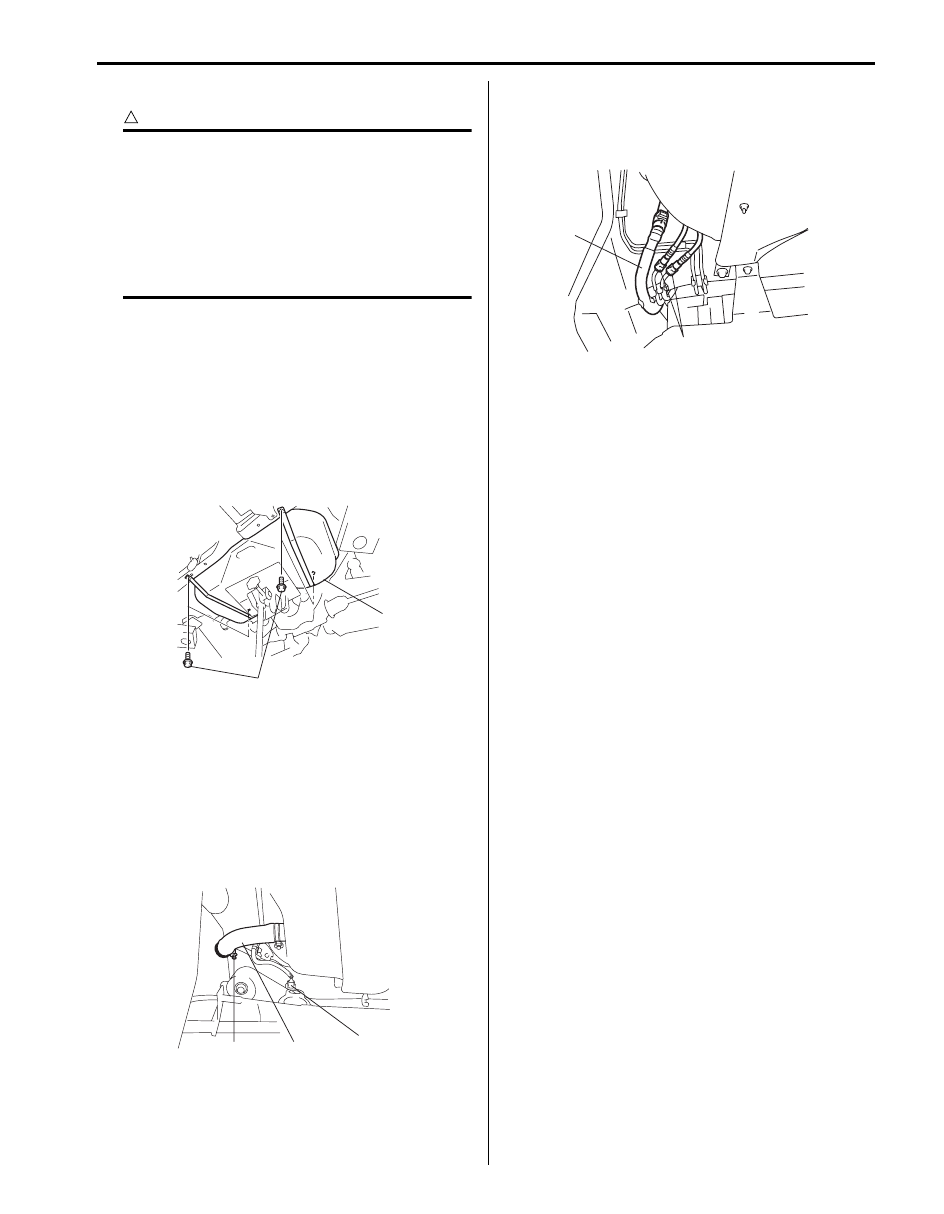

Installation

CAUTION

!



• When connecting joint, clean outside

surfaces of pipe where joint is to be
inserted, push joint into pipe till joint lock
clicks and check to ensure that pipes are
connected securely, or fuel leak may
occur.

• Never let the fuel hoses touch the wheel

speed sensor harness (if equipped).



1) If parts have been removed from fuel tank, install

them before installing fuel tank to vehicle.

2) Raise fuel tank (1) with jack, and connect connectors

of fuel pump and sub fuel level gauge and clamp
wire harness.

3) Install fuel tank to vehicle tighten new fuel tank bolts

to specified torque.

Tightening torque
Fuel tank bolt (a):  45 N·m (4.5 kgf-m, 32.5 lb-ft)

4) Connect fuel filler hose (1) and breather hose to filler

neck as shown in figure, and clamp them securely.
For proper installation, refer to “Fuel Hose
Disconnecting and Reconnecting”.

Tightening torque
Fuel filler hose clamp (a):  4 N·m (0.4 kgf-m, 3.0
lb-ft)

5) Connect fuel pump connector (2).

6) Connect fuel hoses (1) and EVAP canister hose (2)

to each pipe as shown in figure, and clamp them
securely referring to “Fuel Hose Disconnecting and
Reconnecting”.

7) Install parking brake cable clamp to fuel tank cover

referring to “Parking Brake Cable Location in Section
4D”.

8) Install rear propeller shaft referring to “Propeller

Shaft Removal and Installation in Section 3D”.

9) Install exhaust center pipe referring to “Exhaust

System Components in Section 1K”.

10) Connect negative (–) cable at battery.

11) With engine OFF, turn ignition switch to ON position

and check for fuel leaks.

Fuel Tank Inspection

S6JB0B1706016

After removing fuel tank, check hoses and pipes
connected to fuel tank for leaks, loose connections,
deterioration or damage. Also check fuel pump
assembly gaskets for leaks, visually inspect fuel tank for
leaks and damage.
Replace any damaged or malconditioned parts.

1

(a)

I5JB0A171020-01

1

(a)

2

I6JB01170018-01

2

1

I6JB01170019-01

1G-17 Fuel System:

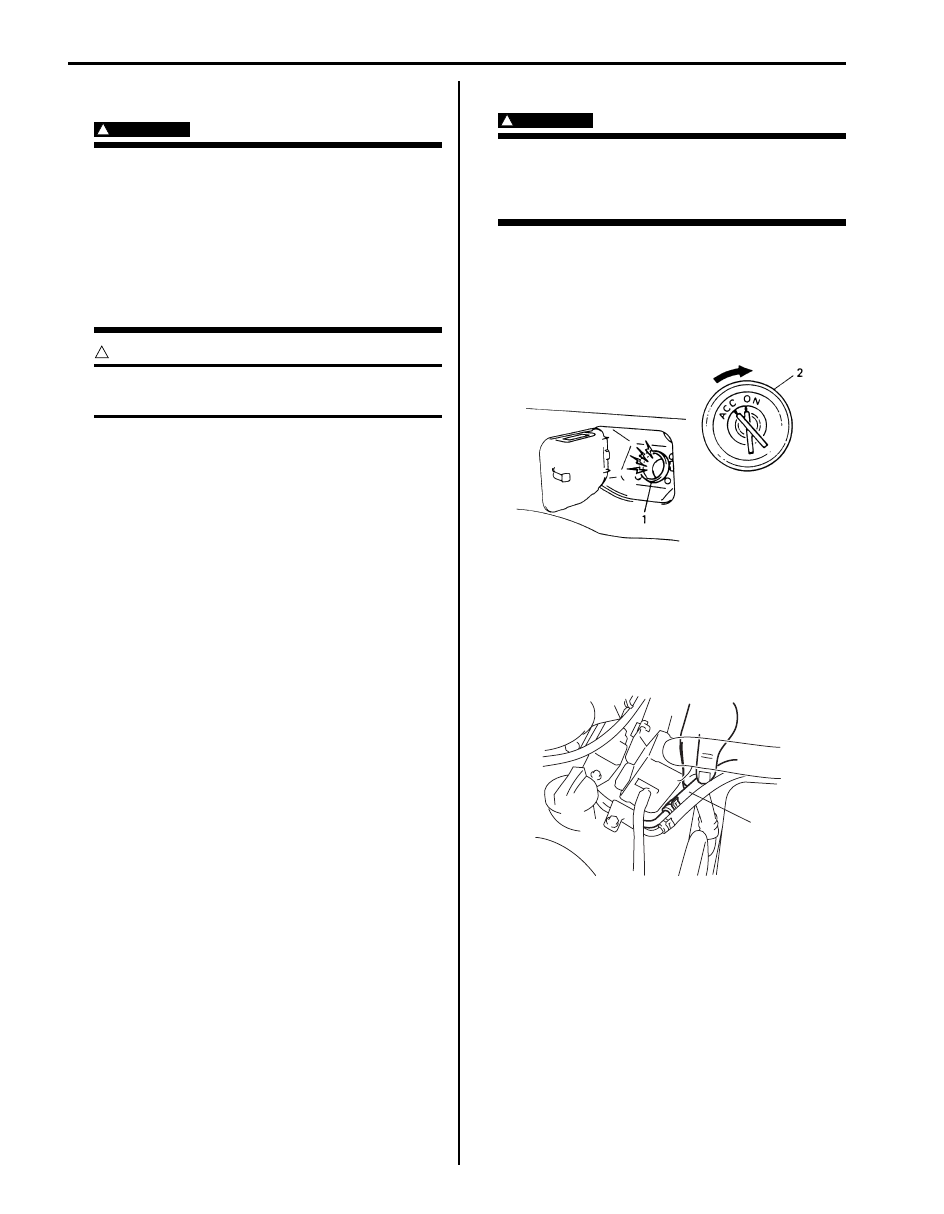

Fuel Tank Purging Procedure

S6JB0B1706017

WARNING

!



• Before starting the following procedure, be

sure to observe “Precautions on Fuel
System Service” in order to reduce the risk
or fire and personal injury.

• This purging procedure will not remove all

fuel vapor.
Do not attempt any repair on tank using
heat of flame as an explosion resulting in
personal injury could occur.



CAUTION

!



Never remain water in fuel tank after washing,
or fuel tank inside will get corrosion.



The following procedure are used for purging fuel tank.

1) After removing fuel tank, remove all hoses, pipes,

sub fuel level gauge and fuel pump assembly from
fuel tank.

2) Drain all remaining fuel from tank.
3) Place fuel tank to flushing area.
4) Fill tank with warm water or tap water, and agitate

vigorously and drain. Repeat this washing until
inside of tank is clean. Replace tank if its inside is
rusty.

5) Completely flush out remaining water after washing.

Fuel Pump On-Vehicle Inspection

S6JB0B1706018

WARNING

!



Before starting the following procedure, be
sure to observe “Precautions on Fuel System
Service” in order to reduce the risk or fire
and personal injury.



1) Remove filler cap and turn ON ignition switch (2).

Then fuel pump operating sound should be heard
from fuel filler (1) for about 2 seconds and stop. Be
sure to reinstall fuel filler cap after checking.
If the check result is not satisfactory, go to “Fuel
Pump and Its Circuit Check in Section 1A”.

2) Turn OFF ignition switch and leave over 10 minutes

as it is.

3) Fuel pressure should be felt at fuel feed hose (1) for

about 2 seconds after ignition switch ON.
If fuel pressure is not felt, go to “Fuel Pressure
Check in Section 1A”.

IVSY01170013-01

1

I6JB01170020-01

Fuel System:  1G-18

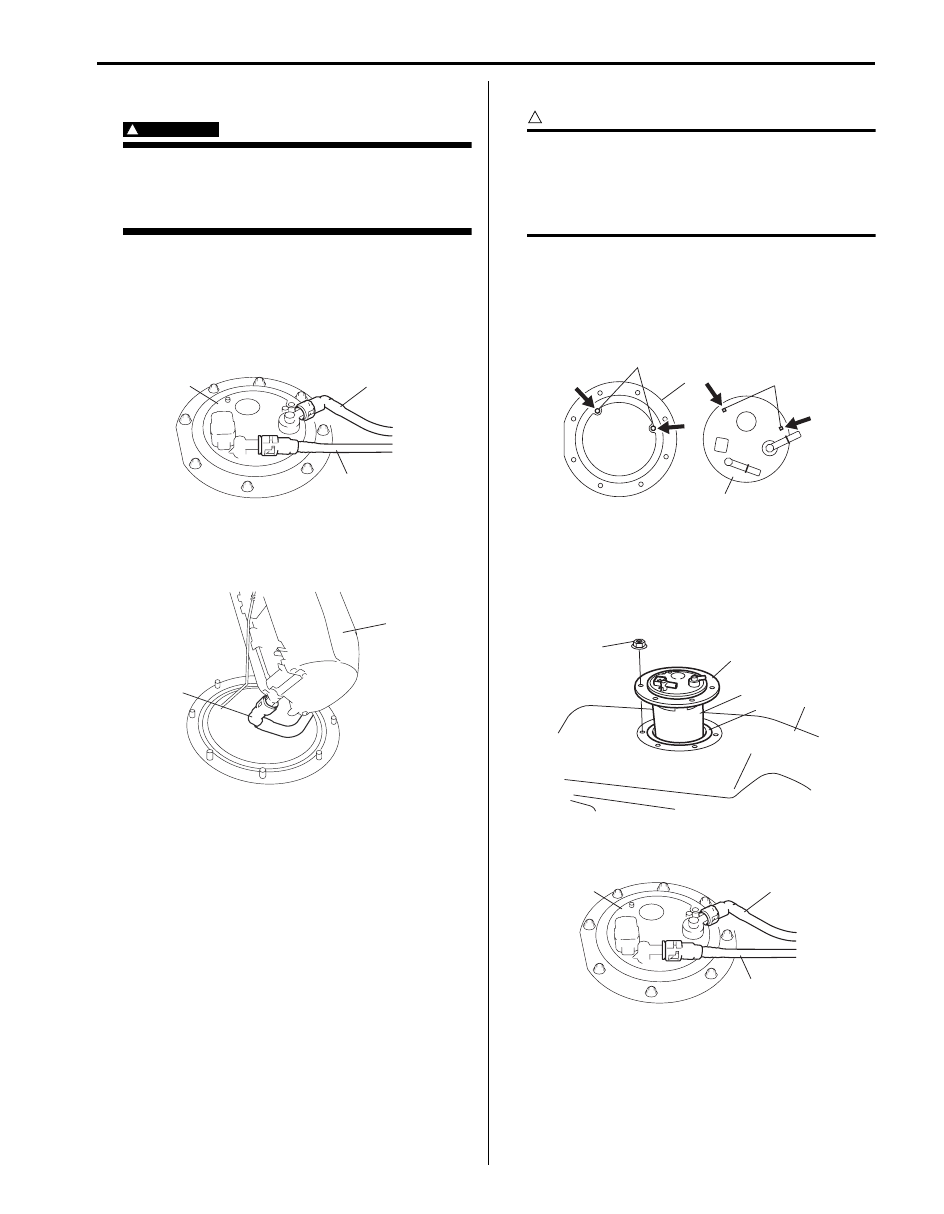

Fuel Pump Assembly Removal and Installation

S6JB0B1706019

WARNING

!



Before starting the following procedure, be
sure to observe “Precautions on Fuel System
Service” in order to reduce the risk or fire
and personal injury.



Removal

1) Remove fuel tank from vehicle. Refer to “Fuel Tank

Removal and Installation”.

2) Disconnect fuel feed pipe (1) and fuel return pipe (3)

from fuel pump assembly (2) referring to “Fuel Hose
Disconnecting and Reconnecting”.

3) Disconnect fuel suction hose (2) referring to “Fuel

Hose Disconnecting and Reconnecting”.

4) Remove fuel pump assembly (1) from fuel tank.

Installation

CAUTION

!



When connecting joint, clean outside surface
of pipe where joint is to be inserted, push
joint into pipe till joint lock clicks and check
to ensure that pipes are connected securely,
or fuel leak may occur.



1) Clean mating surfaces of fuel pump assembly (1)

and fuel tank.

2) Put plate (2) on fuel pump assembly (1) by matching

the protrusion of fuel pump assembly (3) to plate
hole (4) as shown.

3) Install new gasket (2) and fuel pump assembly (1)

with plate (3) to fuel tank (4).

Tightening torque
Fuel pump assembly nut (a):  11 N·m (1.1 kgf-m,
8.0 lb-ft)

4) Connect fuel feed pipe (1) (pipe joint) and fuel return

pipe (3) (pipe joint) to fuel pump assembly (2).

5) Install fuel tank to vehicle. Refer to “Fuel Tank

Removal and Installation”.

3

1

2

I5JB0A171024-01

2

1

I5JB0A170005-01

3

1

2

4

I5JB0A171025-01

4

(a)

3

1

2

I6JB01170021-01

3

1

2

I5JB0A171024-01
