0A-7 General Information:

Vehicle Identification Number

S6JB0B0101006

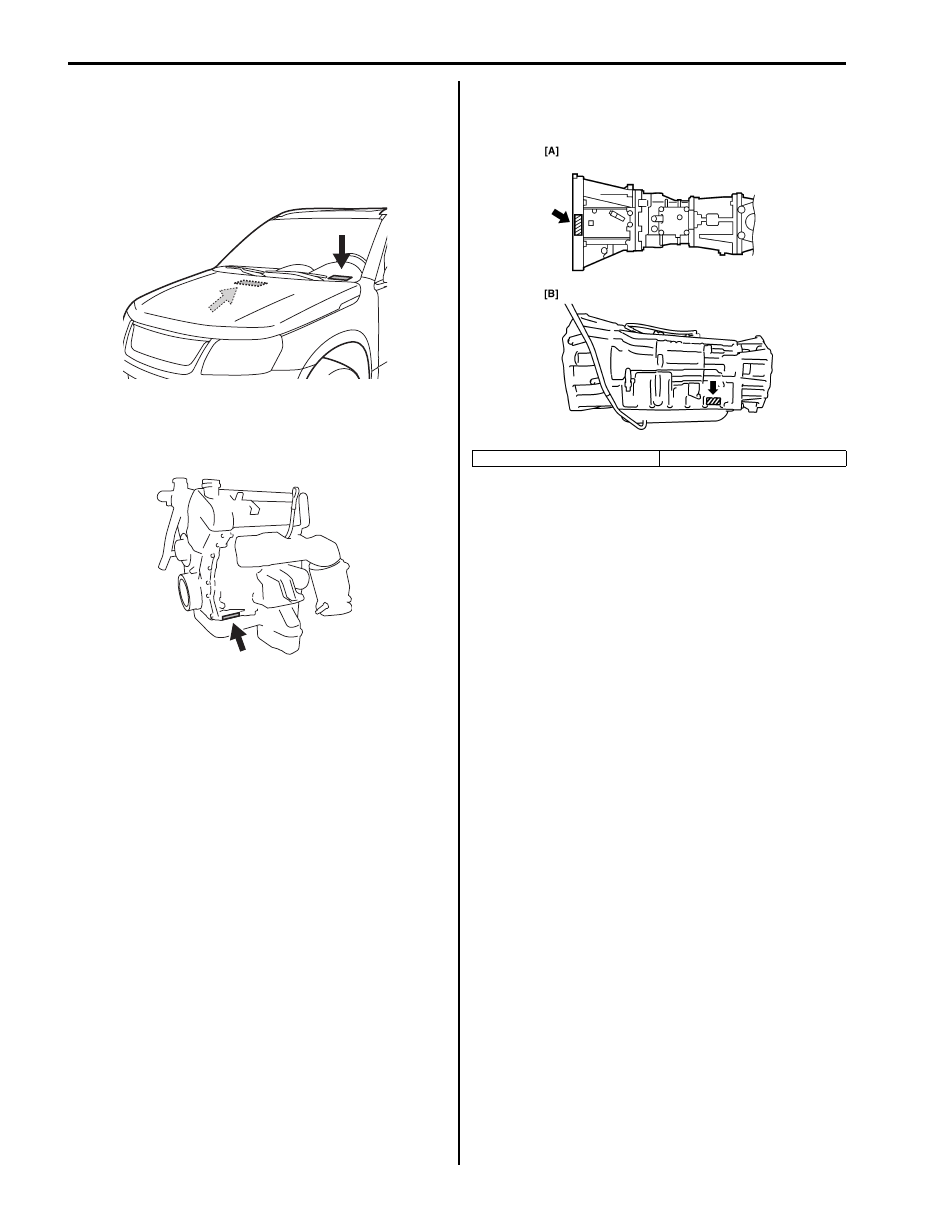

The vehicle identification number is punched on the front
dash panel in engine room and it is also attached on the
left front top of instrument panel depending on vehicle
specification.

Engine Identification Number

S6JB0B0101007

The number is punched on the cylinder block.

Transmission Identification Number

S6JB0B0101008

The number is located on the transmission case.

I5JB0A010001-02

I6JB01010001-01

[A]: M/T [B]: 5A/T

I5JB0C010001-01

General Information:  0A-8

Component Location

Warning, Caution and Information Label Location

S6JB0B0103001

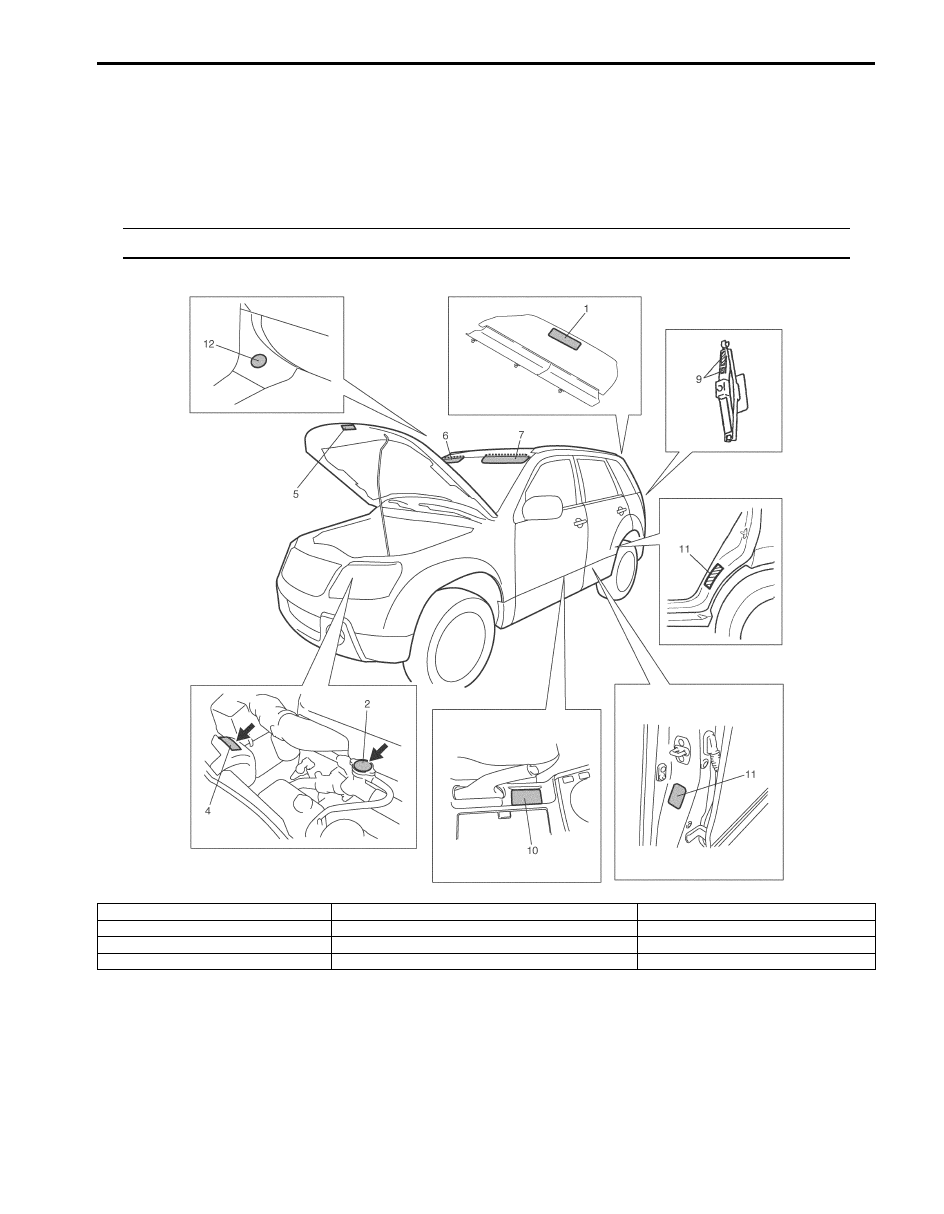

The figure shows main labels among others that are attached to vehicle component parts.
When servicing and handling parts, refer to WARNING / CAUTION instructions printed on labels.
If any WARNING / CAUTION label is found stained or damaged, clean or replace it as necessary.

NOTE
Air bag labels are attached on the vehicle equipped with air bag system only.



I5JB0C010002-02

1. Tonneau cover label (if equipped)

5. A/C label

9. Jacking label

2. Radiator cap label

6. Air bag label on sun visor

10. Parking (Transfer) label (if equipped)

3. Blank

7. Air bag label and utility vehicle label on sun visor

11. Side air bag label (Both RH and LH)

4. Engine cooling fan label

8. Blank

12. Child seat label on instrument panel

0A-9 General Information:

1

2

3

4

7

7

6

8

5

I5JB0A010009-03

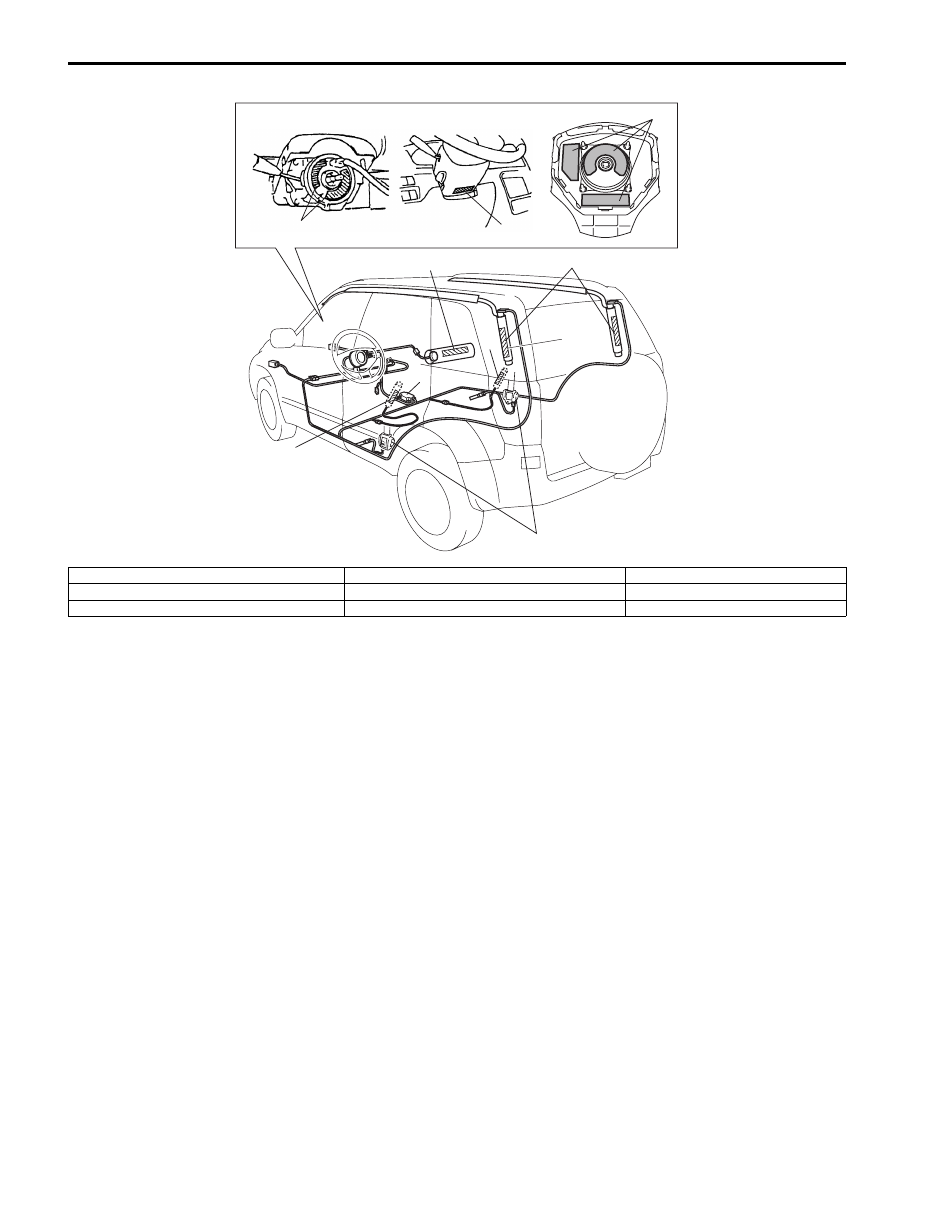

1. Air bag label on driver air bag (inflator) module

4. Air bag label on passenger air bag (inflator) module

7. Air bag label on side air bag module

2. Air bag label on contact coil assembly

5. Air bag label on SDM

8. Air bag label on curtain air bag module

3. Air bag label on steering column cover

6. Pretensioner label on seat belt pretensioner

Maintenance and Lubrication:  0B-1

General Information

Maintenance and Lubrication

Precautions

Precautions for Maintenance and Lubrication

S6JB0B0200001

Air Bag Warning
Refer to “Air Bag Warning in Section 00”.

Scheduled Maintenance

Maintenance Schedule under Normal Driving Conditions

S6JB0B0205001

NOTE

• This interval should be judged by odometer reading or months, whichever comes first.
• This table includes service as scheduled up to 90,000 km (54,000 miles) mileage. Beyond 90,000 km

(54,000 miles), carry out the same services at the same intervals respectively.



Interval

Km (x 1,000)

15

30

45

60

75

90

Miles (x 1,000)

9

18

27

36

45

54

Months

12

24

36

48

60

72

Engine
Accessory drive belt (I: ), R: ))

—

—

I

—

—

R

Valve lash (clearance) (I: ))

—

I

—

I

—

I

Engine oil and oil filter (R: ))

R

R

R

R

R

R

Engine coolant (R: ))

—

—

R

—

—

R

Exhaust system (I: ))

—

I

—

I

—

I

Ignition system

*Spark plugs (R: ))

When unleaded

fuel is used

Vehicle with A/F

sensor

Nickel Plug

—

—

R

—

—

R

Iridium Plug

Replace every 105,000 km
(63,000 miles) or 84 months

Vehicle without A/

F sensor

Nickel Plug

—

R

—

R

—

R

Iridium Plug

—

—

—

R

—

—

When leaded fuel is used, refer to “Maintenance Recommended under Severe Driving
Conditions”.

Fuel system

Air cleaner filter (I: ), R: ))

Paved-road

I

I

R

I

I

R

Dusty conditions

Refer to “Maintenance
Recommended under Severe
Driving Conditions”.

Fuel lines and connections (I: ))

—

I

—

I

—

I

Fuel filter (R: ))

Replace every 105,000 km
(63,000 miles)

Fuel tank (I: ))

—

—

I

—

—

I

Emission control system
Crankcase ventilation hoses and connections (vehicle without A/F sensor) (I: ))

—

—

I

—

—

I

*PCV valve (I: ))

Vehicle with A/F sensor

—

—

—

—

—

I

Vehicle without A/F sensor

—

—

I

—

—

I

*Fuel evaporative emission control
system (I: ))

Vehicle with A/F sensor

—

—

—

—

—

I

Vehicle without A/F sensor

—

I

—

I

—

I

Brake
Brake discs and pads (thickness, wear, damage) (I: ))

I

I

I

I

I

I

Brake drums and shoes (wear, damage) (I: ))

—

I

—

I

—

I

Brake hoses and pipes (leakage, damage, clamp) (I: ))

—

I

—

I

—

I

Brake fluid (R: ))

—

R

—

R

—

R

Brake lever and cable (damage, stroke, operation) (I: ))

Inspect at first 15,000 km (9,000
miles only)

Chassis and body
