10A-3 Cruise Control System:

Cancel Conditions of Cruise Control System

S5JB0AA101003

Constant cruising is cancelled under the following
conditions.
• *Ignition switch is turned OFF.
• MAIN switch is turned OFF.
• Vehicle speed becomes lower than minimum

operating speed (40 km/h (25 mile/h)).

• *Vehicle speed varies beyond cancel speed range (–

10 km/h (–6 mile/h)) from preset speed.

• *Brake pedal is depressed. (Brake light switch is

turned ON).

• *Clutch pedal is depressed (Clutch pedal position

switch is turned ON) (For M/T vehicle).

• *Selector lever is shifted to “P”, “R” or “N” range.
• *CANCEL switch is turned ON.

NOTE
When constant cruising is cancelled under
any condition with * (asterisk), vehicle speed
before cancellation can be resumed by
operating RES/ACC switch, provided that
vehicle speed is higher than 40 km/h (25 mile/
h).



Schematic and Routing Diagram

Cruise Control System Input / Output Diagram

S5JB0AA102002

Input

Output

MAIN switch

Cruise control switch

RES/ACC switch
SET/COAST switch

CANCEL switch

CPP switch
(M/T model)

Stop (brake) lamp switch

Wheel speed sensor

ABS hydraulic unit /

(vehicle speed signal)

ECM

Electric throttle body
(throttle valve control)

Combination meter
(Indicator lamp control)

TCM (Shift control)

control module

(A/T model)

Transmission range switch
(            or      range signal)

“P”, “R”

“N”

I5JB0AA10002-04

Cruise Control System:  10A-4

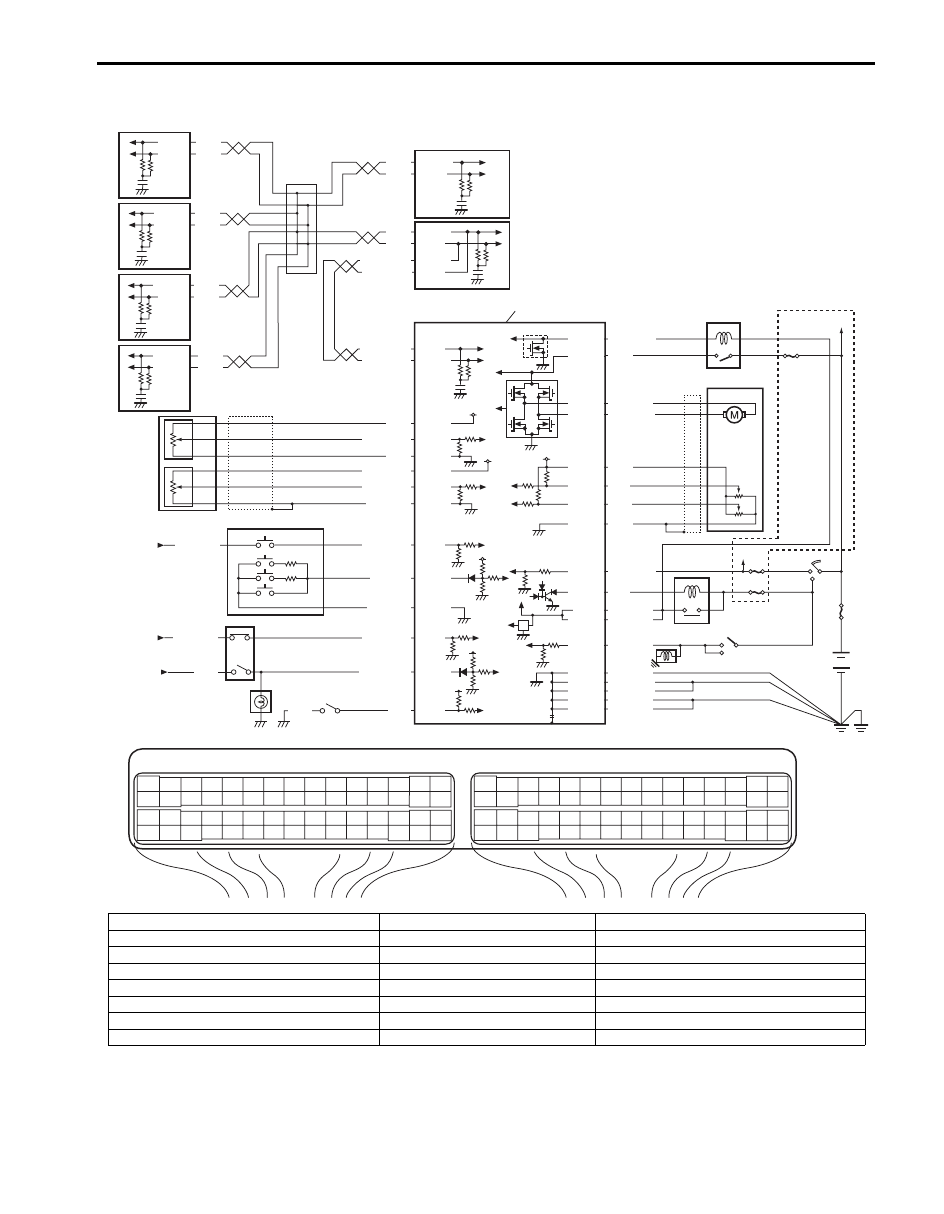

Cruise Control System Wiring Diagram

S5JB0AA102001

IG1

+BB

+BB

IG1

RED

G44-19

WHT

RED

E03-12
E03-6

WHT/BLU

WHT/RED

WHT/BLU

WHT/RED

E23-4
E23-19

E23-56

5V

5V

5V

5V

12V

12V

E03-8

E03-10

WHT

RED

E92-17

E92-7

WHT

RED

E91-22
E91-23

WHT

RED

G31-1
G31-3

WHT

WHT

ORN

RED

G28-8

G28-10

IG1

E23-6

E23-8

E23-7

E23-22

E23-21

E23-20

C37-58

C37-15

C37-29

C37-41

C37-40

C37-54

C37-53

C37-44

C37-45

C37-22

E23-16

E23-60

E23-29

E23-1

C37-48

WHT

G44-18

E23-55

E23-54

E23-53

E23-52

E23-51

WHT/BLU

BLK/WHT

LT GRN

BLK/YEL

YEL/GRN

BLU/BLK

BLU/BLK

BLU

BLK

GRN/WHT

GRN

BLK/YEL

BLK/YEL

BLK/YEL

BLU/BLK

BLK/WHT

BLU/RED

BLU/YEL

BLU/ORN

GRN

GRN

RED

BLK

WHT

BLU

BLU/BLK

BLK/ORN

BLK/ORN

BLK/YEL

BLU/GRN

BLU/YEL

ORN/BLU

C37-30

E23-50

E23-17

E23

C37

3

4

18

19

5

6

7

10

11

17

20

47

46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32

31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

3

4

18

19

5

6

7

10

11

17

20

47

46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32

31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

[A]

20

21

22

23

2

19

18

1

3

4

5
6

7

8

10

9

15

13

14

16

12

11

17

I5JB0AA10003-05

[A]: ECM connector (viewed from harness side)

8. Stop (brake) lamp switch

16. Ignition switch

1. ECM

9. CPP switch

17. Junction block assembly

2. Accelerator pedal position sensor

10. Brake lamp

18. ABS hydraulic unit / control module

3. Cruise control switch assembly

11. Electric throttle valve relay

19. Combination meter

4. MAIN switch

12. Electric throttle body assembly

20. BCM

5. RES/ACC switch

13. Main relay

21. 4WD control module (if equipped)

6. SET/COAST switch

14. Transmission range switch

22. TCM (if equipped)

7. CANCEL switch

15. Starting motor

23. Keyless start control module (if equipped)

10A-5 Cruise Control System:

Diagnostic Information and Procedures

Cruise Control System Symptom Diagnosis

S5JB0AA104001

NOTE

• ECM uses TCM, ABS hydraulic unit/control module and CAN communication to transmit and receive

data for cruise control. Therefore, check that no DTC is detected from ECM, TCM or ABS hydraulic
unit / control module before performing this Cruise Control System Symptom Diagnosis. If DTC is
detected, correct trouble indicated by that DTC first.

• Check each part in the order from the top of the following list.



Condition

Possible cause

Correction / Reference Item

CRUISE or SET indicator
lamp does not turn ON or
OFF

MAIN switch faulty

Check MAIN switch for function referring to
“Cruise Control Switch Inspection”.

SET/COAST switch faulty

Check SET/COAST switch for function
referring to “Cruise Control Switch Inspection”.

Wiring or grounding faulty

Repair.

Combination meter faulty

Replace.

ECM faulty

Replace after making sure that none of above
parts is faulty.

Vehicle speed can not be
set

MAIN switch faulty

Check MAIN switch for function referring to
“Cruise Control Switch Inspection”.

SET/COAST switch faulty

Check SET/COAST switch for function
referring to “Cruise Control Switch Inspection”.

Brake (stop) Lamp switch faulty

Check brake (stop) lamp switch for function
referring to “Stop (Brake) Lamp Switch
Inspection”.

CPP switch faulty (M/T model)

Check CPP switch for function referring to
“Clutch Pedal Position (CPP) Switch (for
Cruise Control) Inspection and Adjustment”.

Wiring or grounding faulty

Repair.

ECM faulty

Replace after making sure that none of above
parts is faulty.

Acceleration or
deceleration is not
available by using RES/
ACC or SET/COAST
switch

RES/ACC or SET/COAST switch faulty Check RES/ACC or SET/COAST switch for

function referring to “Cruise Control Switch
Inspection”.

Wiring or grounding faulty

Repair.

ECM faulty

Replace after making sure that none of above
parts is faulty.

Cruise control cannot be
cancelled

CANCEL switch faulty

Check CANCEL switch for function referring to
“Cruise Control Switch Inspection”.

Stop (brake) lamp switch faulty

Check brake (stop) lamp switch for function
referring to “Stop (Brake) Lamp Switch
Inspection”.

CPP switch faulty

Check CPP switch for function referring to
“Clutch Pedal Position (CPP) Switch (for
Cruise Control) Inspection and Adjustment”.

Wiring or grounding faulty

Repair.

ECM faulty

Replace after making sure that none of above
parts is faulty.

Cruise control at vehicle
speed stored in memory
cannot be resumed after
cruise control was
cancelled by means other
than MAIN switch

RES/ACC switch faulty

Check RES/ACC switch for function referring
to “Cruise Control Switch Inspection”.

Wiring or grounding faulty

Repair.

ECM faulty

Replace after making sure that none of above
parts is faulty.

Cruise Control System:  10A-6

Inspection of Cruise Control System Circuit

S5JB0AA104012

Cruise control system is controlled by ECM. Each switch and circuit can be checked by taking measurement of
terminal voltage and terminal to terminal resistance of ECM. When measuring these values, be sure to read
precautions for measurement described under “Inspection of ECM and Its Circuits in Section 1A”.

Voltage Check
Check voltage between the following terminals with ECM connector connected.

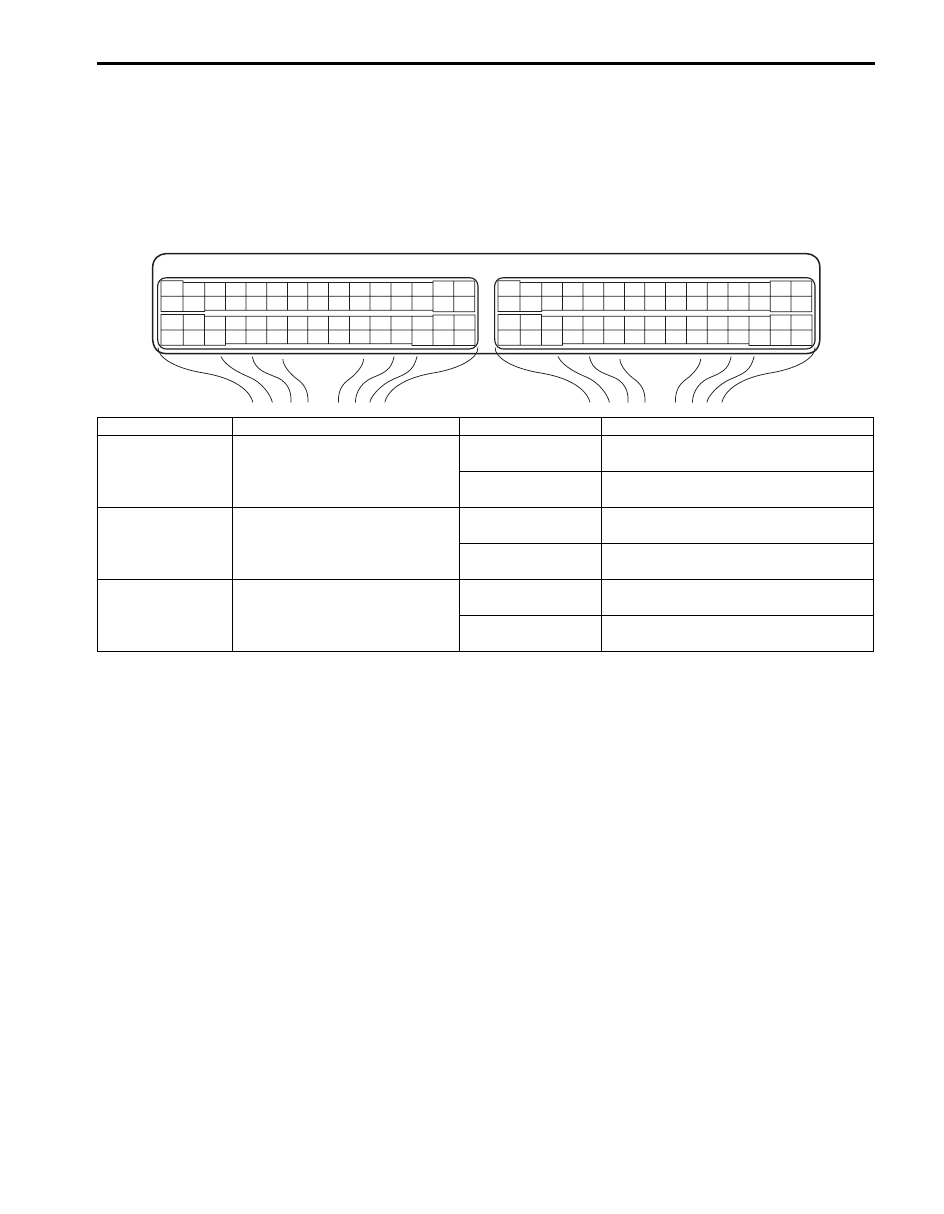

Terminal arrangement of ECM connector viewed from harness side

E23

C37

3

4

18

19

5

6

7

10

11

17

20

47

46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32

31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

3

4

18

19

5

6

7

10

11

17

20

47

46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32

31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

I5JB0AA10004-01

Terminals

Circuit

Normal Voltage

Condition

E23-7 – ground

CPP switch circuit

10 – 14 V

Ignition switch is at ON position and
clutch pedal is not depressed.

0 V

Ignition switch is at ON position and
clutch pedal is depressed.

E23-8 – ground

Stop (Brake) lamp switch circuit

10 – 14 V

Ignition switch is at ON position and
brake pedal is not depressed.

0 V

Ignition switch is at ON position and
brake pedal is depressed.

E23-20 – ground Stop (Brake) lamp switch circuit

0 V

Ignition switch is at ON position and
brake pedal is not depressed.

10 – 14 V

Ignition switch is at ON position and
brake pedal is depressed.
