9F-13 Security and Locks:

Programming Transmitter Code for Keyless
Entry System (Vehicle without Keyless Start
System)

S5JB0A9606015

NOTE

• Three transmitter codes can be registered.
• When a new transmitter code is registered,

the oldest one will be cleared.

• As for vehicle equipped with keyless start

system, perform “Registration Procedure
for Remote Controller ID Code in Section
10E” instead of “Programming Transmitter
Code for Keyless Entry System (Vehicle
without Keyless Start System)”.



If transmitter or BCM is replaced with a new one or
additional transmitter(s) is necessary, program
transmitter code(s).

1) Confirm that all doors are closed and ignition key is

out of ignition key cylinder

2) Open driver side door.
3) Turn ignition switch to ON position, and then drawn

ignition key from ignition key cylinder within 10
seconds after that.

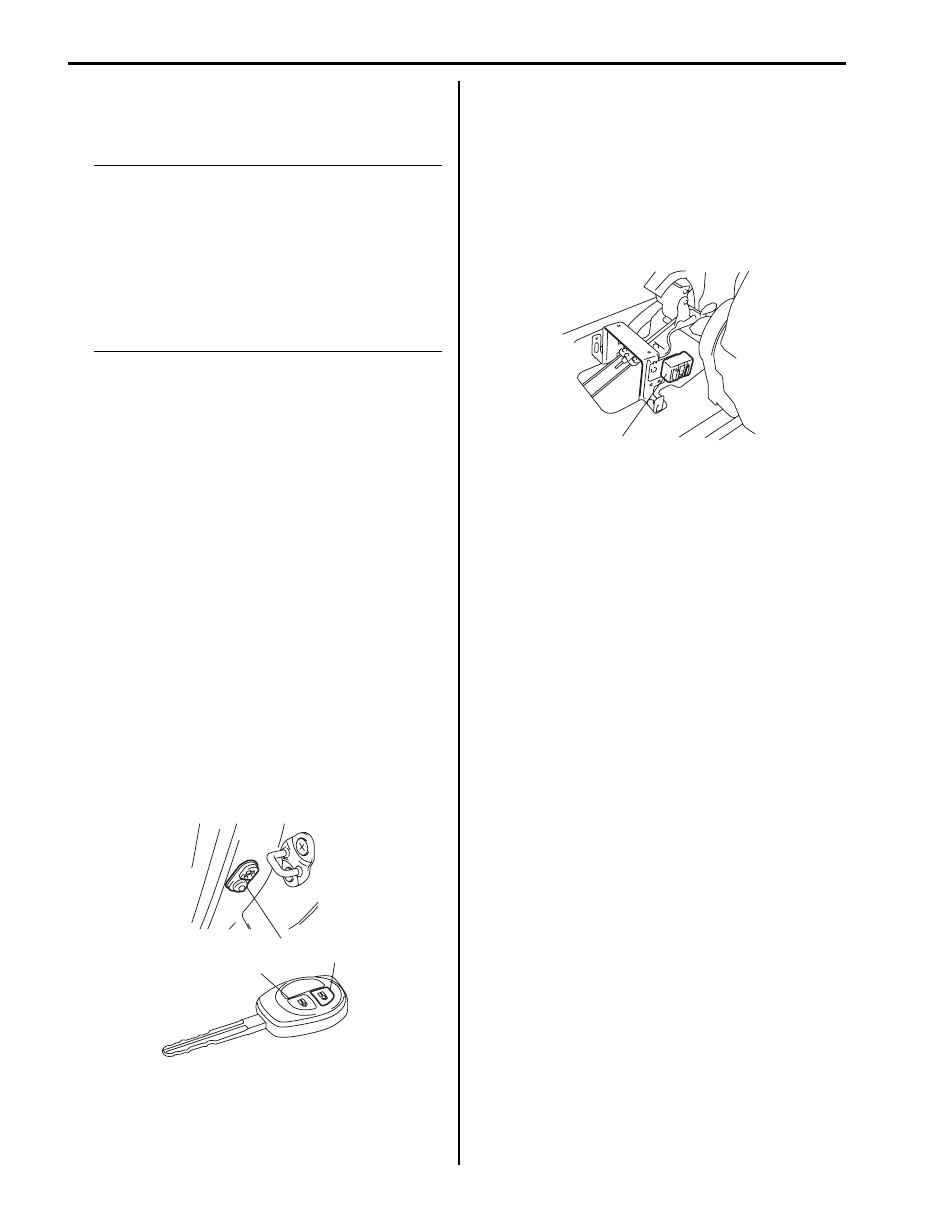

4) Push and release driver side door switch (1) at 3

times by hand within 20 seconds after removing
ignition key from ignition key cylinder.

5) Turn ignition switch to ON position, and then drawn

ignition key from ignition key cylinder within 10
seconds after that. All doors automatically lock and
unlock once.
With this, registration mode.

6) Push “UNLOCK” button (2) on transmitter (3) within

20 seconds after Step 5). All doors automatically lock
and unlock once.
With this, code registration is completed.

7) If an additional transmitter, needs to be programed

repeat the procedure of Step 1).

Keyless Entry Receiver Removal and
Installation

S5JB0A9606016

Removal

1) Disconnect negative cable at battery.
2) Remove console box from vehicle body referring to

“Console Box Components in Section 9H”.

3) Disconnect keyless entry receiver coupler.
4) Remove keyless entry receiver (1).

Installation
Reverse removal procedure.

1

3

2

I4RS0B960010-01

1

I5JB0A960020-01

Security and Locks:  9F-14

Keyless Entry Receiver and Its Circuit Inspection

S5JB0A9606017

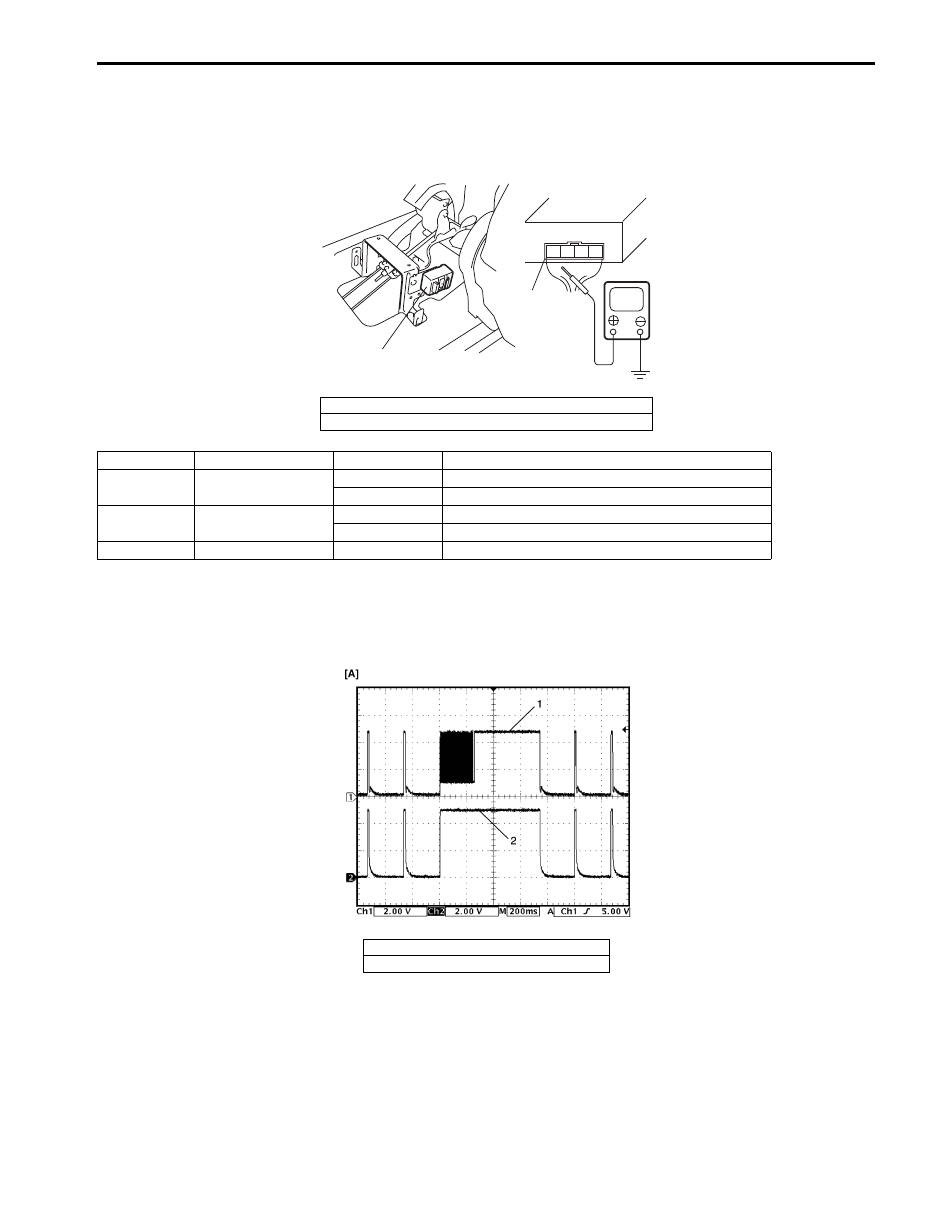

1) Check that the voltage between the following terminals and body ground are specifications under each conditions.

If check result is not as specified, check applicable circuit for open or short. If circuit is normal, proceed to next
step.

Oscilloscope setting
CH1: 2V/DIV
CH2: 2V/DIV
TIME: 200 ms/DIV

1) Recheck keyless entry receiver as follows.

a) Substitute a known-good keyless entry receiver.
b) Record key code referring to “Programming Transmitter Code for Keyless Entry System (Vehicle without

Keyless Start System)”.

c) Recheck keyless entry receiver system.

1. Keyless entry receiver
2. Keyless entry receiver connector (view from harness side)

Terminal

Circuit

Specification

Condition

L44-1

Power source

Figure [A]

Push “Lock” or “Unlock” button on transmitter.

0-1 V

Except the above-mentioned condition.

L44-3

Lock/Unlock output

signal circuit

Figure [A]

Push “Lock” or “Unlock” button on transmitter.

0-1 V

Except the above-mentioned condition.

L44-4

Ground

0-1 V

—

1. Lock/Unlock out put signal
2. Power source

1

1

2

3

4

V

2

I5JB0A960021-01

I4RS0A960024-01

9F-15 Security and Locks:

Specifications

Tightening Torque Specifications

S5JB0A9607001

NOTE
The specified tightening torque is also described in the following.
“Front Door Lock Assembly Components”
“Rear Door Lock Assembly Components”
“Rear End Door Lock Assembly Components”



Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

Special Tools and Equipment

Recommended Service Material

S5JB0A9608001

NOTE
Required service material is also described in the following.
“Front Door Lock Assembly Components”
“Rear Door Lock Assembly Components”



Fastening part

Tightening torque

Note

N

⋅m

kgf-m

lb-ft

Door latch screw

5.0

0.5

4.0

)

 / )

Door latch striker screw

10

1.0

7.5

)

Rear end door latch bolt

10

1.0

7.5

)

Rear end door striker screw

23

2.3

17.0

)

Material

SUZUKI recommended product or Specification

Note

Grease

SUZUKI Super Grease A

P/No.: 99000–25010

)

Seats: 9G-1

Body, Cab and Accessories

Seats

Diagnostic Information and Procedures

Front Seat Heater Symptom Diagnosis (If Equipped)

S5JB0A9704001

Repair Instructions

Front Seat Components

S5JB0A9706001

Condition

Possible cause

Correction / Reference Item

Both seat back and
cushion do not become
hot although seat heater
switch is ON position

Wiring or grounding faulty

Repair.

“IG2 SIG” fuse blown

Replace fuse to check for short.

Seat heater switch faulty

Replace switch.

Seat heater circuit in seat back and/or
seat cushion faulty

Replace heater front back and/or heater front
cushion.

Only seat back does not
become hot although seat
heater switch is ON
position

Wiring faulty

Repair.

Seat heater circuit in seat back and/or
seat cushion faulty

Replace heater front back and/or heater front
cushion.

Only seat cushion does
not become hot although
seat heater switch is ON
position

Wiring faulty

Repair.

Seat heater circuit in seat cushion

Replace heater front cushion.

A

A

A

3

2

4

4

1

9

5

11

5

12

4

4

10

8

7

6

(a)

(b)

(b)

I5JB0A970001-02

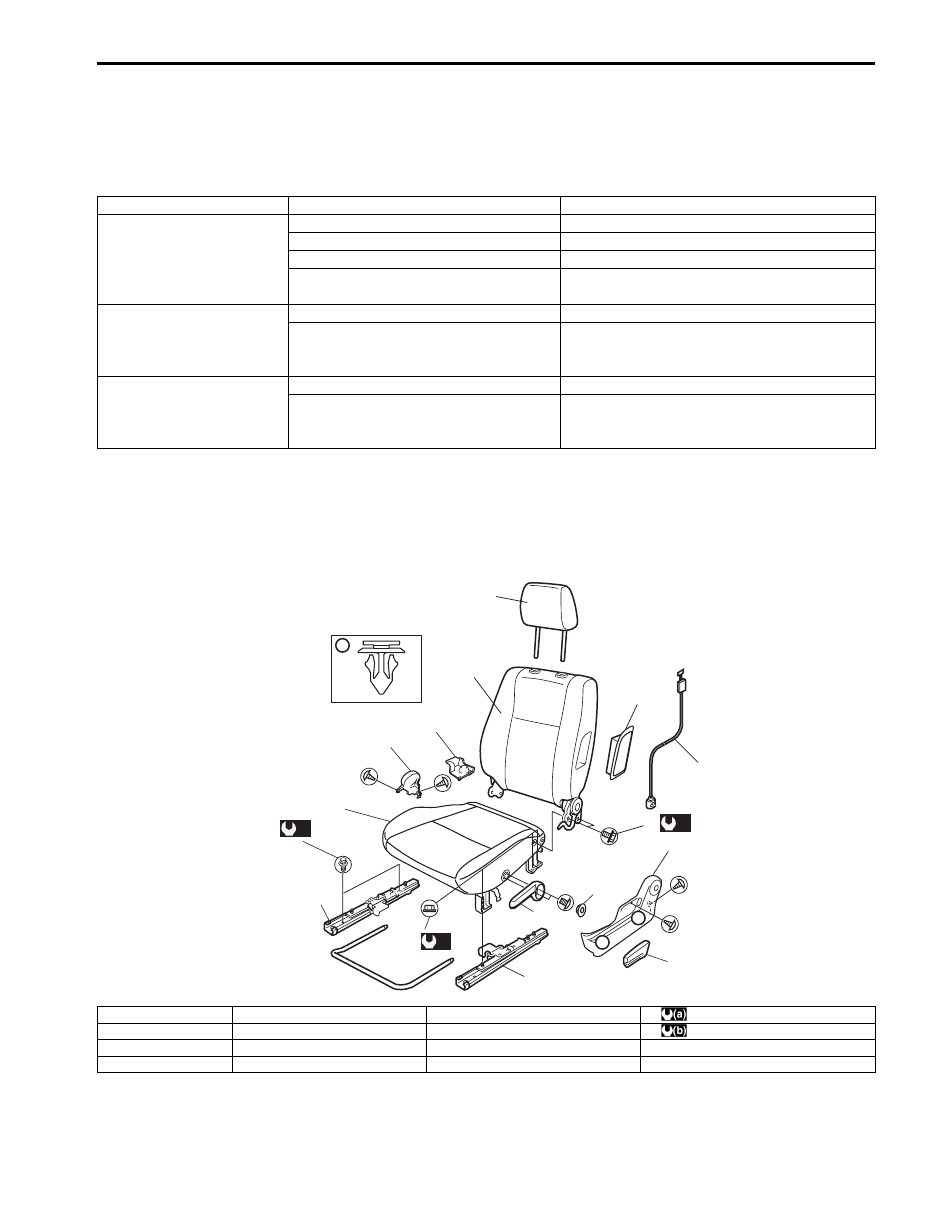

1. Seat cushion

5. Seat adjuster

9. Seat mounting bolt

: 23 N

⋅m (2.3 kgf-m, 17.0 lb-ft)

2. Seat back

6. Knob

10. Seat back bolt

: 35 N

⋅m (3.5 kgf-m, 25.5 lb-ft)

3. Headrestraint

7. Side air bag module (if equipped)

11. Seat cushion nut

4. Cover

8. Side air bag harness (if equipped)

12. Seat lifter lever (if equipped)
