9F-5 Security and Locks:

Front Door Lock Assembly Removal and
Installation

S5JB0A9606002

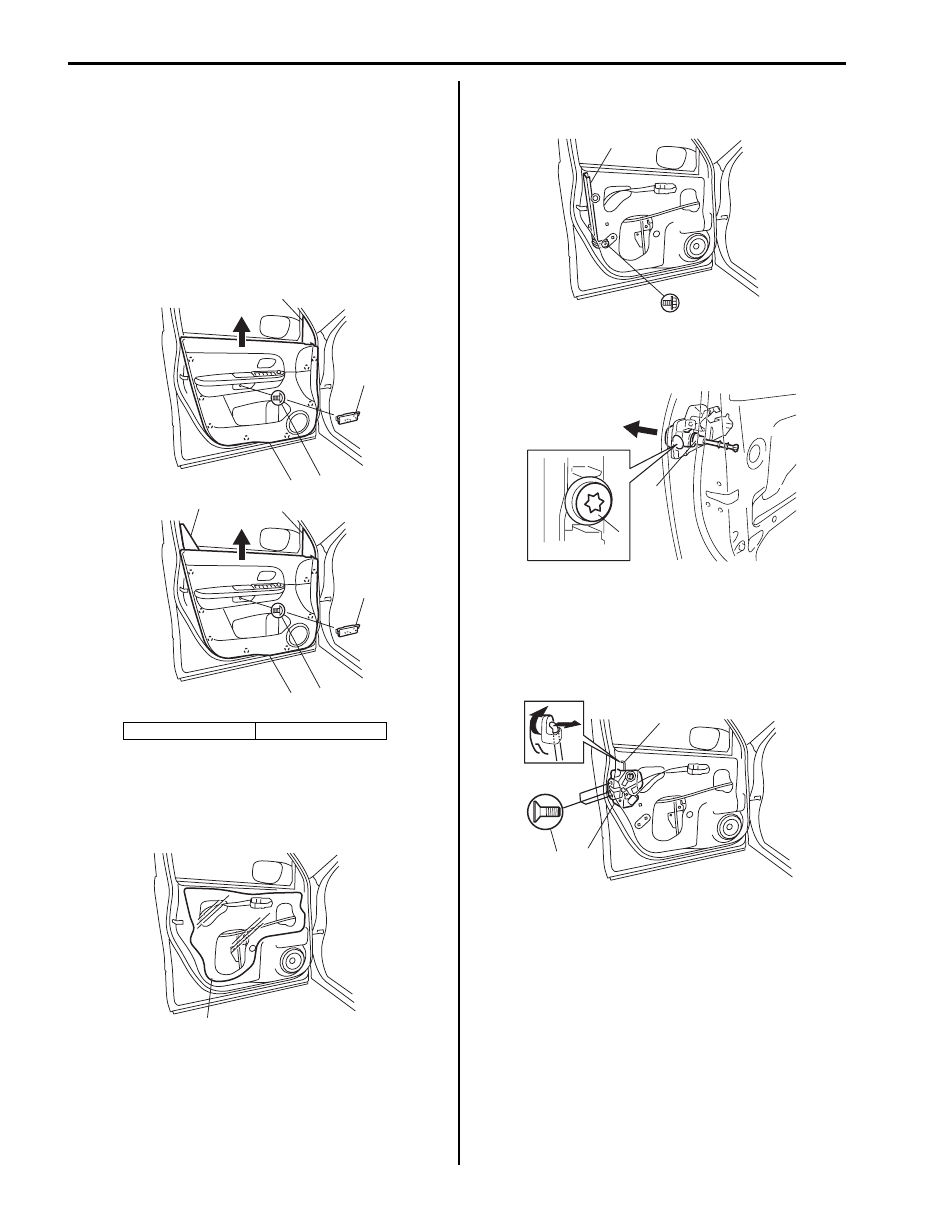

Removal

1) Remove door mirror trim (1), front door inner garnish

(2) (3 door model only) and door trim screw cover
(3).

2) Remove door trim (4) after removing door trim screw

(5) and clips.

3) Disconnect door illumination lamp lead wire and

power window switch and mirror switch lead wire at
coupler.

4) Remove door sealing cover (1).

5) Raise window all the way up.
6) Remove door sash (1).

7) Remove key cylinder mounting bolt (1), and then

remove key cylinder (2).

8) Disconnect door opening control rod (1) from outside

handle.

9) Disconnect door lock motor lead wire at coupler.

10) Remove door latch screws (2) and remove door lock

assembly (3).

[A]: 5 door model

[B]: 3 door model

1

3

5

4

2

1

3

5

4

[A]

[B]

I5JB0A950010-01

1

I5JB0A950011-02

1

I5JB0A960003-01

1

2

I4RS0B960005-01

3

2

1

I5JB0A960004-01

Security and Locks:  9F-6

Installation

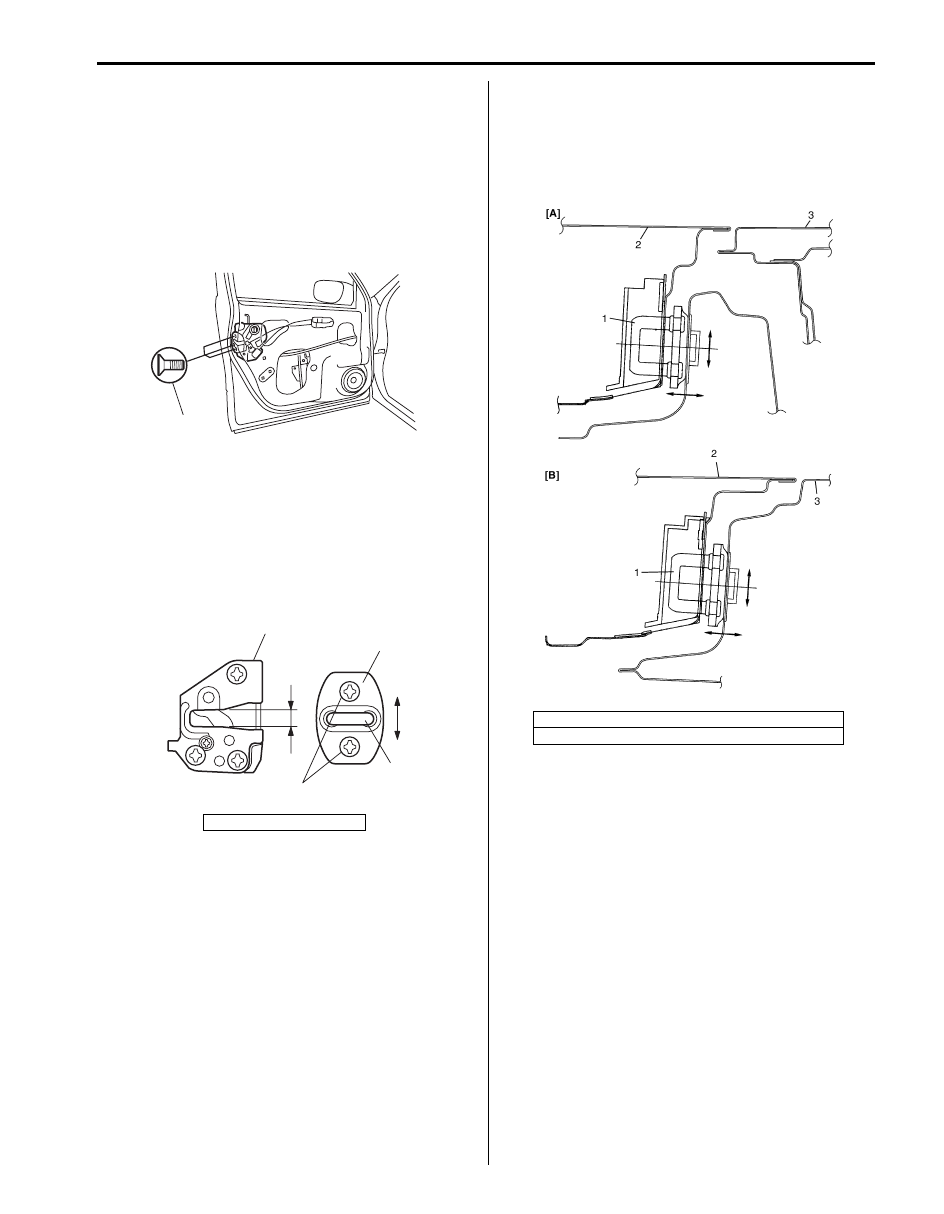

Reverse removal procedure to install front door lock
assembly noting the following instructions.
• Apply grease to sliding parts of door latch assembly.

:  Grease 99000–25010 (SUZUKI Super Grease A)

• Tighten door latch screws to specified torque.

Tightening torque
Door latch screw (a):  5.0 N·m (0.5 kgf-m, 4.0 lb-ft)

• Move door latch striker (2) up or down so its center

aligns with the center of groove “A” on the door lock
assembly (1) as shown.
Striker should be moved vertically and placed level.
Do not adjust door lock.

Tightening torque
Door latch striker screw (a):  10 N·m (1.0 kgf-m, 7.5
lb-ft)

• Move door latch striker (1) sideways to adjust door

outer panel surface (2) flush with rear door outer
panel or body outer panel surface (3) as shown.
In order to correctly obtain door lock operation
increase or decrease number of shims inserted
between body and striker (1) to adjust it.

Front Door Lock Assembly Inspection

S5JB0A9606003

• Check that door open and closes smoothly and

properly.

• Check that door stops in the secondary latched

position properly (preventing door from opening
freely) and that door closed completely in the fully
latched position.

• Adjust door latch striker position, if necessary.

3. Shaft

(a)

I5JB0A960005-01

1

2

3

(a)

“A”

I5JB0A960006-01

[A]: Front door (5 door model)
[B]: Rear door (5 door model) or front door (3 door model)

I3RM0A960013-01

9F-7 Security and Locks:

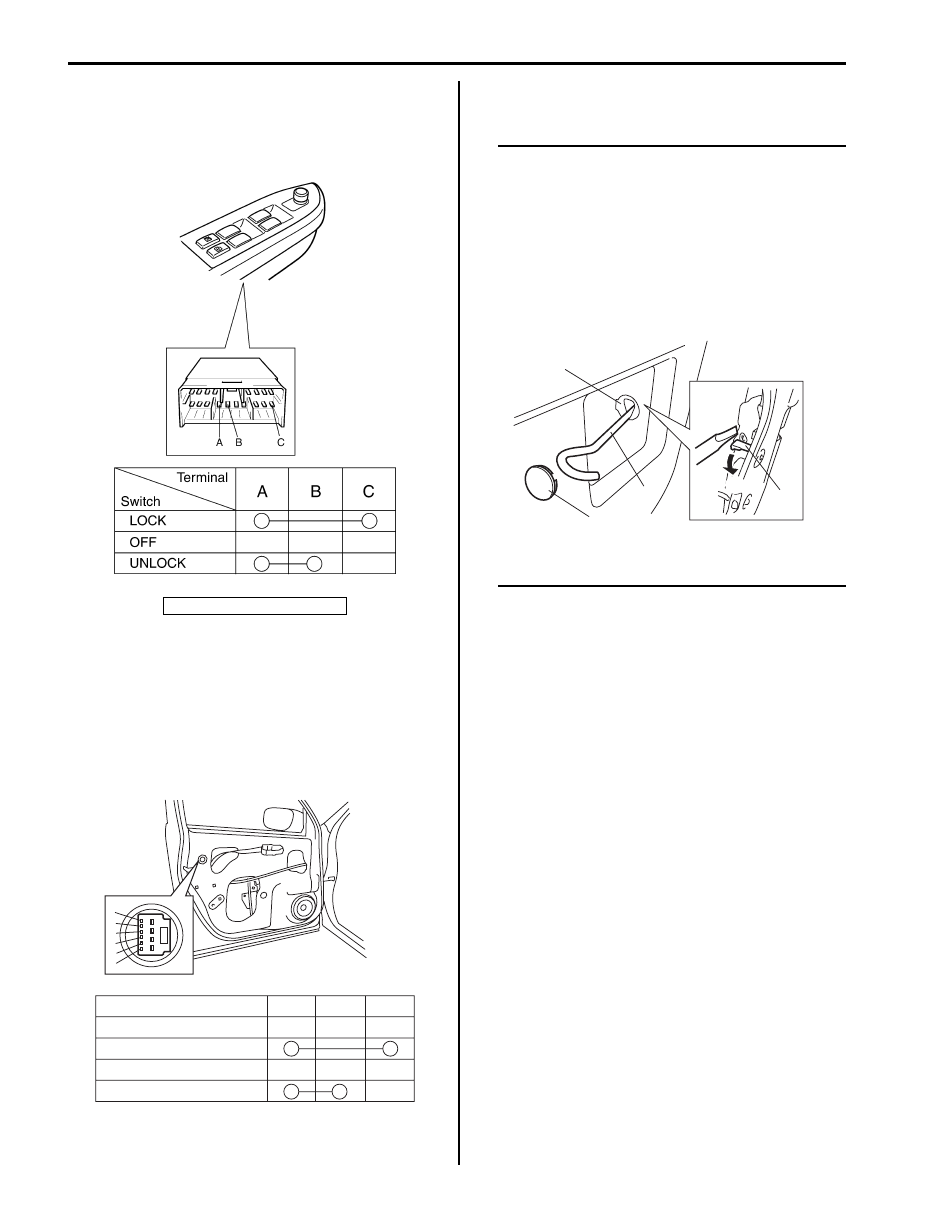

Power Door Lock Switch Inspection

S5JB0A9606004

Check for continuity between terminals at each switch
position. If check result is not as specified, replace
switch.

Door Key Cylinder Switch Inspection

S5JB0A9606005

1) Remove front door trim referring to Step 1) to 3) of

“Front Door Glass Removal and Installation in
Section 9E”

2) Check for continuity between terminals at each

switch position. If check result is not as specified,
replace door lock assembly.

Power Door Lock Actuator Inspection (If
Equipped)

S5JB0A9606006

NOTE
If rear end door is closed and the rear end
door lock actuator does not function in
unlock position, follows the procedures to
unlock the rear end door lock actuator.
1. Remove cap (1).
2. Penetrate door sealing cover (2) by jack

lever (3) or whatever to insert jack lever,
and push emergency lever (4) into unlock
position “a”.

3. After inspection replace door sealing

cover.



1) Remove door trim from door panel.

For front door, refer to Step 1) to 3) of “Front Door
Glass Removal and Installation in Section 9E”.
For rear door, refer to Step 1) to 3) of “Rear Door
Glass Removal and Installation in Section 9E”.
For rear end door, refer to Step 1) of “Rear End Door
Assembly Removal and Installation in Section 9J”.

2) Disconnect power door lock actuator coupler.
3) Connect battery positive (+) and negative (–)

terminals to the door lock actuator terminals (a, b, c,
d) as shown in figure.
If it does not operate as specified in the following
table, replace door lock assembly.

1. Power door lock switch

I5JB0A960007-01

a

b

c

d

e

f

LOCK

OFF

UNLOCK

d

a

b

c

f

e

Right side switch terminals

Left side switch terminals

I5JB0A960008-01

2

3

1

4

“a”

I5JB0A960022-01

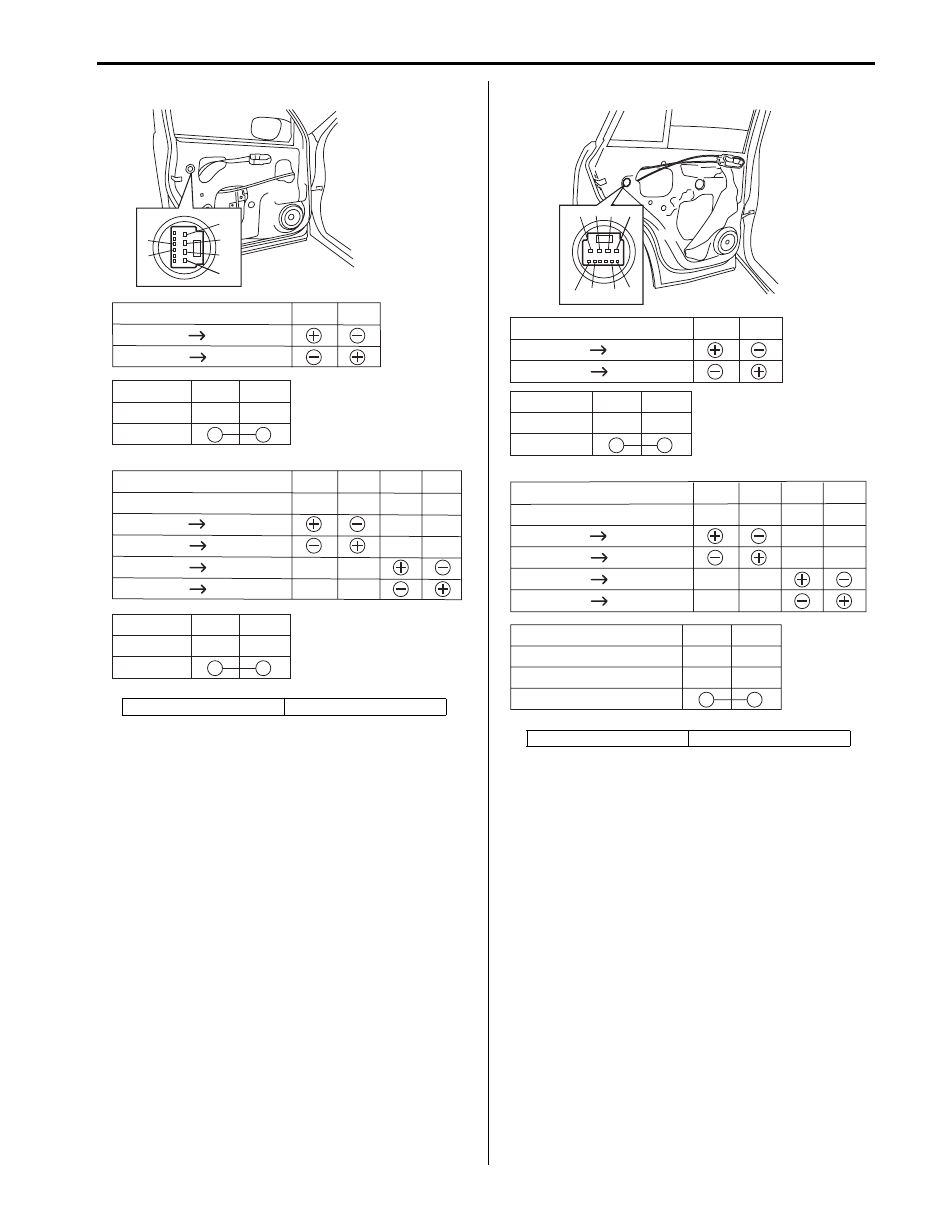

Security and Locks:  9F-8

For front door

For rear door

[A]: Without deadlock

[B]: With deadlock

[A]

[B]

a

b

c

d

e

f

Right side switch terminals

b

a

c

Lock

Unlock

Unlock

Lock

Deadlock

Unlock

Left side switch terminals

d

c

a

Deadlock

Lock

d

b

Lock

Unlock

f

e

Terminals

Lock

Unlock

Unlock

Lock

Terminals

d

a

Lock

Unlock

f

e

Terminals

I5JB0A960009-02

[A]: Without deadlock

[B]: With deadlock

[A]

[B]

a

b

c

d

e

f

g

h

Lock

Unlock

g

h

e

f

Right side switch terminals

Left side switch terminals

Right side switch terminals

d

c

a

Lock

Unlock

Unlock

Lock

Deadlock

Lock

Left side switch terminals

b

a

c

Deadlock

Lock

b

d

Lock

Unlock

Unlock

Lock

Terminals

d

a

Lock

Unlock

f

g

Terminals

I5JB0A960010-01
