Suzuki Grand Vitara JB416 / JB420. Manual - part 387

9E-21 Glass / Windows / Mirrors:

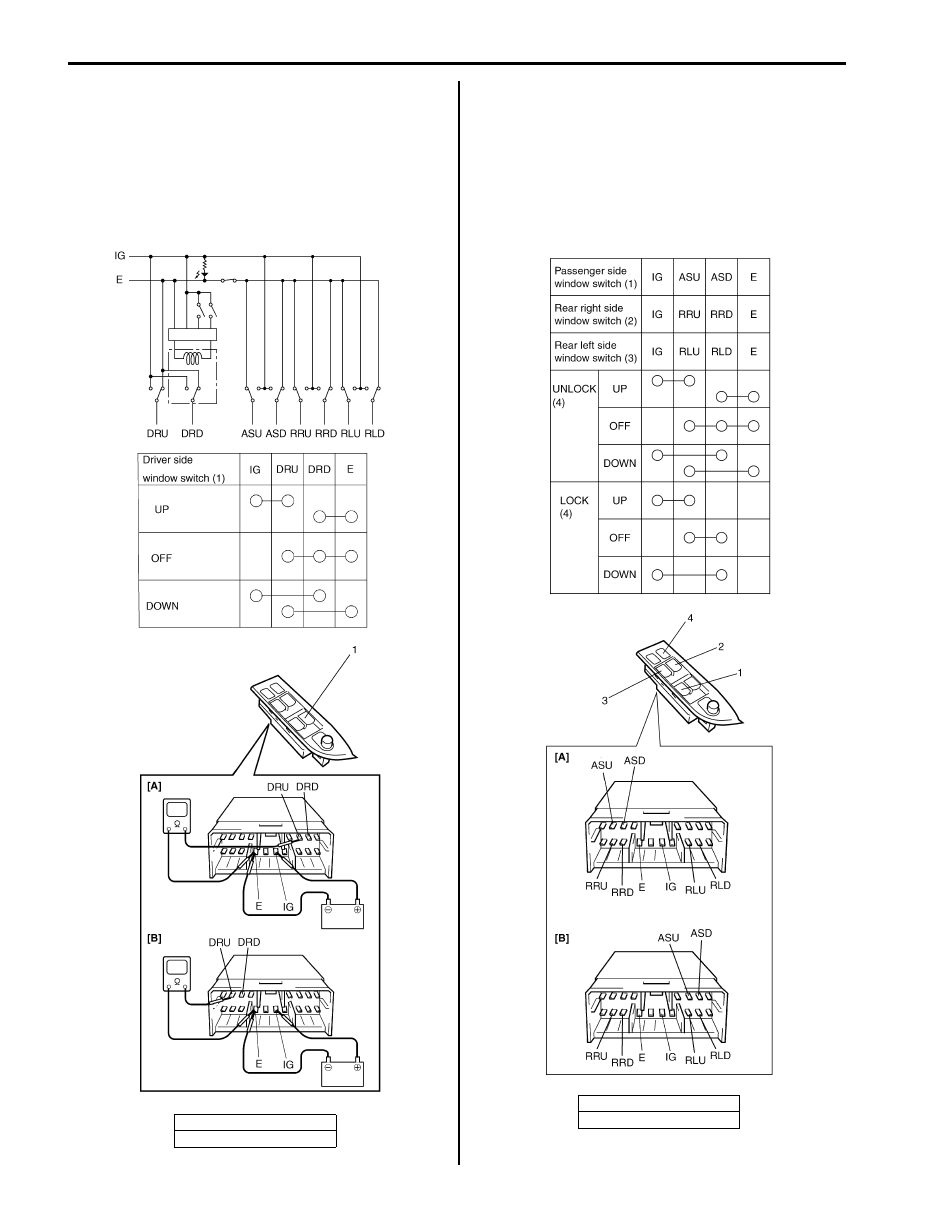

3) Connect 12 V battery positive (+) terminal to terminal

“IG” of power window main switch and its negative (–
) terminal to terminal “E” of power window main
switch.

4) Check for continuity between terminals as shown

below.
If check result is not as specified, replace power
window main switch.

Switch for other window than driver side

1) Remove driver side door trim referring to step 1) to

3) of “Front Door Glass Removal and Installation”.

2) Remove power window main switch from door trim.
3) Check for continuity between terminals as shown

below.

If check result is not as specified, replace power window
main switch.

[A]: LH steering vehicle
[B]: RH steering vehicle

I5JB0A950035-03

[A]: LH steering vehicle
[B]: RH steering vehicle

I5JB0A950036-02

Glass / Windows / Mirrors:  9E-22

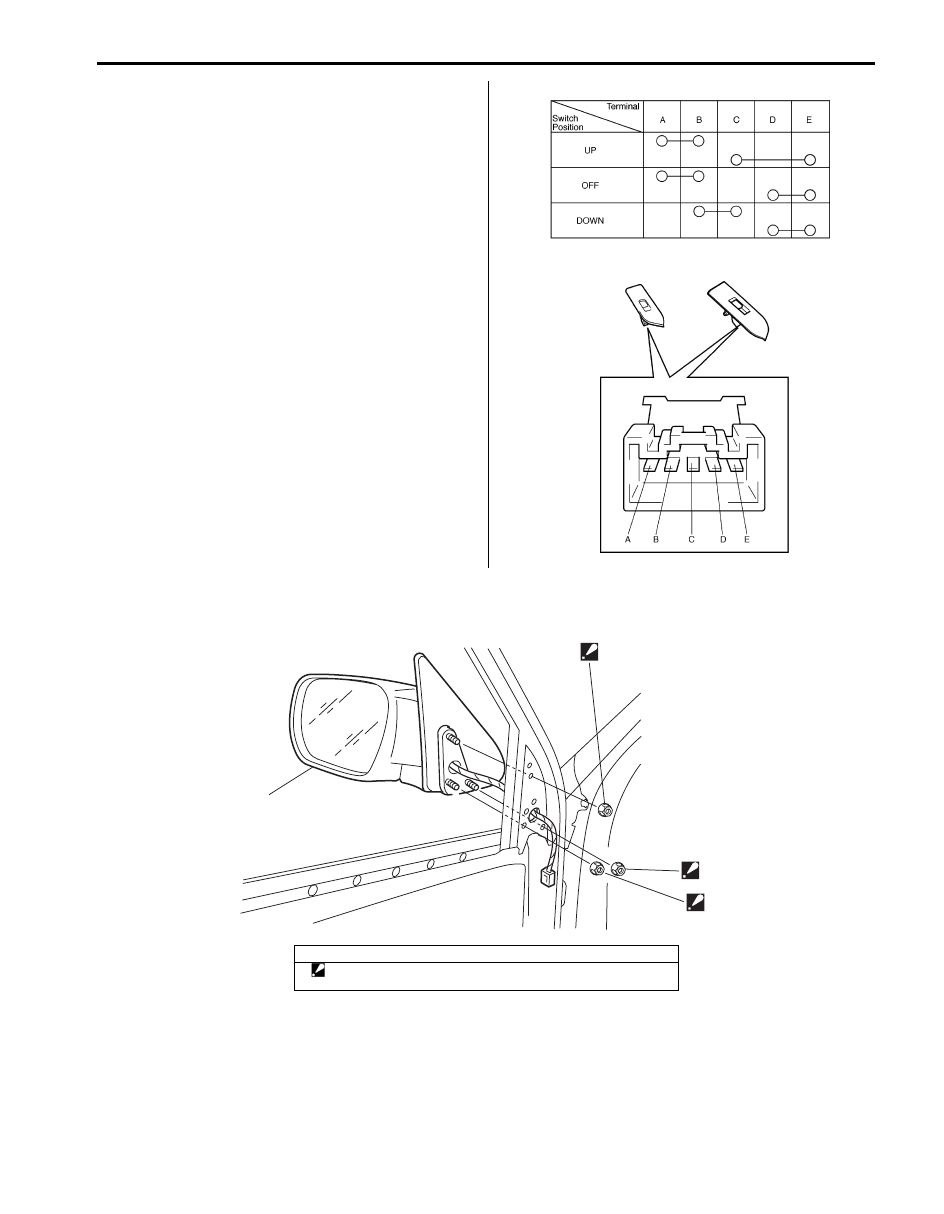

Power Window Sub Switch Inspection

S5JB0A9506017

1) Remove front and/or rear door trim from door panel,

refer to Step 1) to 3) of “Front Door Glass Removal
and Installation” and/or “Rear Door Glass Removal
and Installation”.

2) Remove power window sub switch from door trim.
3) Check for continuity between terminals at each

switch condition.

If check result is not as specified, replace switch.

Door Mirror Components

S5JB0A9506018

I5JB0A950037-01

“1”

“3”

“2”

1

2,

2,

2,

I5JB0A950038-02

1. Door mirror
2. Door mirror mounting nut

:Tighten nuts in such order as indicated in the figure.

9E-23 Glass / Windows / Mirrors:

Door Mirror Removal and Installation

S5JB0A9506019

When removing or installing door mirror, refer to the
figure in “Door Mirror Components”.

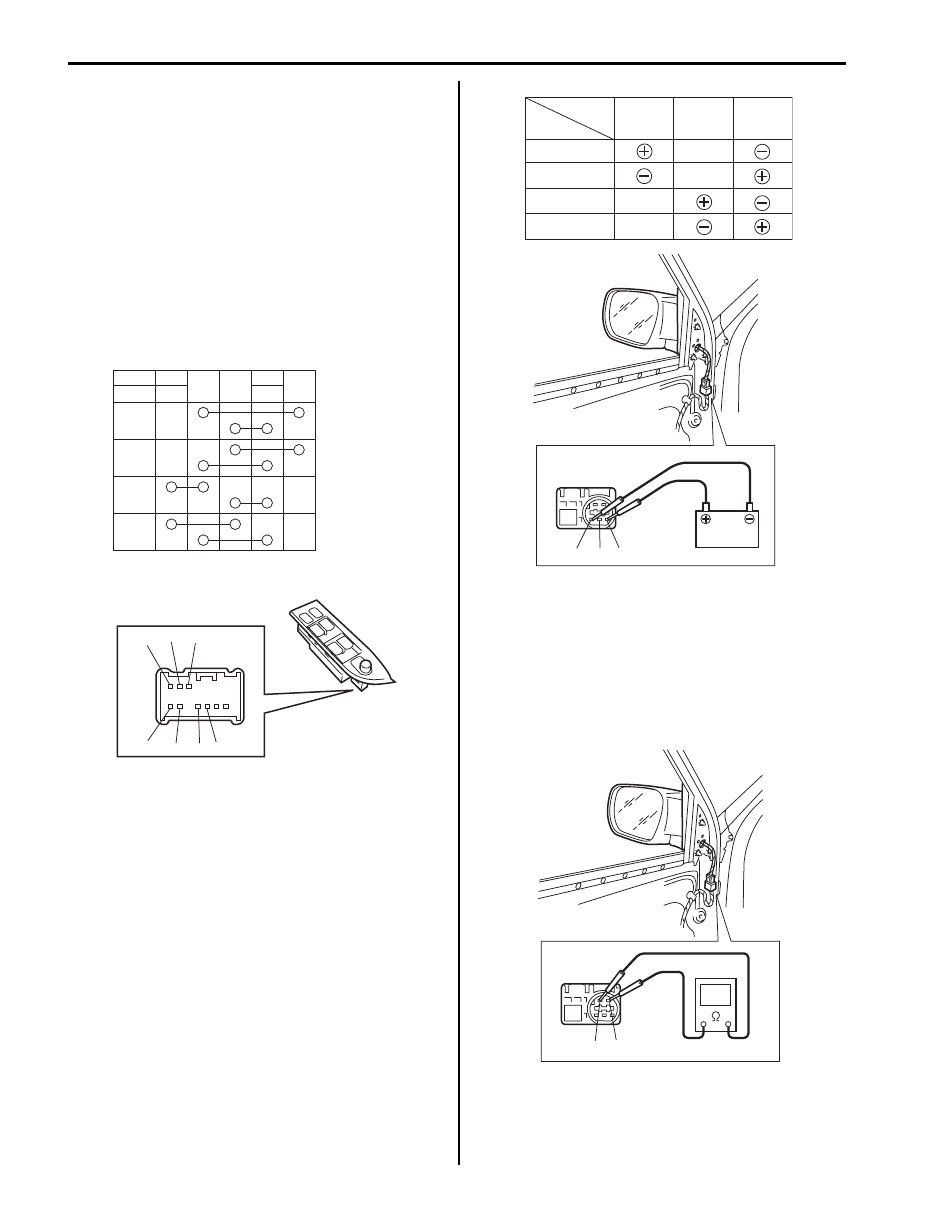

Power Door Mirror Switch Inspection (If
Equipped)

S5JB0A9506020

1) Remove driver side door trim referring to step 1) to

3) of “Front Door Glass Removal and Installation”.

2) Remove power window main switch from door trim.
3) Check for continuity between terminals at each

switch position.
If check result is not as specified, replace door mirror
switch.

Power Door Mirror Actuator Inspection (If
Equipped)

S5JB0A9506021

1) Remove door trim referring to step 1) to 3) of “Front

Door Glass Removal and Installation”.

2) Disconnect door mirror coupler (1).
3) Check that door mirror operates properly when

battery voltage is applied to connector terminals.

4) Connect battery positive (+) and negative (–)

terminal to the door mirror terminals as shown.
If it does not follow the table’s operation, replace
door mirror assembly.

Door Mirror Heater Inspection (If Equipped)

S5JB0A9506022

1) Remove door trim referring to step 1) to 3) of “Front

Door Glass Removal and Installation”.

2) Disconnect door mirror connector (1).
3) Check for continuity between terminals “a” and “b”.

If no continuity, replace outside mirror.

A

B

C

D

E

F

G

Up

Down

Left

Right

L

R

A

B

C

D

E

F

G

I5JB0A950039-01

B

C

A

Operation

Terminal

Up

Down

Left

Right

C

B

A

I5JB0A950040-01

“a”

“b”

I5JB0A950041-01

Glass / Windows / Mirrors:  9E-24

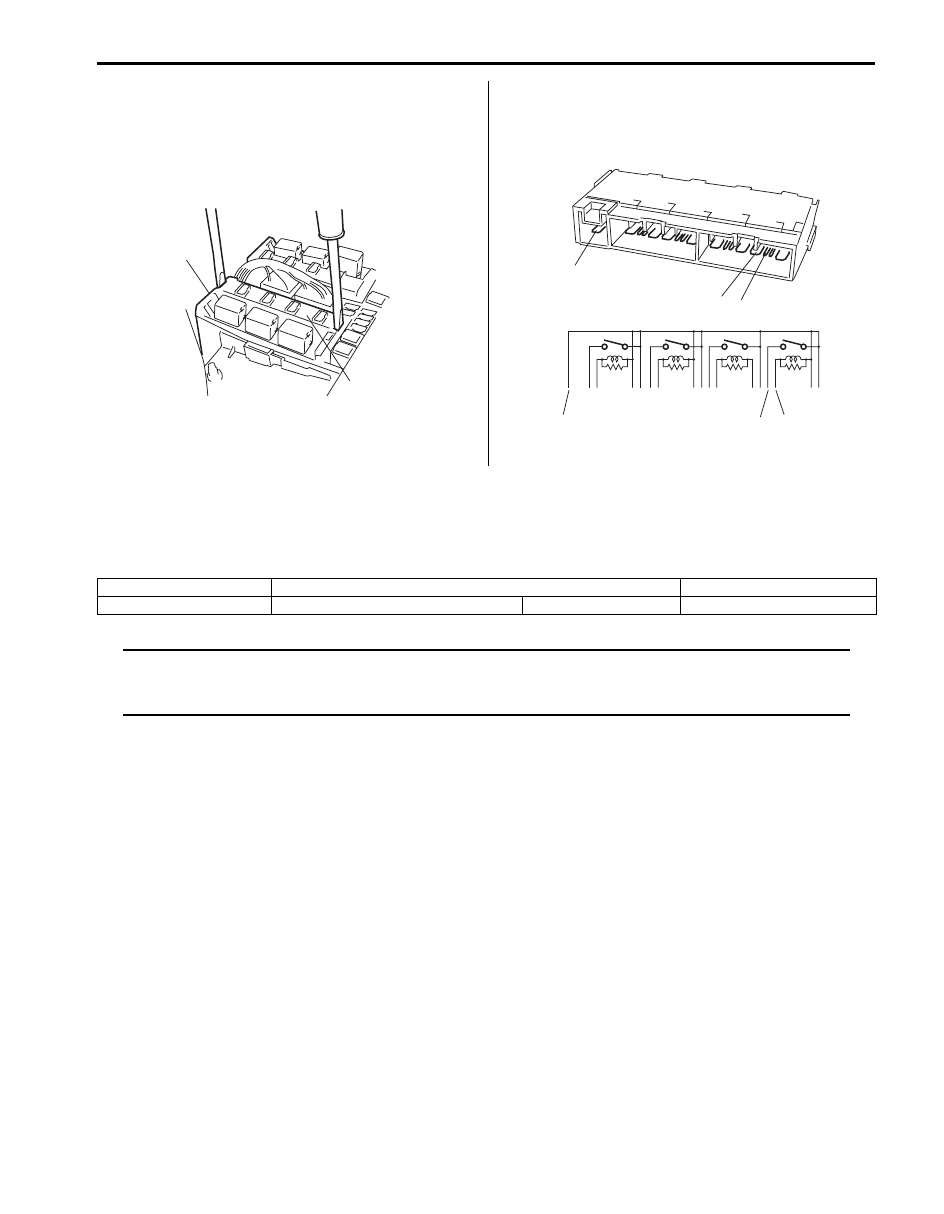

Door Mirror Heater Relay Inspection (If
Equipped)

S5JB0A9506024

1) Disconnect negative (–) cable from battery.
2) Remove door mirror heater relay (included in

integration relay) (1) from main fuse box (2).

3) Check that there is no continuity between terminals

“a” and “b”.
If there is continuity, replace relay.

4) Check that there is continuity between terminals “a”

and “b” when a 12 V battery is connected to terminal
“a” and “c”.
If malfunction is found, replace integration relay.

Special Tools and Equipment

Recommended Service Material

S5JB0A9508001

NOTE
Required service material is also described in the following.
“Front Door Window Components”
“Rear Door Window Components”



2

1

I5JB0A950031-01

“a”

“c”

“b”

“a”

“c”

“b”

I5JB0A950042-02

Material

SUZUKI recommended product or Specification

Note

Grease

SUZUKI Super Grease A

P/No.: 99000–25010

)

 / )
