9C-1 Instrumentation / Driver Info. / Horn:

Body, Cab and Accessories

Instrumentation / Driver Info. / Horn

Precautions

Precautions in Diagnosing Troubles for Combination Meter

S5JB0A9300001

• Combination meter uses signals (information) from each control module by CAN communication to control

speedometer, tachometer, fuel meter, engine coolant temp meter, warning light and indicator light (other than air
bag warning light, headlight leveling warning light, rear fog light and turn signal indicator lamp). Therefore, check
that no DTC is detected in each module before performing combination meter symptom diagnosis. If any DTC is
detected, correct trouble indicated by that DTC troubleshooting first.

• Seat belt reminder can be canceled by scan tool or specified procedure. If neither warning buzzer nor seat belt

reminder light operates, first confirm that seat belt reminder is not selected referring to “Scan Tool Data in Section
10B”. For further details, refer to “Seat Belt Construction in Section 8A”.

General Description

CAN Communication Data of Combination Meter

S5JB0A9301001

Combination meter communicates with each control module about the following information. For details of CAN
communication, refer to “CAN Communication System Description in Section 1A”.
• Data from ECM

– Engine revolution speed signal
– Engine coolant temperature signal
– Vehicle speed signal
– Malfunction indicator lamp (MIL) control signal
– Immobilizer indicator lamp control signal
– Fuel level signal
– “CRUSE” and “SET” indicator lamp control signal (if equipped)
– Diagnostic trouble code (DTC) of ECM

• Data from TCM (A/T model)

– Transmission range sensor signal (A/T selector lever position indicator)
– Malfunction indicator lamp (MIL) control signal
– Automatic transmission mode indicator lamp control signal
– Diagnostic trouble code (DTC) of TCM

• Data from BCM

– Brake fluid level switch signal (brake warning light control signal)
– Parking brake switch signal (brake warning light control signal)
– Driver side seat belt buckle switch signal (Seat belt warning light control signal)
– Charging system warning lamp signal (Charge warning light control signal)
– Engine oil pressure switch signal (Oil pressure warning light control signal)
– Lighting switch signal (illumination indicator light control signal)
– Door switch signal (door ajar warning lamp)
– HI beam indicator control signal
– Diagnostic trouble code (DTC) of BCM

• Data from 4WD control module (if equipped)

– 4WD shift position indicator lamp control signal
– Diagnostic trouble code (DTC) of 4WD control module

Instrumentation / Driver Info. / Horn:  9C-2

• Data from ABS control module (if equipped)

– ABS warning lamp control signal
– EBD warning light control signal (brake warning light control signal)
– Diagnostic trouble code (DTC) of ABS hydraulic unit/control module

• Data from keyless start control module (if equipped)

– Key indicator lamp control signal

Schematic and Routing Diagram

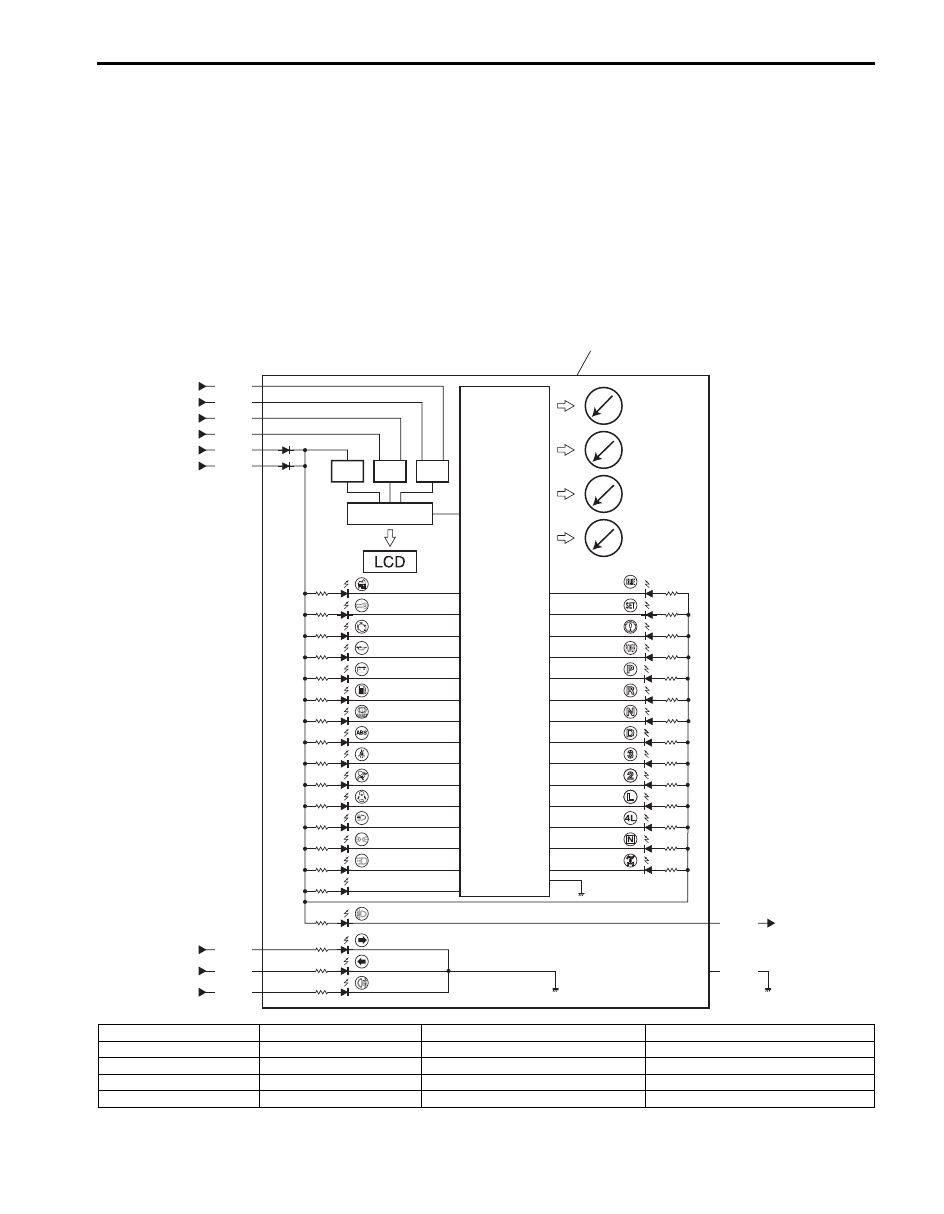

Combination Meter Circuit Diagram

S5JB0A9302001

8

11

12

13

14

7

6

5

4

G28-8

G28-10

9

9

G28-22

16

G28-16

1

2

10

G28-13

G28-14

G28-19

G28-11

3

G28-20

3

3

G28-15

G28-12

15

17

18

I5JB0A930001-04

1. Main fuse

6. Fuel meter

11. CPU

16. Illumination cancel switch (if equipped)

2. METER fuse

7. ECT meter

12. Power supply

17. Combination meter

3. Combination switch

8. ODO-TRIP

13. Interface circuit

18. Headlight auto leveling control module

4. Tacho meter

9. Junction connector

14. CAN driver

5. Speedometer

10. SDM

15. Stepper motor and LED output driver

9C-3 Instrumentation / Driver Info. / Horn:

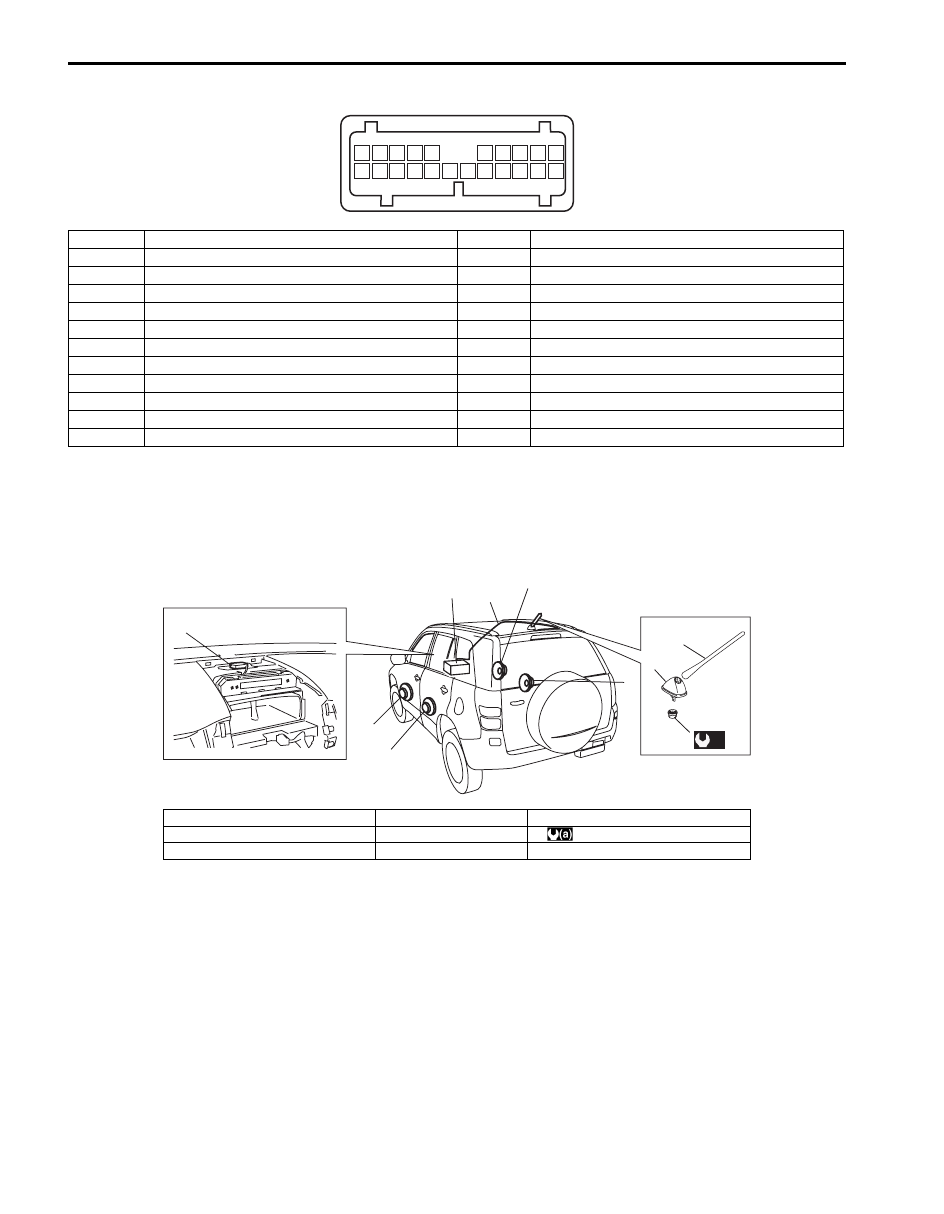

Terminal arrangement of coupler viewed from combination meter side

Component Location

Audio System Component Location

S5JB0A9303001

Terminal

Circuit

Terminal

Circuit

G28-1

—

G28-12 To headlight auto leveling control module

G28-2

—

G28-13 Power source

G28-3

—

G28-14 Backup power source

G28-4

—

G28-15 GND

G28-5

—

G28-16 To SDM (Air bag warning lamp signal)

G28-6

—

G28-17

—

G28-7

—

G28-18

—

G28-8

CAN communication line (Active Low Signal)

G28-19 To turn signal light switch (turn L)

G28-9

—

G28-20 To turn signal light switch (turn R)

G28-10 CAN communication line (Active High Signal)

G28-21

—

G28-11 To rear fog light switch

G28-22 To illumination cancel switch

17 16

11

1

22

10

21

9

20

8

19

7

18

6

15

5

14

4

13

3

12

2

I5JB0A930002-01

2

1

4

3

3

6

5

2

(a)

7

I5JB0A930003-01

1. Radio or navigation assembly

4. Antenna feeder

7. GPS antenna (if equipped)

2. Front speaker

5. Antenna

: 10 N

⋅m (1.0 kgf-m, 7.5 lb-ft)

3. Rear speaker

6. Antenna base

Instrumentation / Driver Info. / Horn:  9C-4

Diagnostic Information and Procedures

Speedometer Symptom Diagnosis

S5JB0A9304022

Tacho meter Symptom Diagnosis

S5JB0A9304023

Engine Coolant Temperature (ECT) Meter Symptom Diagnosis

S5JB0A9304024

Fuel Meter Symptom Diagnosis

S5JB0A9304025

Condition

Possible cause

Correction / Reference Item

Speedometer shows no
operation or incorrect
operation

Circuit fuse blown

Replace fuse and check for short circuit.

Data (information) can not be received
by CAN communication

Check ECM for DTC referring to “DTC Check
in Section 1A”.

Rear wheel speed sensor or sensor ring
faulty

Check rear wheel speed sensor or sensor ring
referring to “Rear Wheel Speed Sensor
Inspection in Section 4E” or “Rear Wheel
Encoder On-Vehicle Inspection in Section 4E”.

Wiring or ground faulty

Repair circuit.

Combination meter faulty

Replace combination meter.

ECM faulty

Replace after making sure that none of above
parts is faulty.

Condition

Possible cause

Correction / Reference Item

Tacho meter shows no
operation or incorrect
operation

Circuit fuse blown

Replace fuse and check for short circuit.

Data (information) can not be received
by CAN communication

Check ECM for DTC referring to “DTC Check
in Section 1A”.

Wiring or ground faulty

Repair circuit.

Combination meter faulty

Replace combination meter.

ECM faulty

Replace after making sure that none of above
parts is faulty.

Condition

Possible cause

Correction / Reference Item

Engine coolant
temperature (ECT) meter
shows no operation or
incorrect operation

Circuit fuse blown

Replace fuse and check for short circuit.

Data (information) can not be received
by CAN communication

Check ECM for DTC referring to “DTC Check
in Section 1A”.

ECT sensor faulty

Check ECT sensor referring to “Engine
Coolant Temperature (ECT) Sensor Inspection
in Section 1C”.

Wiring or ground faulty

Repair circuit.

Combination meter faulty

Replace combination meter.

ECM faulty

Replace after making sure that none of above
parts is faulty.

Condition

Possible cause

Correction / Reference Item

Fuel meter shows no
operation or incorrect
operation

Circuit fuse blown

Replace fuse and check for short circuit.

Data (information) can not be received
by CAN communication

Check ECM for DTC referring to “DTC Check
in Section 1A”.

Fuel level sensor faulty

Check fuel level sensor referring to “Fuel Level
Sensor Inspection”.

Wiring or ground faulty

Repair circuit.

Combination meter faulty

Replace combination meter.

ECM faulty

Replace after making sure that none of above
parts is faulty.
