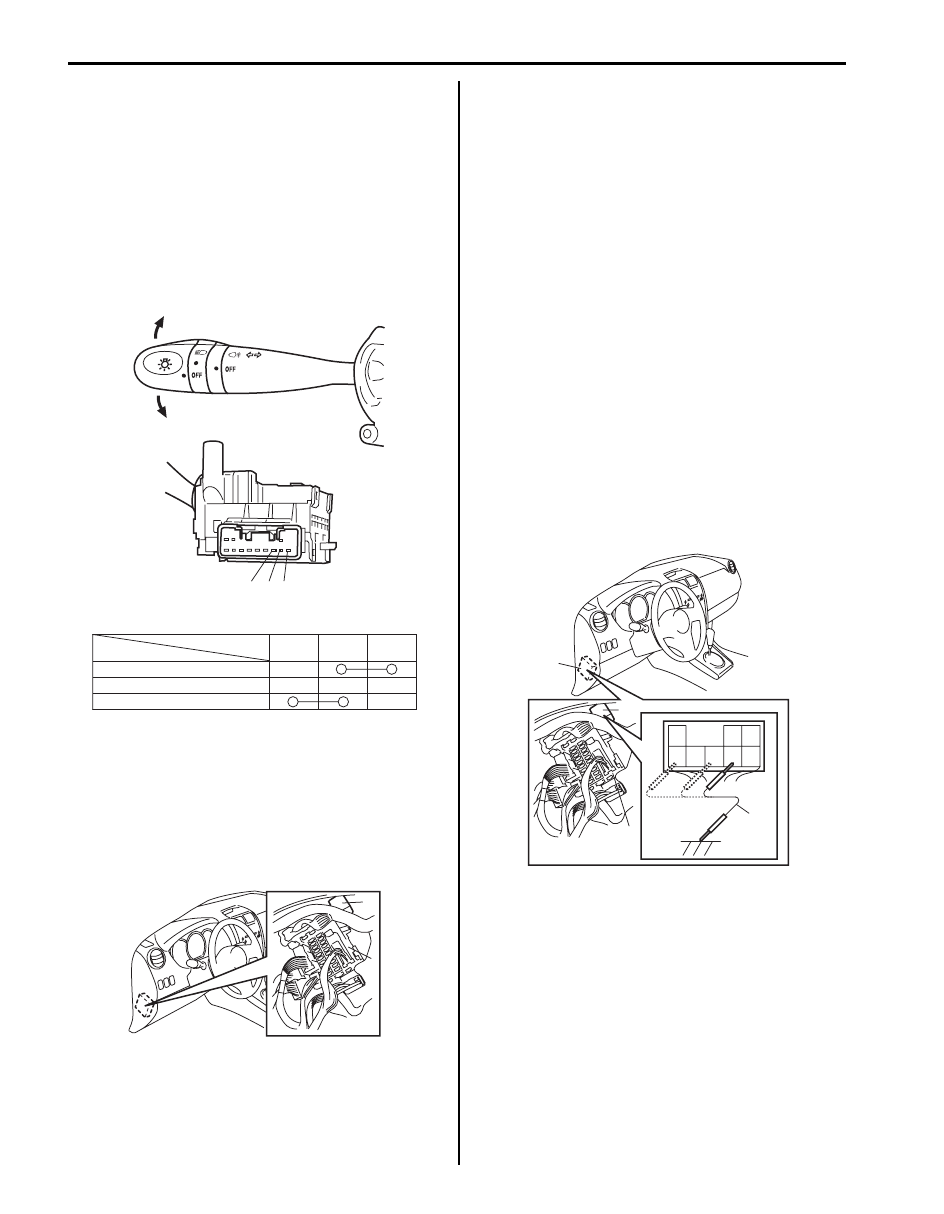

9B-23 Lighting Systems:

Turn Signal Light Switch (in Lighting Switch)
Removal and Installation

S5JB0A9206009

For removal and Installation, refer to “Headlight Switch
(in Lighting Switch) Removal and Installation”.

Turn Signal Light Switch (in Lighting Switch)
Inspection

S5JB0A9206010

Check for continuity between terminals at each switch
position. If check result is not as specified, replace
switch.

Turn Signal and Hazard Warning Relay Removal
and Installation

S5JB0A9206011

Removal

1) Disconnect negative (–) cable at battery.
2) Remove turn signal and hazard warning relay (1)

from junction block (2).

Installation
Reverse removal procedure for installation.

Turn Signal and Hazard Warning Relay
Inspection

S5JB0A9206025

1) Remove turn signal and hazard warning relay (1)

from junction block (2).

2) Connect connector to turn signal and hazard

warning relay.

3) Turn ignition switch to ON position.
4) Check turn signal and hazard warning relay for

operation.
• Check that left side turn signal lamps flash when 5

terminals of turn signal and hazard warning relay
and vehicle body ground are connected using
service wire (3).

• Check that right side turn signal lamps flash when

6 terminals of turn signal and hazard warning
relay and vehicle body ground are connected
using service wire.

• Check that left and side turn signal lamps flash

when 8 terminals of turn signal and hazard
warning relay and vehicle body ground are
connected using service wire.If turn signal lamps
do not flash, check power supply and ground
circuits of turn signal and hazard warning relay.

L

R

Terminal

Turn signal SW

3

1

2

L

N

R

3

2

1

I4RS0B920009-01

1

2

I5JB0A920026-01

3

8

7

1

2

6

5

4

2

1

2

3

I5JB0A920027-01

Lighting Systems:  9B-24

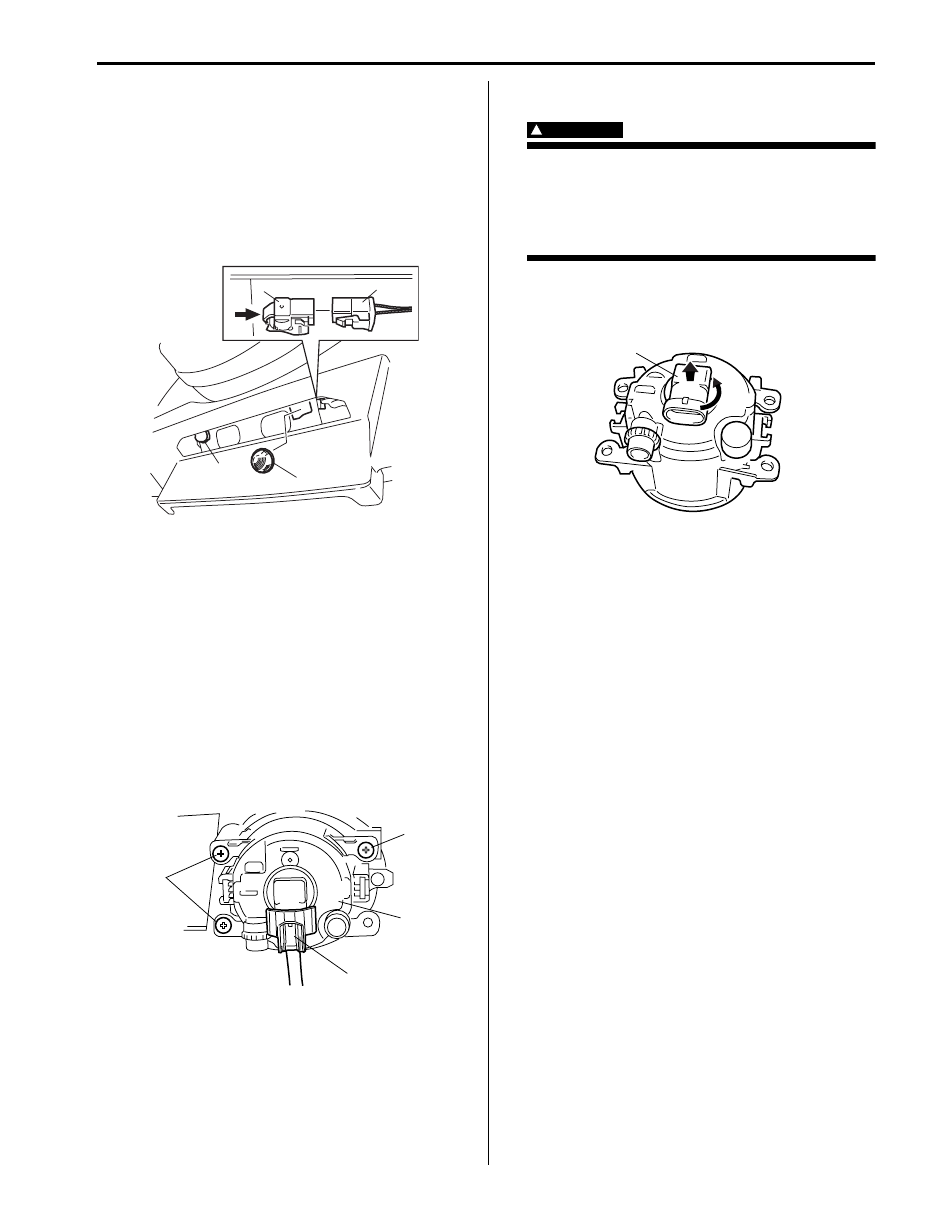

License Lamp Assembly Removal and
Installation

S5JB0A9206013

Removal

1) Disconnect negative (–) cable at battery.
2) Disconnect coupler (1) from license lamp assembly

(2).

3) Push locking part to arrow direction, and then

remove license lamp assembly (2).

Installation
Reverse removal procedure for installation.

Front Fog Light Assembly Removal and
Installation (If Equipped)

S5JB0A9206014

Removal

1) Disconnect negative (–) cable at battery.
2) Remove front bumper. Refer to “Front Bumper

Components in Section 9K”.

3) Disconnect coupler (1) from fog light (2).
4) Remove fog light screws (3), and remove front fog

light assembly (2).

Installation
Reverse removal procedure for installation nothing the
following:
• After installing, adjust aiming referring to “Front Fog

Light Aiming Adjustment with Screen (If Equipped)”.

Front Fog Light Bulb Replacement (If Equipped)

S5JB0A9206015

WARNING

!



• To avoid danger of being burned, don’t

touch when the bulb is hot.

• Don’t touch glass surface of bulb to avoid

deteriorate as the case may be unclear
when bulb light on at dirty condition.



1) Remove front bumper referring to “Front Bumper

Components in Section 9K”.

2) Remove fog light bulb (1) as shown.

3) Replace fog light bulb and assemble all removed

parts.

2

1

2

2

I5JB0A920028-01

3

3

1

2

I4RS0A920019-01

1

I4RS0A920020-01

9B-25 Lighting Systems:

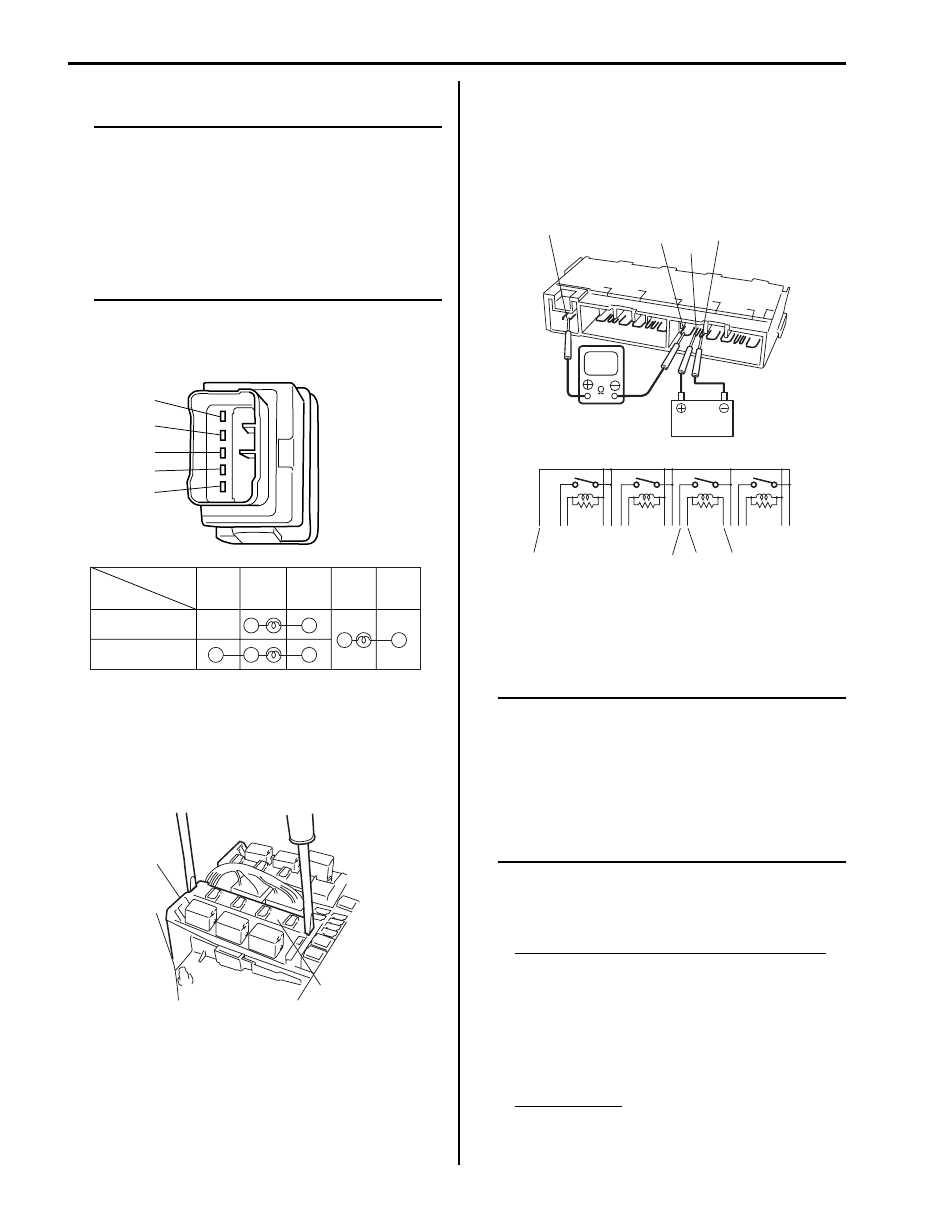

Front Fog Light Switch Inspection (If Equipped)

S5JB0A9206016

NOTE
Front fog lights light up only when headlight
switch is in HEADLIGHT position (low or high
beams) or SMALL position. Front fog lights
turn OFF automatically when headlight
switch is turned to OFF position. If front fog
light switch holds ON position, front fog
lights turn ON automatically when headlight
switch is tuned to HEADLIGHT position (low
or high beams) or SMALL position again.



Check for continuity between terminals at each switch
position. If check result is not as specified, replace
switch.

Front Fog Light Relay Inspection (If Equipped)

S5JB0A9206017

1) Disconnect negative (–) cable from battery.
2) Remove front fog light relay (included in integration

relay) (1) from main fuse box (2).

3) Check that there is no continuity between terminals

“a” and “b”.
If there is continuity, replace relay.
Check that there is continuity between terminals “a”
and “b” when a 12 V battery is connected to terminal
“c” and “d”.
If malfunction is found, replace integration relay.

Front Fog Light Aiming Adjustment with Screen
(If Equipped)

S5JB0A9206018

Basic Aiming

NOTE

• Unless otherwise obligated by local

regulations, adjust front fog light aiming
according to the following procedure.

• An example in case that the light-to-wall

distance 10 m is shown in the illustration.
The beam descending distance “H” is
calculated when “a” is 10 m with the
specification angle “b” (1.75

°).



1) Make sure the following items.

• Place vehicle on a flat surface in front of blank wall

(screen) (1) ahead of front fog light surface.

Distance between screen and front fog light
“a”: 10 m (32.8 ft.)

• Adjust air pressure of all tired to the specified

value respectively.

• Bounce vehicle body up and down by hand to

stabilize suspension.

• Carry out aiming with a driver aboard.

Driver’s weight
75 kg (165 lb)

1

2

3

4

5

Switch Position

Terminal

ON (PUSH IN)

2

3

1

5

4

OFF

I4RS0A920021-01

2

1

I5JB0A920029-01

“a”

“c”

“b”

“a”

“c”

“d”

“b”

“d”

I5JB0A920030-03

Lighting Systems:  9B-26

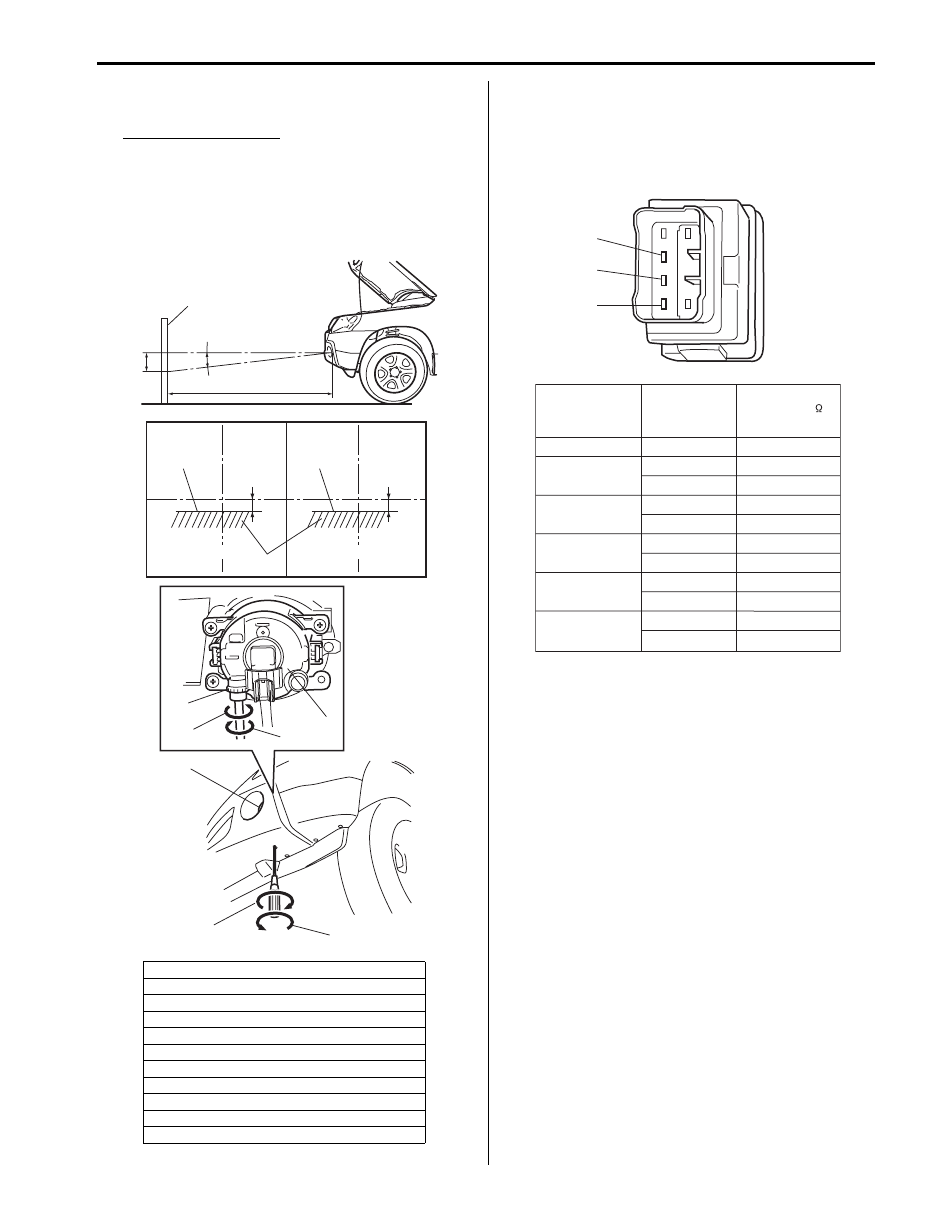

2) Check to see if hot spot (high intensity zone) of each

front fog light axis falls as shown in the figure.

Hot spot specification
Angle “b”: 1.75

° (Specification)

Calculated distance “H”: Approx. 300 mm (11.81
in.)

3) If it is not set properly, align front fog light to

specification by rotating aiming gear.

Headlight Manual Leveling Switch (If Equipped)
Inspection

S5JB0A9206019

Check for continuity between terminals at each switch
position.
If check result is not as specified, replace switch.

2. Bounding line
3. Hot spot
4. Aiming gear (for up / down adjustment)
5. Turning (for up adjustment)
6. Turning (for down adjustment)
7. Front fog light assembly

X-X: Horizontal center line of front fog light bulb
A-A: Vertical center line of left front fog light bulb
B-B: Vertical center line of right front fog light bulb

[A]: Left front fog light
[B]: Right front fog light

A

A

X

X

4

2

B

B

[A]

[B]

2

1

5

6

7

4

5

6

7

“a”

“b”

“H”

“H”

“H”

I5JB0A920031-03

1

2

3

Switch Position

0

Terminal

Resistance (   )

-

1

2

3

4

1 and 2

4370 - 4830

1 and 3

2 and 3

1 and 3

2 and 3

1 and 3

2 and 3

1 and 3

2 and 3

1 and 3

2 and 3

646 - 714

3724 - 4116

3078 - 3402

1292 - 1428

1938 - 2142

2584 - 2856

3230 - 3570

2432 - 2688

1786 - 1974

1140 - 1260

I4RS0B920012-01
