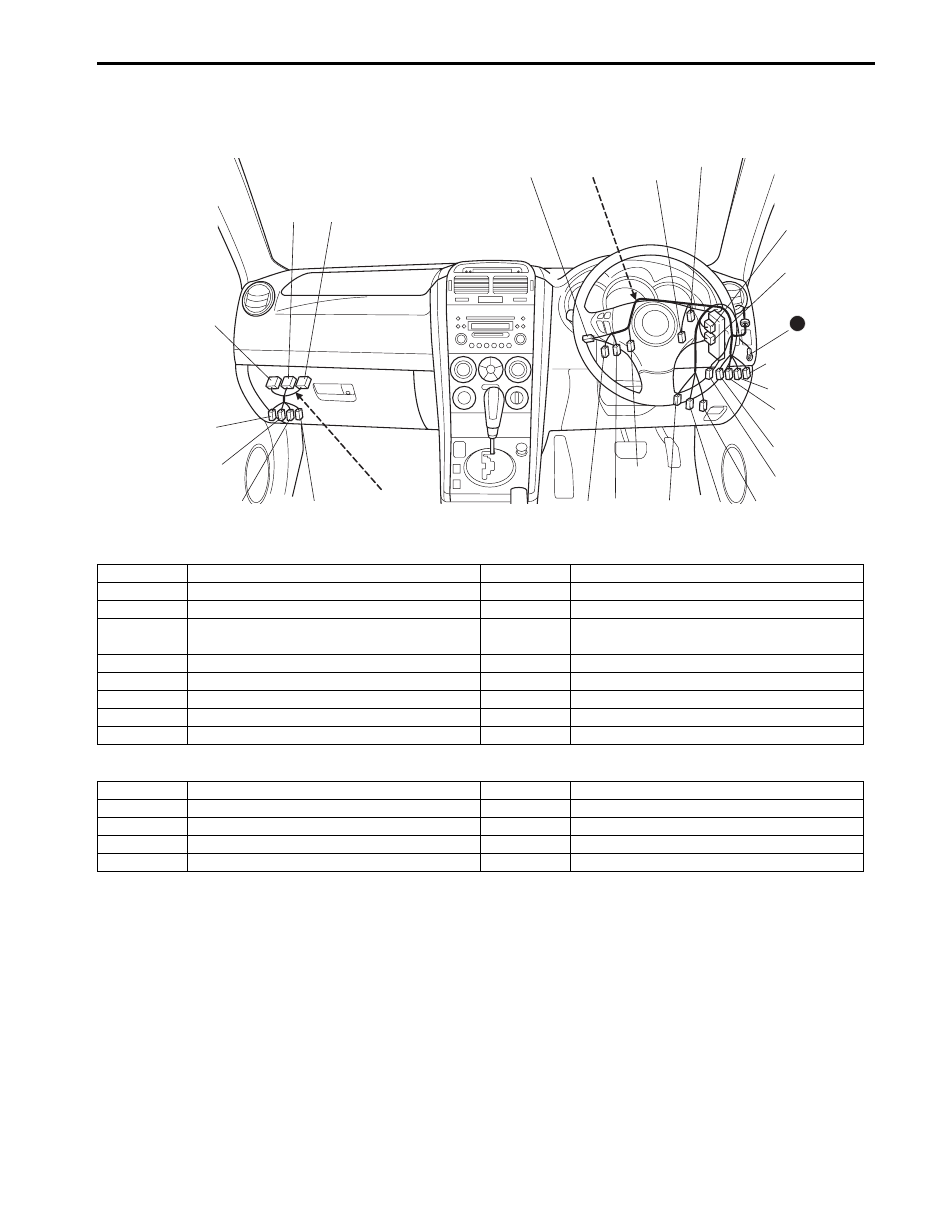

9A-18 Wiring Systems:

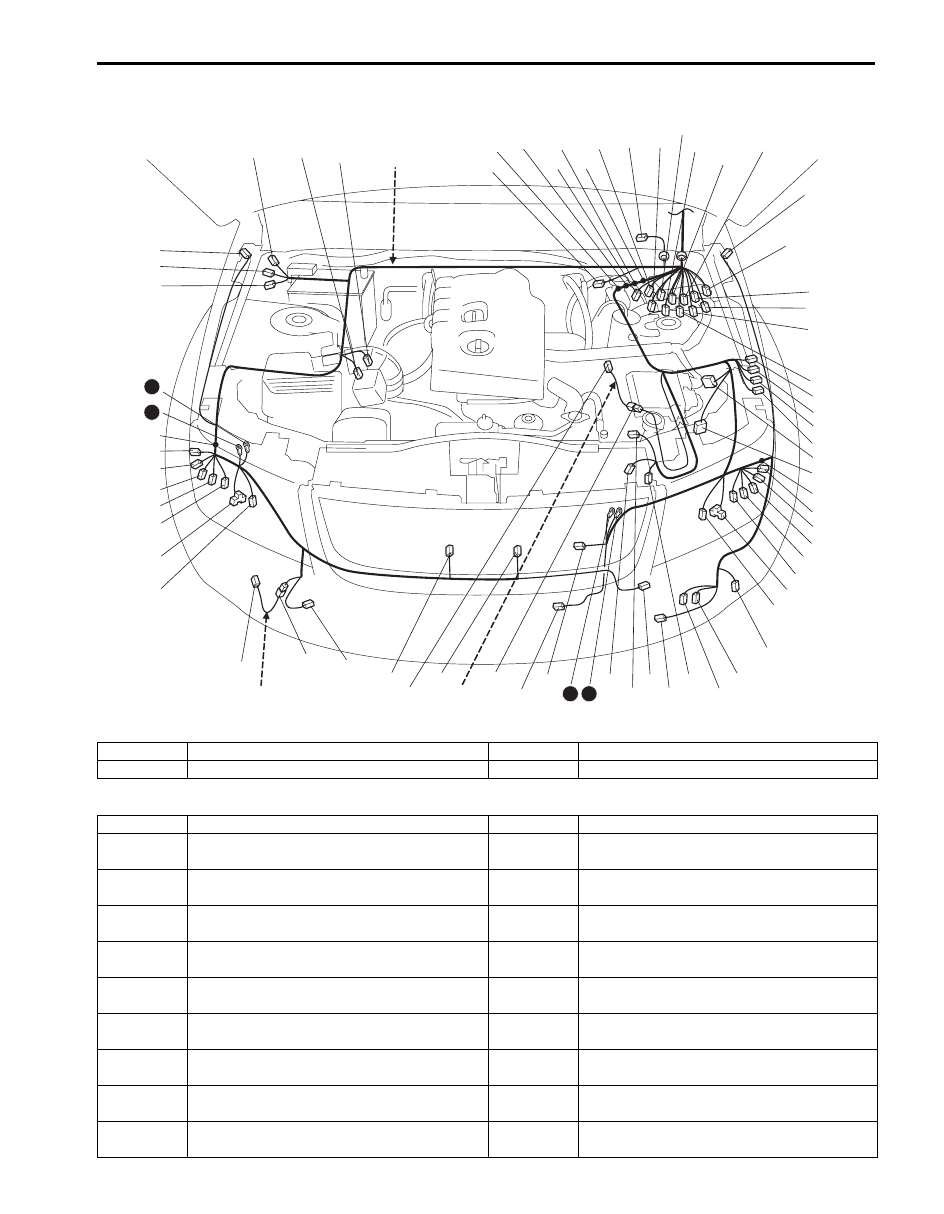

E: Main harness
E: Front height sensor wire
No./Color
Connective position
No./Color
Connective position
E01/GRY Windshield wiper motor
E32/BLK
Fuse box No.2 (Starting motor relay &
Headlight HI relay & Headlight LO relay)
E02/GRY Brake fluid level switch
E33/BLK
Fuse box No.2 (Heater motor relay & Main
relay & Fuel pump relay)
E03/BLK
ABS control module
E34/BLK
(M16A)
Fuse box No.2 (A/C compressor relay &
Heated oxygen relay)
E04/BLK
A/C pressure sensor
E35/N
Power integration No.1 (Mirror heater relay
& Fog lamp relay)
E05/N
Wheel speed sensor (FR)
E36/N
Power integration No.1 (Horn relay & Rear
defogger relay)
E06/N
Side turn signal light (R)
E37/N
(J20A)
Power integration No.2 (A/C compressor
relay & Heated oxygen relay)
E07/N
Front position light (R)
E38/N
(J20A)
Power integration No.2 (A/T relay)
E08/BLK (3
dr)
Headlight (R)
E40/GRY Power integration No.1
E09/GRY Front turn signal light (R)
E41/N
(J20A)
Power integration No.2
E10/N
Windshield washer motor
E42/N
Fuse box No.2
E11/N
Rear washer motor
E43/GRY (5
dr)
HID headlight (R)
E12/BLK
Front fog light (R)
E44/BLK (5
dr)
Headlight LO (R)
E13/YEL
Forward sensor (Driver side)
E45/GRY Headlight beam leveling actuator (R)
E14/BLK
Ambient temperature sensor
E46/BLK (5
dr)
Headlight HI (R)
E15/BLK
Horn (HI)
E47/GRY (5
dr)
HID headlight (L)
E16/BLK
Horn (LO)
E48/BLK (5
dr)
Headlight LO (L)
E17/BLK
A/C compressor wire (To B01)
E49/GRY Headlight beam leveling actuator (L)
E18/BLK
Front fog light (L)
E50/BLK (5
dr)
Headlight HI (L)
E19/N
Side turn signal light (L)
E51/N
HLC motor
E20/GRY Front turn signal light (L)
E52/BLK
Front height sensor wire (To E85)
E21/BLK (3
dr)
Headlight (L)
E54/N
Engine harness (To C34)
E22/N
Front position light (L)
E55/BLU
Engine harness (To C35)
E23/GRY ECM
E56/BLK
Fuse box No.1
E24/YEL
Forward sensor (Passenger side)
E57/BLK
Fuse box No.1
E25/GRY Wheel speed sensor (FL)
E58/GRY Fuse box No.1
E26/BLK
Radiator fan motor #1
E59/-
Weld splice
E27/GRY Radiator fan motor #2
E60/-
Weld splice
E28/BLK
Relay box (Throttle motor relay)
E61/-
Weld splice
E29/BLK
Relay box (Radiator fan relay #1)
E62/-
Weld splice
E30/BLK
Relay box (Radiator fan relay #2)
E63/-
Weld splice
E31/BLK
Relay box (Radiator fan relay #3)
E64/-
Weld splice
No./Color
Connective position
No./Color
Connective position
E85/BLK
Main Harness (To E52)
E86/BLK
Front height sensor
