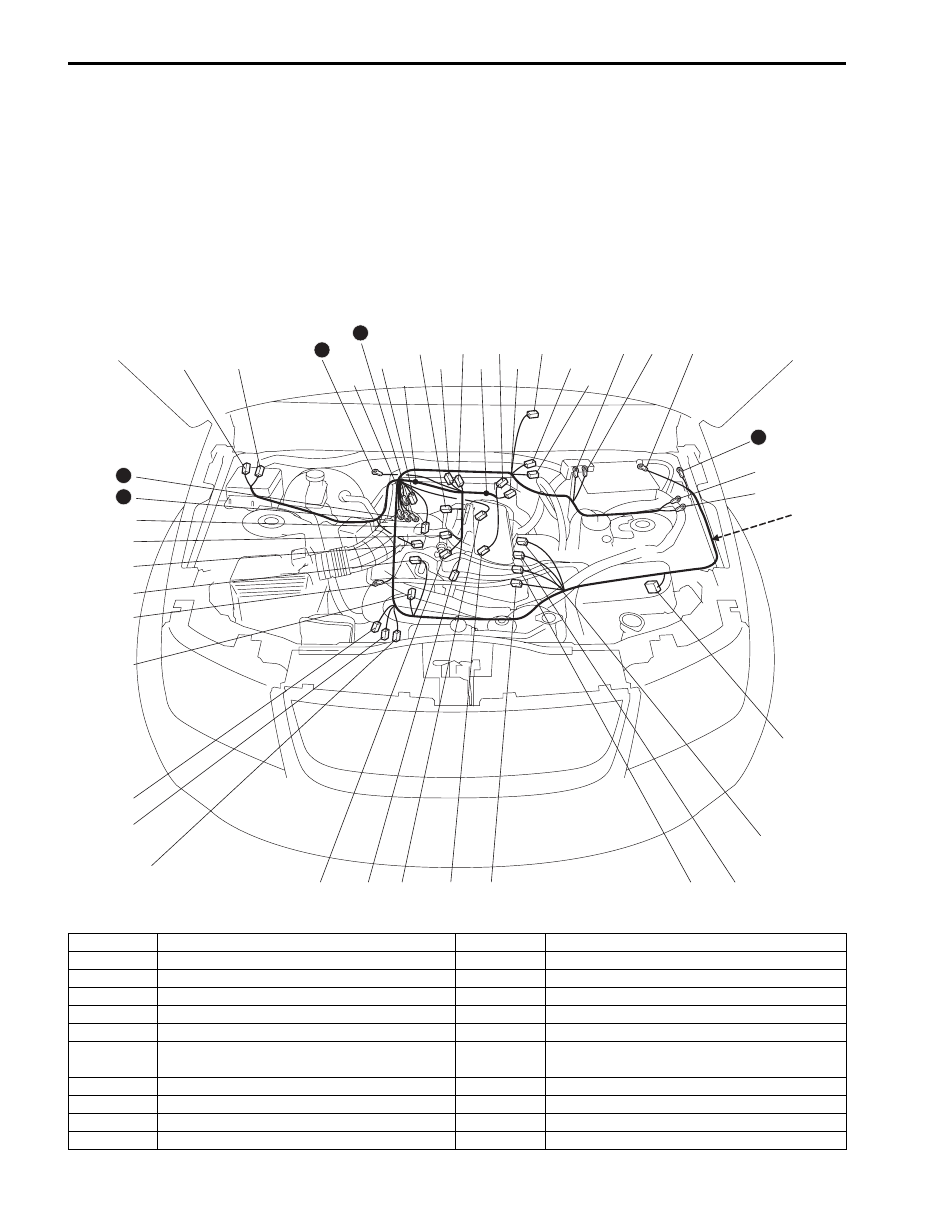

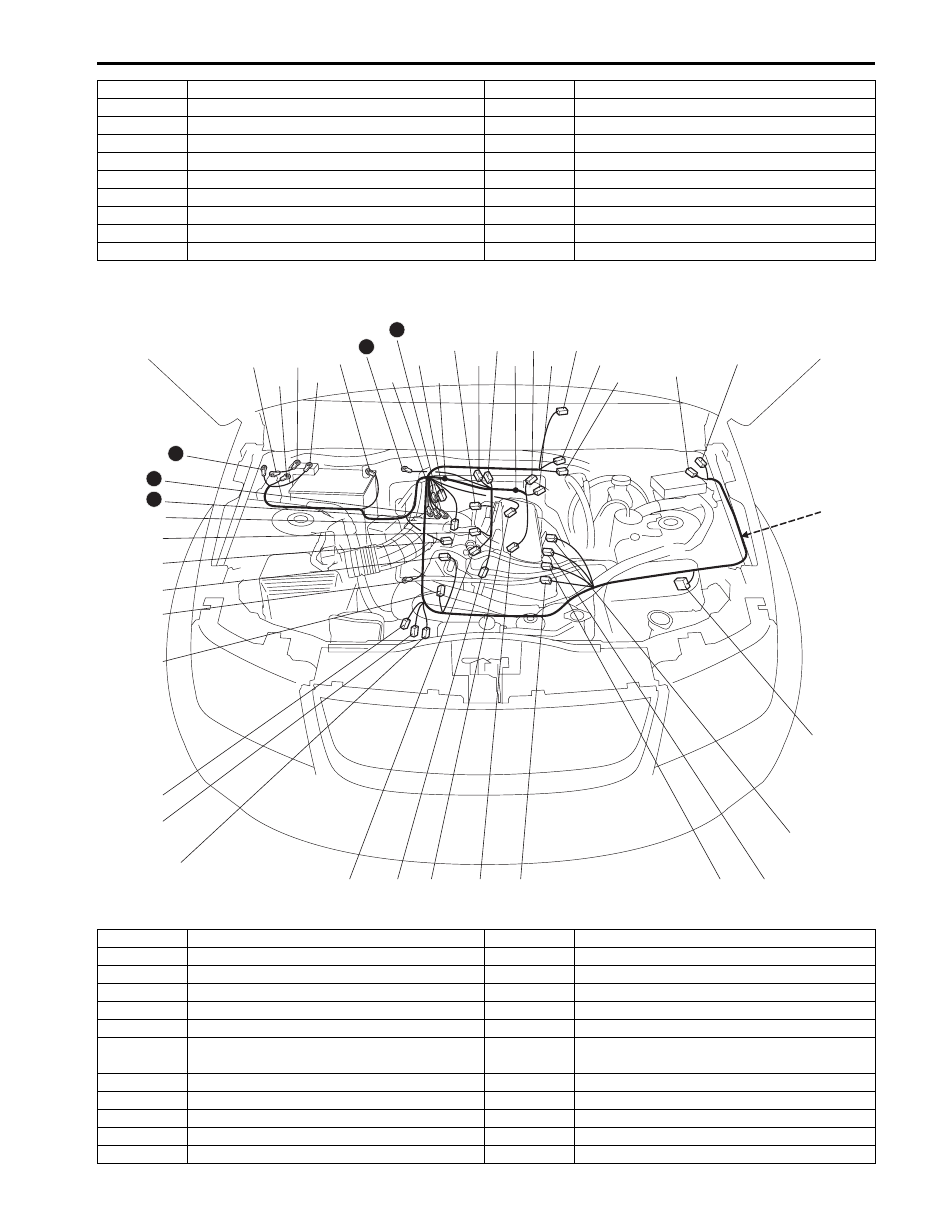

9A-10 Wiring Systems:
How to Read Power Supply Diagram
S5JB0A9101008
Refer to “Power Supply Diagram”.
Refer to “System Circuit Diagram”.
How to Read System Circuit Diagram
S5JB0A9101009

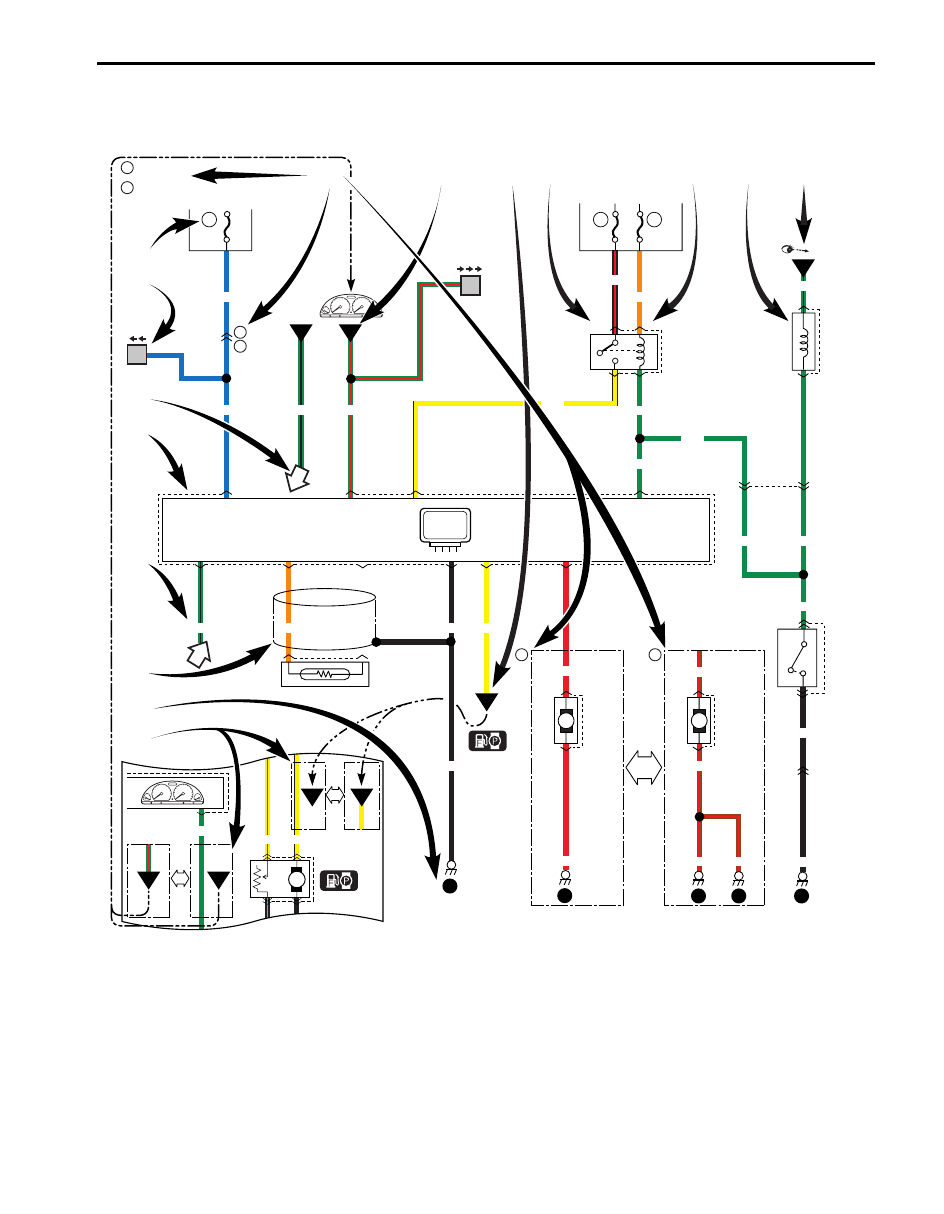

The circuit diagram is designed so the current flows from the top of the diagram (power source) to the bottom of the
diagram (ground) as if giving an image of water flow.
[A]: Fuse No.
[B]: Circuit jumping page / direction
NOTE
This means “Jump to the page directed with the arrow(s) by their number.
(For example:” Two arrows directing left” means” Jump to two pages before”.)
You will find the same symbol with the arrows directing opposite in the referenced page. The circuit
continues between the symbols.
[C]: Circuit jumping point / direction
NOTE
The circuit continues to the same symbol with opposite direction within the page.
You will find the other symbol in the direction of the arrow.
[D]: Terminals-in-one-connector mark
[E]: Wire color
[F]: Shield wire
[G]: Ground point
[H]: “From” or “To” (With ID letter (s))
[I]: Specification variation
The white arrow between A and B means “or”.
[J]: “From” (With ID letter (s))
[K] “To” (With ID letter (s))
[L]: Connector code
Connection to the system
indicated.

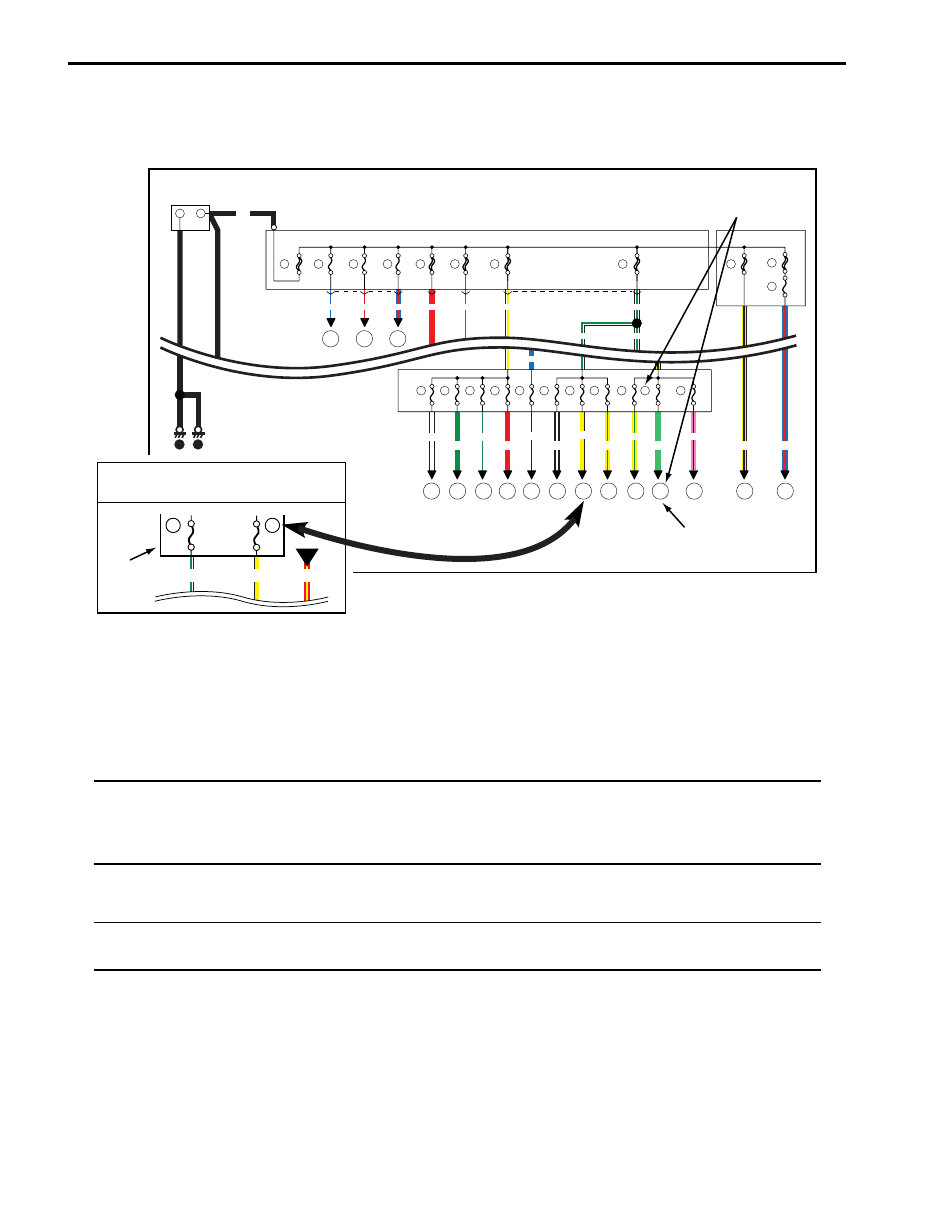

"POWER SUPPLY DIAGRAM"
-
+
1
Battery
80A
2
15A
3
15A
4
15A
5
25A
6
7
8
50A
30A
29
30A
32
15A
9
60A
60A
BLK
YEL/BLK
PNK/BLK
LT GRN
YEL/GRN
YEL/BLU
BLK/WHT
WHT/BLK
WHT/GRN
RED
GRN
WHT
WHT/BLU WHT/RED
WHT/BLU
WHT/YEL
WHT/GRN
WHT/GRN
WHT/GRN
BLU
BLU/RED
RED
YEL
BLU/RED
Individual
circuit
fuse box
Main fuse box
Supplementary fuse box
11
11
2
4
3
12 13 14 15 16 17 18
19 20
21
29
32
12
13
14
15
16
17
18
19
20
21
15A
15A
15A
20A
20A
15A
15A
15A
15A
15A
15A
E44
3
2
1
B01
1
E45
1
E40
2
1
Fuse
RED/YEL
YEL
WHT/GRN
15A
15A
13
17
