9A-2 Wiring Systems:
General Description

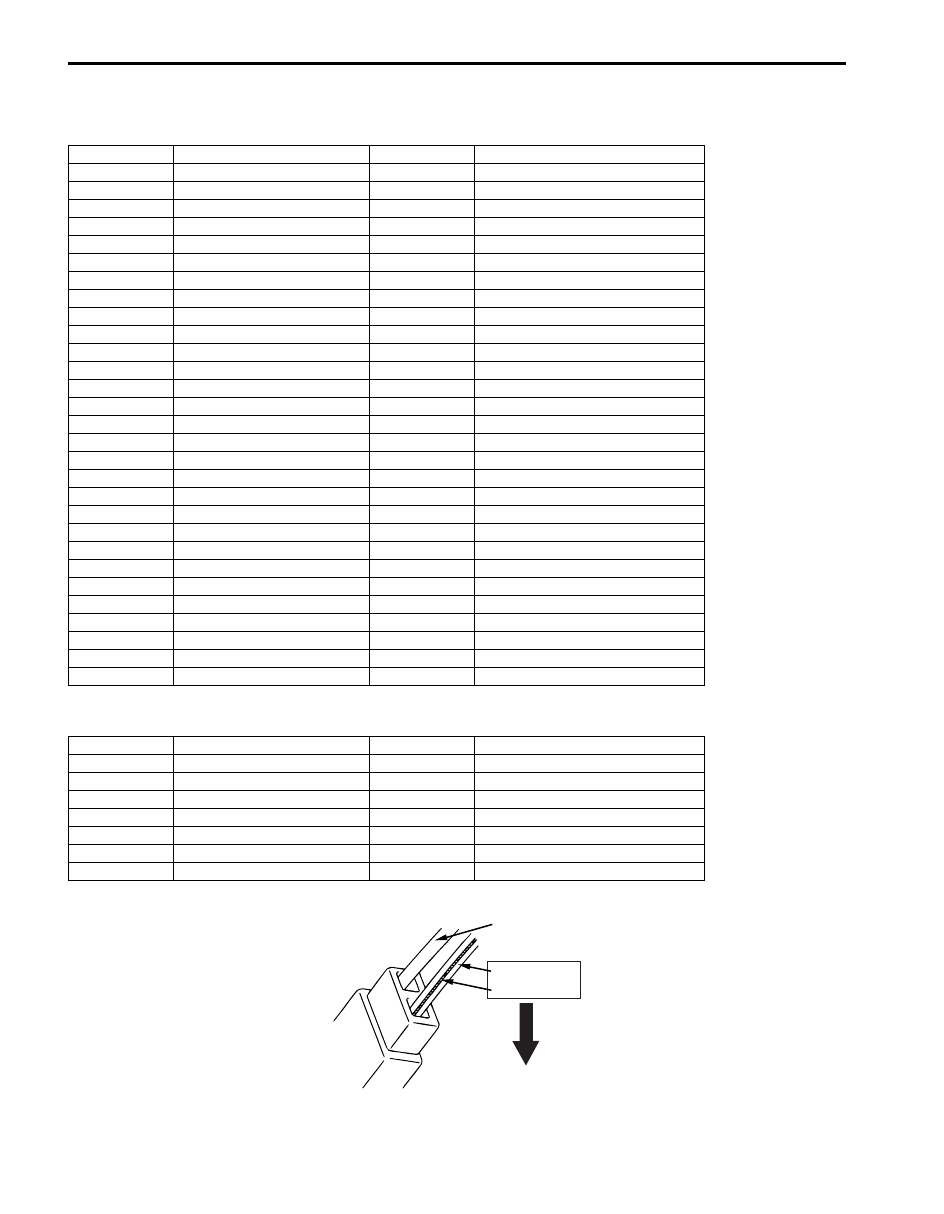

Abbreviations
S5JB0A9101002
Wire / Connector Color Symbols
S5JB0A9101003
Abbreviation
Full term
Abbreviation
Full term
2WD
2 wheel drive vehicles
IG
Ignition
4WD
4 wheel drive vehicles
IG COIL
Ignition coil
A/B
Air bag
ILL
Illumination
A/C
Air conditioning
IND
Indicator
A/LEV
Auto leveling
INT
Intermittent
A/T
Automatic transaxle
ISC
Idle speed control
ACC
Accessory
J/B
Junction block
BCM
Body control module
J/C
Joint connector
CAN
Controller area network
KLS
Keyless start system
CKP
Crank shaft position
L
Left
CMP
Cam shaft position
LED
Light emitting diode
COMB
Combination
LHD
Left hand drive vehicle
DLC
Data link connector
LO
Low
DRL
Daytime running light
MAP
Manifold absolute pressure
DSL
Diesel engine
M/T
Manual transaxle
ECM
Engine control module
AMT
Automated manual transmission
ECT
Engine coolant temperature
O/D
Over drive
EGR
Exhaust gas recirculation
P/N
Power/Normal
ELCM
EVAP leak check module
P/S
Power steering
ESP
Electronic stability program
PSP
Power steering pressure
EVAP
Evaporative
R
Right
FWD
Forward
RHD
Right hand drive vehicle
HI
High
SDM
Sensing and diagnostic module
HID
High intensity discharge
ST
Starter
HLC
Head light cleaner
TCC
Torque converter clutch
IAC
Idle air control
TCM
Transmission control module
IAT
Intake air temperature
VSS
Vehicle speed sensor
ICM
Immobilizer control module
VSV
Vacuum switching valve
IF EQPD
If equipped
5 dr
5 door

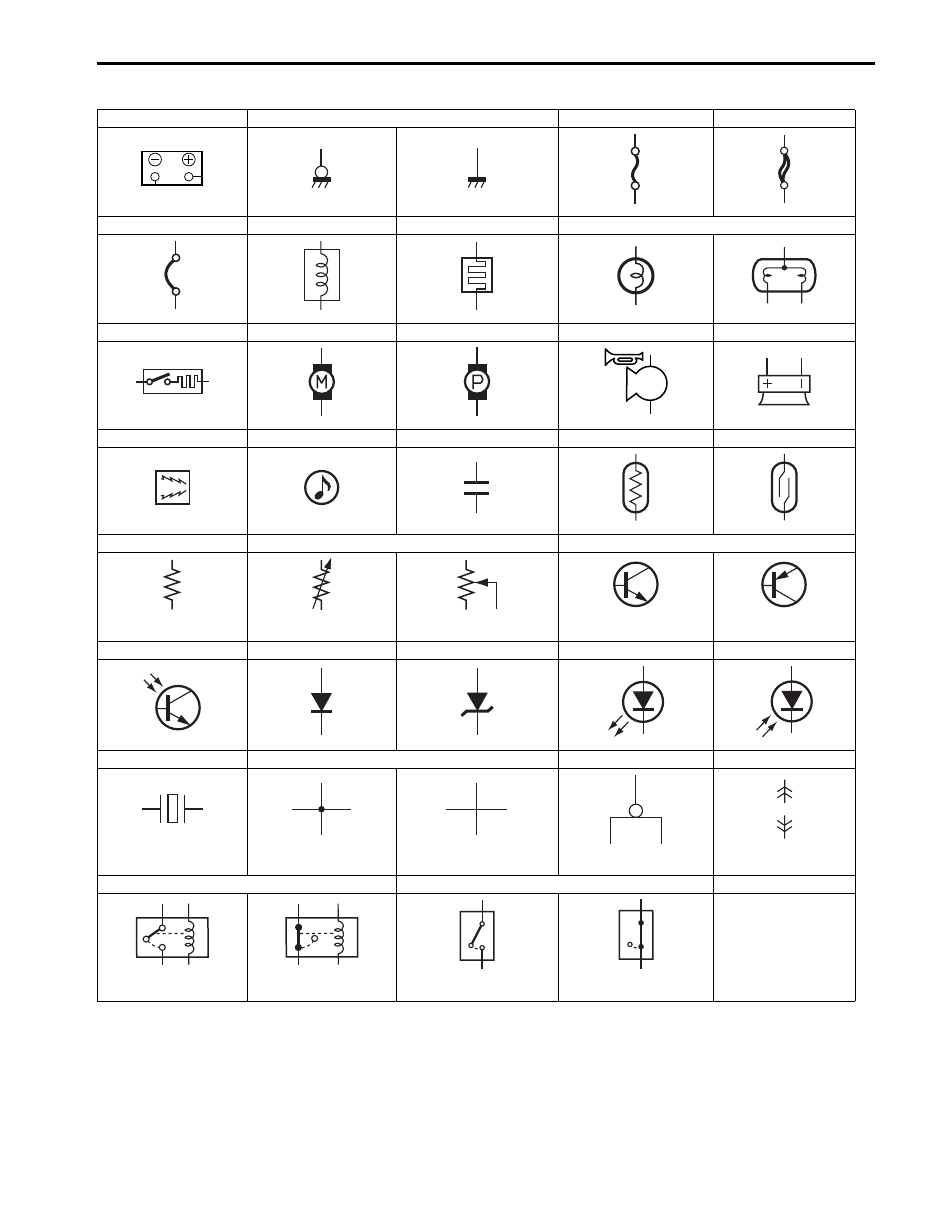

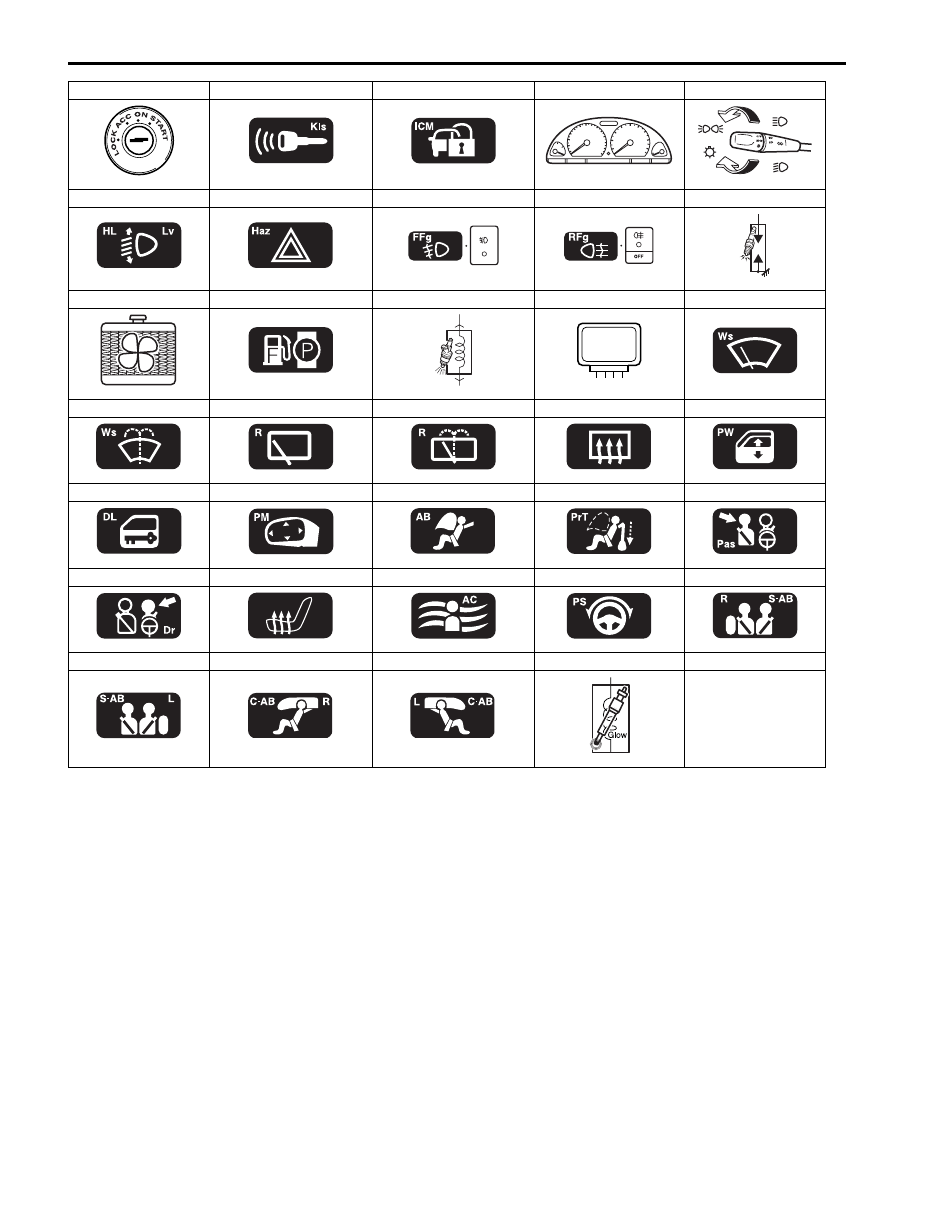

Symbol
Wire / connector Color
Symbol
Wire / connector Color
BLK
Black
ORN
Orange
BLU
Blue
RED
Red
BRN
Brown
WHT
White
GRN
Green
YEL
Yellow
GRY
Gray
PNK
Pink
LT BLU
Light blue
PPL
Purple
LT GRN
Light green
N
Natural

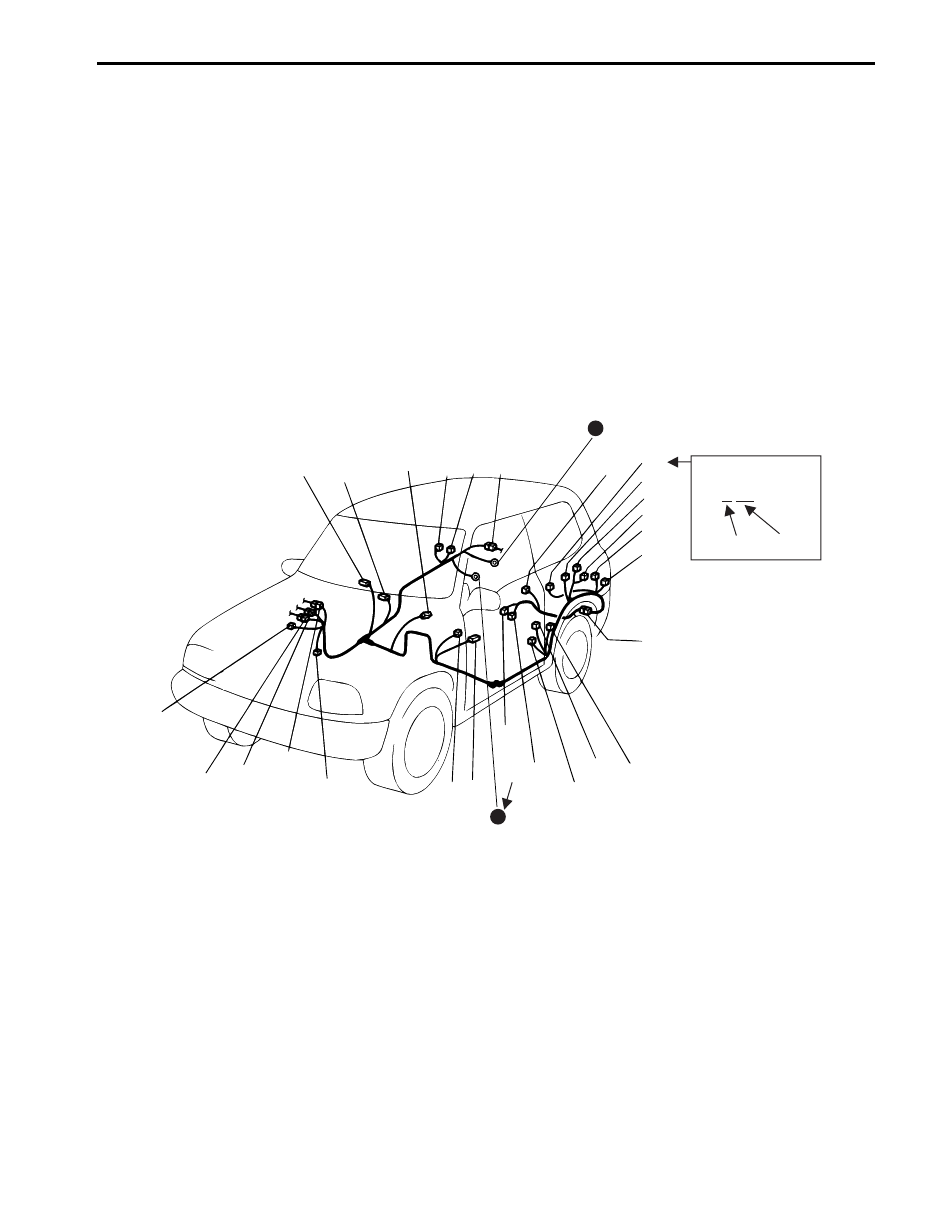

GRN (Base color)
GRN (Base color)
YEL (Stripe color)
GRN / YEL
I2RH01910941-01
