Brake Control System and Diagnosis

General Description

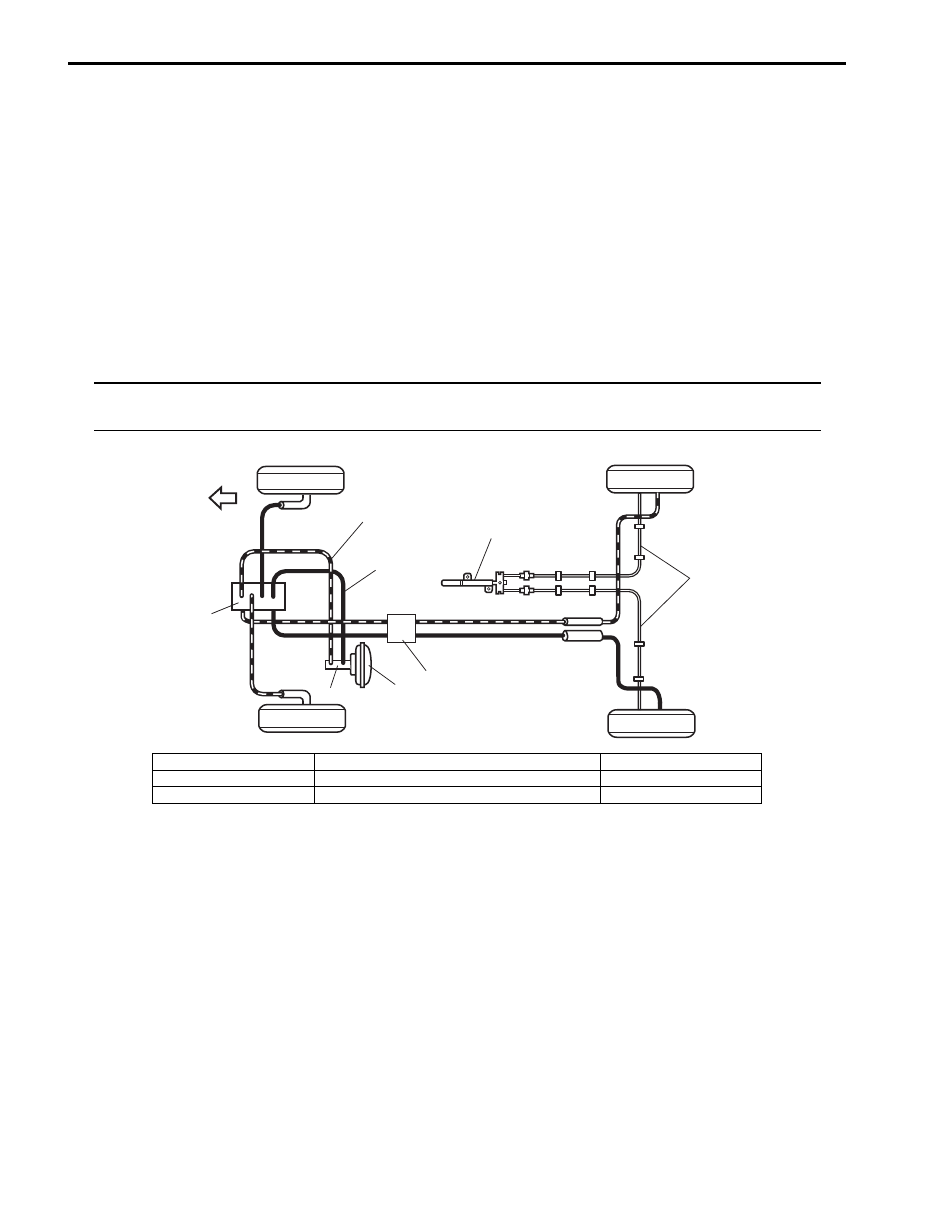

Brakes Construction

S5JB0A4101001

When the foot brake pedal is depressed, hydraulic pressure is developed in the master cylinder (2) to actuate pistons
(two in front and four in rear).
The master cylinder is a tandem master cylinder. Brake pipes are connected to the master cylinder and they make two
independent circuits. One connects front right and rear left brakes and the other connects front left and rear right
brakes.
In this brake system, the disc brake type is used for the front wheel brake and a drum brake type (leading / trailing
shoes) for the rear brake.
The parking brake system is mechanical. It applies brake force to only rear wheels by means of the cable and
mechanical linkage system. The same brake shoes are used for both parking and foot brakes.

NOTE
The difference between RH steering vehicle and LH steering vehicle is the location of the brake master
and the brake booster only.



A

2

8

1

5

3

4

6

7

I5JB0A410001-02

1. Brake booster

4. Primary side

7. Parking brake cable

2. Master cylinder

5. ABS hydraulic unit / control module assembly

8. 4-way joint

3. Secondary side

6. Parking brake lever

A: Forward

Brake Control System and Diagnosis:  4A-2

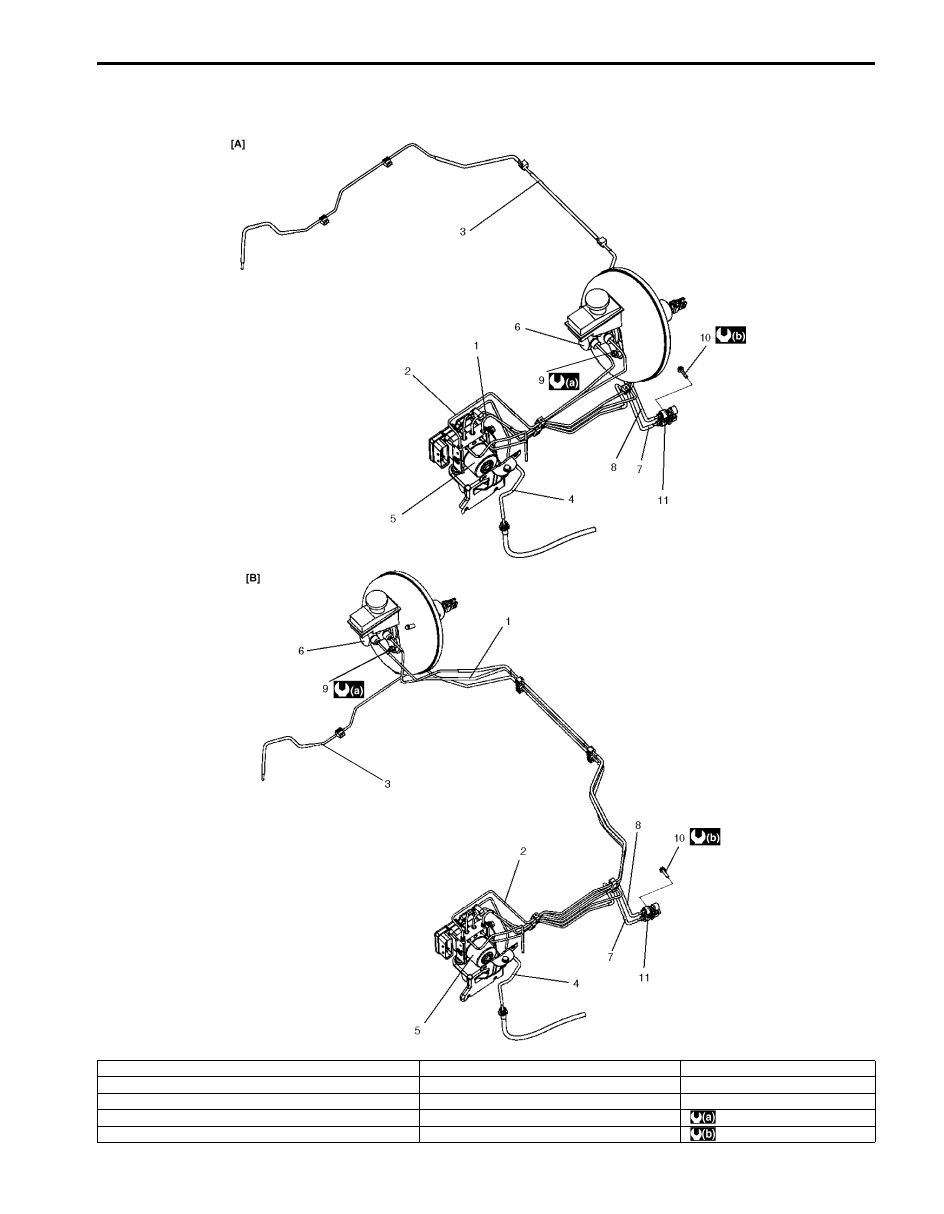

Front Brake Hose / Pipe Construction

S5JB0A4101006

I5JB0A410002-03

[A]: For LH steering vehicle

4. From ABS hydraulic unit to left front brake

9. Master cylinder fixing nut

[B]: For RH steering vehicle

5. ABS hydraulic unit / control module assembly

10. Brake joint bolt

1. From master cylinder primary to ABS hydraulic unit

6. Master cylinder

11. 4-way joint

2. From master cylinder secondary to ABS hydraulic unit

7. From ABS hydraulic unit to left rear brake

: 18 N

⋅m (1.8 kgf-m, 13.0 lb-ft)

3. From ABS hydraulic unit to right front brake

8. From ABS hydraulic unit to right rear brake

: 11 N

⋅m (1.1 kgf-m, 8.0 lb-ft)

4A-3 Brake Control System and Diagnosis:

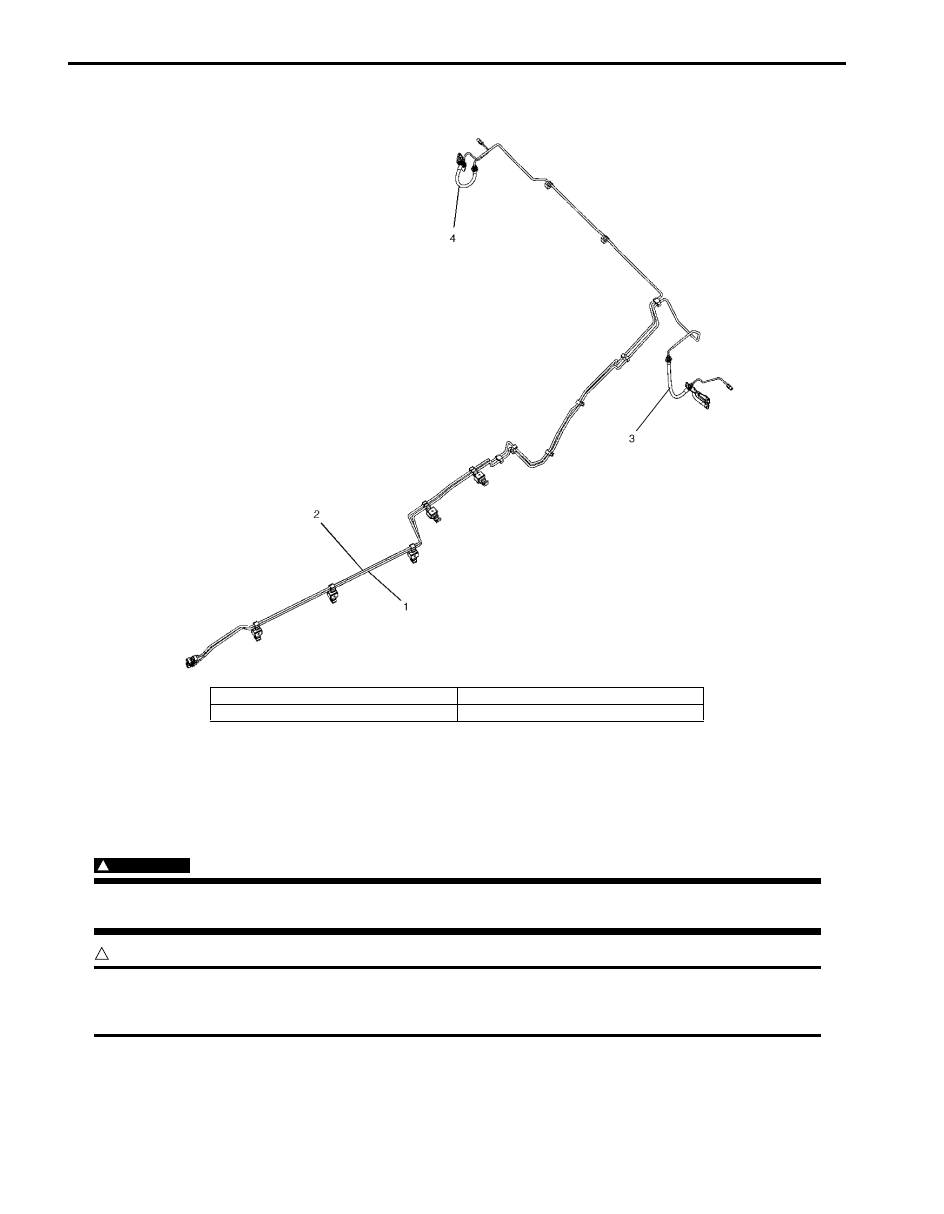

Rear Brake Hose / Pipe Construction

S5JB0A4101007

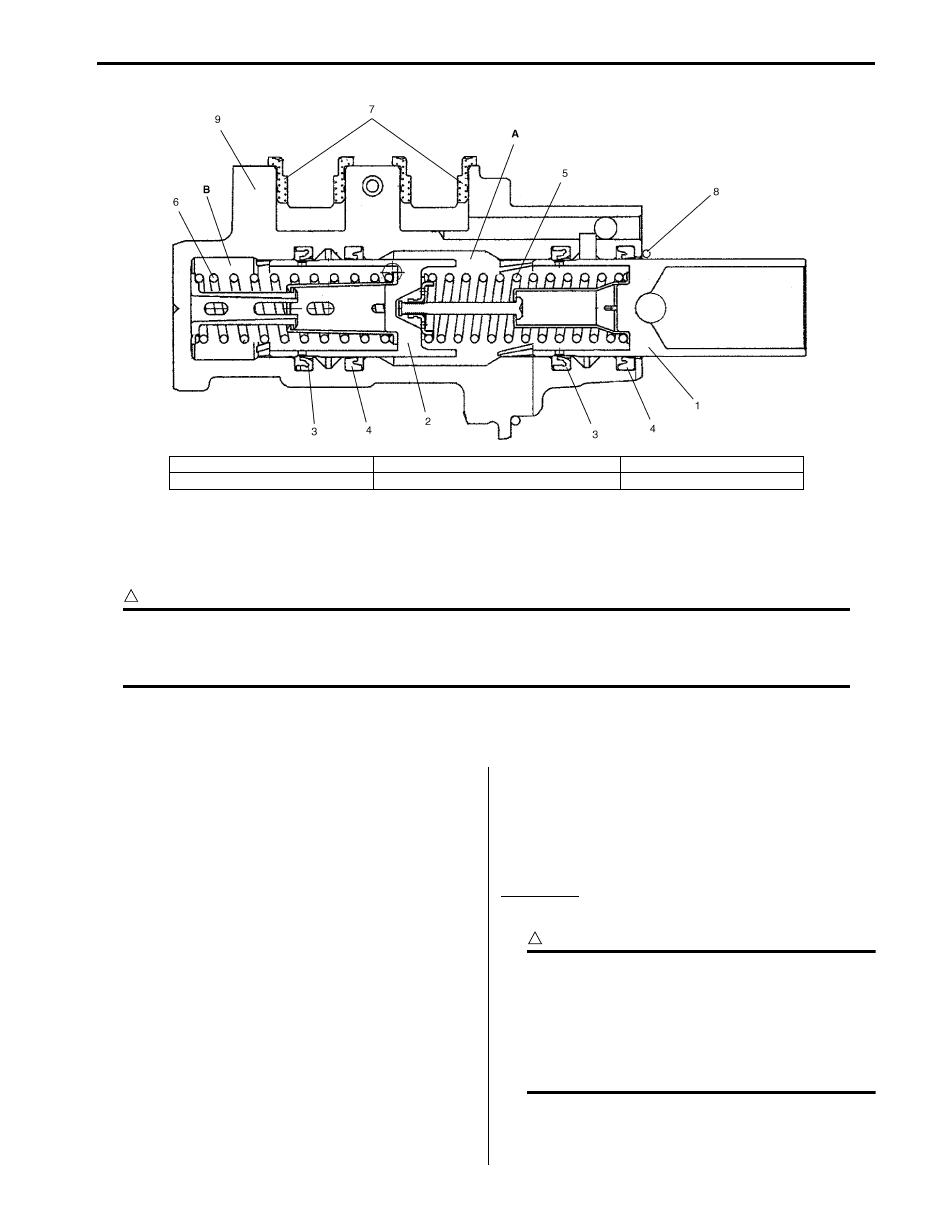

Master Cylinder Assembly Construction

S5JB0A4101003

The master cylinder has two pistons, two pressure seal (3) and two separating seal (4). Its hydraulic pressure is
produced in the primary (A in the figure) and secondary (B) chambers. The hydraulic pressure produced in the primary
chamber (A) acts on the front right and rear left brakes.
Also, the hydraulic pressure produced in the secondary chamber (B) acts on the front left and rear right brakes.

WARNING

!



Brake master cylinder cannot be disassembled. When anything faulty is found in it, it must be replaced
as an assembly.



CAUTION

!



Brake master cylinder cannot be disassembled in principle. Should primary piston (1) have come off
from cylinder while dismounting or handling it, wash it in the same specified fluid as that in reservoir
and place it back in cylinder.



I5JB0A410003-02

1. To left rear brake hose

3. Left rear brake hose

2. To right rear brake hose

4. Right rear brake hose

Brake Control System and Diagnosis:  4A-4

Booster Assembly Construction

S5JB0A4101004

The booster is located between the master cylinder and the brake pedal. It is so designed that the force created when
the brake pedal is depressed is mechanically increased combined with the engine vacuum.

CAUTION

!



• Never disassemble brake booster assembly. If it is found faulty, replace it with new assembly.
• The torque values specified are for dry, unlubricated fasteners. If any hydraulic component is

removed or brake line disconnected, bleed the brake system.



Diagnostic Information and Procedures

Brake Diagnosis Note

S5JB0A4104001

Road Test for Brakes
Brakes should be tested on dry, clean, smooth and
reasonably level roadway which is not crowned.
Road test brakes by making brake applications with both
light and heavy pedal forces at various speeds to
determine if the vehicle stops evenly and effectively.
Also drive vehicle to see if it leads to one side or the
other without brake application. If it does, check the tire
pressure, front end alignment and front suspension
attachments for looseness.
See diagnosis flow table for other causes.

Brake Fluid Inspection
Brake fluid leaks
Check the master cylinder fluid levels. While a slight
drop in reservoir level does result from normal lining
wear, an abnormally low level indicates a leak in the
system. In such a case, check the entire brake system

for leakage. If even a slight evidence of leakage is noted,
the cause should be corrected or defective parts should
be replaced.
If fluid level is lower than the minimum level of reservoir,
refilling is necessary.
Fill reservoir with specified brake fluid.

Brake fluid
: Refer to reservoir cap.

CAUTION

!



Since brake system of this vehicle is factory
filled with brake fluid indicated on reservoir
cap, do not use or mix different type of fluid
when refilling; otherwise serious damage will
occur.
Do not use old or used brake fluid, or any
fluid from a unsealed container.



I5JB0A410004-01

2. Secondary piston

6. Secondary piston return spring

8. O-ring

5. Primary piston return spring

7. Grommet

9. Master cylinder body
