3B-29 Differential: Rear

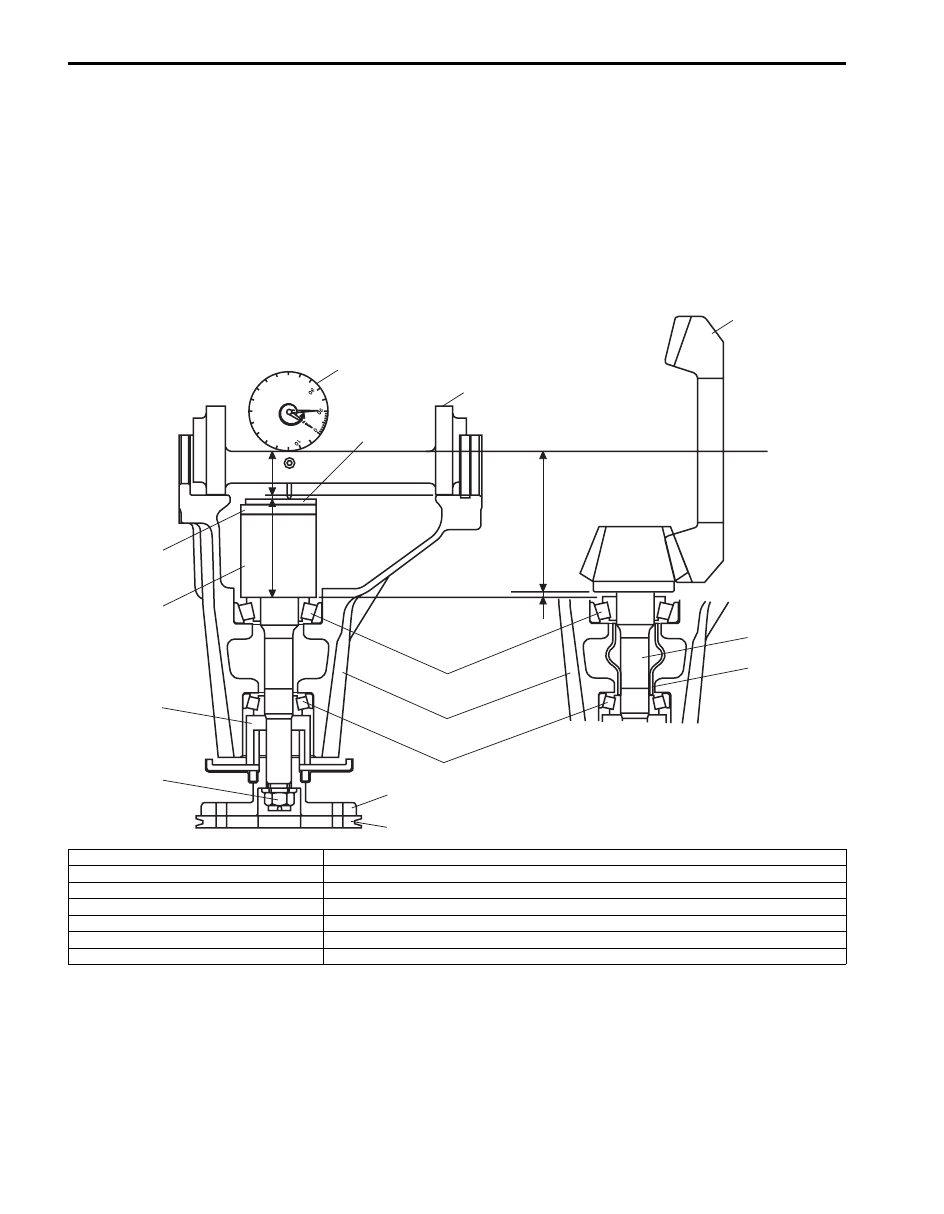

8) To engage drive bevel pinion and gear correctly, it is pre-required to install drive bevel pinion to differential carrier

properly by using adjusting shim as described on the followings. Shown below is relative positions of drive bevel
pinion, differential carrier and mounting dummy.

Special tool
(A):  09900–20607
(B):  09926–78320
(C):  09922–75222
(D):  09951–16070
(E):  09951–46010
(F):  09926–78311–002
(G):  09922–76520

(A)

(B)

(D)

(F)

(E)

2

(G)

“a”

“b”

“d”

“e”

“c”

(C)

1

5

4

3

8

7

6

I5JB0A321029-02

1. Universal Joint flange

8. Drive bevel gear

2. Nut

“a”: Pinion dummy height + Attachment height

3. Front bearing

“b”: Axle dummy radius

4. Differential carrier

“a” + “b”: Mounting dummy size 103.0 mm/4.0551 in.

5. Rear bearing

“c”: Measured dimension

6. Spacer

“d”: Drive bevel pinion mounting distance 102.0 mm/4.0157 in.

7. Drive bevel pinion

“e”: Shim size for mounting distance adjustment (= “c” + 1)

Differential: Rear 3B-30

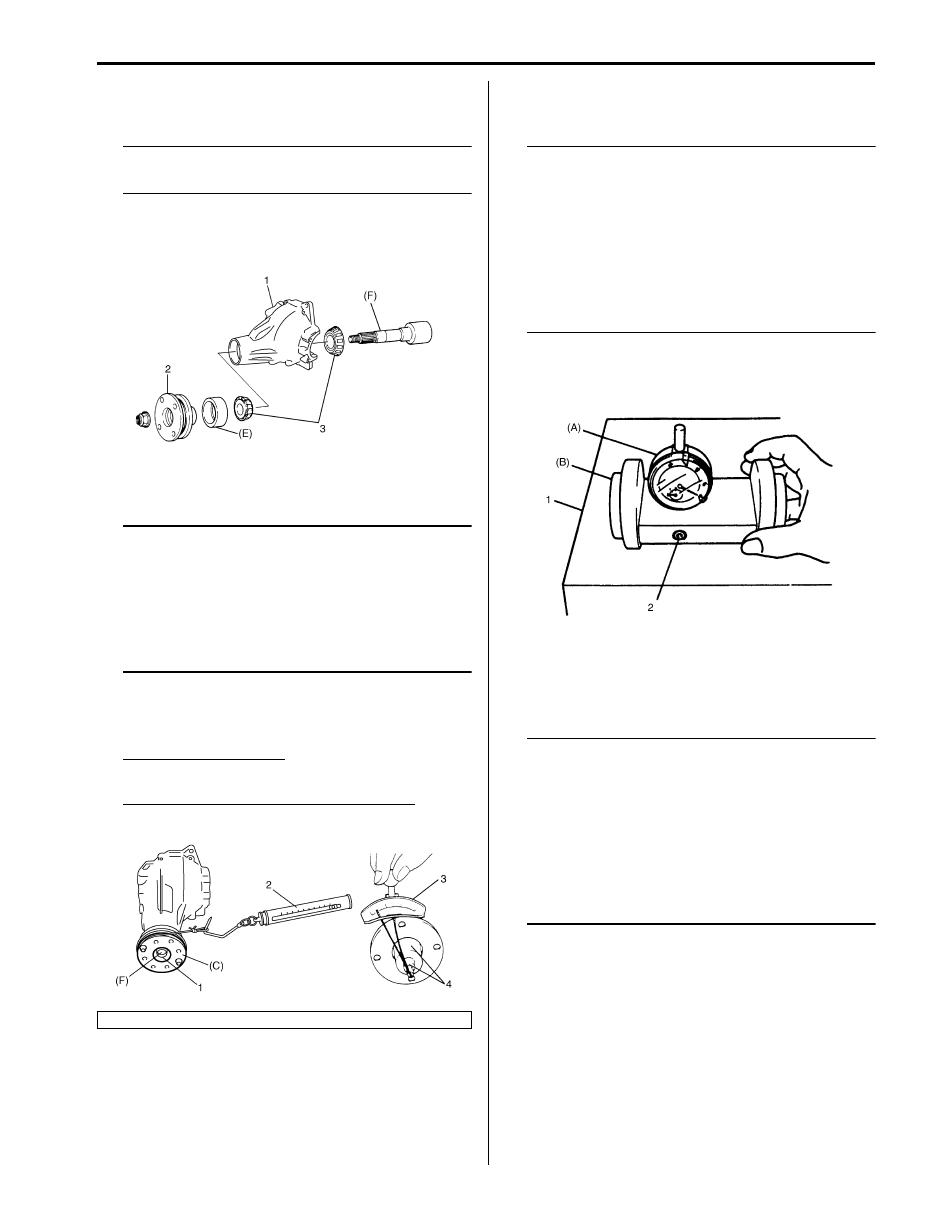

9) Install special tools with bearings (3) and flange (2)

to differential carrier (1).

NOTE
This installation requires no spacer or oil
seal.



Special tool
(E):  09951–46010
(F):  09926–78311–002

10) Tighten flange nut (1) so that specified bearing

preload is obtained.

NOTE

• Before taking measurement with spring

balance (2) or torque wrench (3), check for
rotation by hand and apply small amount
of differential oil to bearings.

• On measuring preload, rotate the drive

bevel pinion about 1 rotation per 2
seconds.



Special tool
(C):  09922–75222
(F):  09926–78311–002

Pinion bearing preload
0.9 – 1.7 N

⋅m (9.0 – 17.0 kg-cm, 7.8 – 14.7 lb-in.)

Spring measure reading with special tool
20 – 40 N (2.0 – 4.0 kg, 4.4 – 8.8 lb)

11) Set dial gauge to mounting dummy and make 0

(zero) adjustment on surface plate (1).

NOTE

• When setting dial gauge to mounting

dummy, tighten screw (2) lightly. Be careful
not to overtighten it, which will cause
damage to dial gauge.

• With dial gauge set, turn dummy back and

force by hand a couple of times and attain
accurate 0 (zero) adjustment.

• It is desirable that short pointer indicates

beyond 2 mm when long one is at 0 (zero).



Special tool
(A):  09900–20607
(B):  09926–78320

12) Place zero-adjusted mounting dummy and dial

gauge set on pinion mounting dummy and take
measurement between zero position and extended
dial gauge measuring tip.

NOTE

• Repeat turning back and force of dummy

and measure distance as far as top surface
of pinion dummy accurately.

• When dial gauge measuring tip extends

from 0 (zero) position, pointer turns
counterclockwise.

• Measured value may exceed 1 mm.

Therefore, it is also necessary to know
reading of short pointer.



4. Socket with adapter

I5JB0A321030-01

I5JB0A321031-01

IYSQ01322033-01

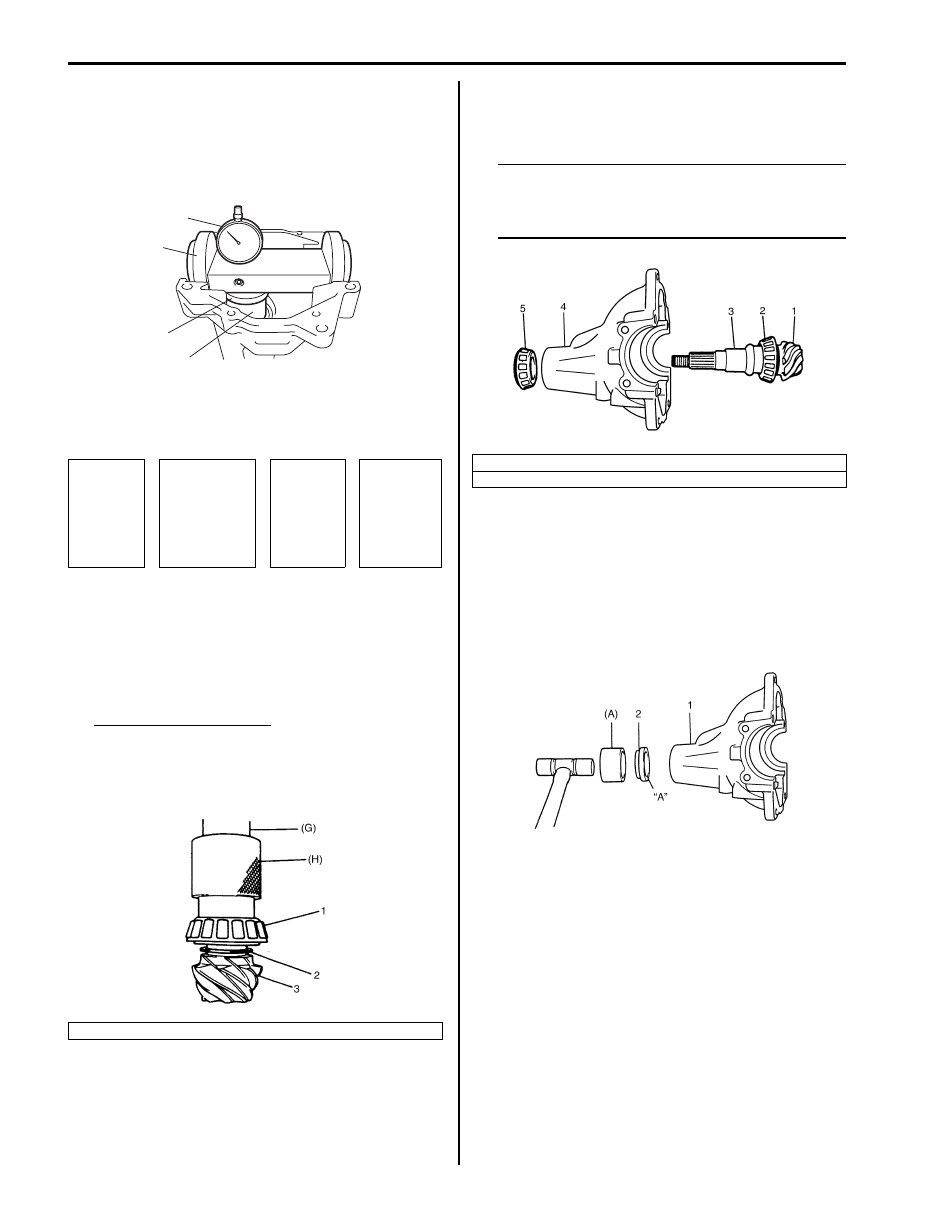

3B-31 Differential: Rear

Special tool
(A):  09900–20607
(B):  09926–78311
(D):  09951–16070
(F):  09926–78311–002
:  09922–76520

13) Obtain adjusting shim thickness by the following

equation.
“1 mm (0.039 in.)” is “a” + “b” (Mounting dummy size)
– “d” (Drive bevel pinion mounting distance)

14) Select adjusting shim(s) (2) closest to calculated

value from among the following available sizes and
put it in place and then press-fit rear bearing (1).

Special tool
(G):  09913–85210
(H):  09940–53111

Available shim thickness
1.00, 1.03, 1.06, 1.09, 1.12, 1.15, 1.18, 1.21,1.24,
1.27, 1.30 and 0.3 mm
(0.039, 0.040, 0.042, 0.043, 0.044, 0.045, 0.046,
0.047 0.048, 0.049, 0.050 and 0.012 in.)

15) With new pinion spacer (3) inserted as shown in the

figure, install front bearing (5) to differential carrier
(4).

NOTE

• Make sure to use new spacer for

reinstallation.

• Apply differential oil to bearings.



16) Using special tool and plastic hammer, drive oil seal

(2) into differential carrier (1) as shown in figure.
Then apply grease “A” to oil seal lip.

“A”:  Grease 99000–25010 (SUZUKI Super
Grease A)

Special tool
(A):  09951–18210

Necessary

shim

thickness

“e”

=

Mounting

dummy size

103.0mm /

4.0551 in. “a”

+ “b”

+

Measured

dimension

“c”

–

Drive bevel

pinion

mounting

distance

102 mm /

4.0157 in.

3. Drive bevel pinion

(F)

(D)

(B)

(A)

I5JB0A321032-01

I5JB0A321033-01

1. Drive bevel pinion
2. Rear bearing

I5JB0A321034-01

I5JB0A321035-01

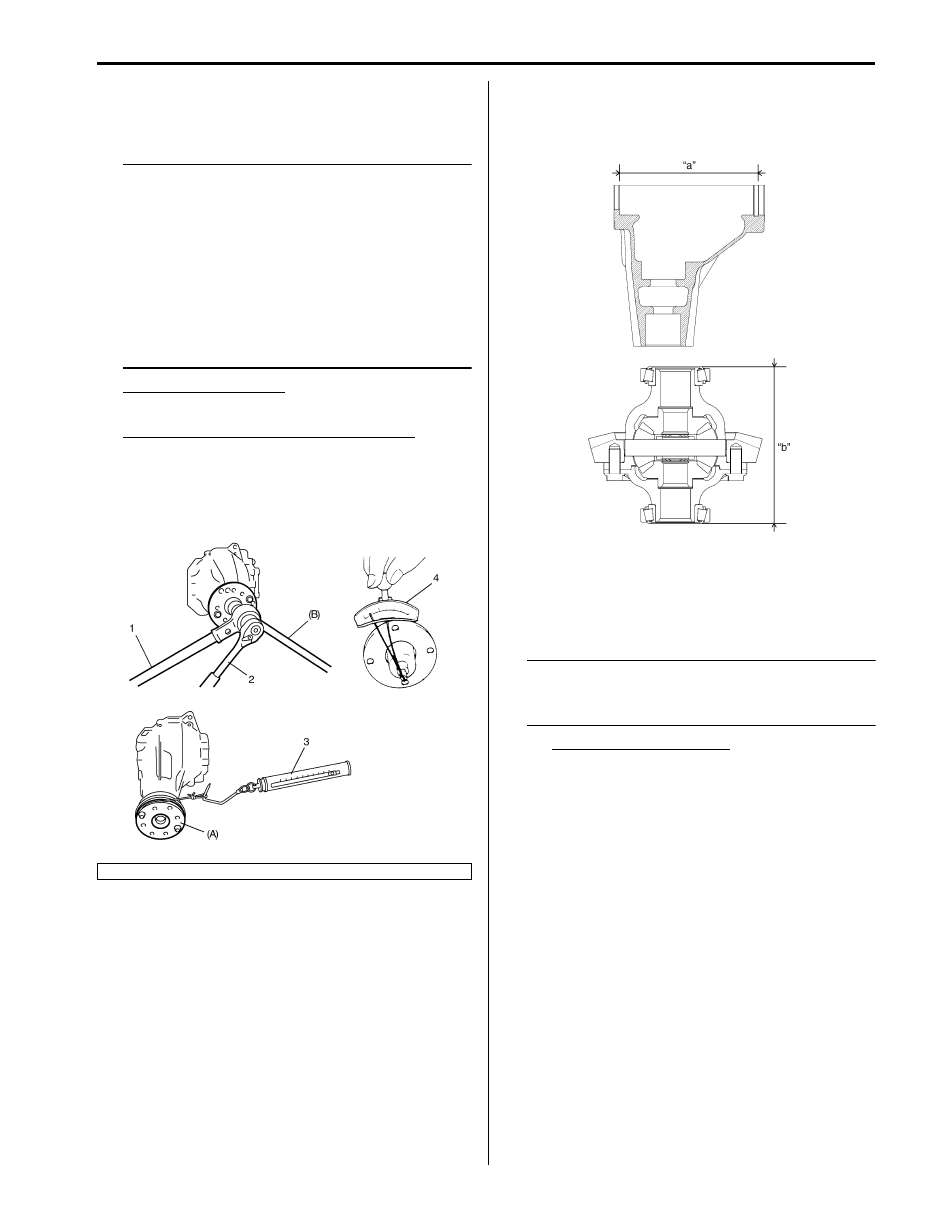

Differential: Rear 3B-32

17) While tightening flange nut gradually with special

tool and power wrench (4 – 10 magnification) (1), set
preload of pinion to specification.

NOTE

• Before taking measurement with spring

balance (3) or torque wrench (4), check for
smooth rotation by hand.

• On measuring preload, rotate the drive

bevel pinion about 1 rotation per 2
seconds.

• Be sure to tighten gradually and carefully

till specified starting torque is obtained.
Turning back overtightened flange nuts
should be avoided.



Pinion bearing preload
0.9 – 1.7 N

⋅m (9.0 – 17.0 kg-cm, 7.8 – 14.7 lb-in.)

Spring measure reading with special tool
20 – 40 N (2.0 – 4.0 kg, 4.4 – 8.8 lb)

Special tool
(A):  09922–75222
(B):  09922–66021

18) Select differential side bearing shim as follows.

a) Measure dimension “a” and “b” using vernier

caliper.

b) Calculate dimension “a” – “b”, and select shims

from among following available size so that total
of thickness of right side and left side shims may
reach the calculated value.

NOTE
Select shims so that thickness of right side
shims and left side shims become almost
even.



Available shim thickness
Right side: 1.75, 1.85, 1.95, 2.00, 2.05, 2.15
and 2.25 mm (0.069, 0.073, 0.077, 0.079, 0.081,
0.085 and 0.089 in.)
Left side: 2.75, 2.85, 2.95, 3.00, 3.05, 3.15 and
3.25 mm (0.108, 0.112, 0.116, 0.118, 0.120,
0.124 and 0.128 in.)

2. Socket wrench

I5JB0A321036-02

I5JB0A321037-04
