1E-12 Engine Lubrication System: For J20 Engine

I5JB0A151013-01

Engine Lubrication System: For J20 Engine 1E-13

Diagnostic Information and Procedures

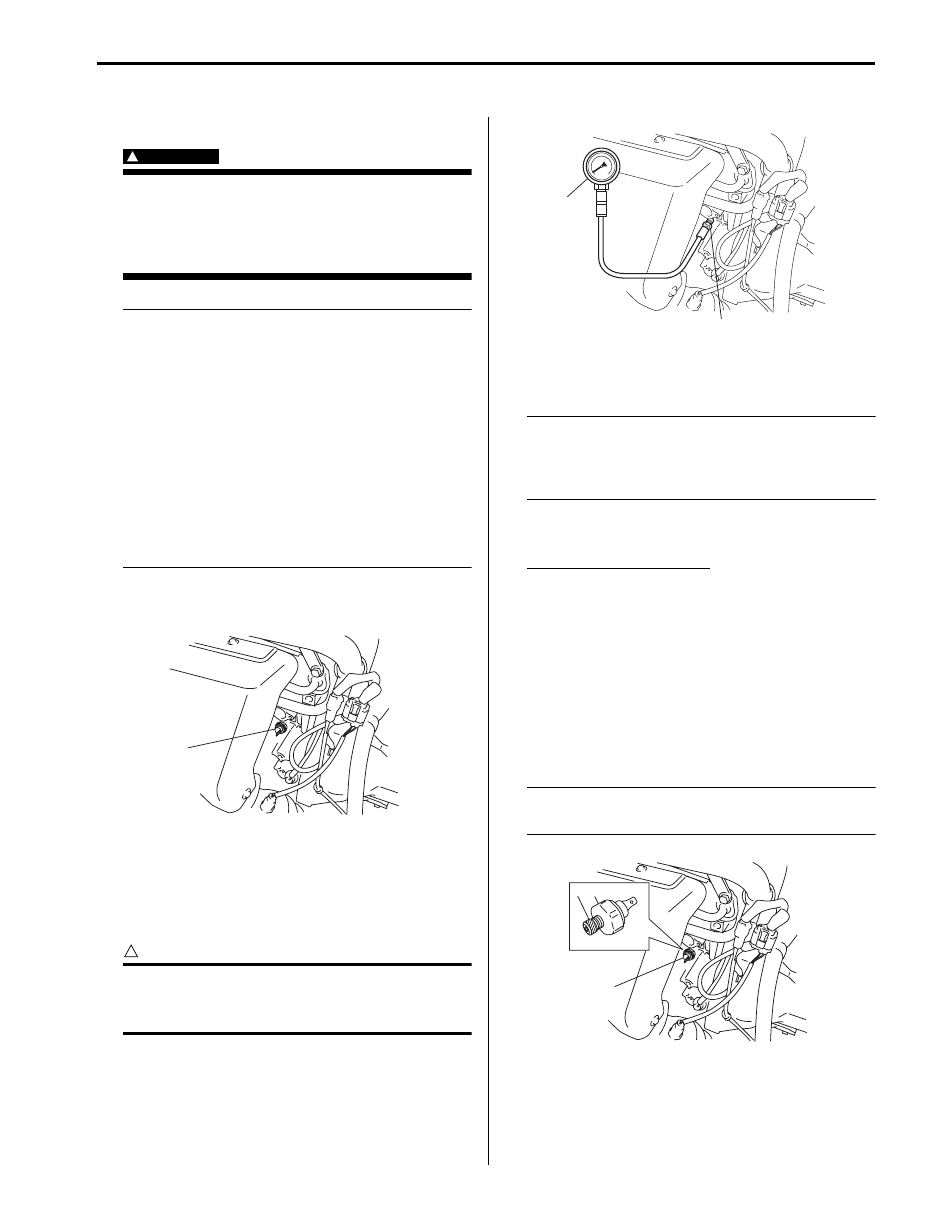

Oil Pressure Check

S5JB0A1524001

WARNING

!



To avoid danger of being burned, do not
touch exhaust manifold when exhaust
system is hot.
When servicing, be sure to perform it after
exhaust system has cooled down.



NOTE
Prior to checking oil pressure, check the
following.
• Oil level in oil pan

If oil level is low, add oil up to Full level
hole on oil level gauge referring to “Engine
Oil and Filter Change in Section 0B”.

• Oil quality

If oil is discolored, or deteriorated, change
it. For particular oil to be used, refer to
“Engine Oil and Filter Change in Section
0B”.

• Oil leaks

If leak is found, repair it.



1) Disconnect oil pressure switch connector.
2) Remove oil pressure switch (1) from cylinder block.

3) Install special tool (Oil pressure gauge) to vacated

threaded hole.

Special tool
(A):  09915–77311
(B):  09915–78211

CAUTION

!



Be careful not to make special tool touch
Exhaust manifold when installing because
Exhaust manifold becomes very hot.



4) Start engine and warm it up to normal operating

temperature.

NOTE
Be sure to place transmission gear shift lever
in “Neutral” (shift selector lever to “P” range
for A/T model), and set parking brake and
block drive wheels.



5) After warming up, raise engine speed to 4,000 rpm

and measure oil pressure.

Oil pressure specification
More than 390 kPa (3.9 kg/cm

2

, 55.5 psi)

6) After checking oil pressure, stop engine and remove

oil pressure gauge.

7) Before reinstalling oil pressure switch (2), be sure to

wrap its screw threads with sealing tape (1) and
tighten switch to specified torque.

Tightening torque
Oil pressure switch (a):  13 N·m (1.3 kgf-m, 9.5
lb-ft)

NOTE
If sealing tape edge is bulged out from screw
threads of switch, cut it off.



8) Start engine and check oil pressure switch for oil

leakage. If oil leakage is found, repair it.

9) Connect oil pressure switch coupler.

1

I5JB0A152001-01

(A)

(B)

I5JB0A152002-01

1

2

2, (a)

I5JB0A152003-01

1E-14 Engine Lubrication System: For J20 Engine

Repair Instructions

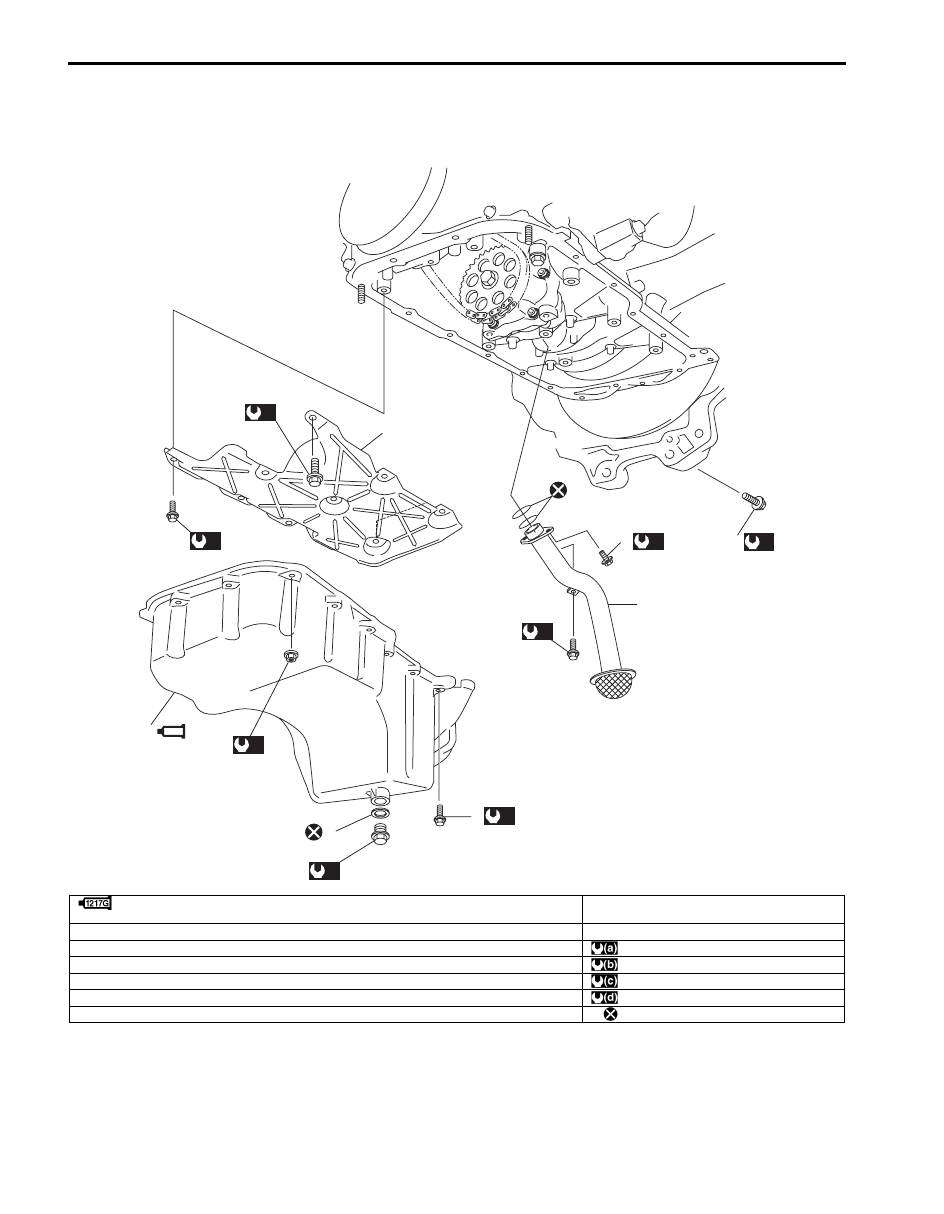

Oil Pan and Oil Pump Strainer Components

S5JB0A1526001

1217G

3

8

(a)

(a)

(a)

(a)

(b)

(c)

(d)

9

1

7

5

2

6

4

(a)

4

I5JB0A152004-02

 1. Oil pan

: Apply sealant 99000-31260 to mating surface.

8. Gasket

2. Oil pump strainer

9. Baffle plate

3. O-ring

: 11  N

⋅m (1.1 kgf-m, 8.0 lb-ft)

4. Oil pump strainer bolt

: 85 N

⋅m (8.5 kgf-m, 61.5 lb-ft)

5. Oil pan bolt and nut

: 35 N

⋅m (3.5 kgf-m, 25.5 lb-ft)

6. Transmission case No.1 bolt

: 25 N

⋅m (2.5 kgf-m, 18.0 lb-ft)

7. Drain plug

: Do not reuse.

Engine Lubrication System: For J20 Engine 1E-15

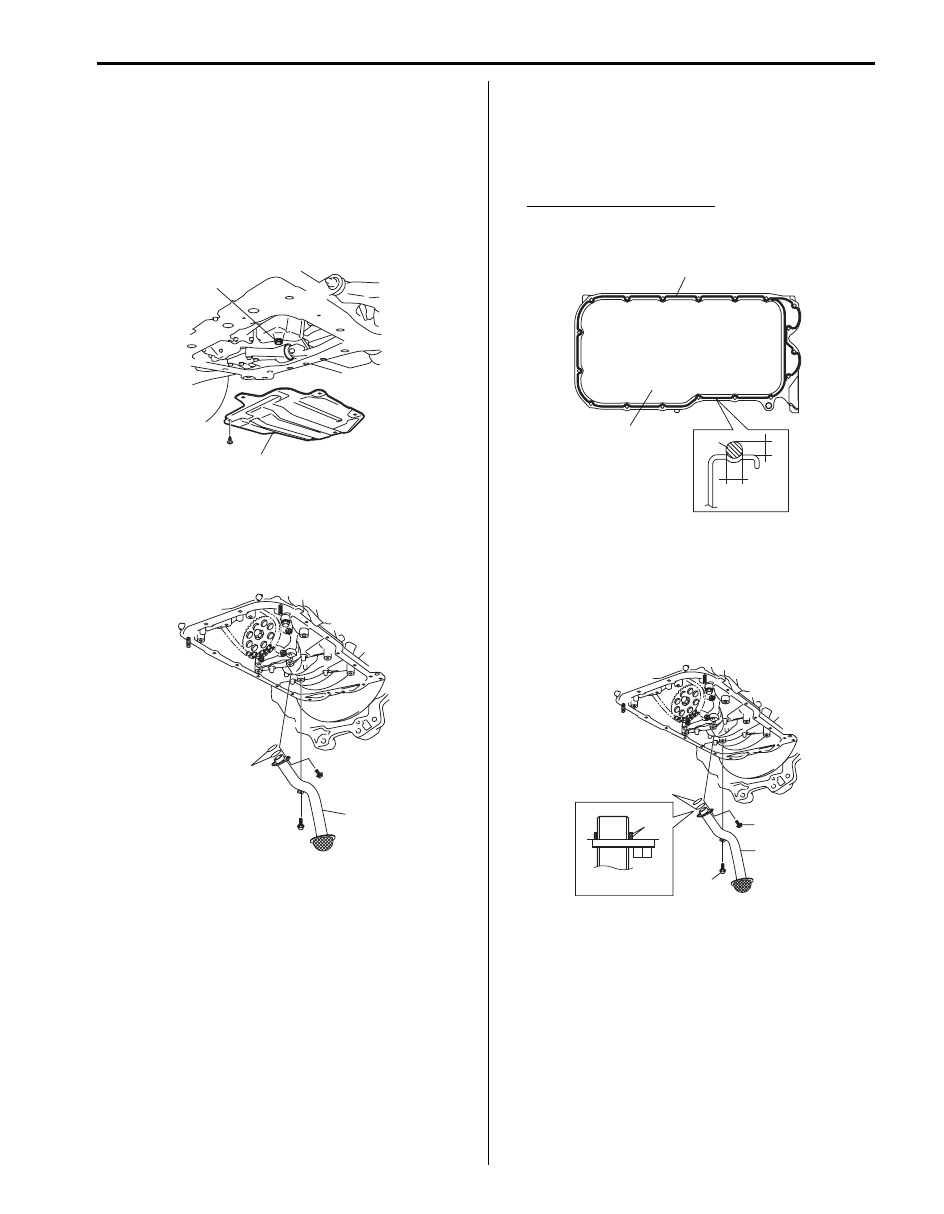

Oil Pan and Oil Pump Strainer Removal and
Installation

S5JB0A1526002

Removal

1) Remove oil level gauge.
2) Raise vehicle.
3) Remove engine under cover (1).
4) Drain engine oil by removing drain plug (2).

5) Remove front suspension frame referring to “Front

Suspension Frame, Stabilizer Bar and/or Bushings
Removal and Installation in Section 2B”.

6) Remove oil pan, oil pump strainer (1) and O-ring (2)

from lower crank case.

Installation

1) Apply sealant to oil pan (1) mating surface

continuously as shown in figure.

“A”:  Water tight sealant 99000–31250 (SUZUKI
Bond No.1207F)

Sealant amount for oil pan
Width “a”: 3 mm (0.12 in.)
Height “b”: 2 mm (0.08 in.)

2) Install new O-rings (2) to oil pump strainer (1)

securely as shown in figure.
Tighten strainer bolts to specified torque.

Tightening torque
Oil pump strainer bolt (a):  11 N·m (1.1 kgf-m, 8.0
lb-ft)

3) After fitting oil pan (1) to cylinder block, run in

securing bolts and start tightening at the center:
move wrench outward, tightening one bolt at a time.
Tighten bolts and nuts to specified torque.

Tightening torque
Oil pan bolt and nut (a):  11 N·m (1.1 kgf-m, 8.0
lb-ft)
Transmission case No.1 bolt (b):  85 N·m (8.5
kgf-m, 61.5 lb-ft)

2

1

I5JB0A152005-01

2

1

I5JB0A152006-02

“A”

“A”

“a”

“b”

1

I5JB0A152007-01

2

2

(a)

1

(a)

I5JB0A152008-02
