1A-65 Engine General Information and Diagnosis:

DTC P0030: HO2S Heater Control Circuit (Sensor-1)

S5JB0A1104088

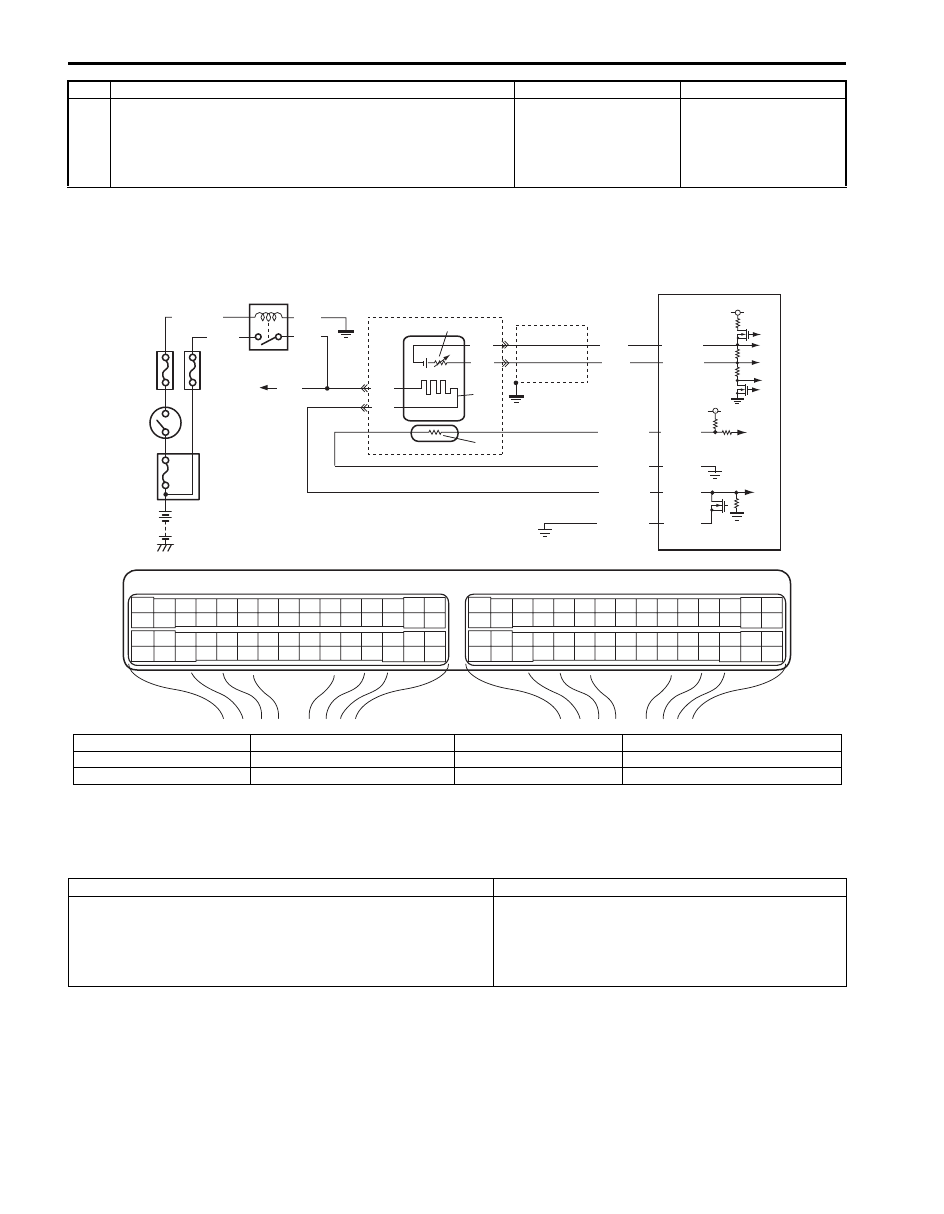

Wiring Diagram

A/F Sensor Description
Refer to “A/F Sensor Description”.

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure

1) With ignition switch turned OFF, connect scan tool.
2) Turn ON ignition switch and clear DTC using scan tool.
3) Start engine and warm up to normal operating temperature.
4) Run engine at idle speed for 4 min. or more.
5) Check DTC and pending DTC.

8

Oil control valve check
1) Check oil control valve referring to “Oil Control Valve

Inspection: For M16A Engine with VVT in Section 1D”.

Is it in good condition?

Replace camshaft
timing sprocket.

Replace oil control
valve.

Step

Action

Yes

No

E23

C37

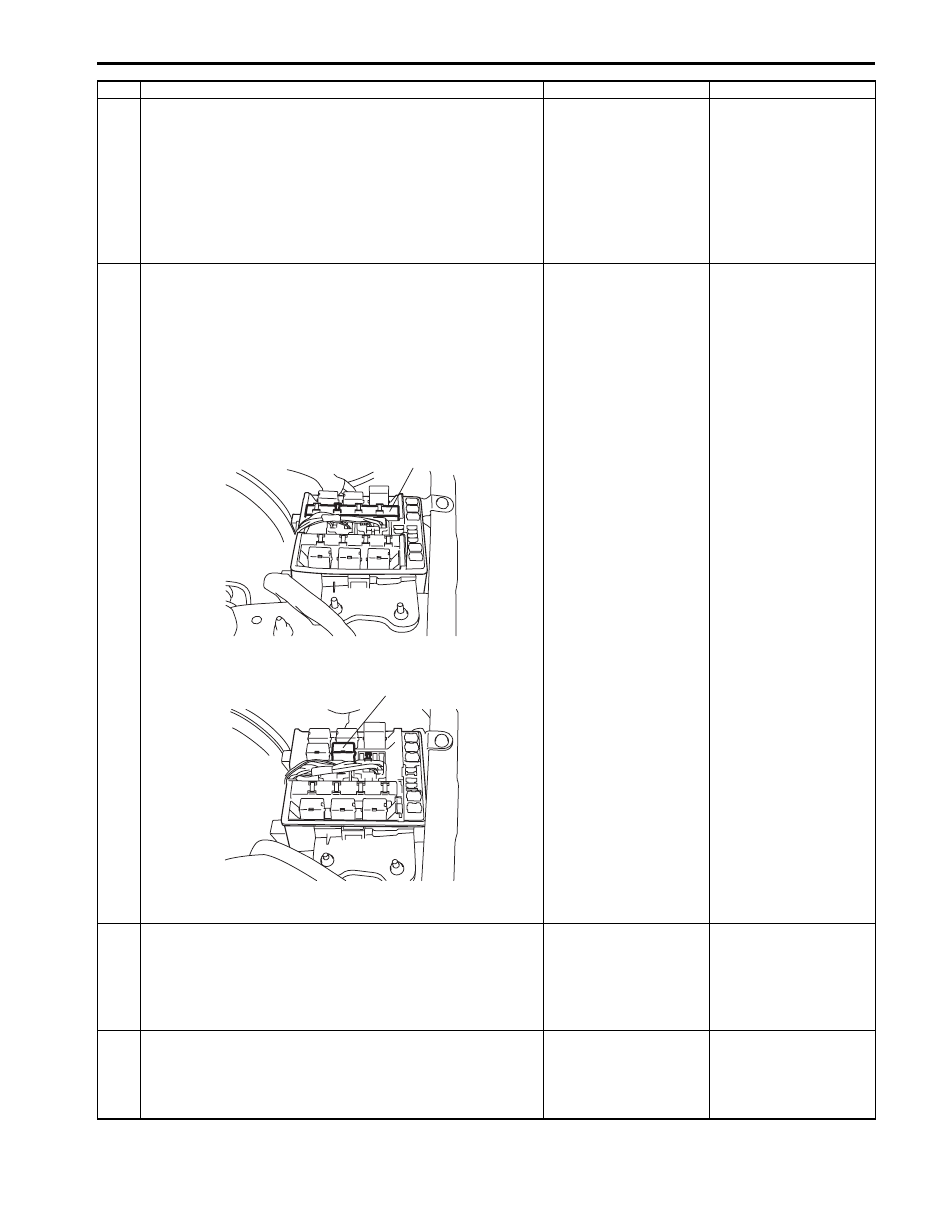

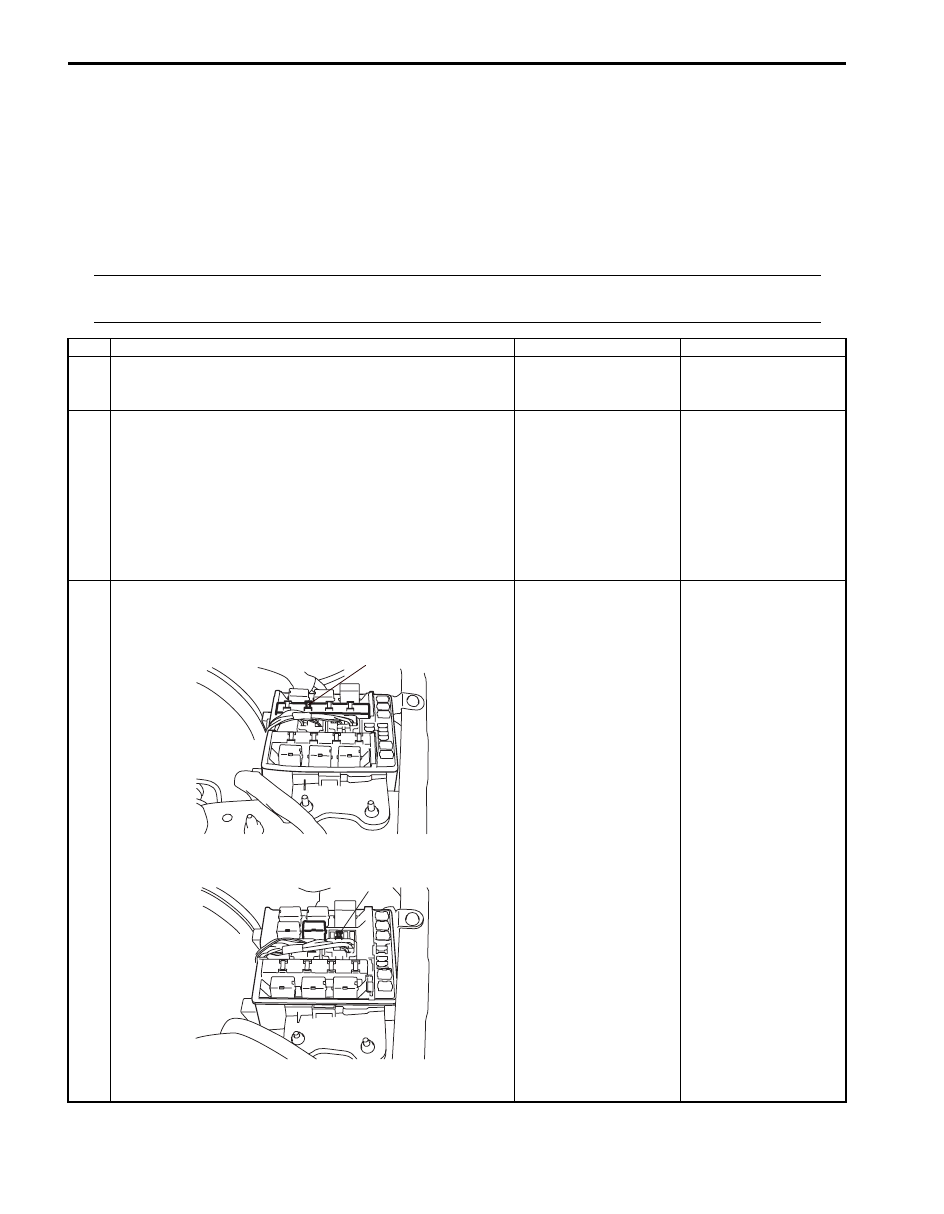

3

4

18

19

5

6

7

10

11

17

20

47

46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32

31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

3

4

18

19

5

6

7

10

11

17

20

47

46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32

31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

4

3

9

PNK

6

2

1

8

5

BLK/WHT

BLK

PNK

*GRN

C37-34

C37-32

C37-37

C37-38

BLK

BLK

BLU

WHT

C37-35

C37-31

WHT

BLK

RED/YEL

RED/BLU

PNK/BLU

BLK/YEL

10

7

11

5 V

5 V

I5JB0A110027-02

1. HO2S heater relay

4. “O2 HTR” fuse

7. Heater

10. Adjusting resistor

2. Shield wire

5. “IG COIL” fuse

8. To HO2S-2 heater

11. Sensor

3. Ignition switch

6. A/F sensor

9. ECM

*: For M16 engine

DTC detecting condition

Trouble area

Impedance of A/F sensor element is higher than or lower than
specified range for more than 200 sec. even though A/F sensor
heater is turned ON for more than specified time with engine
running. (A/F sensor does not activate)
(2 driving cycle detection logic)

• A/F sensor heater circuit
• A/F sensor heater
• ECM

Engine General Information and Diagnosis:  1A-66

DTC Troubleshooting

NOTE
Before this trouble shooting is performed, read the precautions for DTC troubleshooting referring to
“Precautions For DTC Troubleshooting”.



DTC P0031 / P0032: HO2S Heater Control Circuit Low / High (Sensor-1)

S5JB0A1104015

Wiring Diagram
Refer to “DTC P0030: HO2S Heater Control Circuit (Sensor-1)”.

A/F Sensor Description
Refer to “A/F Sensor Description”.

DTC Detecting Condition and Trouble Area

Step

Action

Yes

No

1

Was “Engine and Emission Control System Check”
performed?

Go to Step 2.

Go to “Engine and
Emission Control
System Check”.

2

DTC check

Is there any DTC(s) other than P0030?

Go to applicable DTC
diag. flow.

Go to Step 3.

3

Sensor circuit check
1) Disconnect connectors from A/F sensor and ECM with

ignition switch turned OFF.

2) Check for proper connection to A/F sensor terminals and

ECM terminals.

3) If wire and connection are OK, measure each wire

resistance of A/F sensor circuit (sensor and heater)
between A/F sensor connector and ECM connector.

Is each measured wire resistance lower than 1

Ω

?

Go to Step 4.

Repair or replace
defective wire circuit.

4

Sensor circuit insulation check
1) Measure resistance between wire and wire at sensor

circuit terminals of A/F sensor connector (no continuity
check).

Is measured resistance infinity?

Substitute a known
good A/F sensor and
recheck.

Repair or replace
defective circuit.

DTC detecting condition

Trouble area

P0031:
Heater control circuit voltage of A/F sensor is lower than
specification for more than specified time continuously even
though control duty ratio of A/F sensor heater is less than 90%
with engine running. (Heater control duty pulse is not detected
in its circuit of ECM)
(2 driving cycle detection logic)
P0032:
Heater control circuit voltage of A/F sensor is higher than
specification for more than specified time continuously even
though control duty ratio of A/F sensor heater is more than 10%
with engine running. (Heater control duty pulse is not detected
in its circuit of ECM)
(2 driving cycle detection logic)

• A/F sensor heater circuit
• A/F sensor heater
• ECM

1A-67 Engine General Information and Diagnosis:

DTC Confirmation Procedure

1) With ignition switch turned OFF, connect scan tool.
2) Turn ON ignition switch and clear DTC using scan tool.
3) Start engine and warm up to normal operating temperature.
4) Run engine at idle speed for 1 min. or more.
5) Check DTC and pending DTC.

DTC Troubleshooting

NOTE
Before this trouble shooting is performed, read the precautions for DTC troubleshooting referring to
“Precautions For DTC Troubleshooting”.



Step

Action

Yes

No

1

Was “Engine and Emission Control System Check”
performed?

Go to Step 2.

Go to “Engine and
Emission Control
System Check”.

2

A/F sensor heater circuit check
1) Disconnect connector from A/F sensor with ignition

switch turned OFF.

2) Check for proper connection to A/F sensor connector.
3) If connection are OK, measure voltage between heater

power terminal of A/F sensor connector and vehicle
body ground with ignition switch turned ON.

Is measured voltage 10 – 14 V?

Go to Step 9.

Go to Step 3.

3
