36B

-

13

POWER ASSISTED STEERING

Steering column

36B

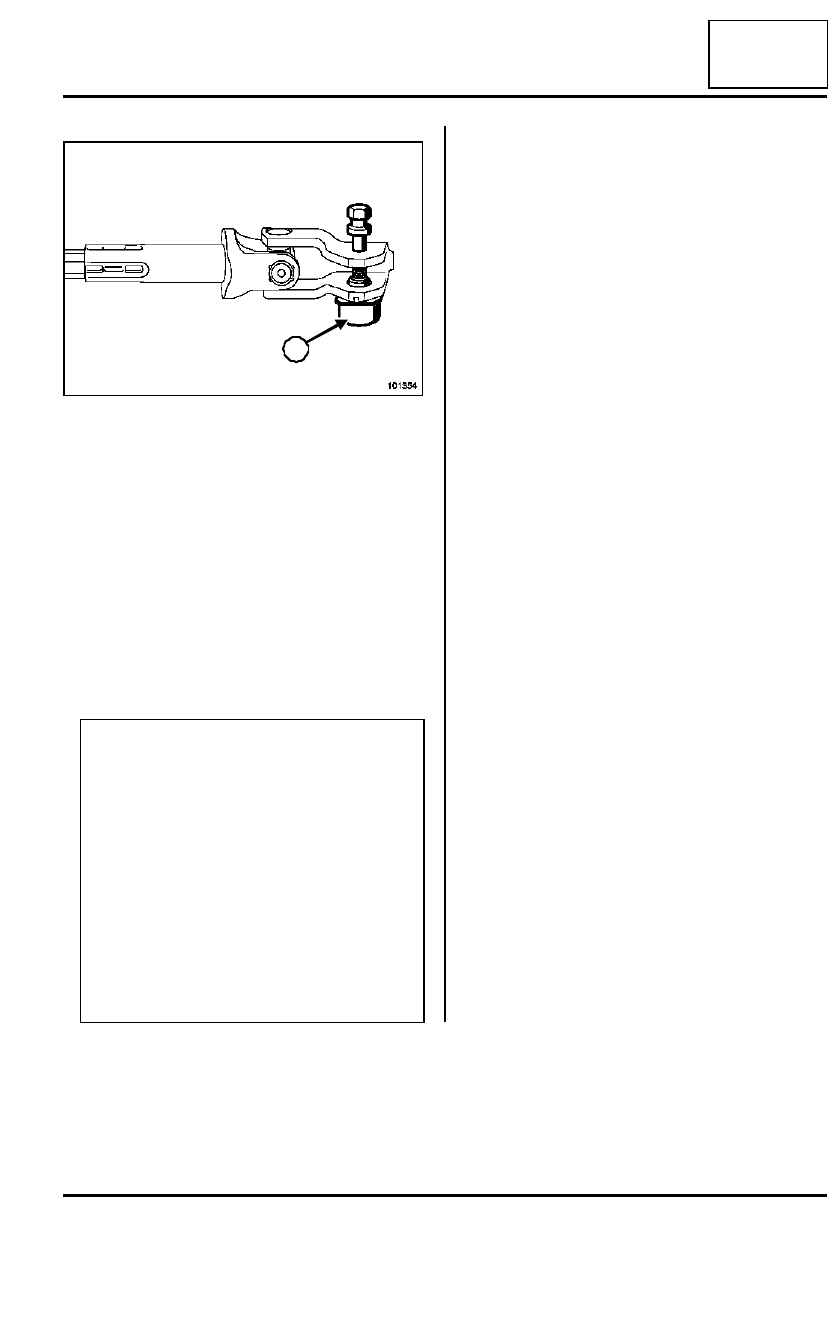

Ensure that the steering column universal joint ec-
centric nut and bolt are fitted the right way round.

Finger tighten the universal joint eccentric nut and
bolt.

Lock the eccentric nut in its housing (aperture on the
steering column universal joint).

Torque tighten:

- the steering column mounting nuts (2.1 daNm),

- the  steering column universal joint bolt  (2.4

daNm),

- the casing bolts (0.2 daNm),

- the steering wheel bolt (4.4 daNm).

101354

WARNING

Connect the battery, starting with the positive ter-
minal.

- Carry out the necessary programming (Section

Electrical equipment).

- Program the torque and angle sensor and make

the necessary configurations using the Dia-
gnostic tool
 (see Workshop Repair Manual
372
).

- Carry out a complete check using the Diagnos-

tic tool.

- Clear the fault generated using the Diagnostic

tool.

14

36B

-

14

POWER ASSISTED STEERING

Bulkhead seal

36B

REMOVAL

Remove the front axle sub-frame ( Front axle as-
semblies
Section).

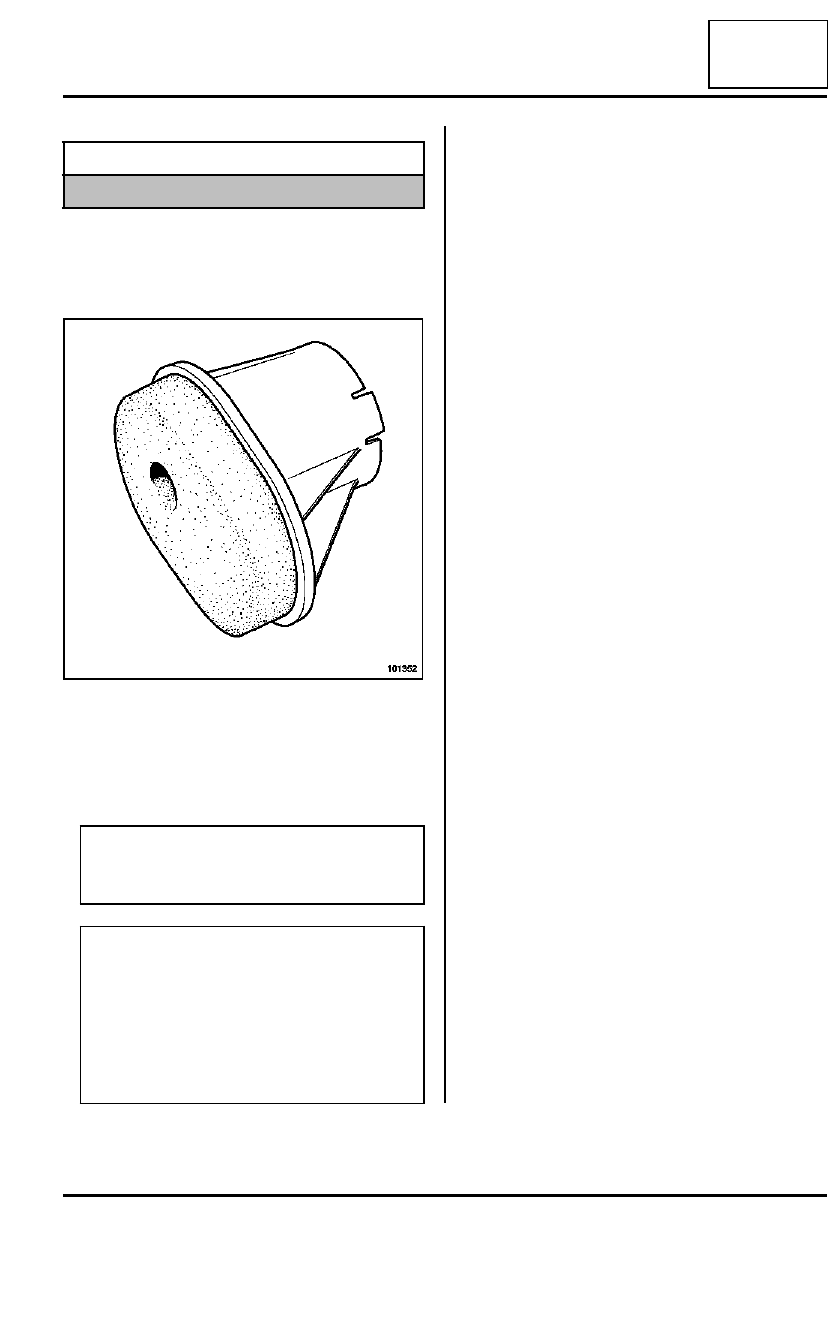

Unclip the bulkhead seal using a screwdriver.

REFITTING

To refit, proceed in the reverse order of removal.

Equipment required

Diagnostic tool

101352

Note:

- The universal joint cam bolt and nut must be

replaced.

WARNING

Connect the battery.

- carry  out the necessary programming ( Batte-

rySection).

- Program the angle and torque sensor and make

the necessary configurations using the Dia-
gnostic tool
 (see fault finding manual).

37A

-

1

MECHANICAL COMPONENT CONTROLS

Master cylinder

F4R or F9Q or K4J or K4M or K9K

37A

REMOVAL

Mount the vehicle on a two post lift.

Disconnect the battery, starting with the negative ter-
minal.

Remove:

- the wiper arms,

- the cowl grille.

Remove:

- the air filter access panel mounting bolts (1),

- the engine covers,

- the battery,

- the battery tray,

Tightening torques

m

master cylinder reser-
voir mounting bolts

0.85 daNm

master cylinder - brake
servo mounting nuts

5 daNm

brake pipe - master
cylinder nuts

1.7 daNm

WARNING

Prepare for brake fluid outflow, to prevent damage
to the mechanical parts and bodywork around the
braking system.

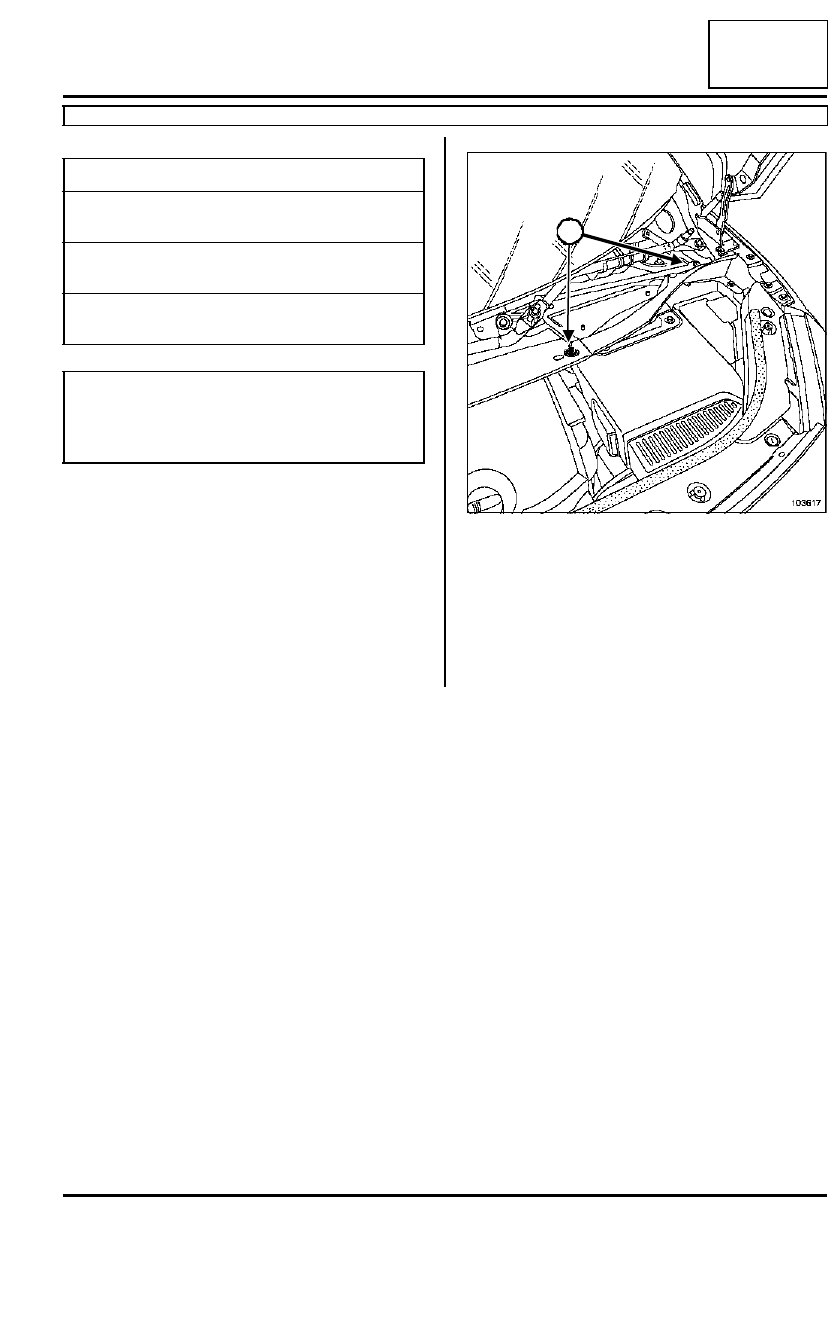

103617

1

37A

-

2

MECHANICAL COMPONENT CONTROLS

Master cylinder

F4R or F9Q or K4J or K4M or K9K

37A

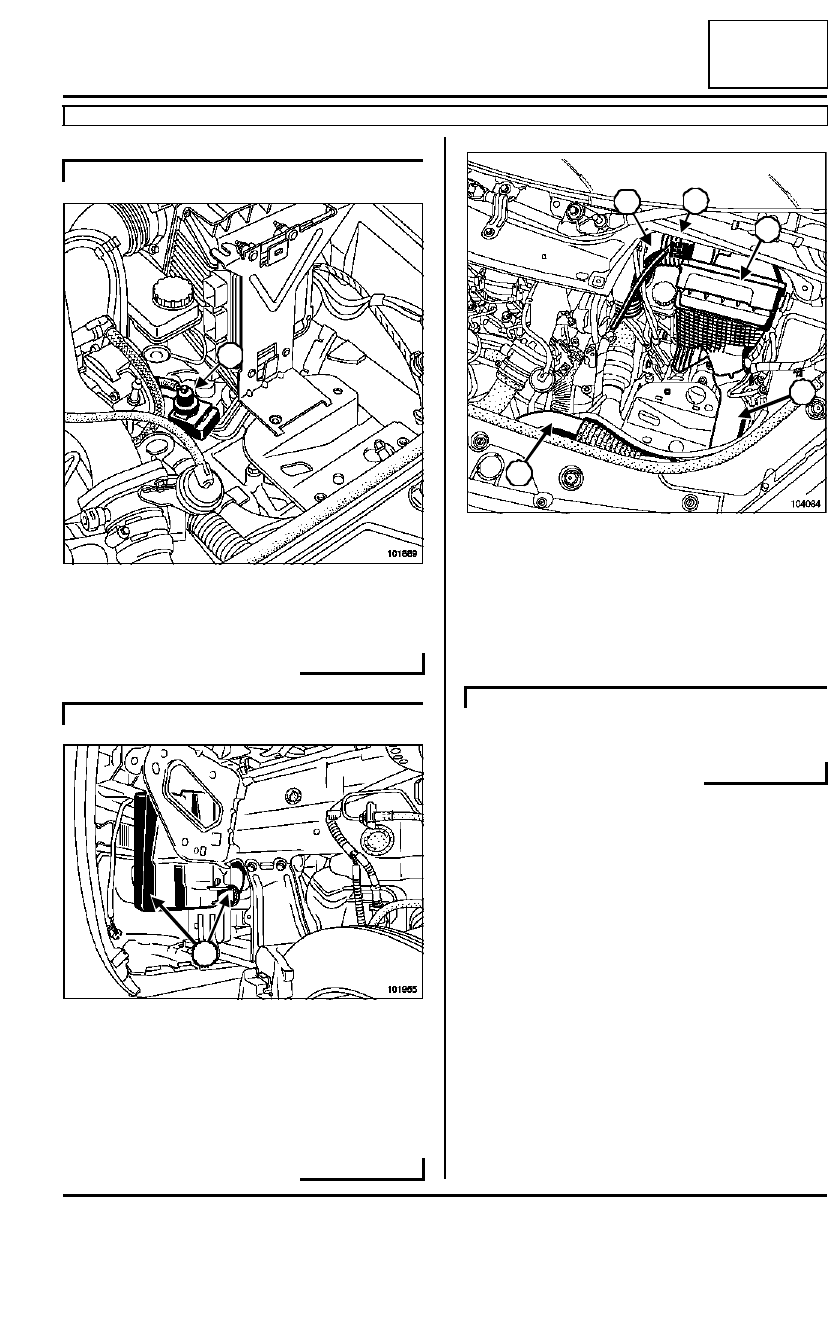

Remove the turbocharger regulation solenoid valve
(2).

Remove:

- the front left wheel,

- the wheel arch liner,

- both air resonators (3).

Remove:

- the air intake sleeve (4),

- the air sleeve (5),

- the air sleeve downstream of air box,(6),

- the air box (7).

Disconnect the air flowmeter connector (8).

F9Q

101889

F4R or K4M

101955

2

3

104084

F9Q

8

7

6

5

4
