Opel Frontera UE. Manual - part 710





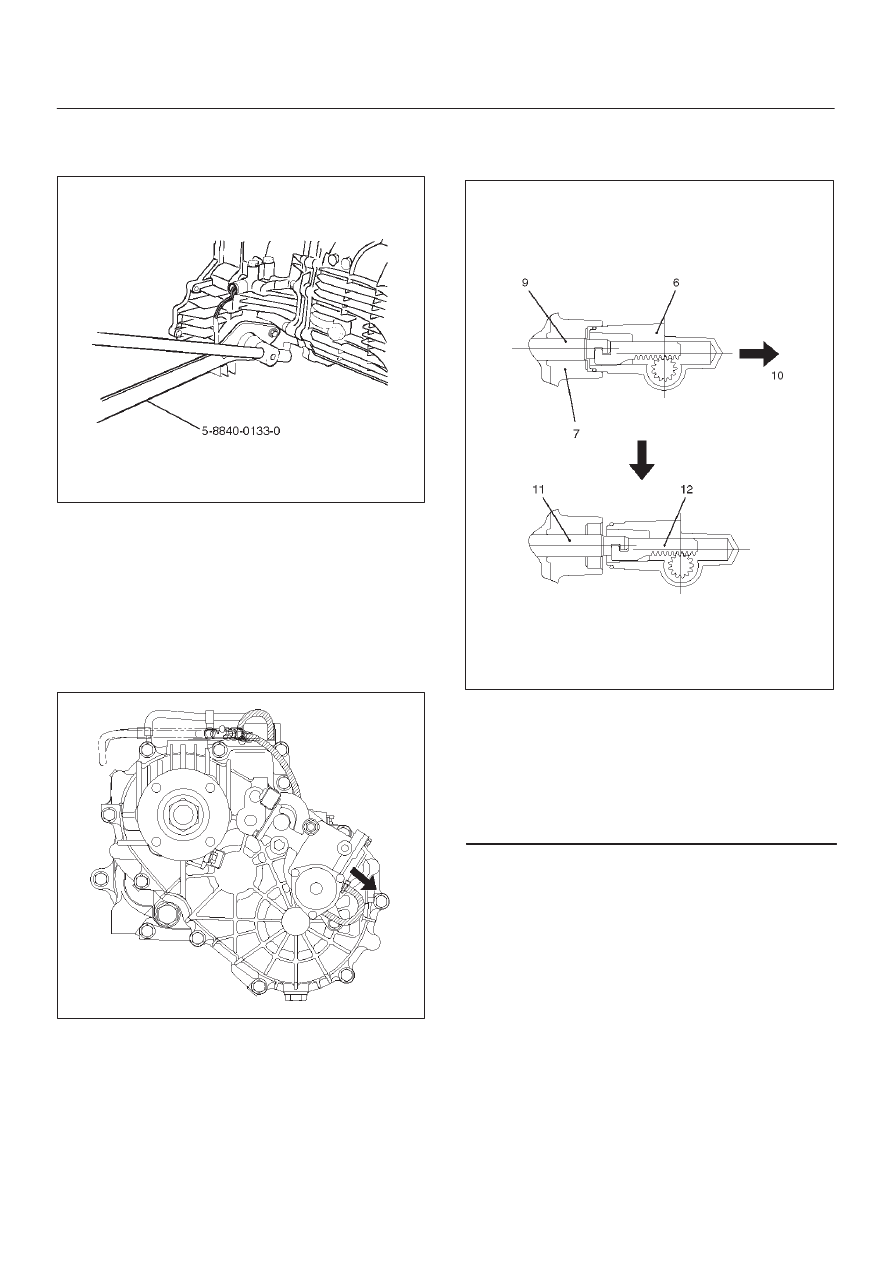

4D–12

TRANSFER CASE

4. Remove front companion flange (2) and rear

companion flange (3), using the flange companion
holder 5–8840–0133–0 to remove the end nut.

262RW067

5. Remove the front and rear companion flange.

NOTE: Use the universal puller to remove the rear
companion flange.

6. Disconnect the actuator breather hose and transfer

breather hose from control box (4).

7. Remove control box assembly (4).
8. Disconnect the actuator breather hose and

2WD–4WD actuator heat protector (5) from the
2WD–4WD actuator assembly (6).

220RW085–1

9. Remove the 2WD–4WD actuator assembly bolts.

10. Pull the 2WD–4WD actuator assembly (6) with

2WD–4WD shift rod.

220RW065

Legend

(6) 2WD–4WD Actuator Assembly
(7) Rear Cover Assembly
(9) Shift Rod: 2WD–4WD (Position: 2WD)

(10) Pull

(11) Position: 4WD

(12) Mode: 2WD

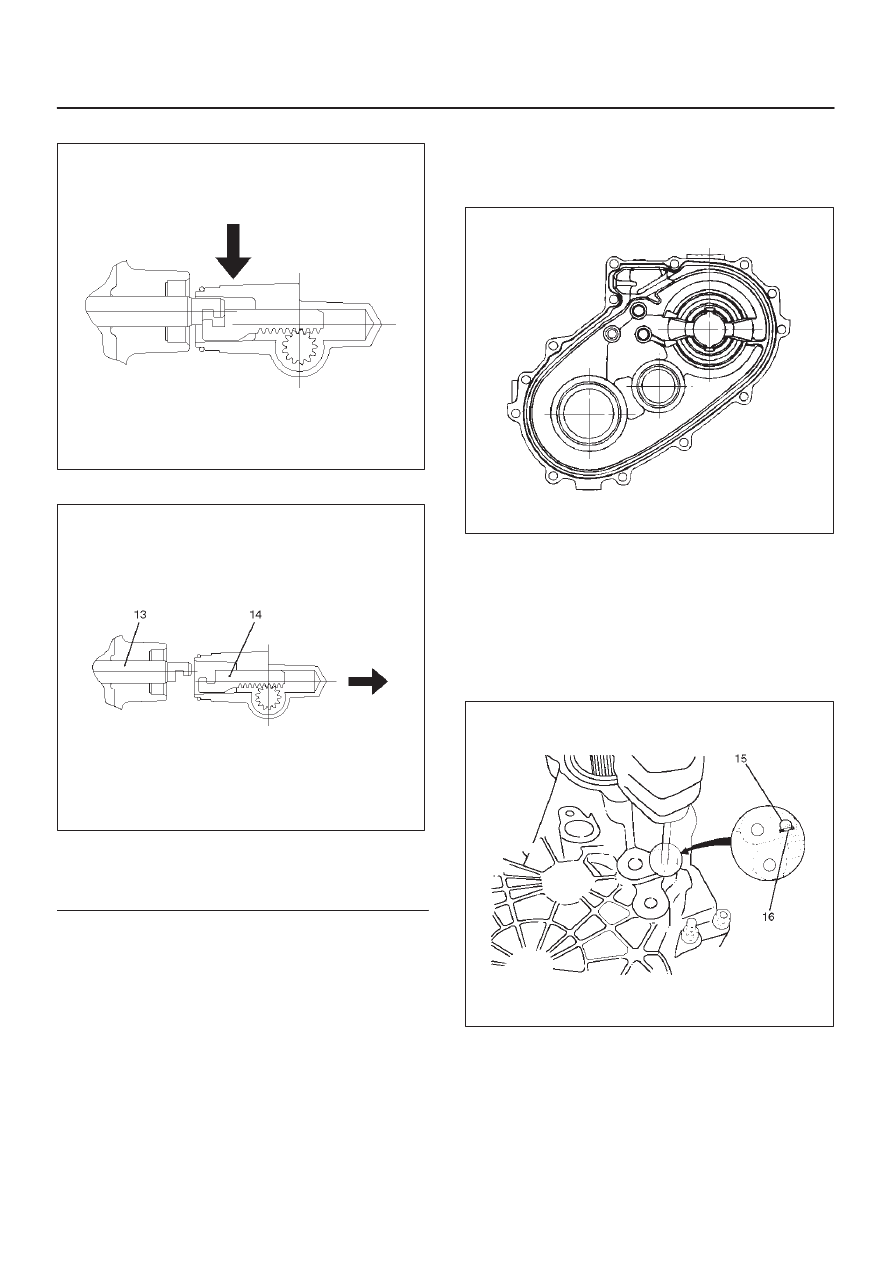

TRANSFER CASE

4D–13

11. Off set the actuator assembly.

220RW028

12. Remove the actuator assembly (6).

220RW066

Legend

(13) Position: 4WD
(14) Mode: 2WD

13. Remove transfer rear cover assembly (7) from

transfer case assembly.

Installation

1. Apply the recommended liquid gasket (LOCTITE

17430) or its equivalent to the transfer rear cover
fitting faces.

220RS017

2. Install transfer rear cover assembly (7) to transfer

case assembly (8).

3. Perform the following steps before fitting the transfer

rear case.
1. Shift the high–low shift rod to the 4H side.

2. The cut–away portion of the select rod head (15)

should align with that of the rear case hole’s
stopper (16).

230RW009

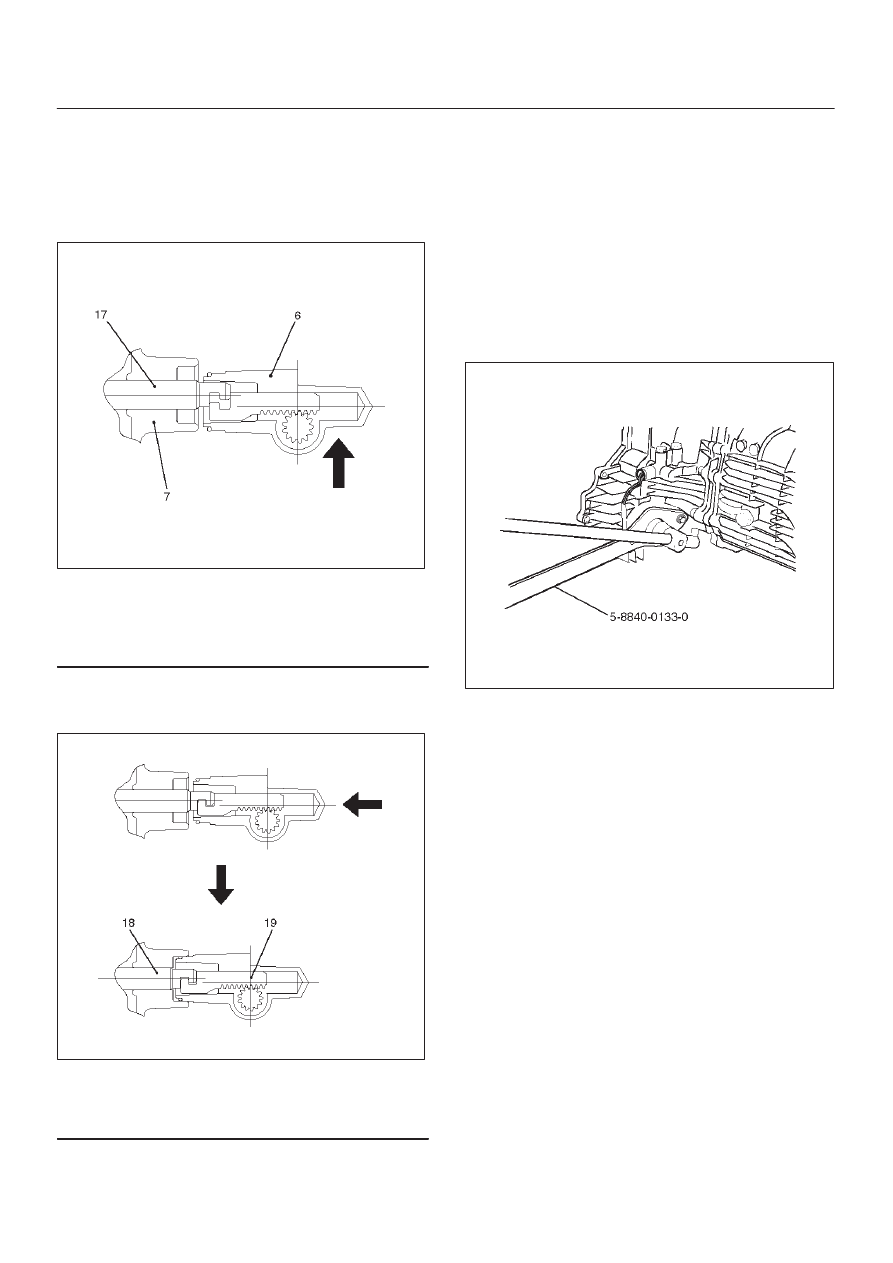

4D–14

TRANSFER CASE

4. Tighten the transfer rear case bolts to the specified

torque.

Torque: 37 N·m (3.8 kg·m/27 lb ft)

5. Shift the 2WD–4WD shift rod (17) to the 4WD side.
6. Join the rod grooves of 2WD–4WD actuator

assembly (6) and shift rod (17).

220RW067

Legend

(6) 2WD–4WD Actuator Assembly (Mode: 2WD)
(7) Rear Cover Assembly

(17) Shift Rod: 2WD–4WD (Position: 4WD)

7. Push the 2WD–4WD actuator assembly (6) with

2WD–4WD shift rod (17) till the shift rod (17) reaches
the 2WD position.

220RW068

Legend

(18) Position: 2WD
(19) Mode: 2WD

8. Tighten the 2WD–4WD actuator bolts to the specified

torque.

Torque: 19 N·m (1.9 kg·m/14 lb ft)

9. Connect the actuator breather hose to actuator.

10. Install actuator heat protector (5).

11. Install control box assembly (4).

Torque: 19 N·m (1.9 kg·m/14 lb ft)

12. Connect breather hoses to control box (4).
13. Install rear companion flange (3) and front companion

flange (2), using the companion flange holder
5–8840–0133–0 to tighten the flange nuts to the
transfer case.

262RW067

14. Tighten the new transfer flange nuts to the specified

torque.

Torque
Rear companion flange: 167 N·m (17.0 kg·m/123
lb ft)
Front companion flange: 137 N·m (14.0 kg·m/101
lb ft)

TRANSFER CASE

4D–15

15. Use the punch 5–8840–2293–0 to stake the rear

companion flange nut (3) at two spots.

266RW027

266RW002

16. Stake the front companion flange nut (2) at one spot.

NOTE: Be sure to confirm that there is no crack at the
staked portion of the flange nut after staking.

17. Install the O–ring (23) to the speedometer driven gear

bushing (22).

18. Install the driven gear to the speedometer driven gear

bushing (22).

19. Install the speedometer driven gear assembly to the

transfer rear cover.

20. Install the plate (21) to the transfer rear case and

tighten to the specified torque.

Torque: 15 N·m (1.5 kg·m/11 lb ft)

21. Install the speedometer sensor and tighten to the

specified torque.

Torque: 26 N·m (2.7 kg·m/20 lb ft)

225RW004

Legend

(20) Bolt
(21) Plate
(22) Bushing
(23) O–ring
