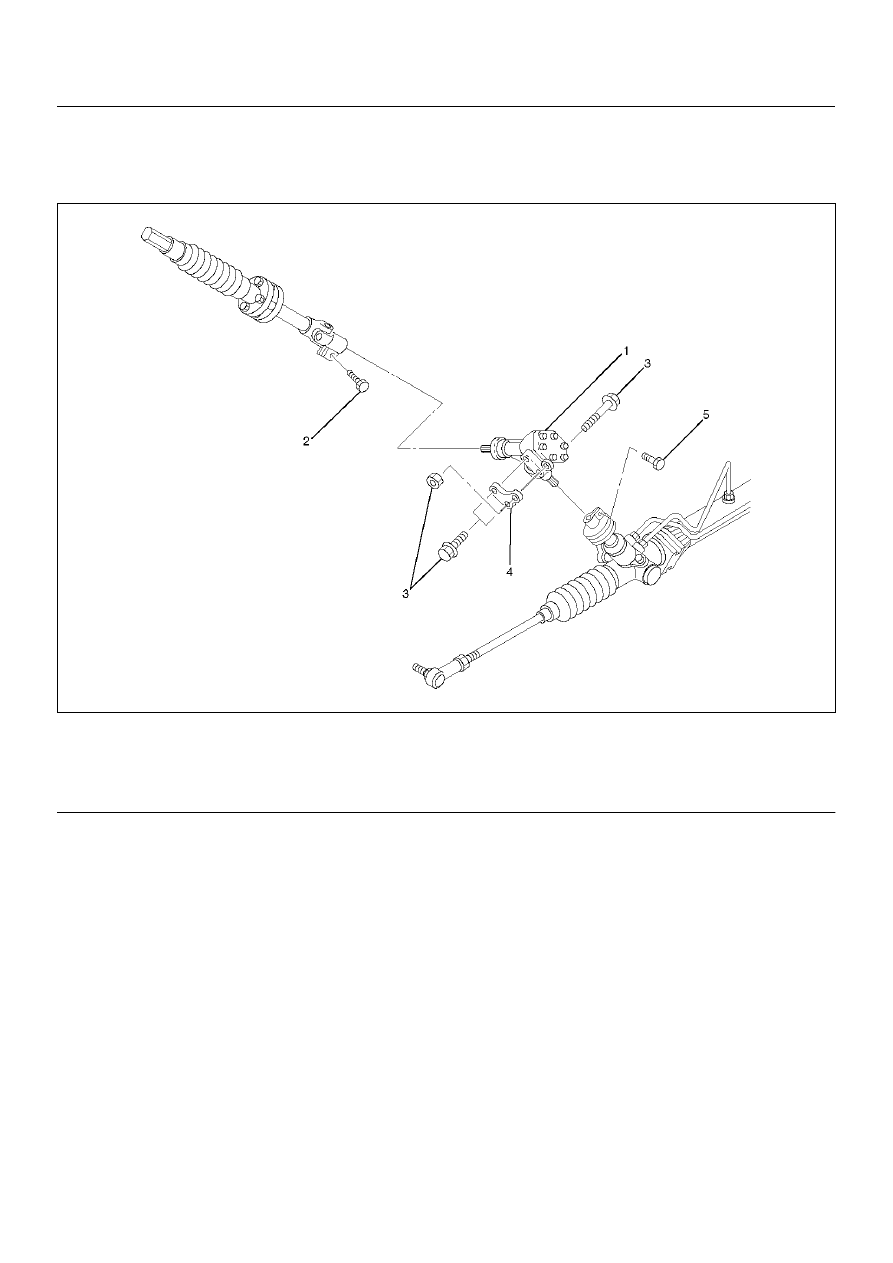

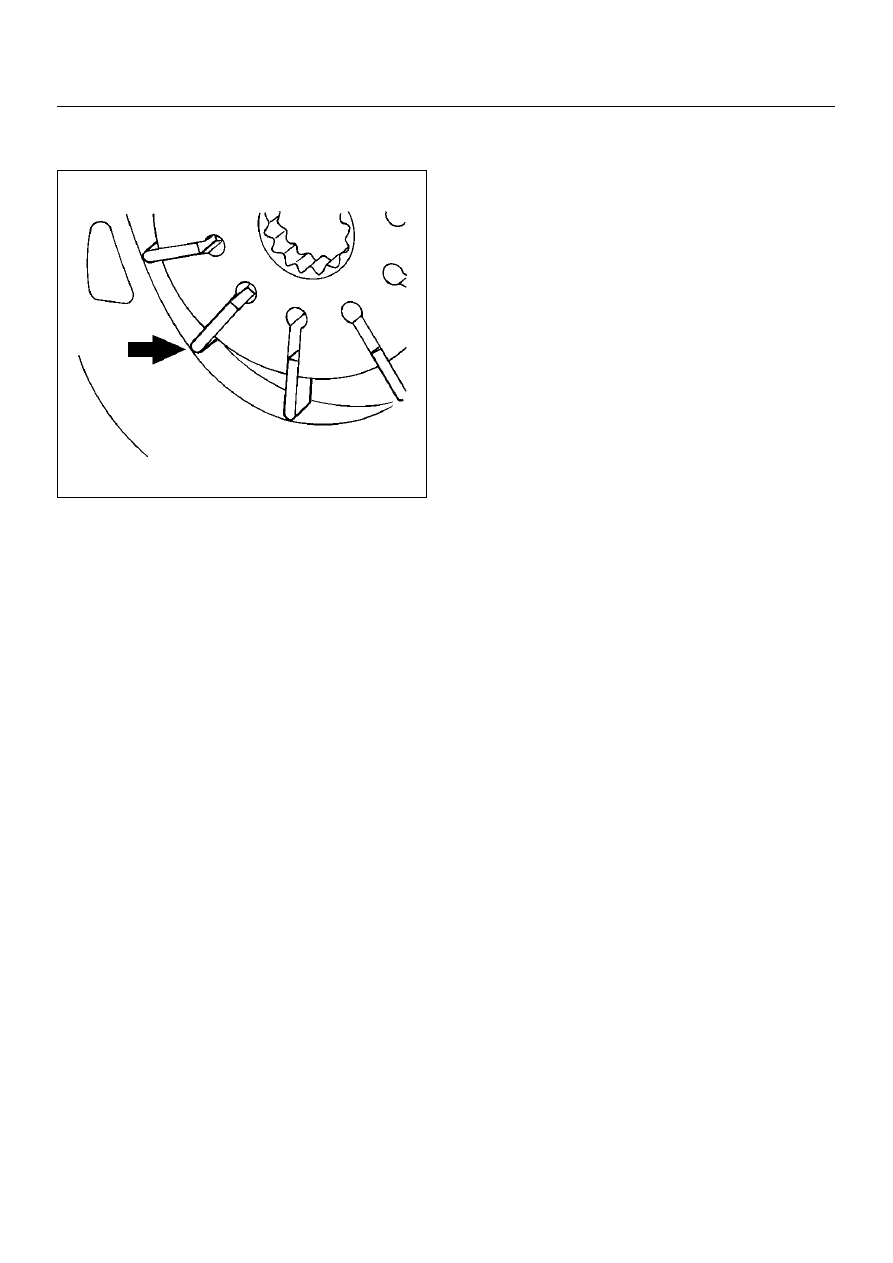

POWER-ASSISTED STEERING SYSTEM 2A–25 3. Install the vanes to roter with curved face in contact with the inner wall of cam. 442RS005 4. Install roter and vanes to cam. 5. Install pin to front housing. 6. Install two new O-rings to front housing. Be sure to discard used O-ring. 7. Install side plate. CAUTION: When installing side plate, be careful not 8. Install pump cartridge assembly to front housing. 9. Install snap ring to shaft end. 10. Install rear housing with a new O-ring. Be sure to discard used O-ring. Then install bolt and tighten it Torque: 24N·m (2.4kg·m/17lbft) 11. Install suction pipe with a new O-ring. Be sure to discard used O-ring. Then install bolt and tighten it Torque: 10N·m (1.0kg·m/87lbin) 12. Install relief valve and spring. 13. Install connector with a new O-ring. Be sure to discard used O-ring. Tighten the connector to Torque: 59N·m (6.0kg·m/43lbft) 14. Install pressure switch assembly and tighten it to specified torque. Torque: 18N·m (1.8kg·m/13lbft) |
