Power Window

General Description

The power window system consists of power window
switches, power window motors and power window relay.
With the starter switch in “ON” position, the battery
voltage is supplied through power window relay to the
power window switches Selection of up or down switch
changes over the motor rotating direction to open or close
the window.
When the lock switch on the switch panel on the driver
side is pressed, the power window switch is in open state.
As a result, the power source to the other switches are cut
off, and the power window motors do not run.

8D–137

WIRING SYSTEM

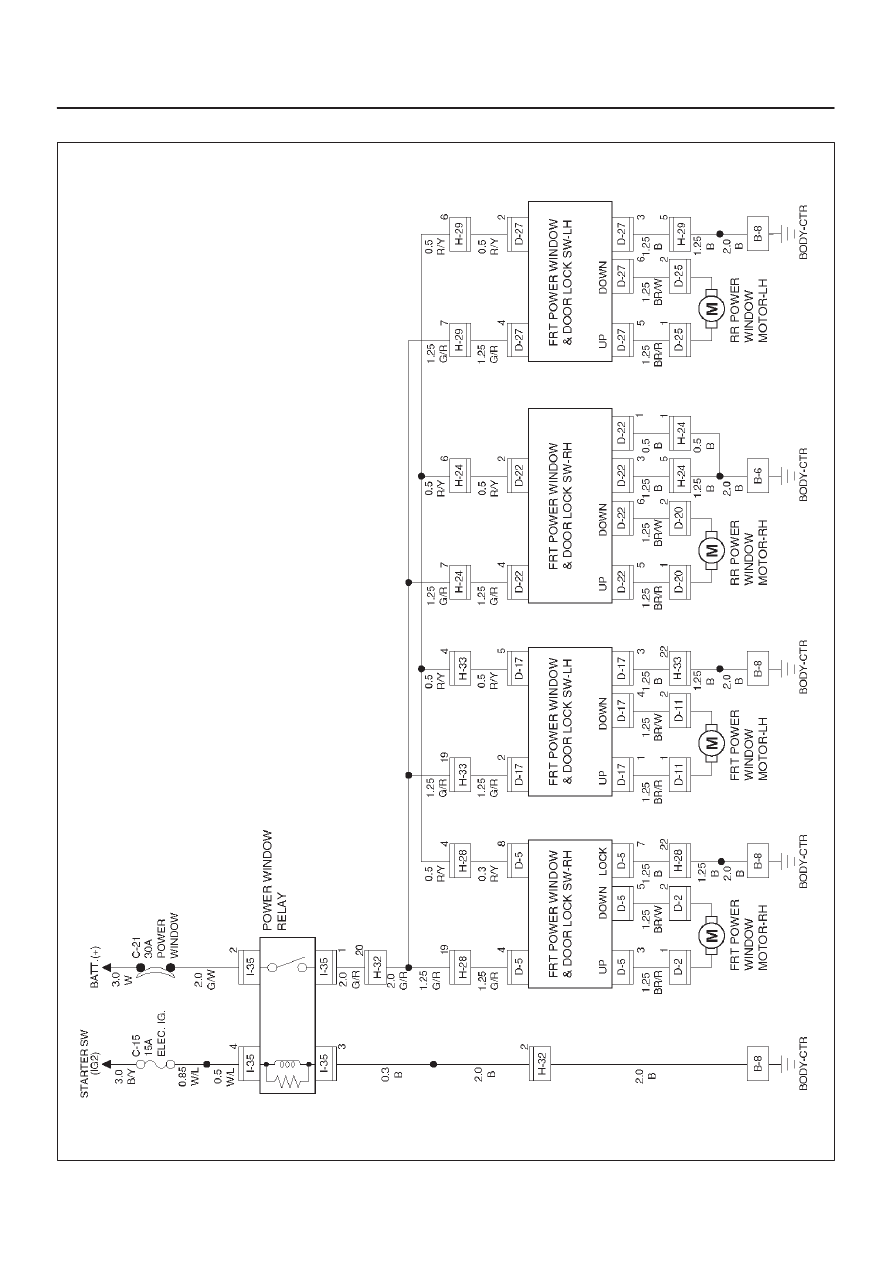

Circuit Diagram–1

D08RX213

8D–138

WIRING SYSTEM

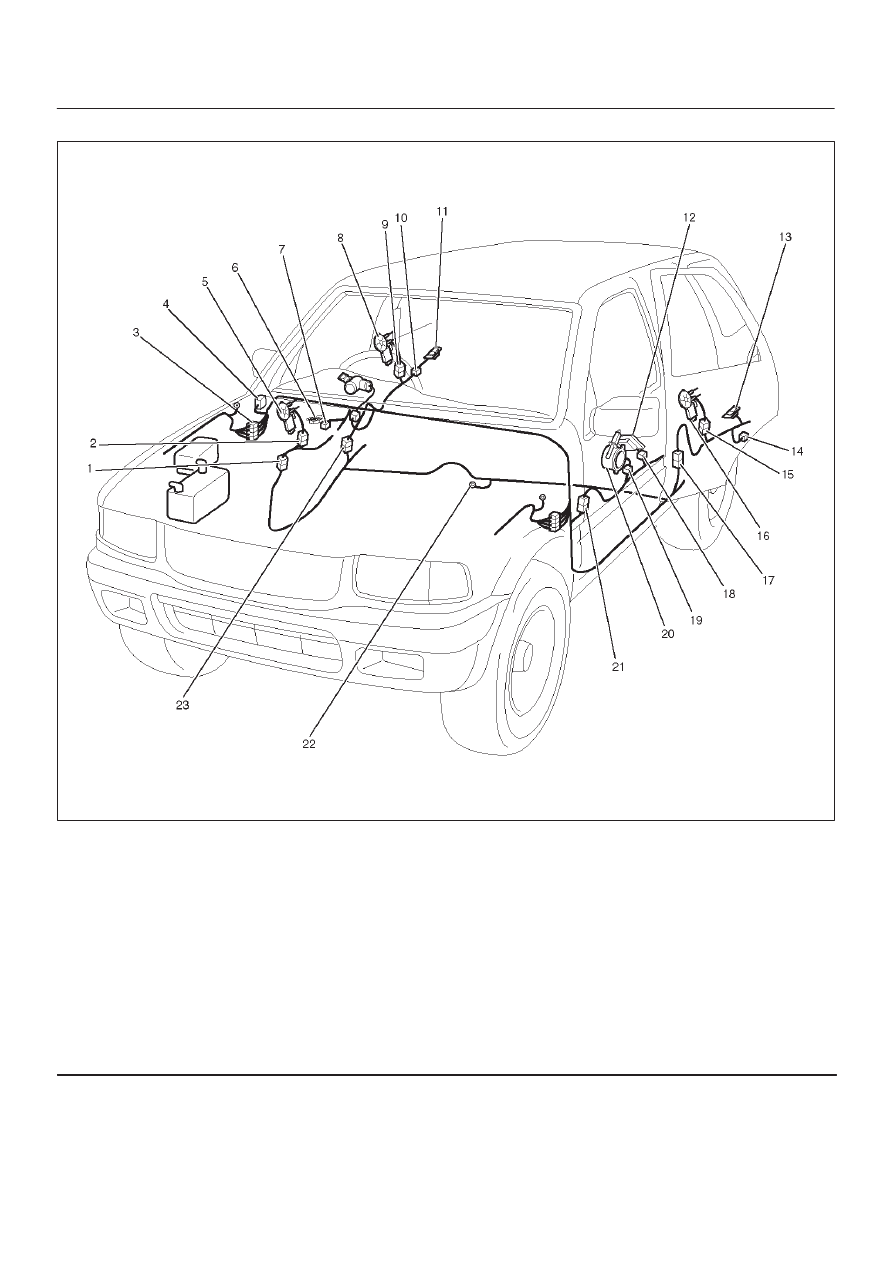

Parts Location

D08RWD14

Legend

(1) H–28
(2) D–2
(3) H–32
(4) Relay & Fuse Box
(5) Power Window Motor (FRT RH)
(6) Power Window SW (FRT RH)
(7) D–5
(8) Power Window Motor (RR RH)
(9) D–20

(10) D–22

(11) Power Window SW (RR RH)

(12) Power Window SW (FRT LH)
(13) Power Window SW (RR LH)
(14) D–27
(15) D–25
(16) Power Window Motor (RR LH)
(17) H–29
(18) D–17
(19) D–11
(20) Power Window Motor (FRT LH)
(21) H–33
(22) B–8
(23) H–24

8D–139

WIRING SYSTEM

Diagnosis

All Window Do Not Operate

Step

Action

Value(s)

Yes

No

1

Is the fuse C–15 normal?

—

Go to Step 2

Replace the

fuse

2

Is the circuit breaker C–21 normal?

—

Go to Step 3

Replace the

circuit

breaker

3

Is B–8 grounded securely?

—

Go to Step 4

Ground it

securely

4

Disconnect the power window relay connector I–35.

Is the battery voltage applied between harness side
connector I–35 terminal 2 and the ground?

Approx. 12V

Go to Step 6

Go to Step 5

5

Repair an open circuit between the circuit breaker
C–21 and connector I–35 terminal 2.

Is the action complete?

—

Go to Step 4

—

6

Turn the starter switch on.

Is the battery voltage applied between harness side
connector I-35 terminal  4 and the ground?

Approx. 12V

Go to Step 8

Go to Step 7

7

Repair an open circuit between the fuse C–15 and
connector I–35 terminal 4.

Is the action complete?

—

Go to Step 6

—

8

Is there continuity between harness side connector
I–35 terminal 3 and the ground B–8?

—

Replace the

relay

Go to Step 9

9

Repair an open circuit between connector I–35
terminal 3 and the ground B–8.

Is the action complete?

—

Verify repair

—
