LIGHTING SYSTEM

8A–3

Headlight Bulb

Removal

1. Disconnect the battery ground cable.

2. Remove the headlight bulb.

• Disconnect the connector (3).

• Remove the socket retaining ring (1) by turning it

counterclockwise.

• Remove the cup (2).

• Remove the spring.

CAUTION:  The halogen light bulb produces heat
and temperature rises high, therefore, if the glass
surface is contaminated it will be burnt by heat
leaving stains which will not come out. This may
reduce the illuminating power or damage the bulb
due to thermal deformation during evaporation. In
order to prevent this problem, do not touch the
glass surface with your fingers.

801RW026

Installation

To install, follow the removal steps in the reverse order.

Headlight Assembly

Removal

1. Disconnect the battery ground cable.

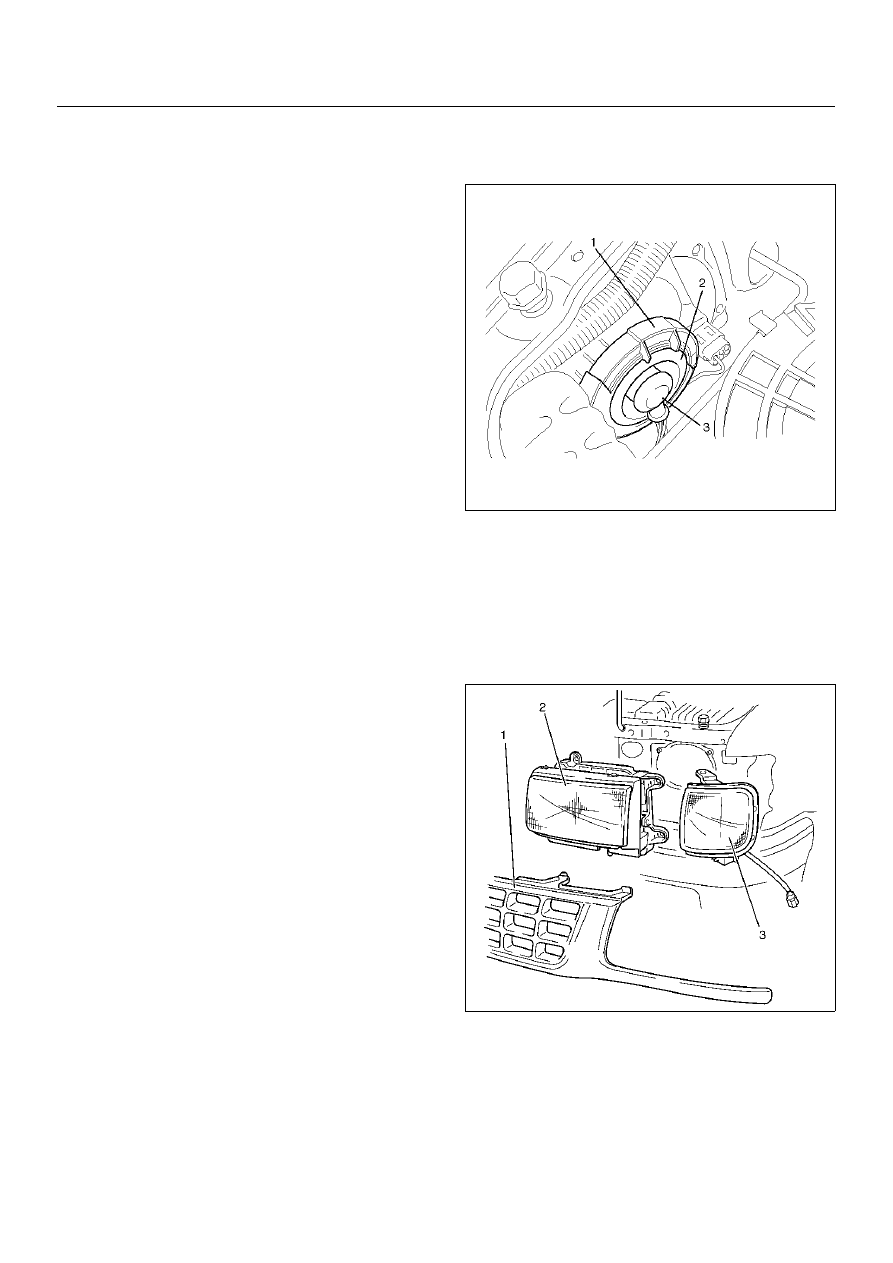

2. Remove the radiator grille (1).

• Remove eight clips and a screw.

3. Remove the side marker light (3).

• Remove three screws.

• Disconnect the connector.

4. Remove the headlight assembly (2).

• Disconnect the connector.

• Remove four screws.

825RW283

Installation

To install, follow the removal steps in the reverse order.

CAUTION:  After installing the headlight, be sure to
adjust the headlight aim.

8A–4

LIGHTING SYSTEM

Headlight Adjustment

Preparation

Place the unloaded vehicle on a level surface and check
to see if the inflation pressure of the tires is correct, the
lenses are clean, and the battery is sufficiently charged.
Adjust the aim with the headlight tester, if necessary.
When adjusting, follow the procedure of the tester
manufacture's.

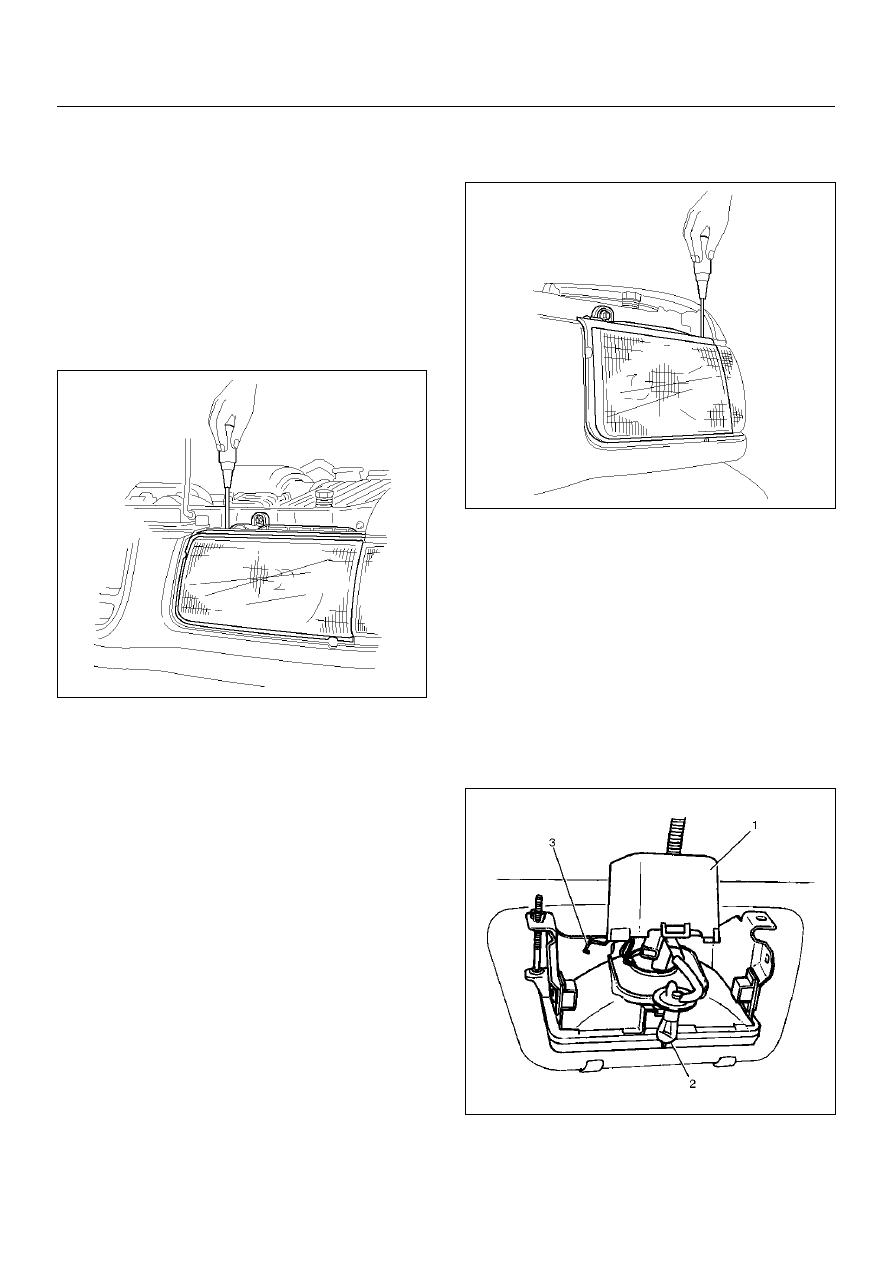

Vertical Adjustment

Use a screwdriver for vertical adjustment.

825RW278

Horizontal Adjustment

Use a screwdriver for horizontal adjustment.

825RW277

Fog Light Bulb

Removal

1. Disconnect the battery ground cable.

2. Remove the fog light bulb (2).

• Open the rear cover (1).

• Remove the dust cover.

• Disconnect the bulb connector.

• Remove the clip (3).

801RW002

Installation

To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM

8A–5

Fog Light Assembly

Removal

1. Disconnect the battery ground cable.

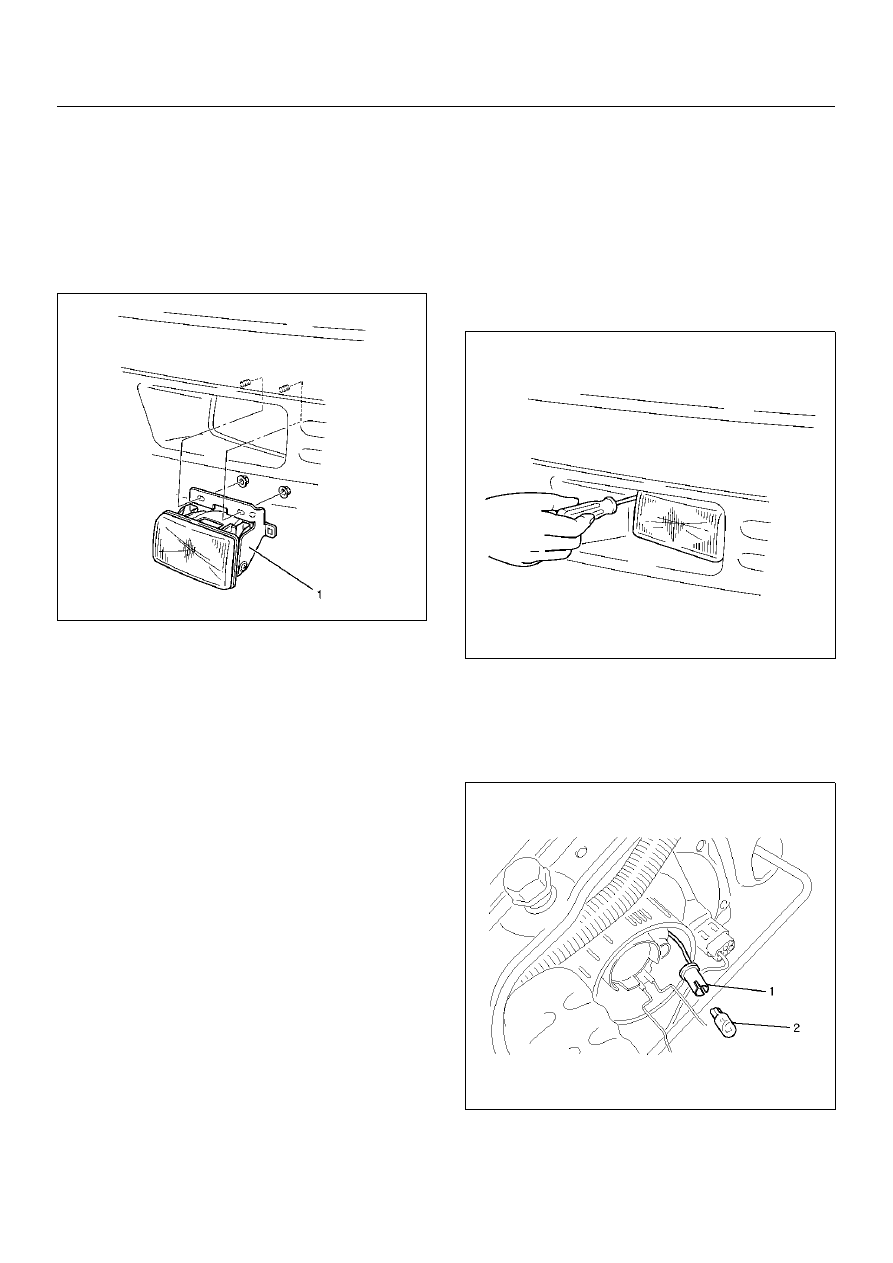

2. Remove the fog light assembly (1).

• Disconnect the connector.

• Remove two nuts from the bracket.

801RW021

Installation

To install, follow the removal steps in the reverse order.

CAUTION:  After installing the fog light, be sure to
adjust the fog light aim.

Fog Light Adjustment

Vertical Adjustment

Turn the adjusting screw with a screwdriver to adjust the
aim of the fog light vertically.

801RW022

Clearance Light Bulb

Removal

1. Disconnect the battery ground cable.

2. Disconnect the connector.

3. Remove the socket retaining ring by turning it

counterclockwise.

4. Remove the clearance light bulb (2).

• Remove the rubber cap.

• Pull out the bulb socket (1).

801RW025

Installation

To install, follow the removal steps in the reverse order.
