8G–4

SEATS

Rear Seat Assembly

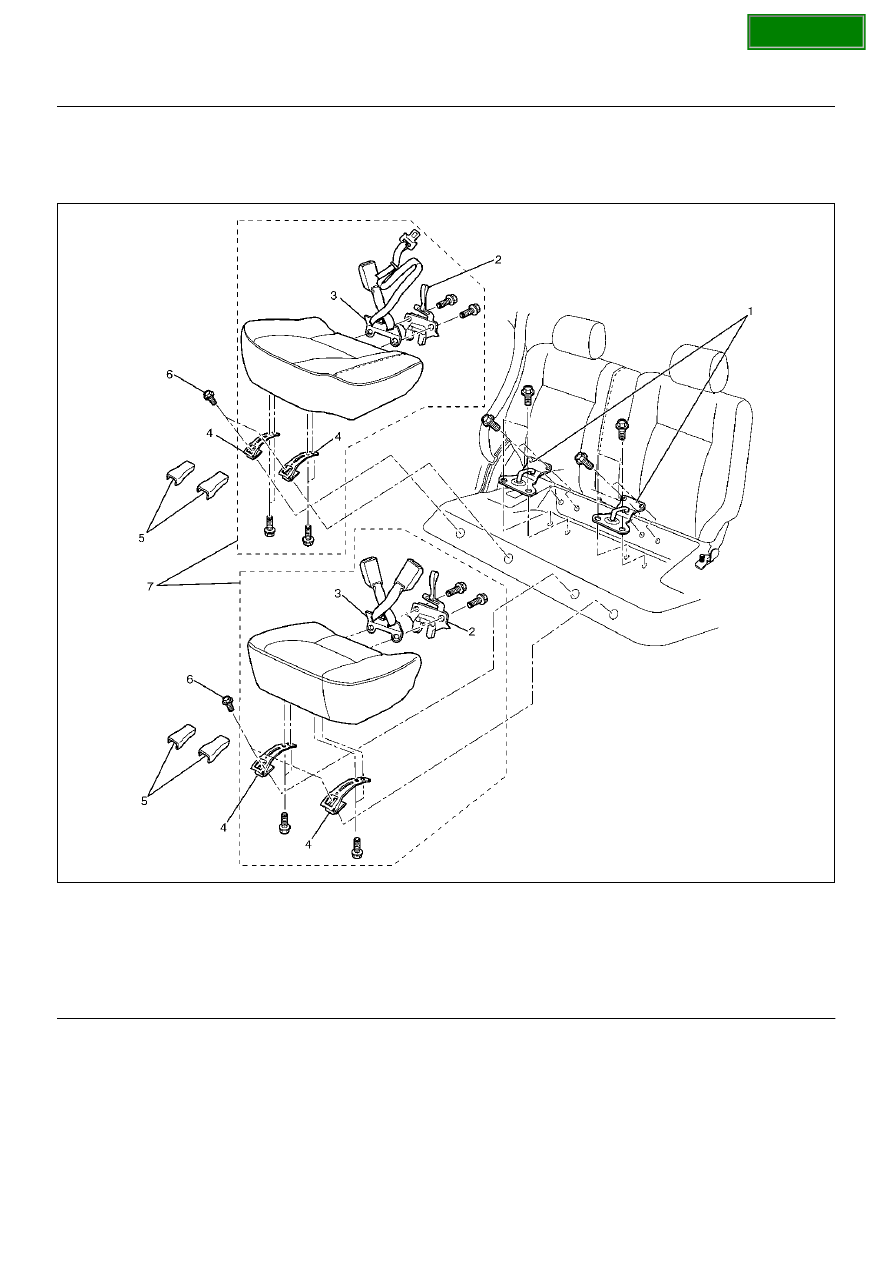

Rear Seat Cushion Assembly and Associated Parts

755RY00009

Legend

EndOFCallout

Removal

1. Remove the hinge covers.

2. Remove the seat cushion fixing bolts.

(1) Rear Seat Lock Striker
(2) Rear Seat Lock Assembly
(3) Rear Seat Belt Buckle Assembly
(4) Seat Cushion Hinge

(5) Hinge Cover
(6) Seat Cushion Fixing Bolt
(7) Rear Seat Cushion Assembly

SECTION

SEATS

8G–5

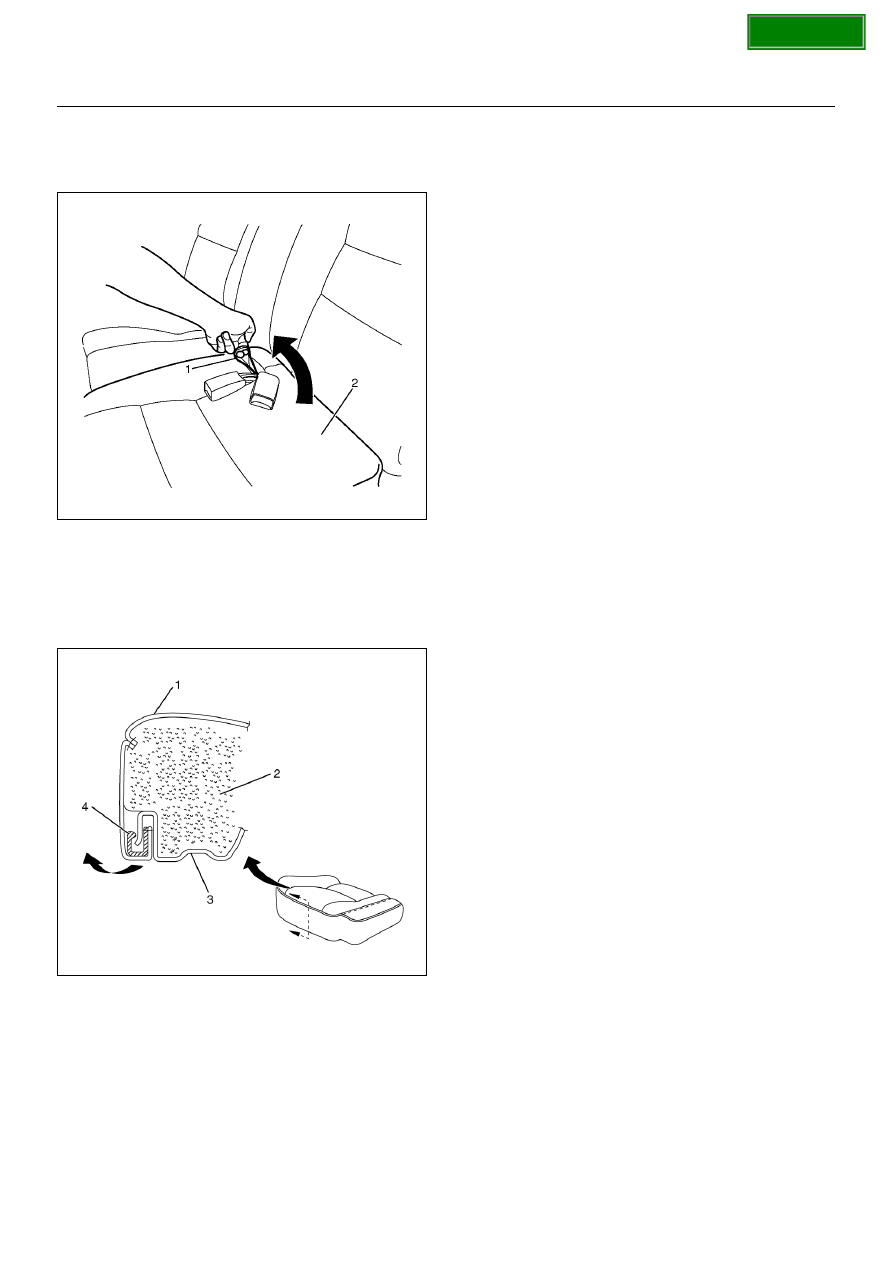

3. Remove the seat cushion assembly (2).

• Pull on the strap (1) of the rear seat lock

assembly to release the seat lock.

755R100006

4. Remove the seat cushion hinges.

5. Remove the rear cushion trim cover (1) and rear

seat cushion pad (2).

• Remove cushion trim cover from rear cushion

frame (3) with prying the plastic retainers (4).

755RX028

6. Remove the rear seat lock assembly and rear seat

belt buckle assembly.

7. Remove the rear seat lock strikers.

• Remove the four bolts at each striker.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Tighten the rear seat lock assembly and rear seat

belt buckle assembly fixing bolts to the specified
torque.

Torque: 39 N·m (4.0 kg·m/29 lbft)

2. Tighten the rear seat lock striker fixing bolts to the

specified torque.

Torque: 39 N·m (4.0 kg·m/29 lbft)

3. Tighten the seat cushion hinge fixing bolts to the

specified torque.

Torque: 39 N·m (4.0 kg·m/29 lbft)

SECTION

8G–6

SEATS

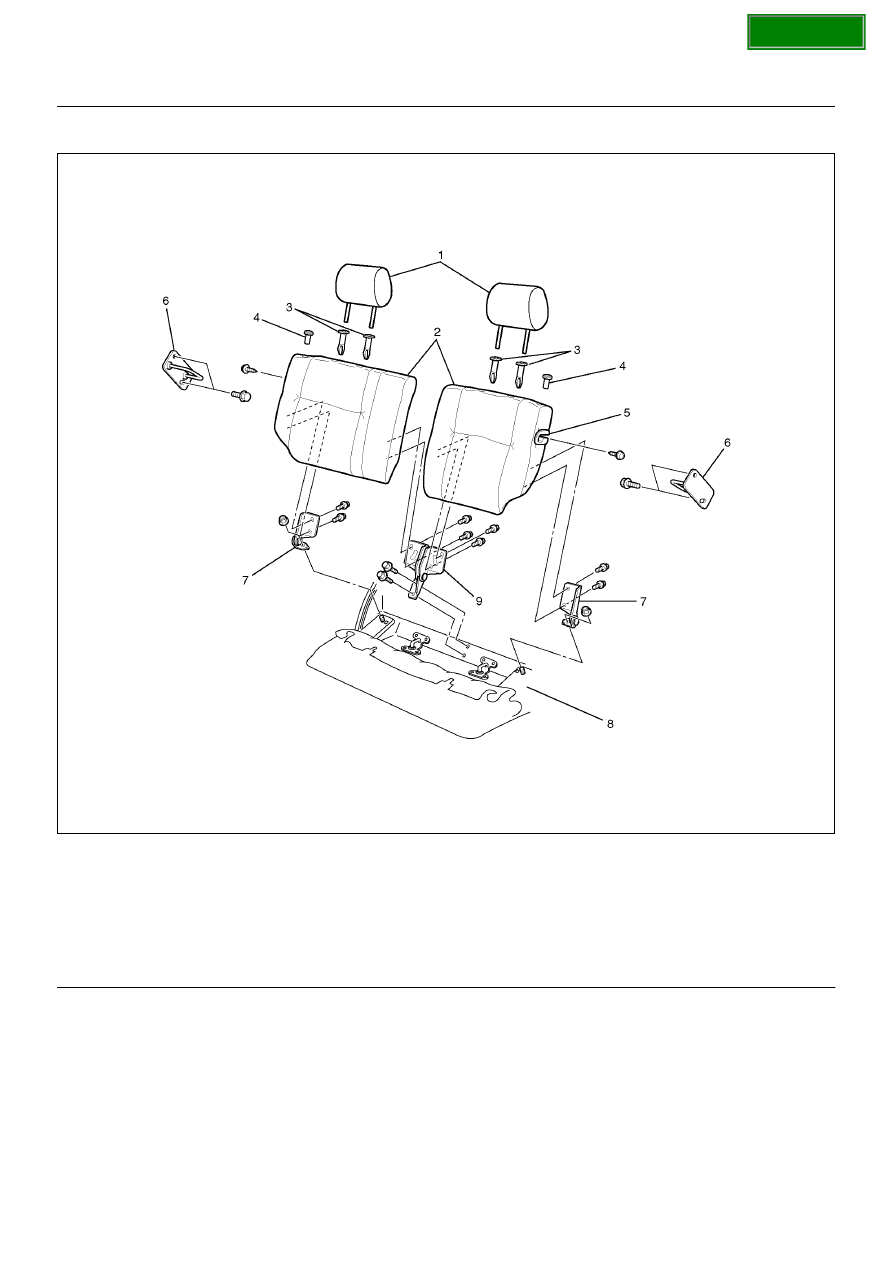

Rear Seat Back Assembly and Associated Parts

755R100005

Legend

EndOFCallout

Removal

1. Pull on the release knob and fold the seat back

assembly forward.

2. Remove the luggage floor carpets.

• Remove the carpet fixing nine clips at each from

the backside of the seat back assembly.

3. Remove the seat back assembly.

• Remove the four fixing bolts at each seat back.

4. Remove the seat lock covers.

5. Remove the headrests.

6. Remove the release knobs.

• Turn the knob counterclockwise to remove it.

7. Remove the trim covers.

8. Remove the guide holders.

(1) Headrest
(2) Seat Back Assembly
(3) Guide Holder
(4) Release Knob
(5) Seat Lock Cover

(6) Seat Lock Striker
(7) Side Hinge
(8) Body Floor Panel
(9) Center Hinge

SECTION

SEATS

8G–7

9. Remove the side hinges.

• Remove the one fixing nut at each side hinge.

10. Remove the center hinge.

• Remove the two fixing bolts.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Tighten the center hinge fiixng bolts to the specified

torque.

Torque: 39 N·m (4.0 kg·m/29 lbft)

2. Tighten the side hinge fixing nuts to the specified

torque.

Torque: 29 N·m (3.0 kg·m/22 lbft)

3. Tighten the side lock striker fixing bolts to the

specified torque.

Torque: 19 N·m (1.9 kg·m/14 lbft)
