Opel Frontera UE. Manual - part 1722





BODY STRUCTURE

8F–65

530RX006

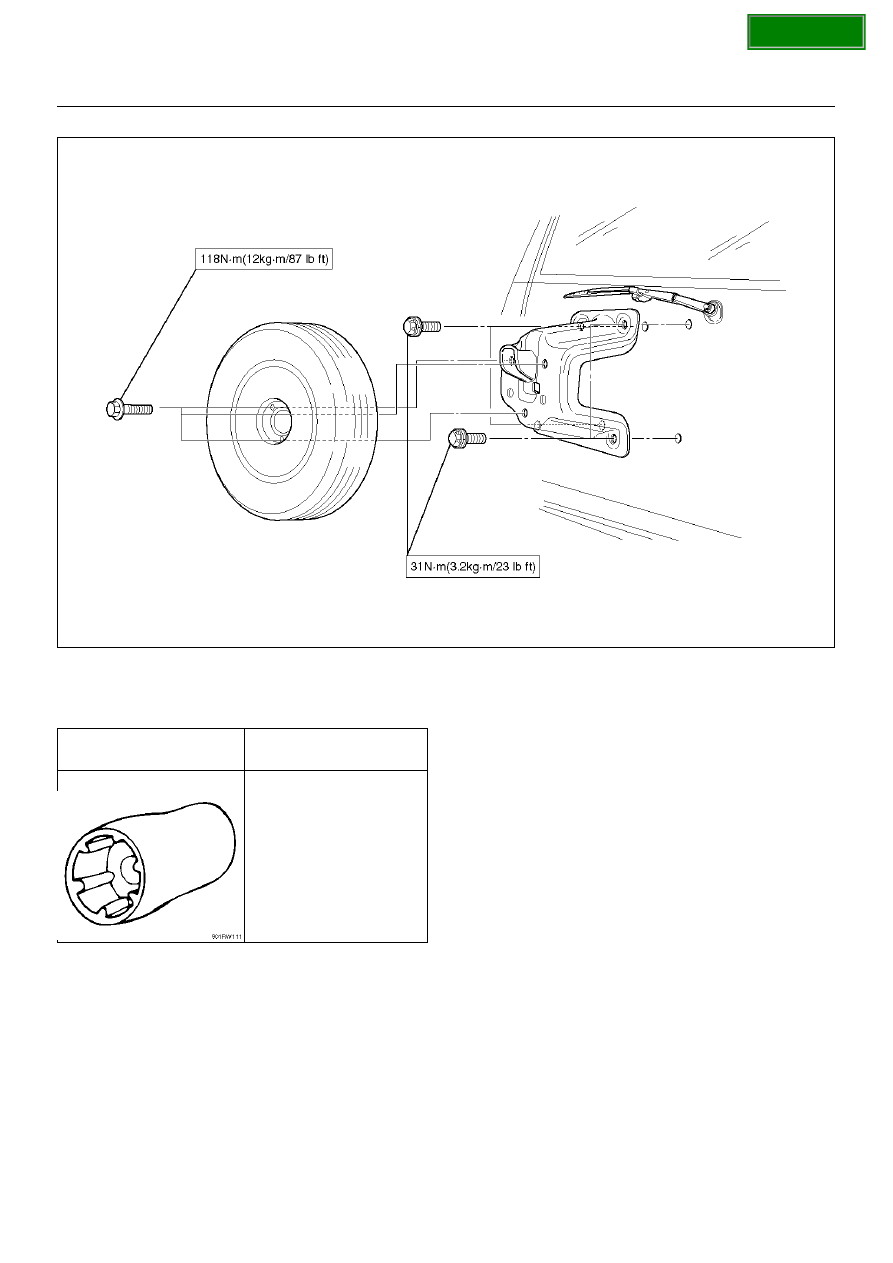

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2095–0

(J–34355)

Spare Tire Carrier Nut

Wrench

SECTION

SEATS

8G–1

FRONTERA

BODY AND ACCESSORIES

SEATS

CONTENTS

Service Precaution. . . . . . . . . . . . . . . . . . . . .

8G–1

Front Seat Assembly . . . . . . . . . . . . . . . . . . .

8G–2

Front Seat Assembly and Associated

Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8G–2

Removal . . . . . . . . . . . . . . . . . . . . . . . . . . .

8G–2

Installation  . . . . . . . . . . . . . . . . . . . . . . . . .

8G–3

Rear Seat Assembly  . . . . . . . . . . . . . . . . . . .

8G–4

Rear Seat Cushion Assembly and

Associated Parts  . . . . . . . . . . . . . . . . . . . . .

8G–4

Removal . . . . . . . . . . . . . . . . . . . . . . . . . . .

8G–4

Installation. . . . . . . . . . . . . . . . . . . . . . . . . .

8G–5

Rear Seat Back Assembly and

Associated Parts  . . . . . . . . . . . . . . . . . . . . .

8G–6

Removal . . . . . . . . . . . . . . . . . . . . . . . . . . .

8G–6

Installation. . . . . . . . . . . . . . . . . . . . . . . . . .

8G–7

Main Data and Specifications  . . . . . . . . . . . .

8G–8

Torque Specifications . . . . . . . . . . . . . . . . .

8G–8

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT  AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE  SRS WIRING, REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR  BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after  removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE  SPECIFIED, do not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded fasteners  or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force,  and may damage the fastener.
When you install fasteners, use the correct
tightening sequence and specifications.  Following
these instructions can help you avoid damage to
parts and systems.

SECTION

8G–2

SEATS

Front Seat Assembly

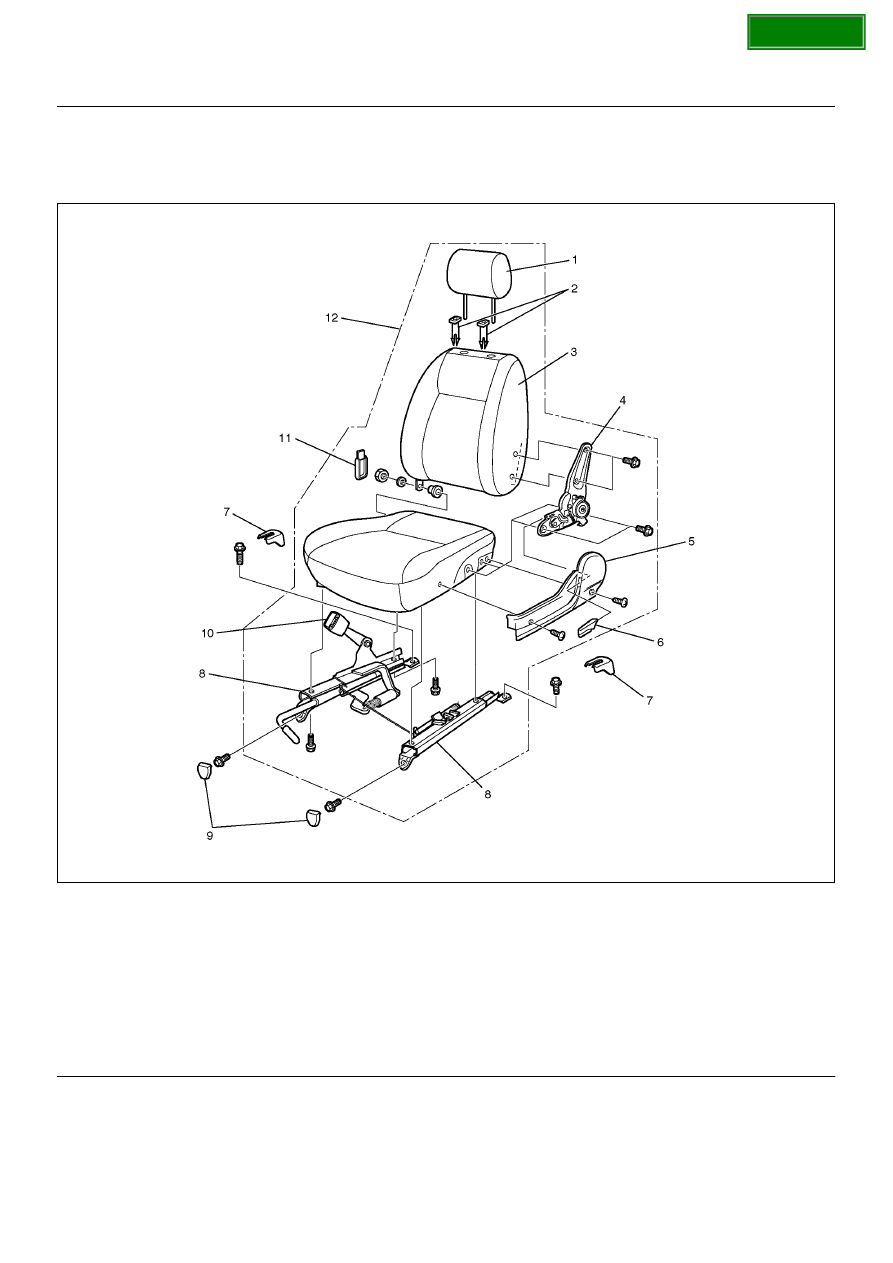

Front Seat Assembly and Associated Parts

750R100011

Legend

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the front and rear leg covers.

3. Remove the front seat assembly.

• Remove the four fixing bolts.

• Disconnect the seat belt warning connector

(Driver’s side only).

(1) Headrest
(2) Guide Holder
(3) Seat Back Assembly
(4) Reclining Device
(5) Side Cover
(6) Reclining Knob
(7) Rear Leg Cover

(8) Seat Adjuster
(9) Front Leg Cover

(10) Front Seat Belt Buckle Assembly
(11) Hinge Cover
(12) Front Seat Assembly

SECTION

SEATS

8G–3

4. Pull out the reclining knob.

5. Remove the side cover.

• Remove the two screws.

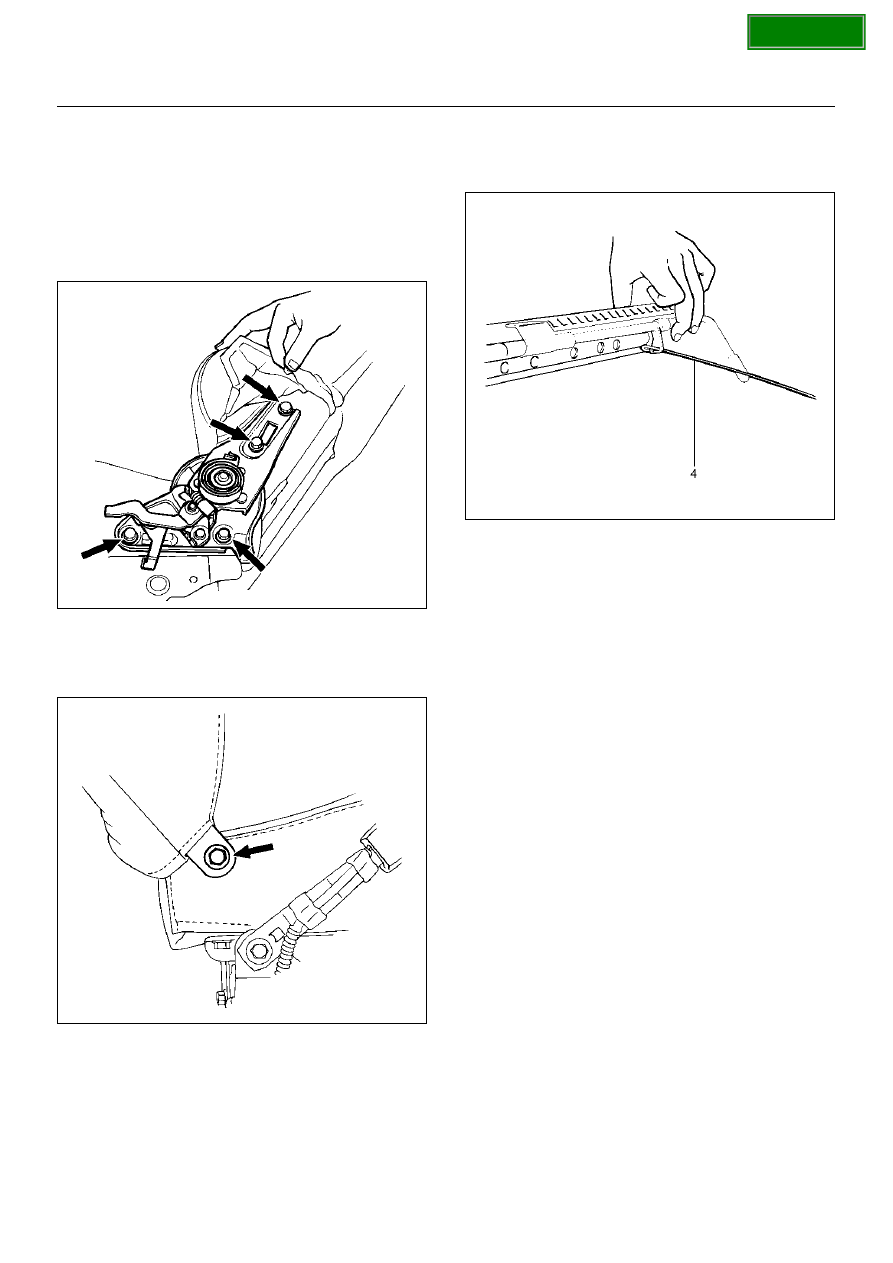

6. Remove the headrest.

7. Remove the reclining device.

• Turn up the seat back trim cover in order to

remove the reclining device fixing bolts.

750RS006

8. Remove the seat back assembly.

• Remove the seat back assembly fixing nut on the

opposite side of the reclining device.

750RS007

9. Remove the trim cover (Seat back side).

10. Remove the guide holder.

• Pull the guide holder out by holding the bottom

end of it from the seat back assembly.

11. Remove the seat adjuster.

• Disconnect the release wire (4) and remove the

fixing bolts.

750RW006

12. Remove the seat belt buckle assembly.

13. Remove the trim cover (Seat cushion side).

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Tighten the reclining device fixing bolts to the

specified torque.

Torque: 46 N·m (4.7 kg·m/34 lbft)

2. Tighten the front seat assembly fixing bolts to the

specified torque.

Torque: 39 N·m (4.0 kg·m/29 lbft)

SECTION
