8D–158

WIRING SYSTEM

Audio

General Description

The audio circuit is designed for the current to flow
through the receiver circuit when the radio switch is
turned on with the starter switch in “ACC” or “ON”.
Current runs through the memory circuit of the audio
regardless of the position of the starter switch.

SECTION

8D–159

WIRING SYSTEM

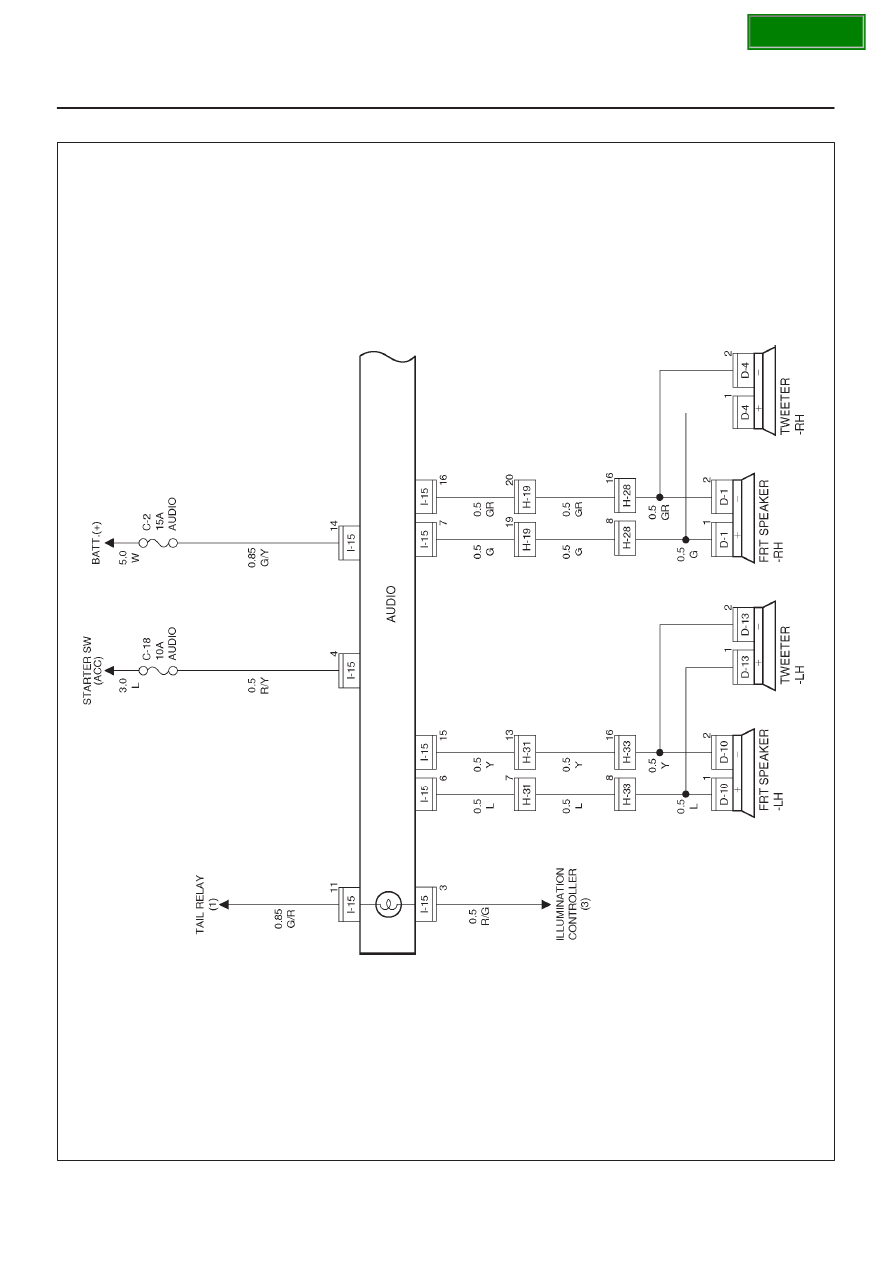

Circuit Diagram–1

D08R100141

SECTION

8D–160

WIRING SYSTEM

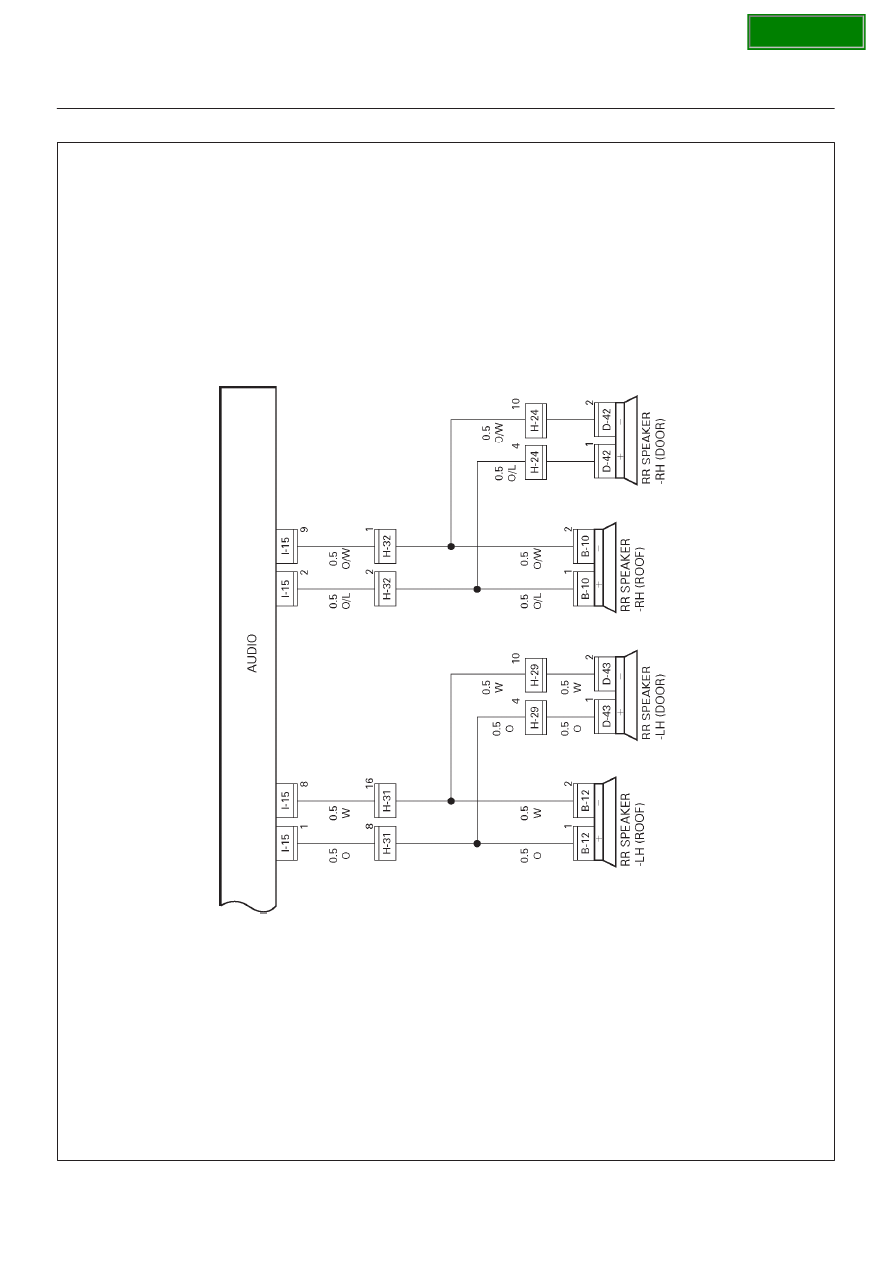

Circuit Diagram–2

D08R100199

SECTION

8D–161

WIRING SYSTEM

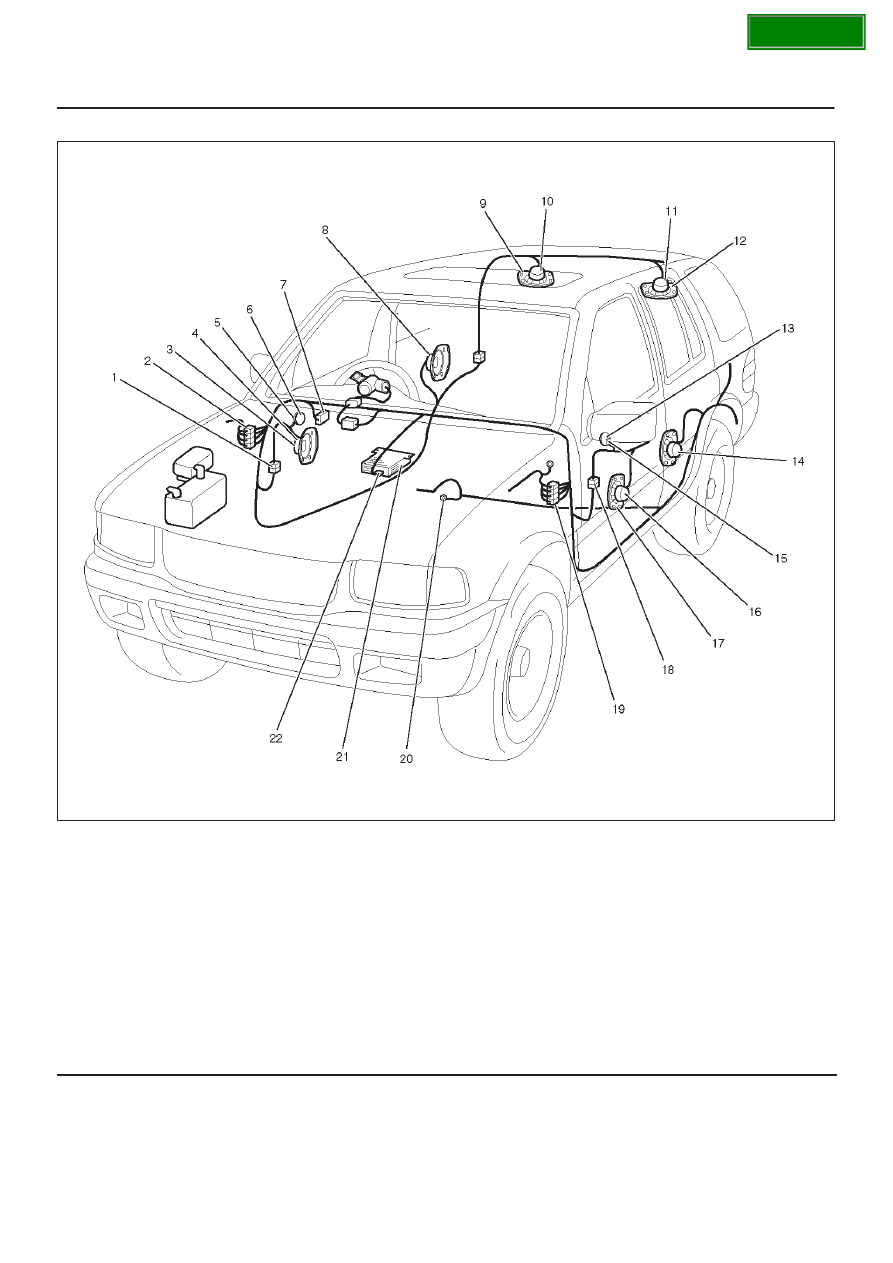

Parts Location

D08RWD13

Legend

(1) H–28
(2) H–19, H–32
(3) FRT Speaker – RH
(4) D–1
(5) D–13
(6) Tweeter – RH
(7) Relay & Fuse Box (Instrument Panel)
(8) RR Speaker – RH (Door)
(9) RR Speaker – RH (Roof)

(10) B–10

(11) B–12

(12) RR Speaker – LH (Roof)
(13) Tweeter – LH
(14) RR Speaker – LH (Door)
(15) D–4
(16) D–10
(17) FRT Speaker – LH
(18) H–33
(19) H–31
(20) B–8
(21) Audio
(22) I–15
