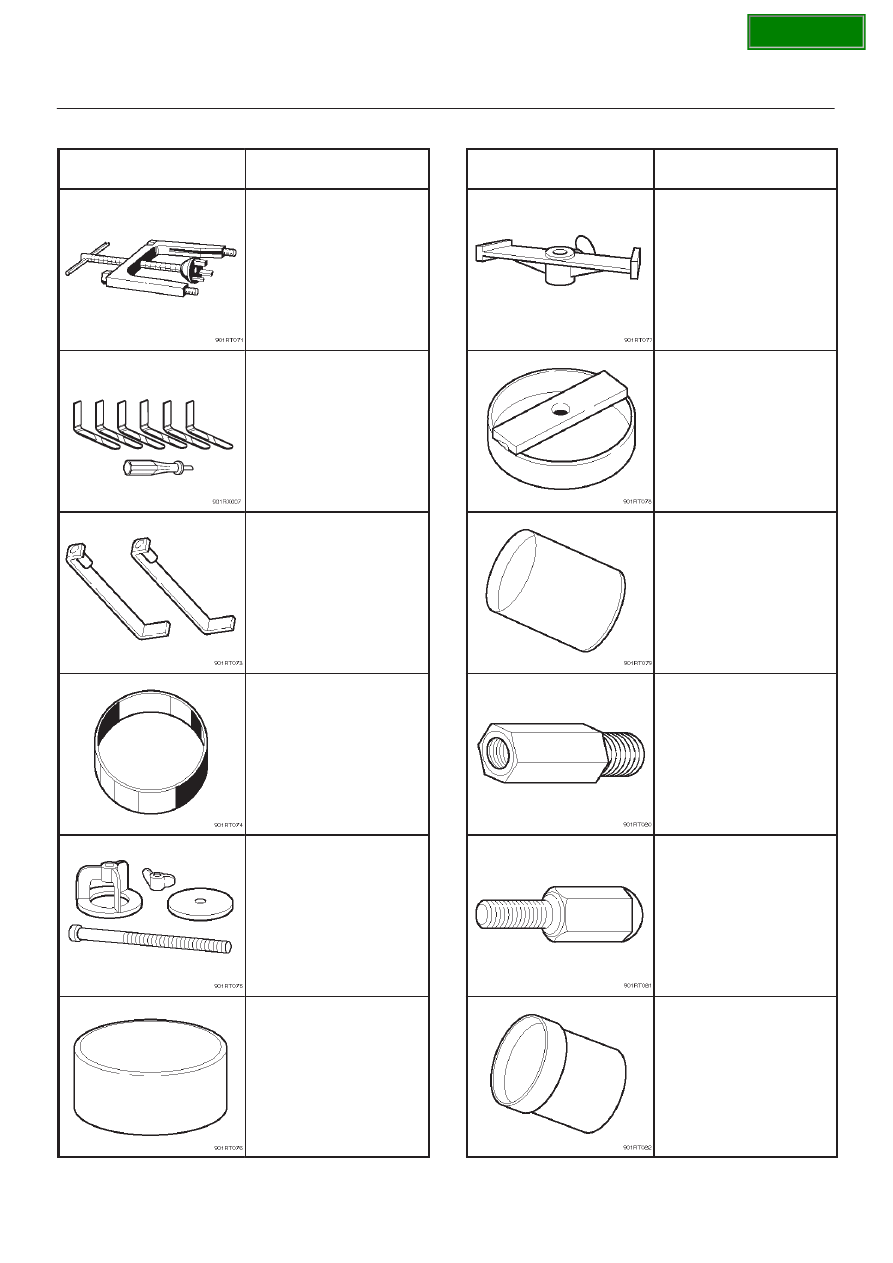

7A–90

AUTOMATIC TRANSMISSION (4L30–E)

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

J–23075

Spring compressor

(For servo piston)

J–38450–A

Third clutch snap ring

compressor

J–23075–12

Third clutch spring

compressor adapter

(Use with J–23075)

J–23084

Third clutch piston

installer

J–23327

Third clutch spring

compressor

J–23080–A

Second clutch piston

installer

ILLUSTRATION

TOOL NO.

TOOL NAME

J–23085–A

Selective washer

gaging tool

J–23327–90

Fourth clutch spring

compressor

(Use with J–23327)

J–38553

3/4 accumulator

piston fitter

J–41096

Cover remover

(Use with J–38584)

J–38584

Slide hammer adapter

(Use with J–23907)

J–38554

Fourth clutch piston fitter

SECTION

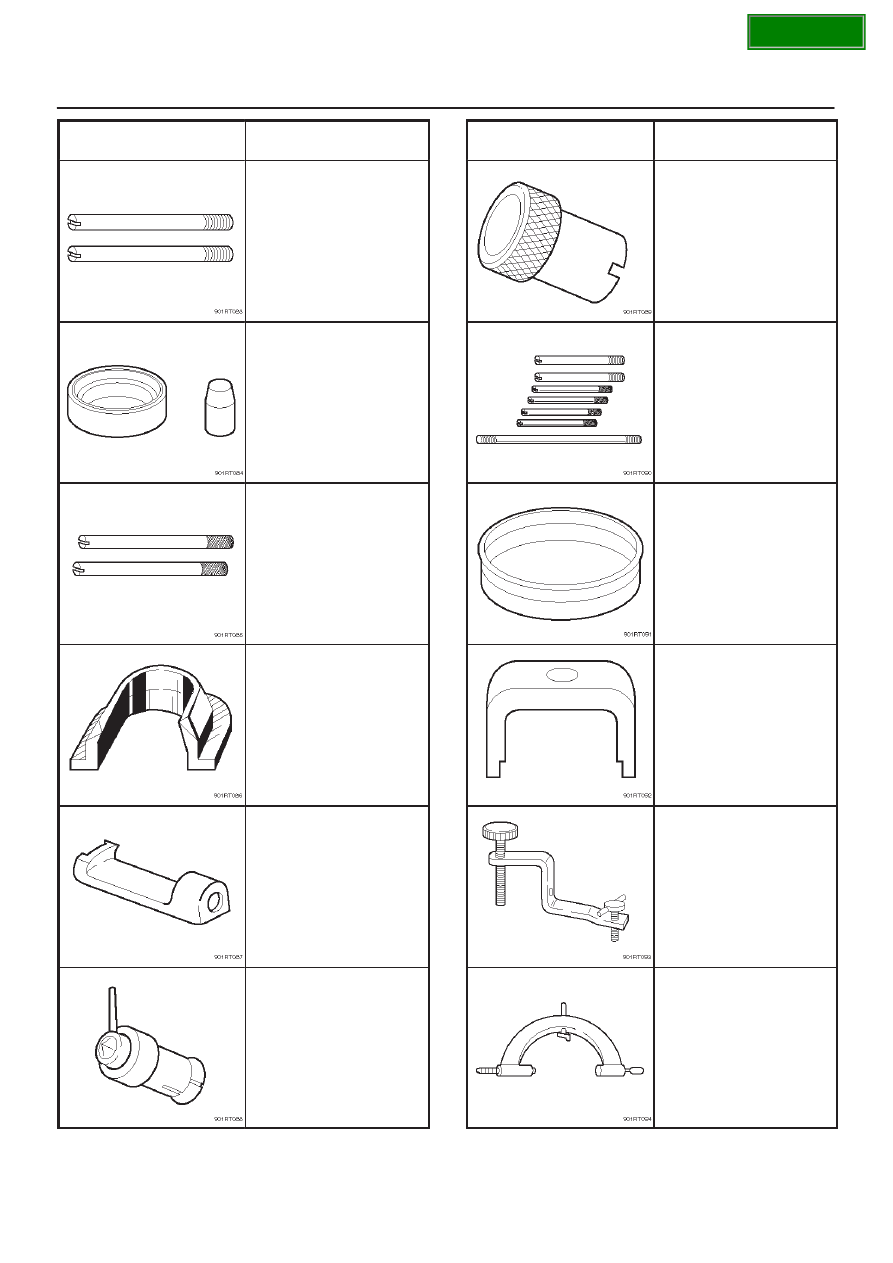

7A–91

AUTOMATIC TRANSMISSION (4L30–E)

ILLUSTRATION

TOOL NO.

TOOL NAME

J–38588

Guide pins; adapter

case to main case

J–38555

Overrun clutch piston

seal installer set

J–3387–2

Guide pins; gasket and

transfer plate to valve

body

J–25022

Turbine shaft puller

(Use with J–24773–1)

J–23129

Oil seal remover

(Use with J–23907

 and J–38584)

J–38557

Oil pump centering tool

ILLUSTRATION

TOOL NO.

TOOL NAME

J–23082–01

Oil pump rotation tool

J–25025–B

Guide pins; valve body

to main case

J–38428

Servo piston fitter

J–23327–91

Overrun clutch spring

compressor

J–38559–A

3/4 accumulator piston

cover compressor

J–8763–02

Holding fixture

SECTION

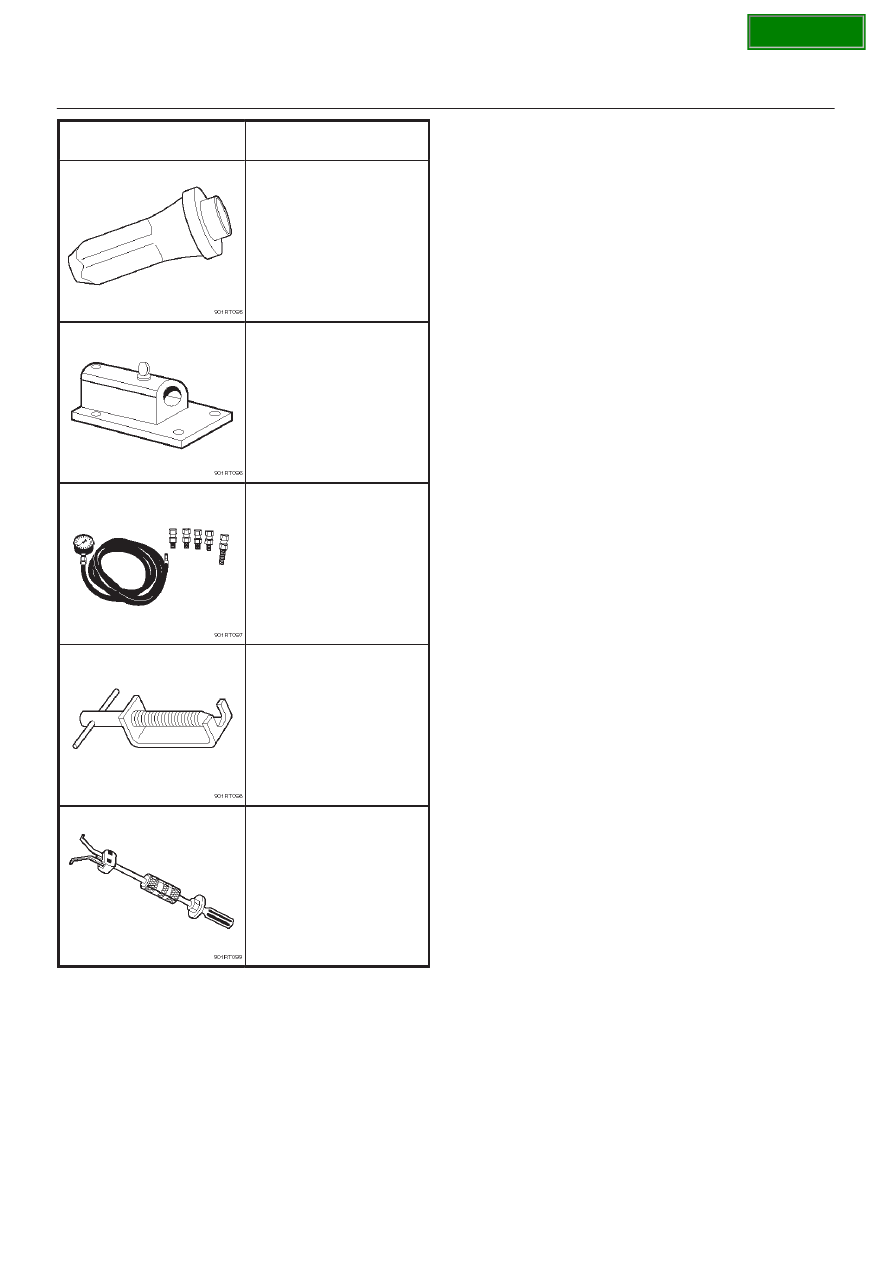

7A–92

AUTOMATIC TRANSMISSION (4L30–E)

ILLUSTRATION

TOOL NO.

TOOL NAME

J–36797

A/T extension housing

oil seal installer (Inside)

J–3289–20

Holding fixture base

J–29770–A

Pressure gauge

J–24773–1

End play fixture

(Use with J–25022)

J–23907

Slide hammer

SECTION

7A–93

AUTOMATIC TRANSMISSION (4L30–E)

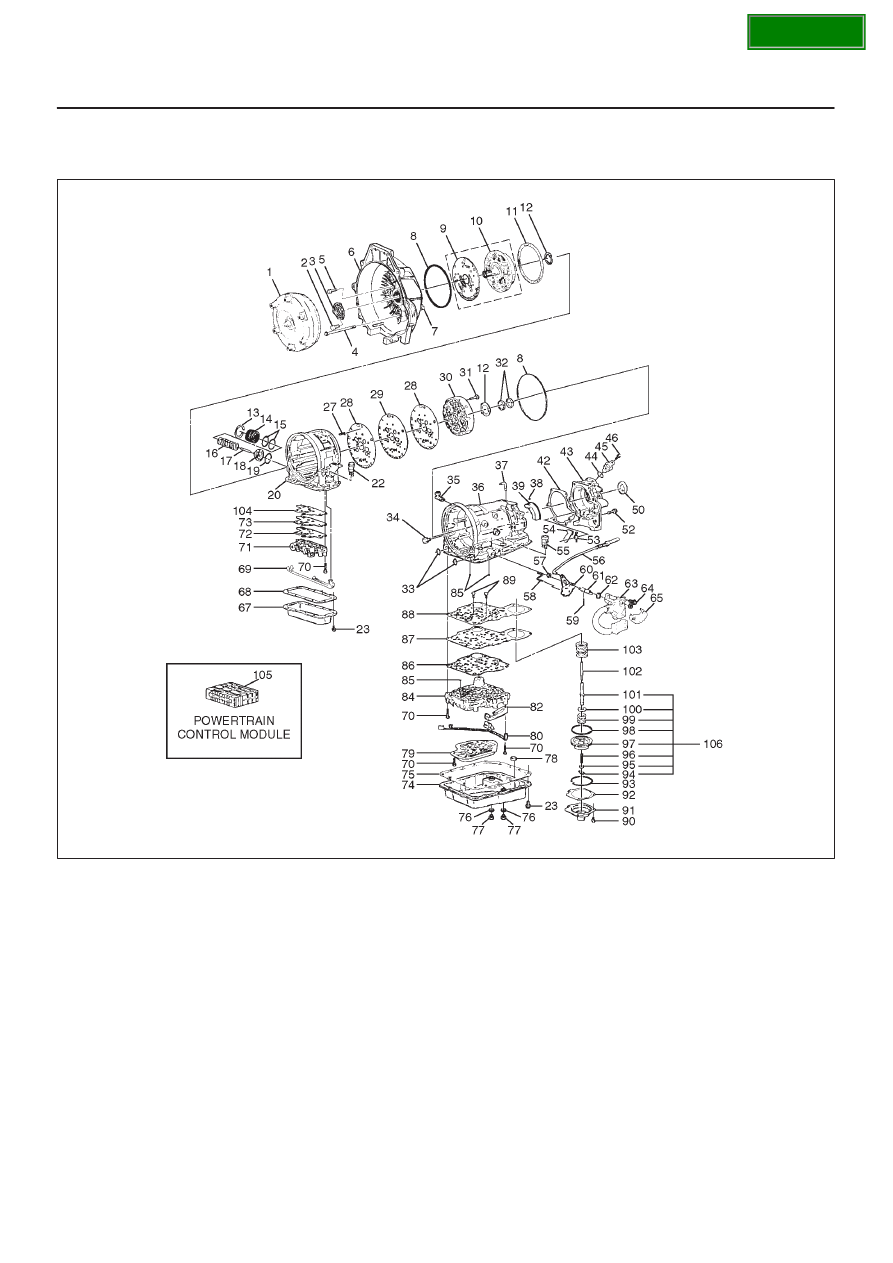

4L30–E Parts List

Case and Associated Parts

241RY00001

Legend

(1) Torque Converter
(2) Screw, Seal Ring Assembly
(3) Seal Ring Assembly, Converter Housing
(4) Screw, Converter Housing/Main Case
(5) Screw, Converter Housing/Oil Pump
(6) Housing, Converter
(7) Plug, Converter Housing
(8) Seal, O-ring
(9) Wear Plate, Oil Pump Body

(10) Pump Assembly, Oil

(11) Gasket

(12) Washer, Thrust Selective
(13) Ring, Snap
(14) Cover, 3–4 Accumulator Piston
(15) Seal, O-ring, 3–4 Accumulator
(16) Spring, 3–4 Accumulator Piston

(17) Pin, 3–4 Accumulator Piston
(18) Piston, 3–4 Accumulator
(19) Ring, 3–4, Accumulator Piston
(20) Case, Adapter
(22) Connector, Electrical/Adapter Case
(23) Screw, Pan
(27) Restrictor, Oil
(28) Gasket, Transfer Plate/Adapter
(29) Plate, Transfer Adapter/Center Support
(30) Support Assembly, Center
(31) Screw, Center Support
(32) Ring, Oil Seal
(33) Seal, O-ring Main Case
(34) Fitting, Cooler
(35) Fitting Assembly, Cooler
(36) Case, Main
(37) Breather, Pipe
