BRAKE PIPING

BRAKE PIPING

FRONT

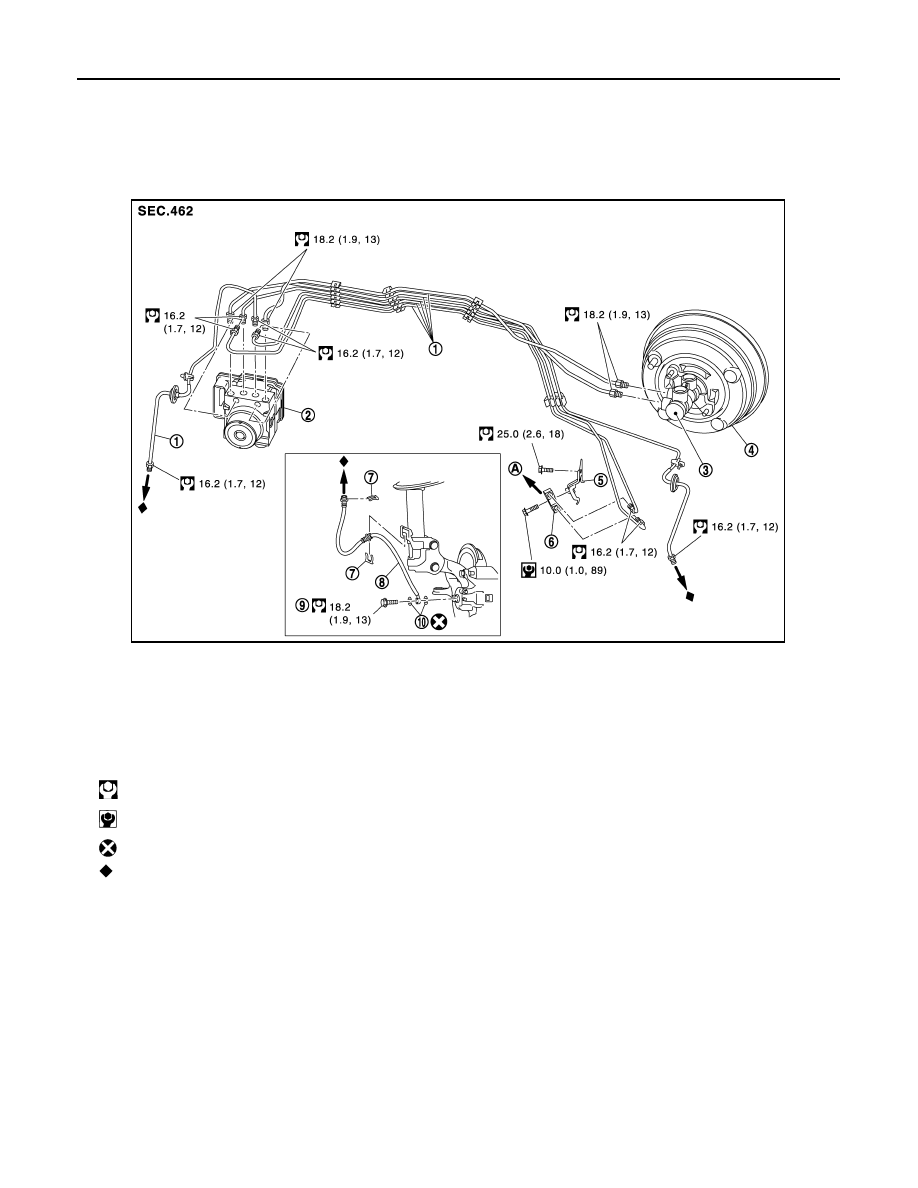

FRONT : Exploded View

INFOID:0000000009651816

1.

Brake tube

2.

ABS actuator and electric unit (con-
trol unit)

3.

Master cylinder assembly

4.

Brake booster

5.

Connector bracket

6.

Connector

7.

Lock plate

8.

Brake hose

9.

Union bolt

10. Copper washer

A.

To rear brake tube

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

: Indicates that the part is connected at points with same symbol in actual vehicle.

JSFIA0958GB

BRAKE PIPING

BR-21

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

FRONT : Hydraulic Piping

INFOID:0000000009651817

FRONT : Removal and Installation

INFOID:0000000009651818

REMOVAL

CAUTION:

• Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it

off immediately and wash with water if it gets on a painted surface. For brake component parts,
never wash them with water.

• Never depress the brake pedal while removing the brake hose or brake tube. If this is not complied

with, brake fluid may splash.

• If the brake fluid adheres to the brake caliper assembly and disc rotor, quickly wipe it off.

1.

Remove tires with power tool.

2.

Drain brake fluid. Refer to

BR-10, "Draining"

.

3.

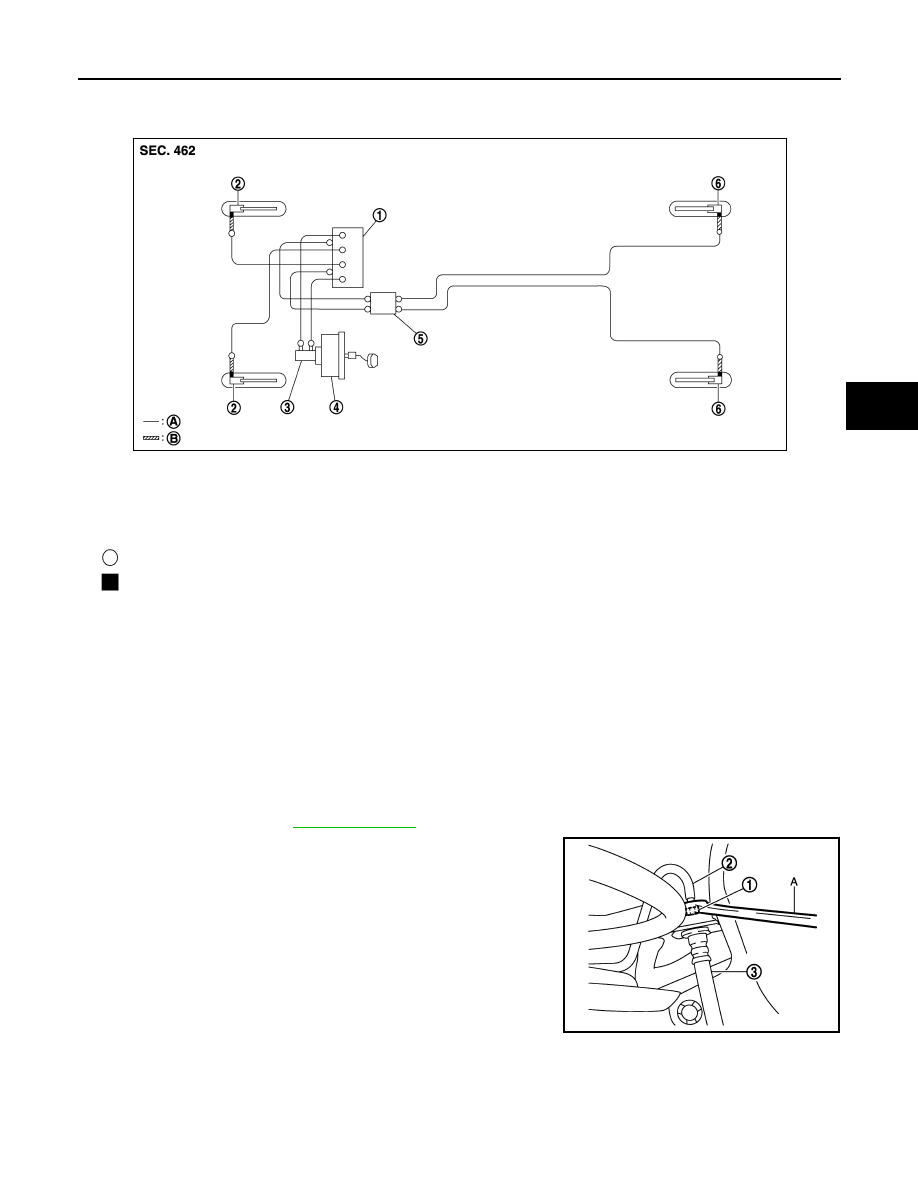

Loosen the flare nut (1) with a flare nut wrench (A) and separate
the brake tube (2) from the brake hose (3).

CAUTION:

• Never scratch the flare nut and the brake tube.
• Never bend sharply, twist or strongly pull out the brake

hoses and tubes.

• Cover open end of brake tubes and hoses when discon-

necting to prevent entrance of dirt.

1.

ABS actuator and electric unit (con-
trol unit)

2.

Front disc brake

3.

Master cylinder assembly

4.

Brake booster

5.

Connector

6.

Rear disc brake

A.

Brake tube

B.

Brake hose

: Flare nut

: Union bolt

JSFIA0959ZZ

JPFIA0847ZZ

BR-22

< REMOVAL AND INSTALLATION >

BRAKE PIPING

4.

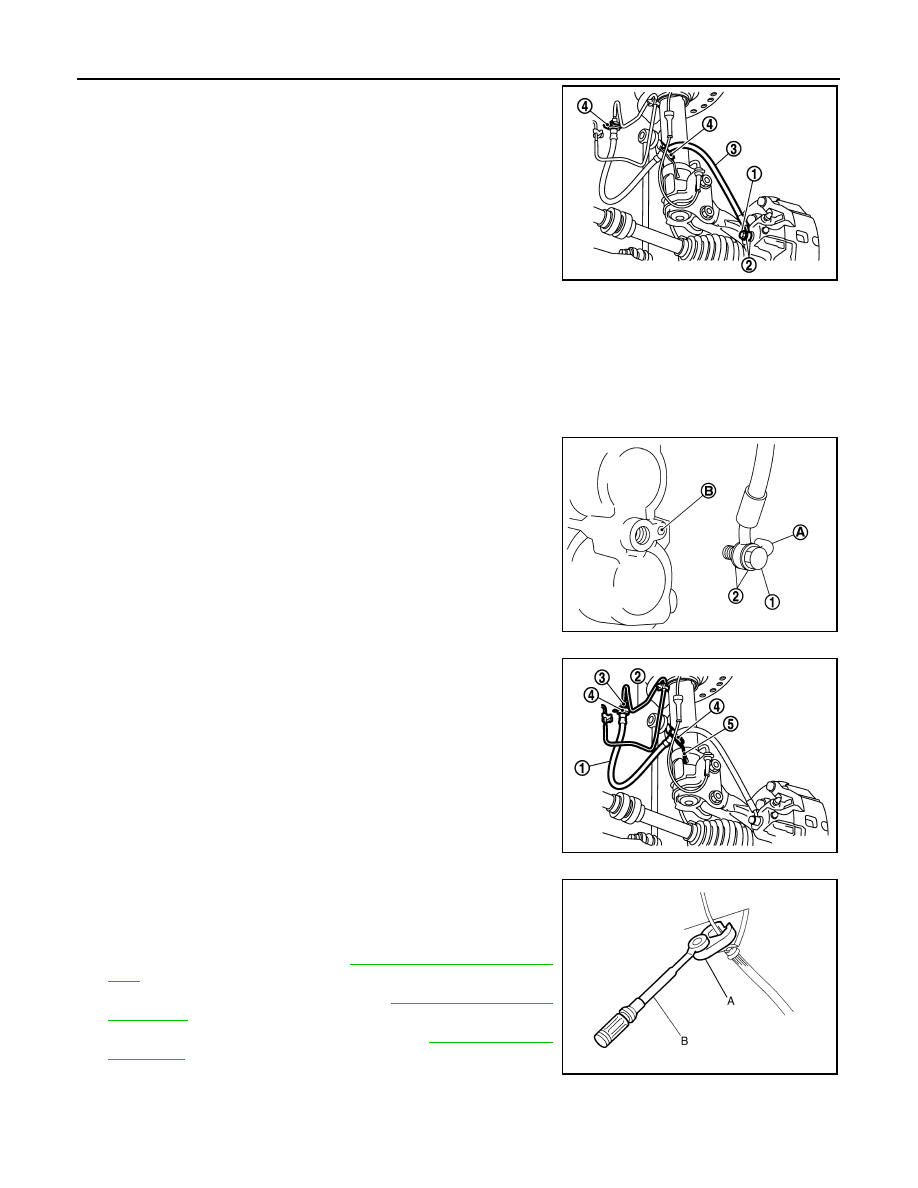

Remove the union bolt (1) and copper washers (2), and remove
the brake hose (3) from the brake caliper assembly.

5.

Remove the lock plate (4) and remove the brake hose.

INSTALLATION

CAUTION:

• Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it

off immediately and wash with water if it gets on a painted surface. For brake component parts,
never wash them with water.

• Never depress the brake pedal while removing the brake hose or brake tube. If this is not complied

with, brake fluid may splash.

• If the brake fluid adheres to the brake caliper assembly and disc rotor, quickly wipe it off.

1.

Assemble the union bolt (1) and the copper washer (2) to the
brake hose.

CAUTION:

Never reuse the copper washer.

2.

Align the brake hose L-pin (A) with the brake caliper assembly
hole (B), and tighten the union bolt (1) to the specified torque.

3.

Install the brake tube (2) to the brake hose (1), temporarily
tighten the flare nut (3) by hand until it does not rotate further,
and fix the brake hose to the bracket (5) with the lock plate (4).

CAUTION:

Check that all brake hoses and brake tubes are not twisted
and bent.

4.

Tighten the flare nut to the specified torque with a crowfoot (A)
and torque wrench (B).

CAUTION:

Never scratch the flare nut and the brake tube.

5.

Perform the air bleeding. Refer to

BR-11, "Bleeding Brake Sys-

tem"

.

6.

Install tires with power tool. Refer to

WT-46, "Removal and

Installation"

.

7.

Perform inspection after installation. Refer to

BR-22, "FRONT :

Inspection"

.

FRONT : Inspection

INFOID:0000000009651819

INSPECTION AFTER INSTALLATION

JPFIA0819ZZ

JSFIA0559ZZ

JPFIA0821ZZ

JPFIA0001ZZ

BRAKE PIPING

BR-23

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

1.

Check the brake hoses and tubes for the following: no scratches; no twist and deformation; no interfer-
ence with other components when steering the steering wheel; no looseness at connections.

2.

Depress the brake pedal with a force of 785 N (80 kg, 176 lb) and hold down the pedal for approximately
5 seconds with the engine running. Check for any fluid leakage.

CAUTION:

Retighten the applicable connection to the specified torque and repair any abnormal (damaged,
worn or deformed) part if any brake fluid leakage is present.

REAR

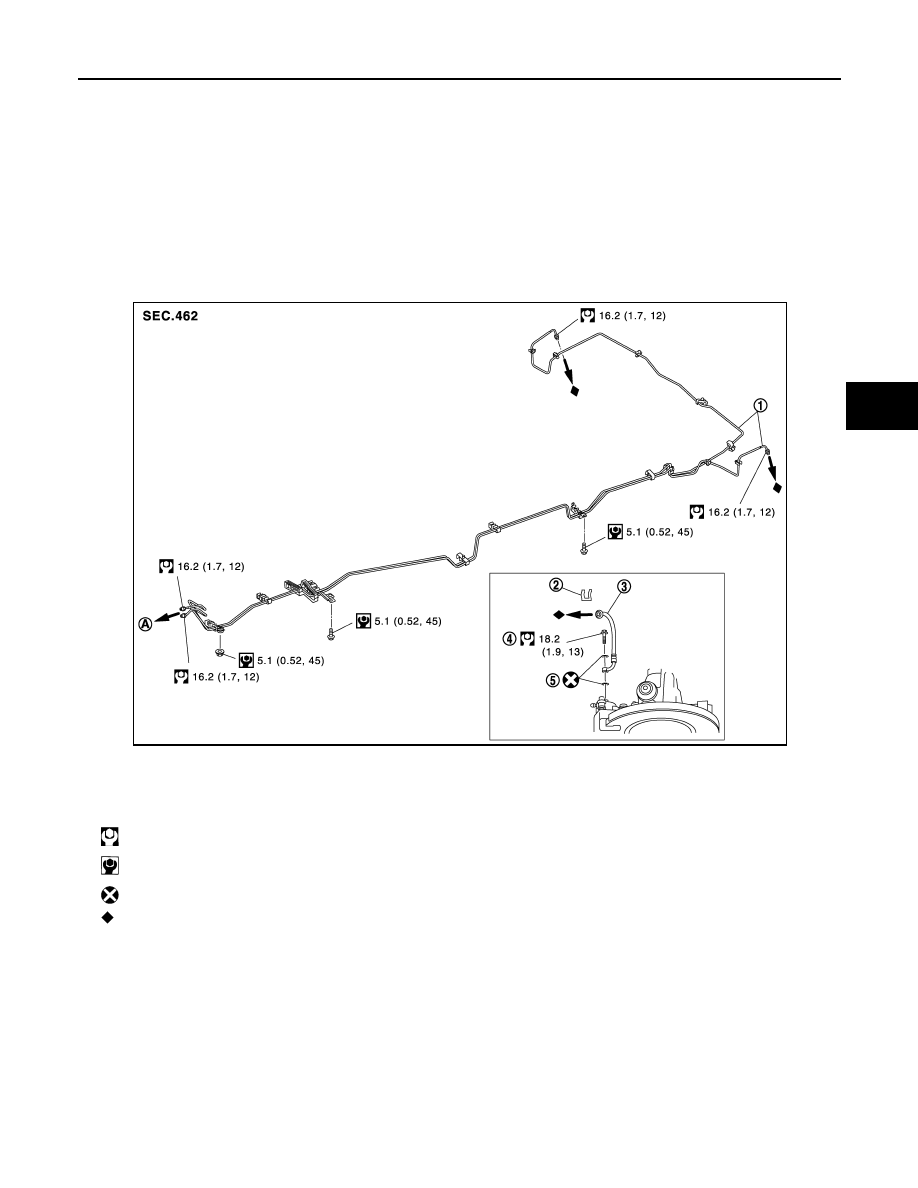

REAR : Exploded View

INFOID:0000000009651820

1.

Brake tube

2.

Lock plate

3.

Brake hose

4.

Union bolt

5.

Copper washer

A.

To connector

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

: Indicates that the part is connected at points with same symbol in actual vehicle.

JSFIA0960GB
