Nissan Cube. Manual - part 999

VTL-12

< REMOVAL AND INSTALLATION >

DUCT AND GRILLE

3.

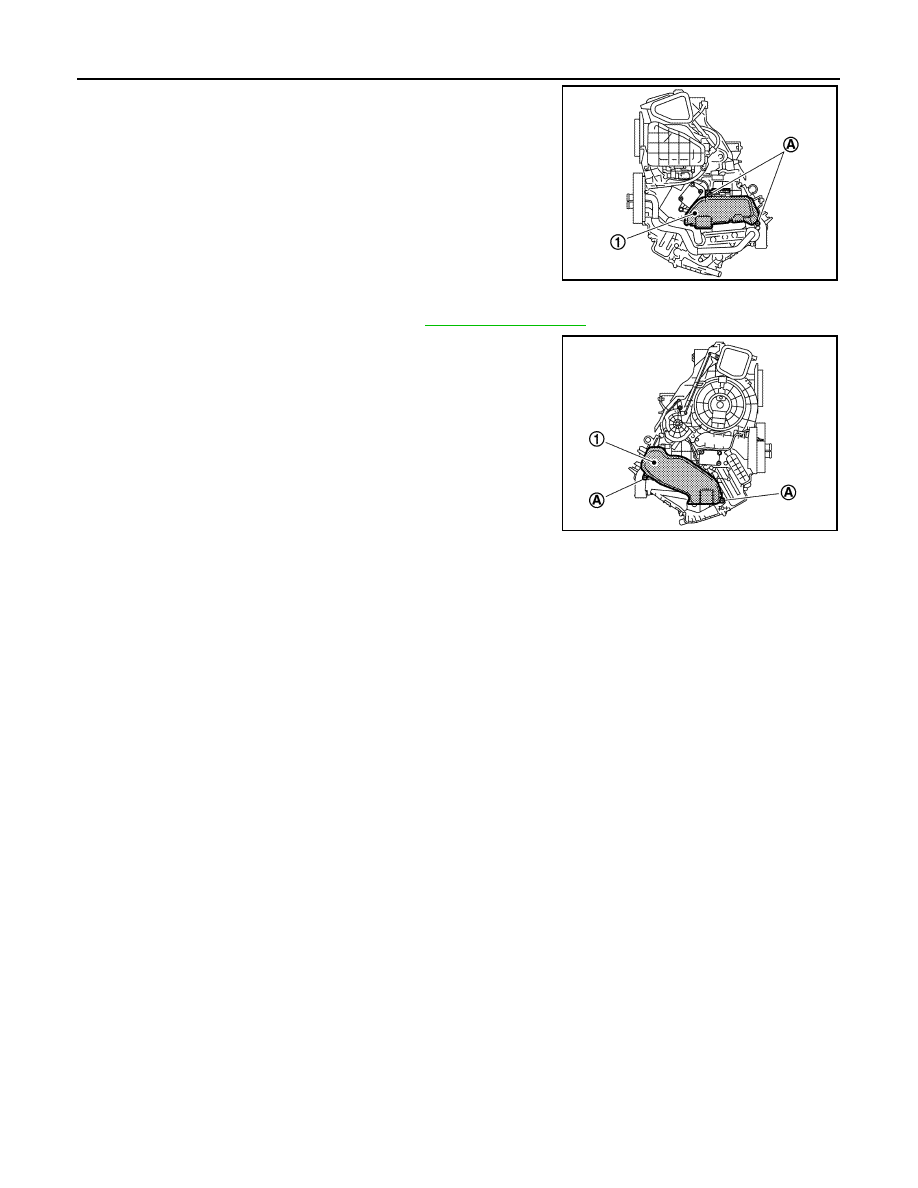

Remove mounting screws (A), and then remove foot duct LH
(1).

Passenger side

1.

Remove instrument panel assembly. Refer to

IP-13, "Exploded View"

.

2.

Remove mounting screws (A), and then remove foot duct RH
(1).

INSTALLATION

Installation is basically the reverse order of removal.

JPIIA1681ZZ

JPIIA1682ZZ

BLOWER MOTOR

VTL-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

BLOWER MOTOR

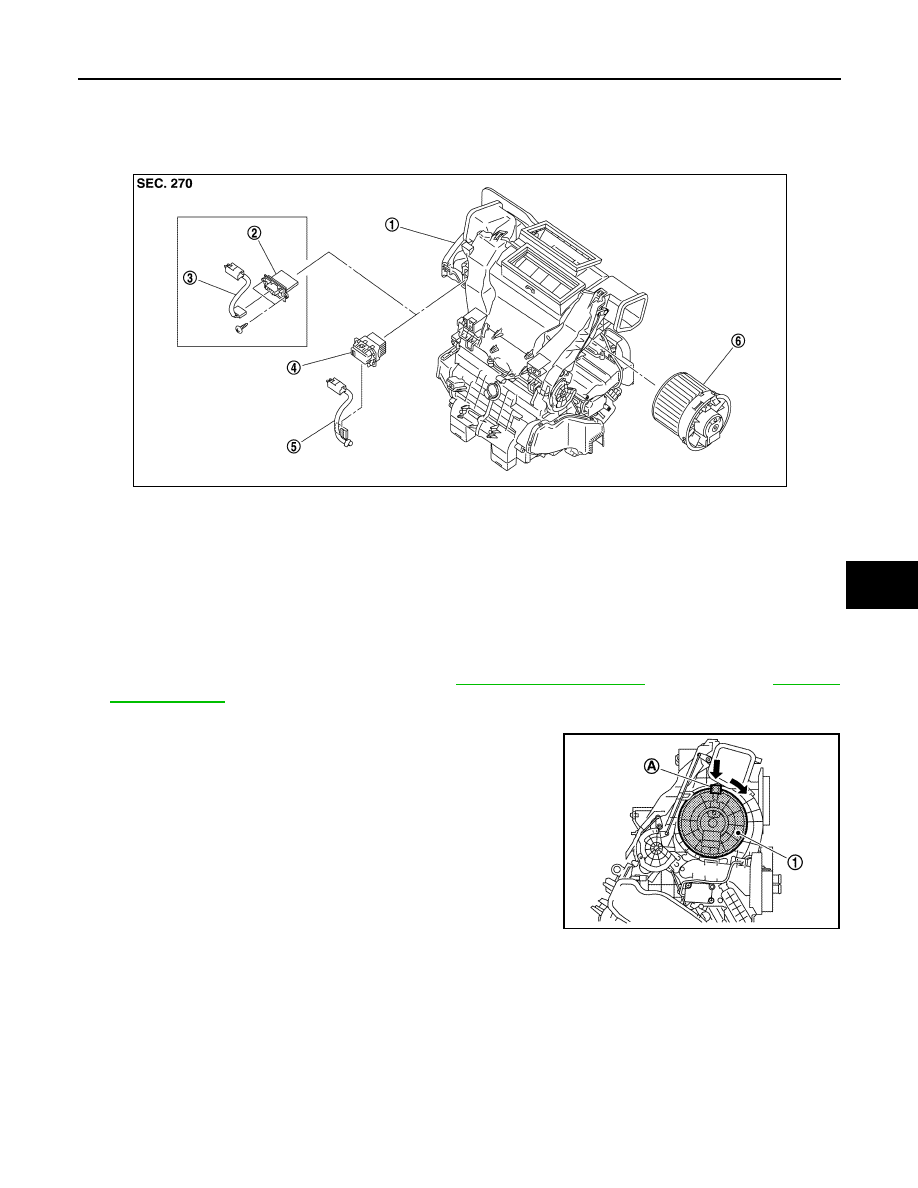

Exploded View

INFOID:0000000009946843

• *1: Manual air conditioner

• *2: Automatic air conditioner

Removal and Installation

INFOID:0000000009946844

REMOVAL

1.

Remove remote keyless entry receiver. Refer to

DLK-229, "Exploded View"

 (WITH I-KEY) or

DLK-379,

"Exploded View"

 (WITHOUT I-KEY).

2.

Disconnect blower motor connector.

3.

Press flange holding hook (A), and then turn blower motor (1)
clockwise.

4.

Pull outside, and then remove blower motor.

INSTALLATION

Installation is basically the reverse order of removal.

1.

A/C unit assembly

2.

Blower fan resistor

*1

3.

Sub harness

*1

4.

Power transistor

*2

5.

Sub harness

*2

6.

Blower motor

JPIIA1680ZZ

JPIIA1692ZZ

WCS

WCS-1
