Nissan Cube. Manual - part 997

VTL-4

< PRECAUTION >

PRECAUTIONS

Precaution for Procedure without Cowl Top Cover

INFOID:0000000010138607

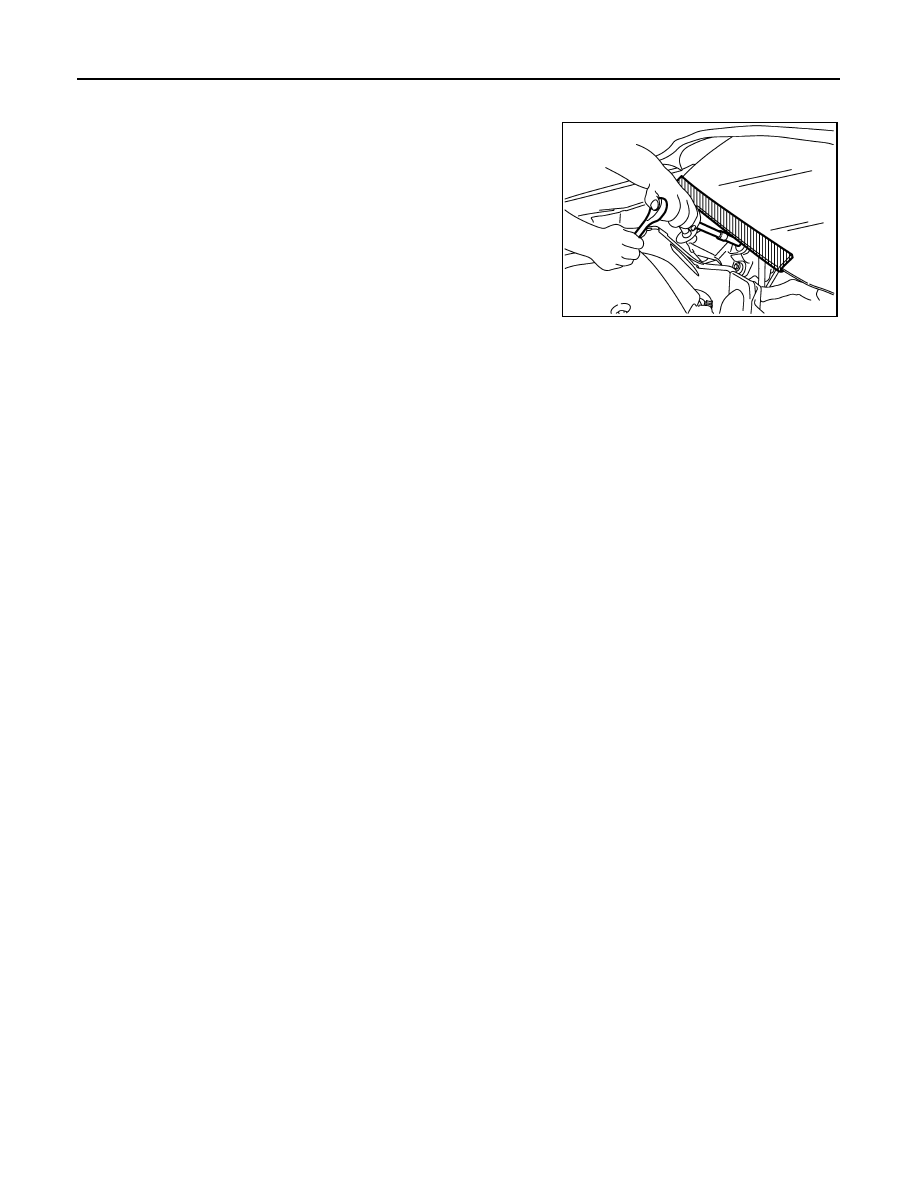

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

PIIB3706J

PREPARATION

VTL-5

< PREPARATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

PREPARATION

PREPARATION

Commercial Service Tool

INFOID:0000000009946829

Tool name

Description

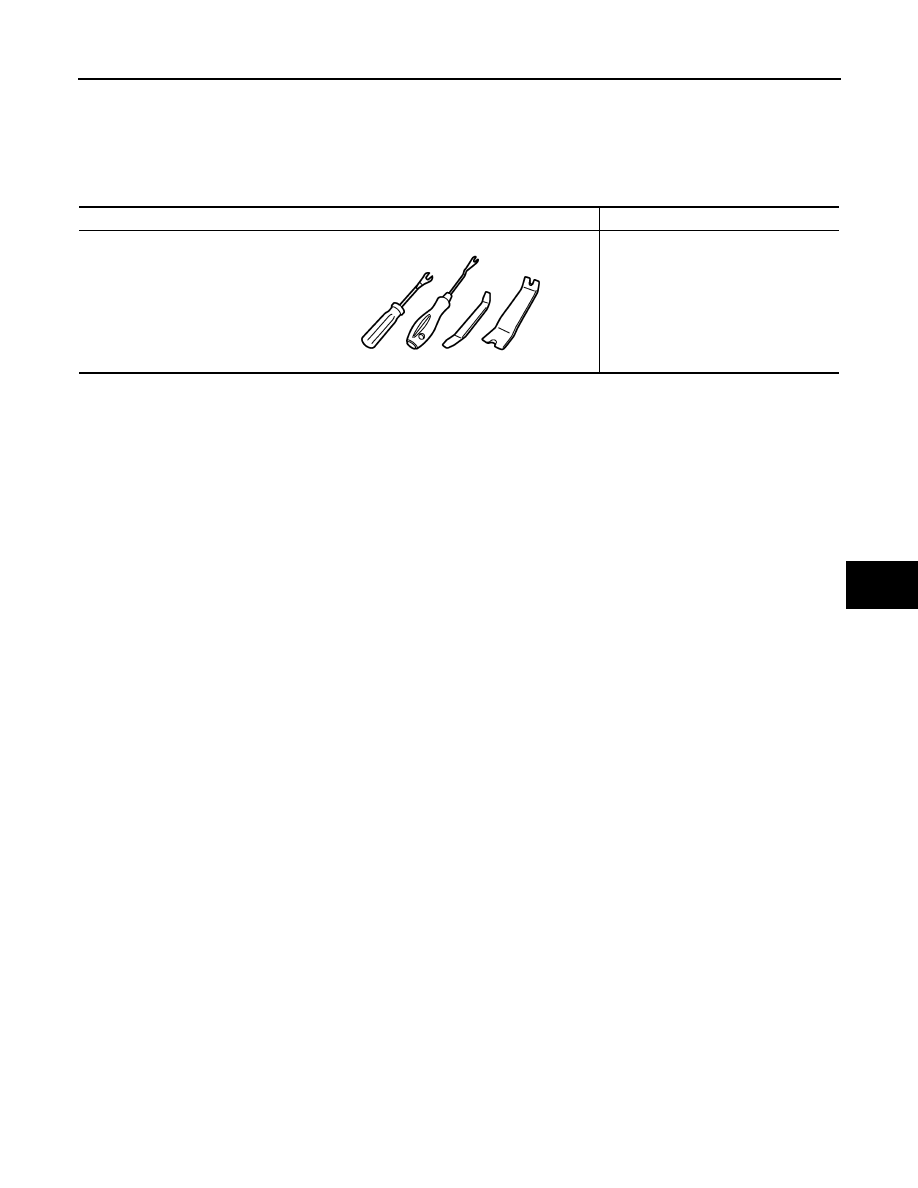

Remover tool

Remove clips, pawls and metal clips

JMKIA3050ZZ

VTL-6

< PERIODIC MAINTENANCE >

IN-CABIN MICROFILTER

PERIODIC MAINTENANCE

IN-CABIN MICROFILTER

Exploded View

INFOID:0000000009946830

Removal and Installation

INFOID:0000000009946831

REMOVAL

1.

Remove globe box assembly. Refer to

IP-13, "Exploded View"

.

2.

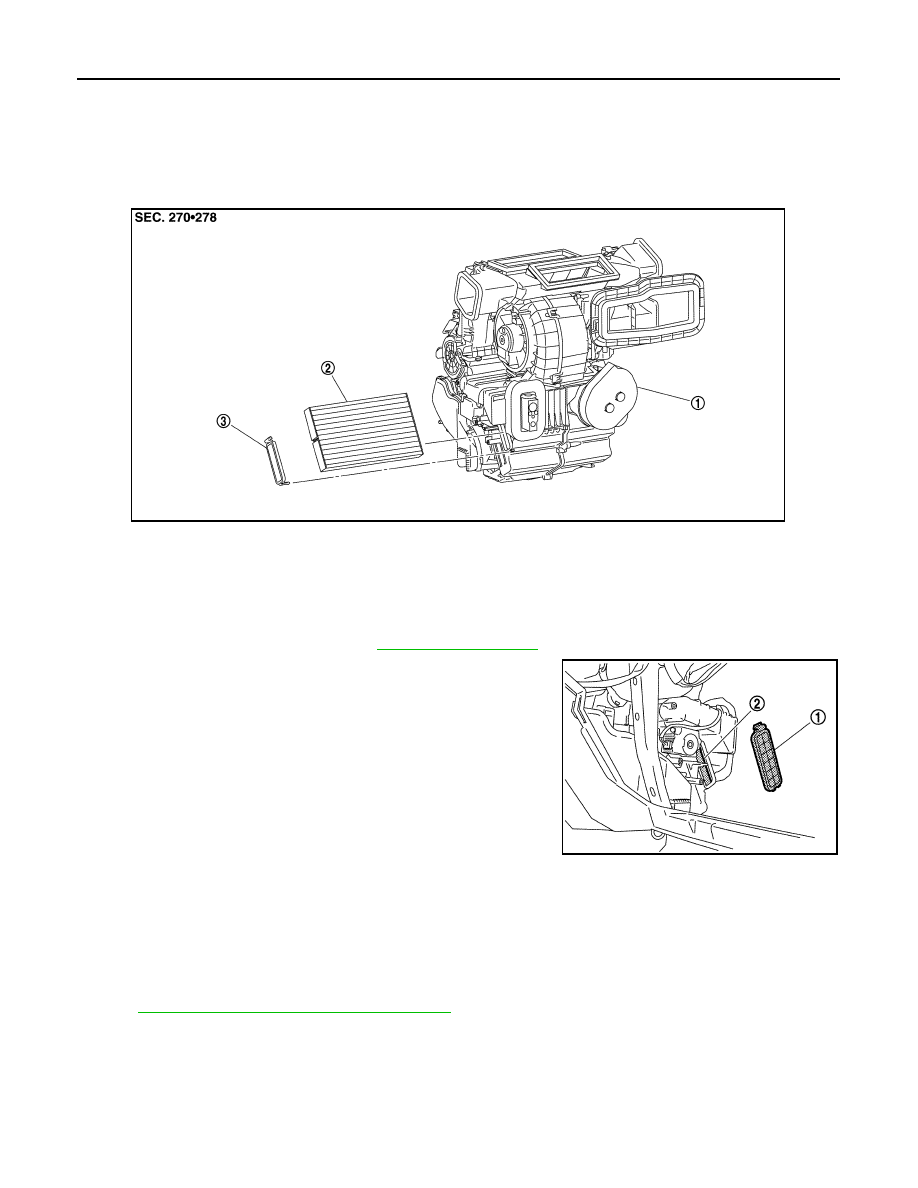

Remove filter cover (1) from the RH side of A/C unit assembly,
and then remove in-cabin microfilter (2).

CAUTION:

If the filter is deformed/damaged when removing, replace it
with a new one. Deformed/damaged filter may deteriorate
the dust collecting performance.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

When installing, handle the filter with extreme care to avoid deforming/damaging.

Replacement

INFOID:0000000009946832

Replace in-cabin microfilter.
Refer to

MA-6, "Introduction of Periodic Maintenance"

.

Affix a caution label inside the glove box when replacing filter.

1.

A/C unit assembly

2.

In-cabin microfilter

3.

Filter cover

JPIIA1679ZZ

JPIIA1683ZZ

DUCT AND GRILLE

VTL-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

REMOVAL AND INSTALLATION

DUCT AND GRILLE

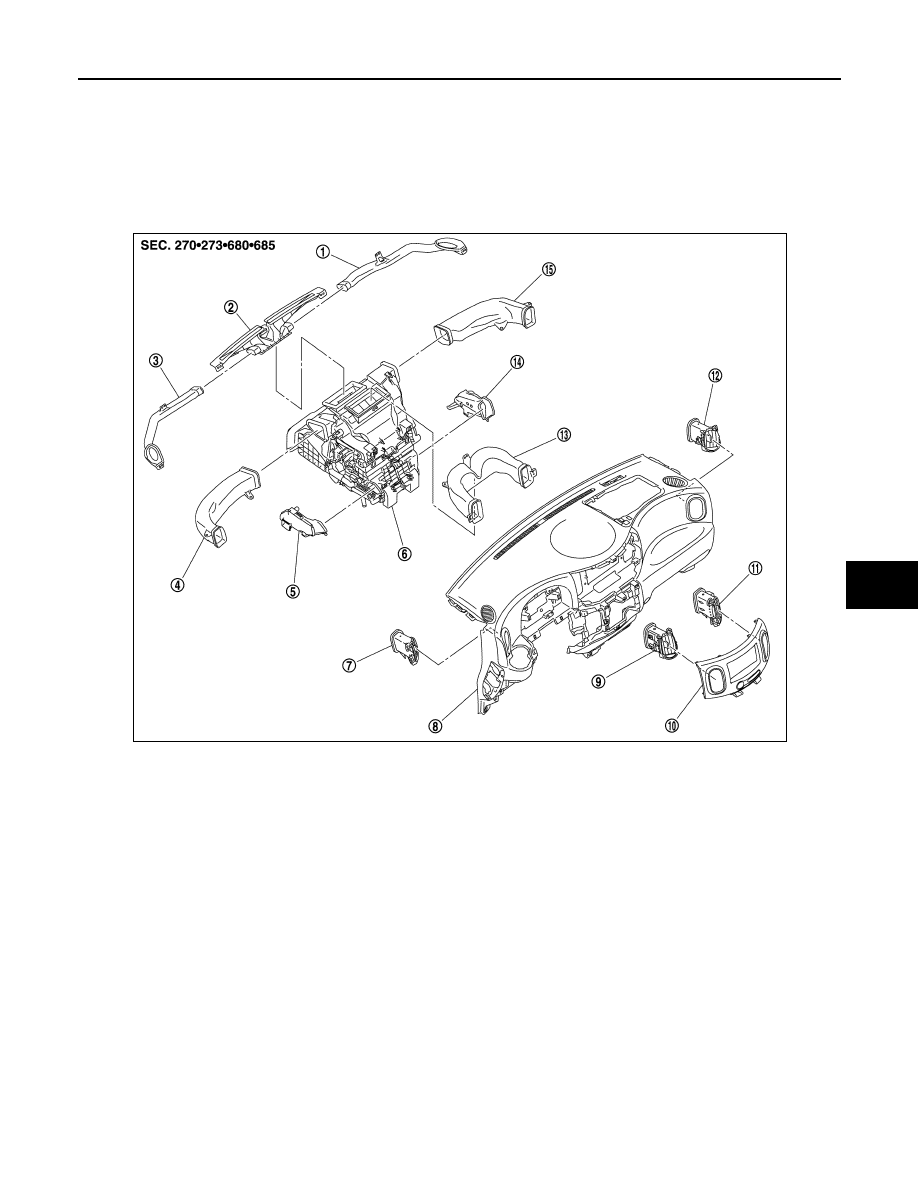

Exploded View

INFOID:0000000009946833

FRONT

REAR

1.

Side defroster nozzle RH

2.

Front defroster nozzle

3.

Side defroster nozzle LH

4.

Side ventilator duct LH

5.

Foot duct LH

6.

A/C unit assembly

7.

Side ventilator grille LH

8.

Instrument panel assembly

9.

Center ventilator grille LH

10. Cluster lid C

11. Center ventilator grille RH

12. Side ventilator grille RH

13. Center ventilator duct

14. Foot duct RH

15. Side ventilator duct RH

JPIIA1684ZZ
