Nissan Cube. Manual - part 869

SR-22

< REMOVAL AND INSTALLATION >

CRASH ZONE SENSOR

CRASH ZONE SENSOR

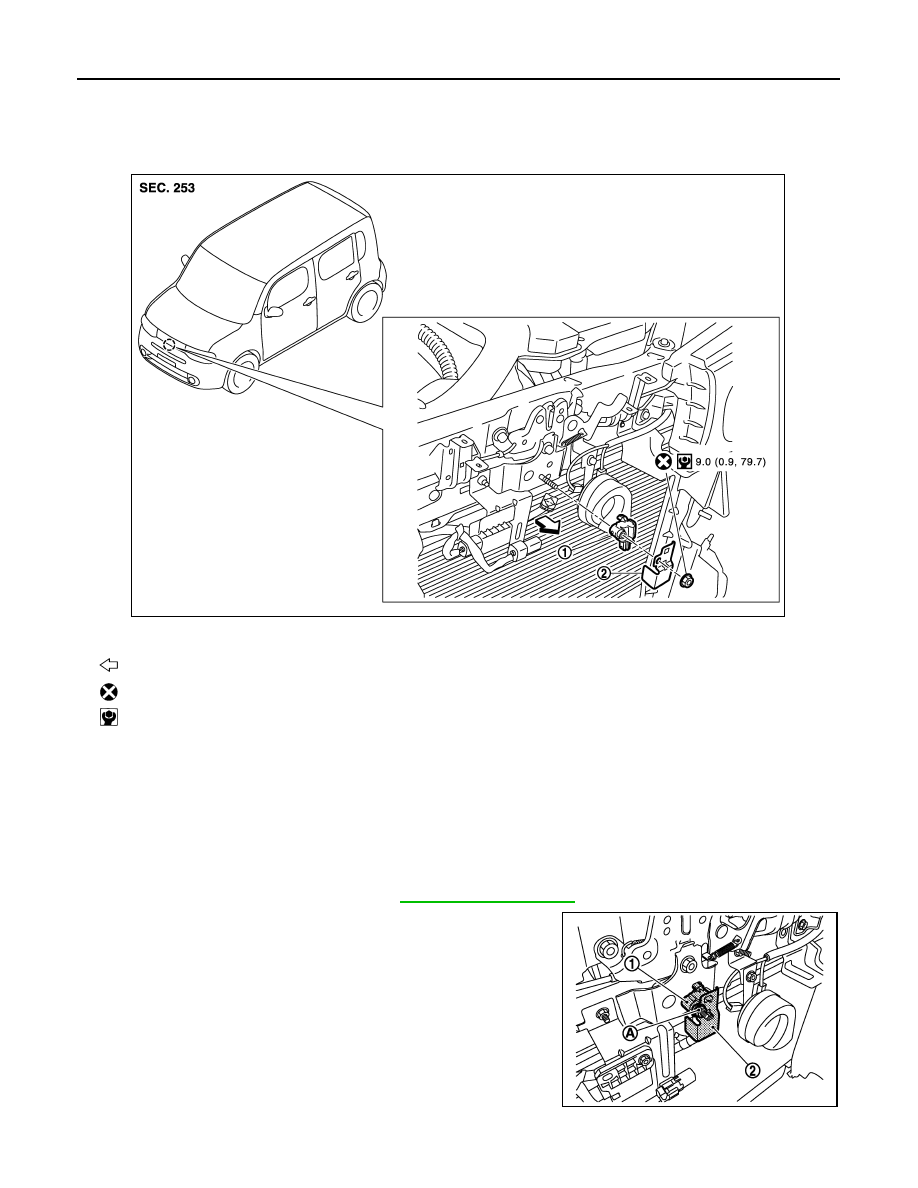

Exploded View

INFOID:0000000009946910

Removal and Installation

INFOID:0000000009946911

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the front bumper fascia. Refer to

EXT-11, "Exploded View"

.

2.

Remove the fixing nut (A), and pull back crash zone sensor (1)
and bracket (2).

3.

Disconnect the crash zone sensor harness connector.

1.

Crash zone sensor

2.

Bracket

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

JMHIA1039GB

JMHIA1062ZZ

CRASH ZONE SENSOR

SR-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

CAUTION:

• Never impact the crash zone sensor.
• Replace the crash zone sensor if it has been dropped or sus-

tained an impact.

• Replace the crash zone sensor of deployed driver air bag module, deployed passenger air bag mod-

ule or seat belt pre-tensioner.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never use the old fixing nut after removal, replace with the new nut.
• Never damage the harness while installing.
• Always install normally aligning to the cutout hole, because performance of the crash zone sensor

excessively fluctuates according to the installation position.

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-24, "CONSULT

Function"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

JMHIA0009ZZ

SR-24

< REMOVAL AND INSTALLATION >

SATELLITE SENSOR

SATELLITE SENSOR

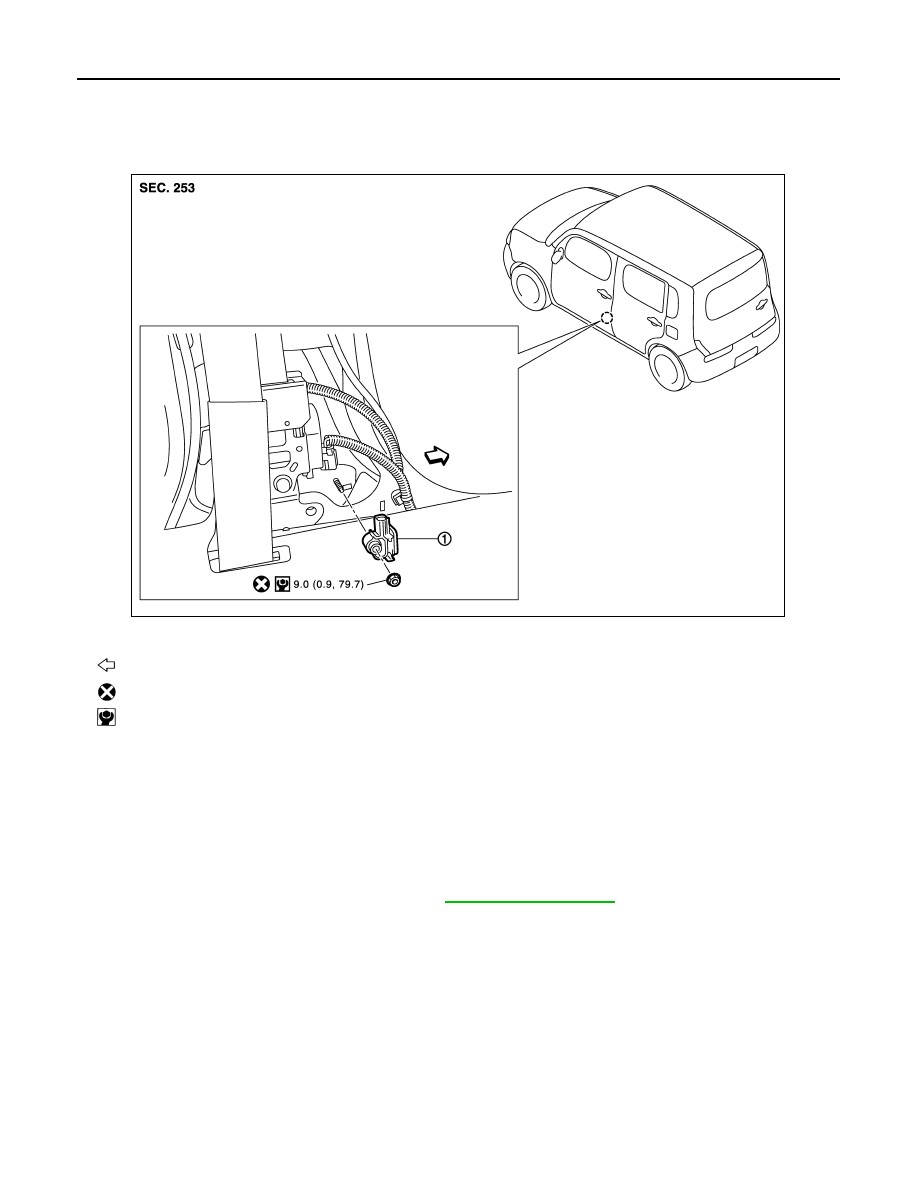

Exploded View

INFOID:0000000009946912

Removal and Installation

INFOID:0000000009946913

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the center pillar lower garnish. Refer to

INT-16, "Exploded View"

.

2.

Remove the satellite sensor fixing nut.

3.

Disconnect the harness connector and then remove the satellite sensor.

CAUTION:

1.

Satellite sensor

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

JMHIA1336GB

SATELLITE SENSOR

SR-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

• Never impact the satellite sensor.
• Replace the satellite sensor if it has been dropped or sus-

tained an impact.

• Replace the satellite sensor of deployed side air bag module and deployed curtain air bag module.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never use the old fixing nut after removal, replace with the new nut.
• Never damage the harness while installing.
• Always install normally aligning to the cutout hole, because performance of the satellite sensor

excessively fluctuates according to the installation position.

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-24, "CONSULT

Function"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

JMHIA0009ZZ
